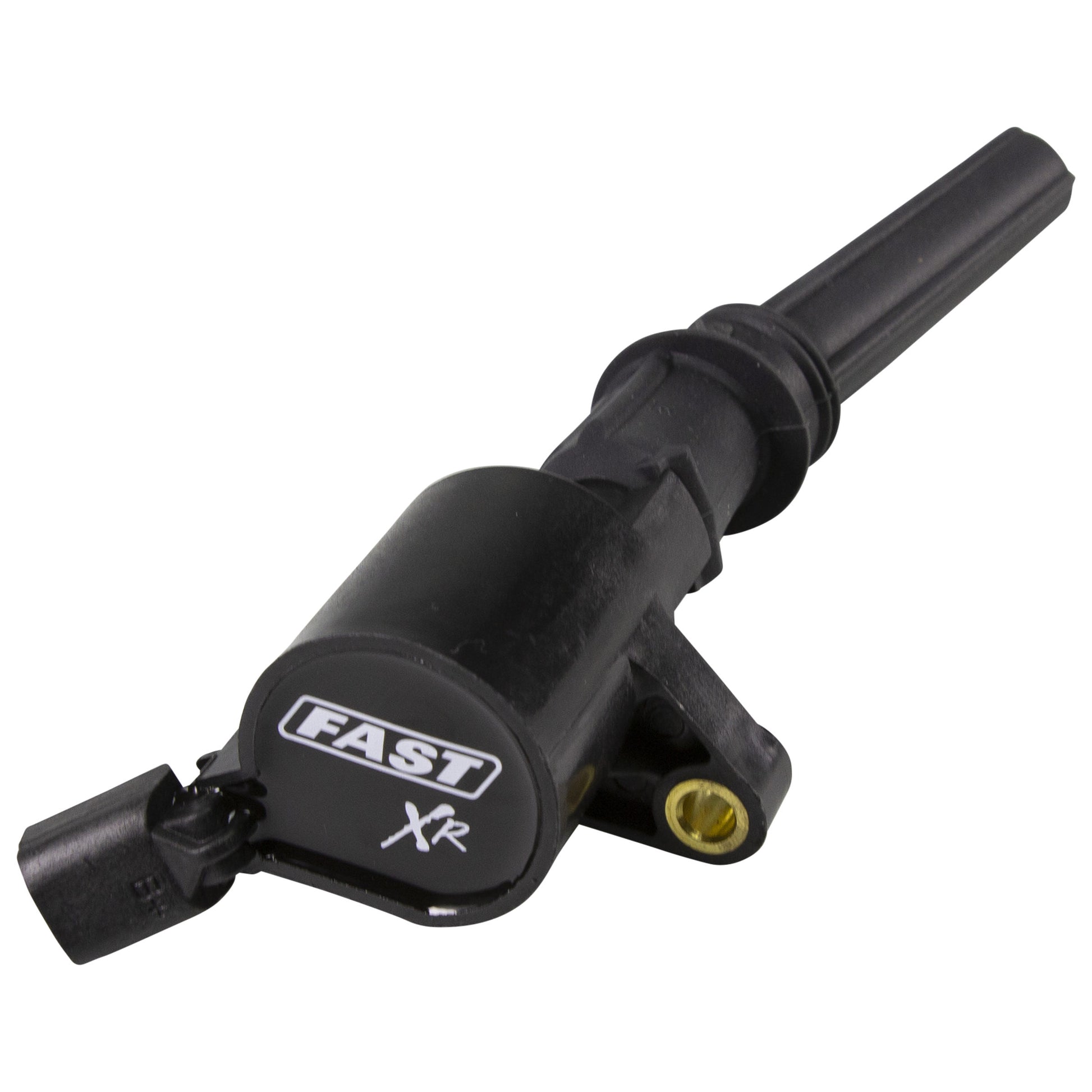

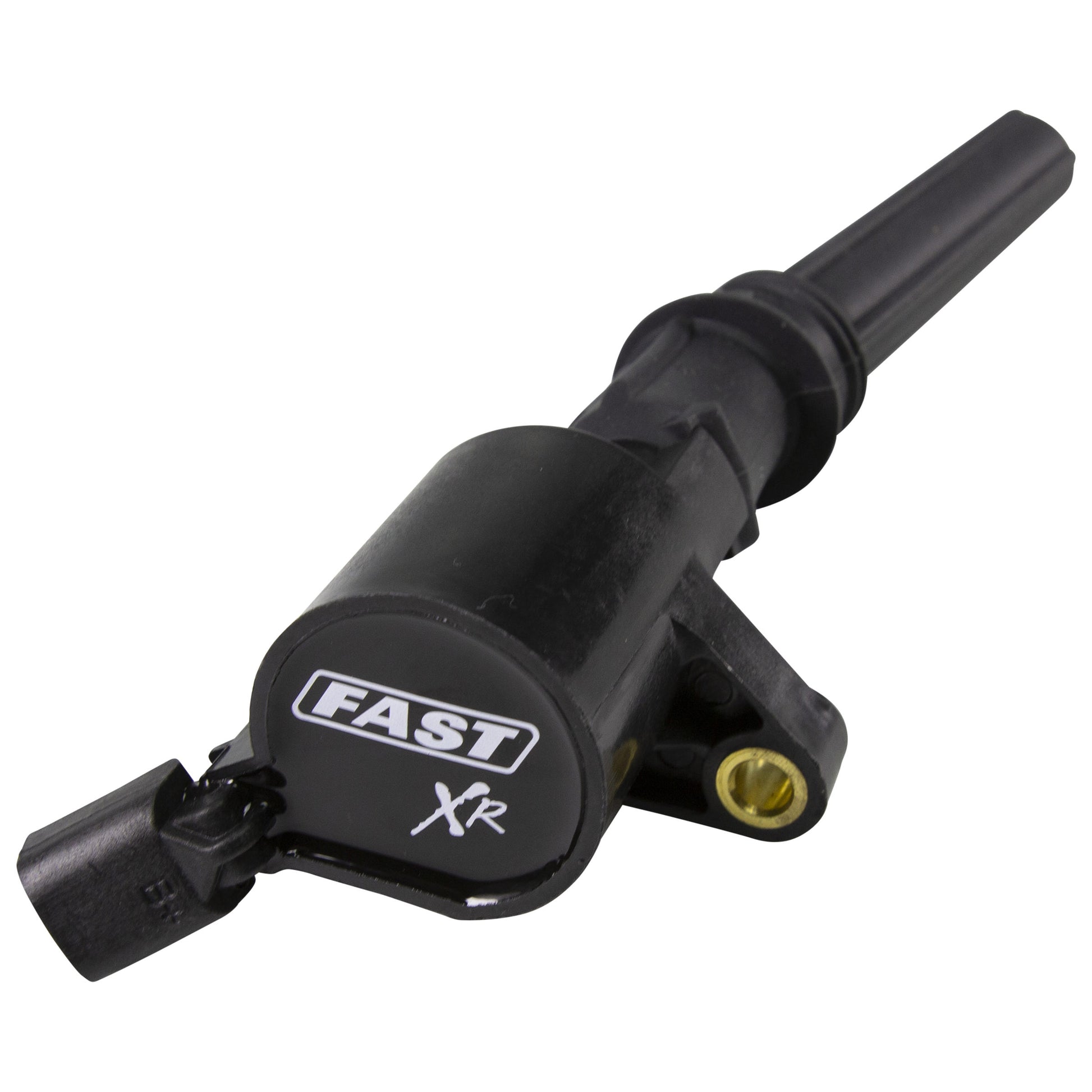

FAST 30390-1 - 97-14 Ford Modular 2V 4.6L/5.4L/5.8L XR Series Ignition Coil - Single

FAST 30390-1 - 97-14 Ford Modular 2V 4.6L/5.4L/5.8L XR Series Ignition Coil - Single

FAST | 30390-1
SKU: FAST-30390-1
Regular price $61.99 USD
Regular price $68.19 USD Sale price $61.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

FAST 30390-1 - 97-14 Ford Modular 2V 4.6L/5.4L/5.8L XR Series Ignition Coil - Single

XR Ignition Coil for '99-'14 Ford 4.6/5.4/5.8L 2V Modular Engines

Ford 1997-2014 Modular 2V 4.6L/5.4L/5.8L XR Coils provide 15% more spark energy over OEM coils in any street or racing application where reliable, powerful ignition output is needed.

Ford 1997-2014 Modular 2V 4.6L/5.4L/5.8L XR Coilsare direct replacements in factory Ford Modular and Coyote engines and fit/connect like OEM coils for an easy install. They are constructed from premium, ultra-pure copper alloy windings, resulting in firing performance approaching 40,000 peak volts. They do not affect emissions and are legal in all 50 states.

  • XR Series of Coils provide 15% more spark energyIncreased PerformanceIdeal for street & racing application where powerful ignition output is needed
Ballast Resistor Included: No
Maximum Voltage: 40000
Engine Fitment/ Year, Make and Model Range: 1997-2014 Ford 4.6L/5.4L/6.8L with 2-valve heads
C.A.R.B. EO Number: N/A
C.A.R.B. Exempt?: No
Coil Color: Black
Coil Internal Construction: Potted
Coil Shape: OEM
Coil Style: OEM
Coil Wire Attachment: OEM
Coil Wire Included: No
Meets or Exceeds OEM Specs: Yes
Mounting Bracket Included: No
Mount Type: OEM
Mounting Position: OEM
Oil Filled: No
Primary Inductance: 0.5mH
Primary Resistance: 0.35
Quantity: 1
Secondary Resistance: 5.5K
Turns Ratio: 83:1
Includes Hardware?: No
