Factor 55 - 00250-05

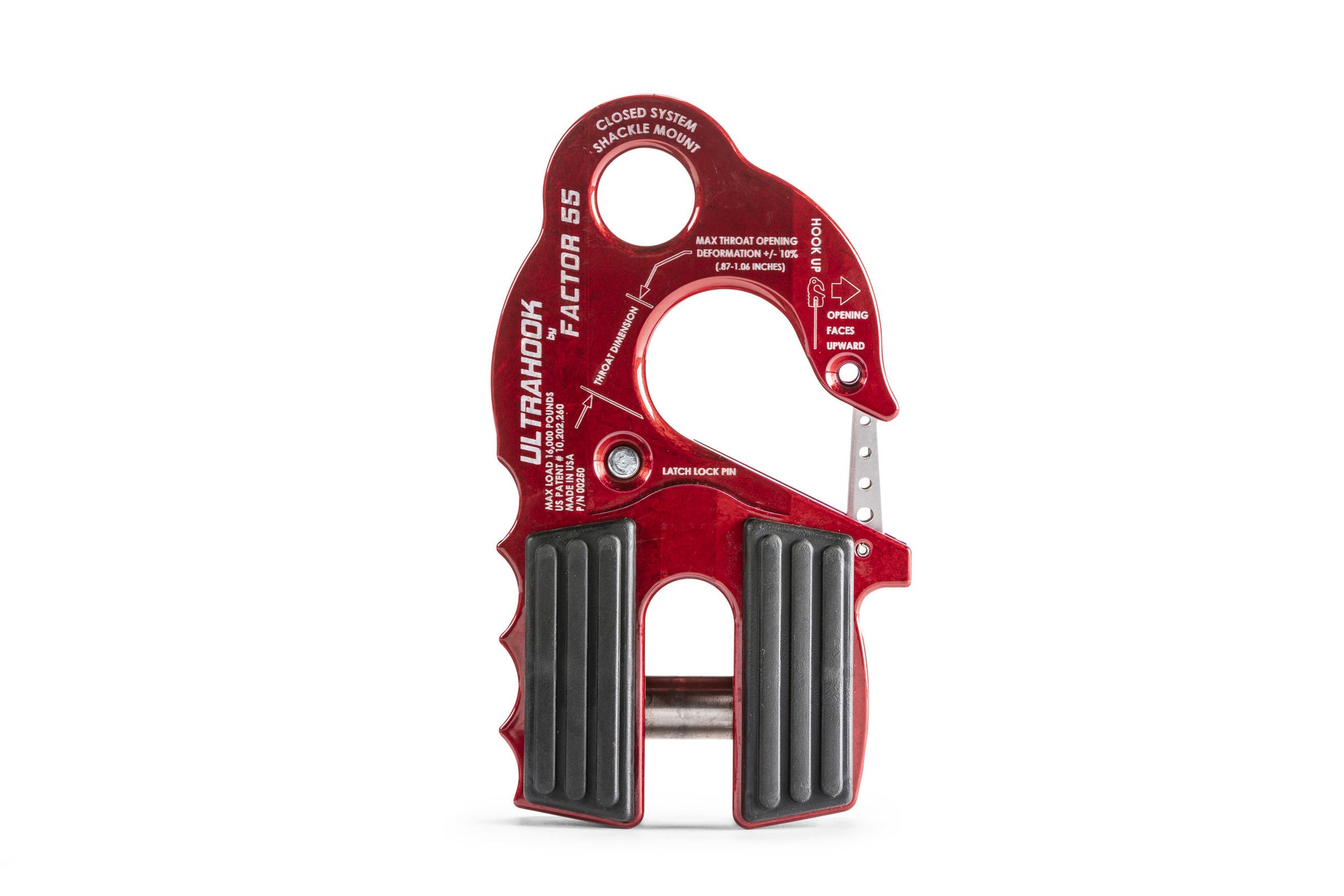

All the benefits of Closed System Winching? with the versatility of having a hook. Originally developed to meet the needs of off-road racers who wanted the speed of a hook and functionality of closed system winching, the low-profile UltraHook features an industry-first closed system shackle mount hole machined into the body of the hook and installs in minutes.

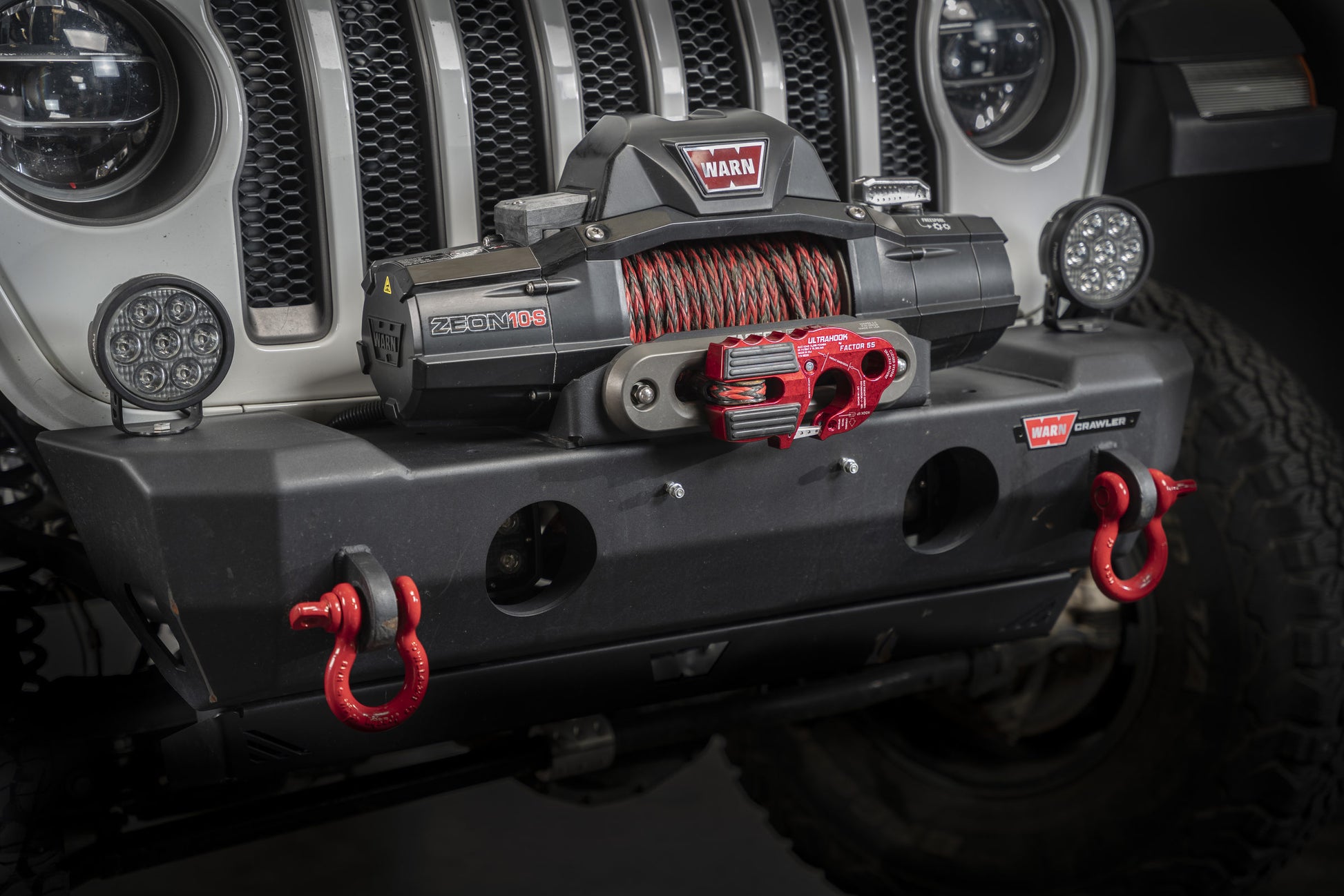

A latch pin, which is stored in the hook's body, can lock the safety latch securely into place for a true Closed Loop System. Integrated finger grips promote proper Hook Up orientation. UltraHook is the first winch hook that can be stored neatly against a winch's fairlead protecting it from a metal-to-metal connection, thanks to EPDM rubber pads, which also eliminate the UltraHook from rattling.

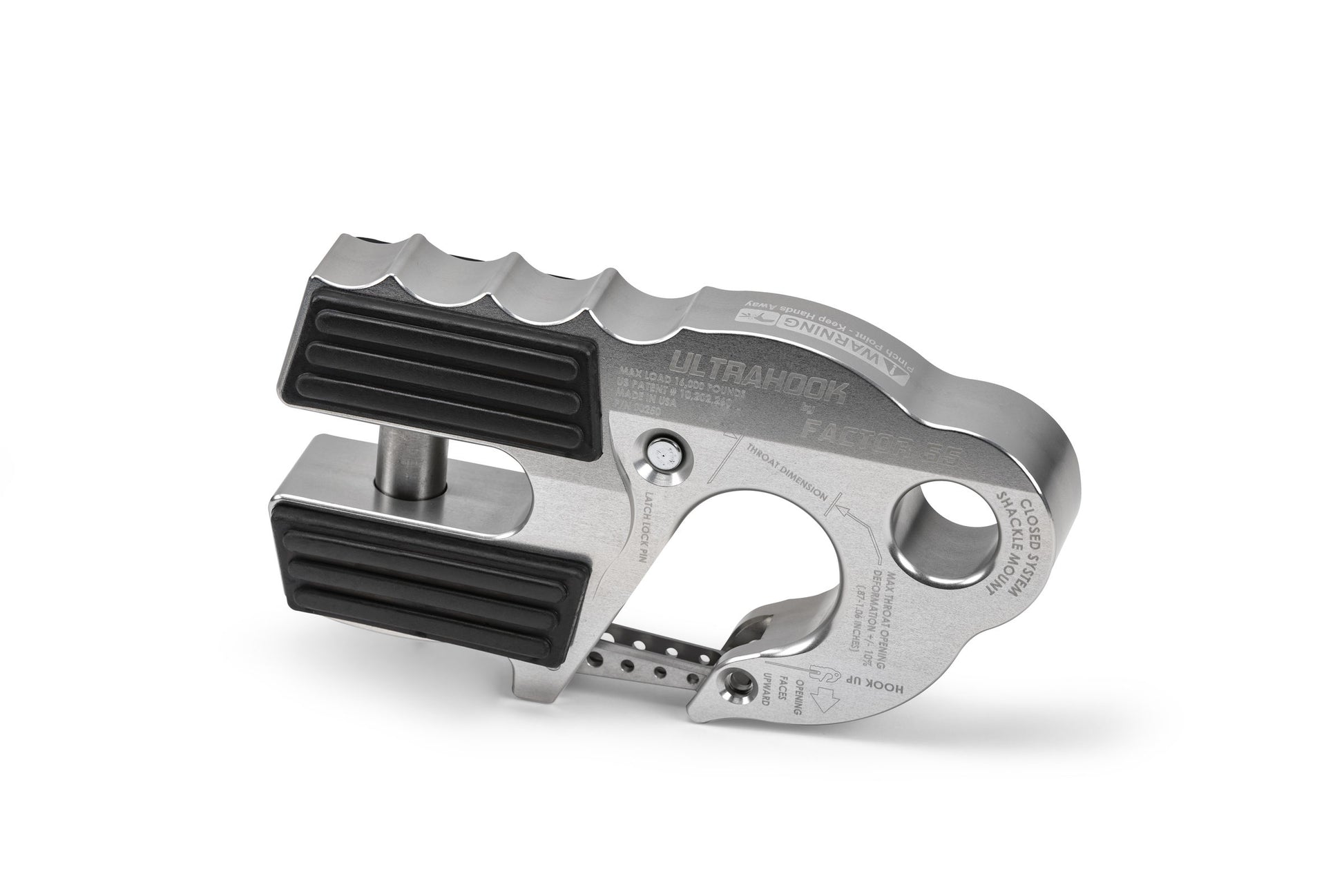

- UltraHook Closed System Winch Shackle Mount Silver
- Easy-to-install shackle mount with a hole machined into the hook's body. Shackle pin mounting hole accepts screw pins from common 3/4 inch and soft shackles up to 1/2 inch
- Use either as a conventional hook or a shackle mount
- No rope splicing required - double shear pin design accepts rope/cable eyes, for use with either steel or synthetic winch rope
- Lightweight - Precision CNC machined 7000 series Military Grade Aluminum
- Max opening deformation clearly laser engraved
- Safety latch with integrated latch lock pin allows for true closed system winching
- Includes 5/8 inch diameter aerospacegrade 6AI-4V grade V titanium doubleshear pin
- EPDM rubber pads for fairlead protection, and a finger grip feature that promotes proper Hook Up orientation; also prevents rattling
- Can be used with line diameters up to 3/8 inch
- 3 inch thick when folded flat
- Maximum Load: 16,000 lbs.
- Ultimate Strength - Hook Throat Opening: 31,000 pounds
- Ultimate Strength - Shackle Pin Mount: 48,000 pounds
- Weight: 32 oz
- Engineered, Tested, and Made in USA. Patent pending
