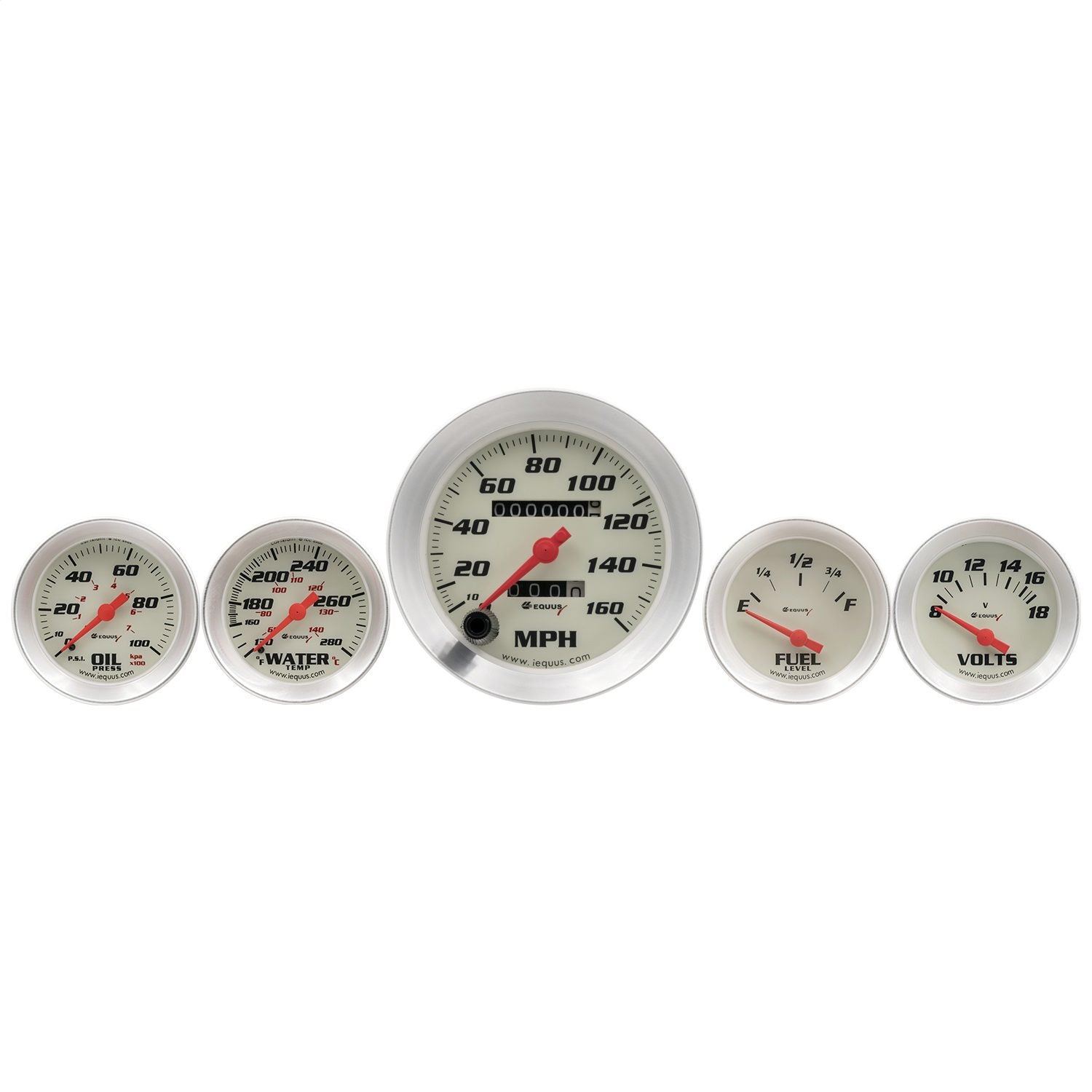

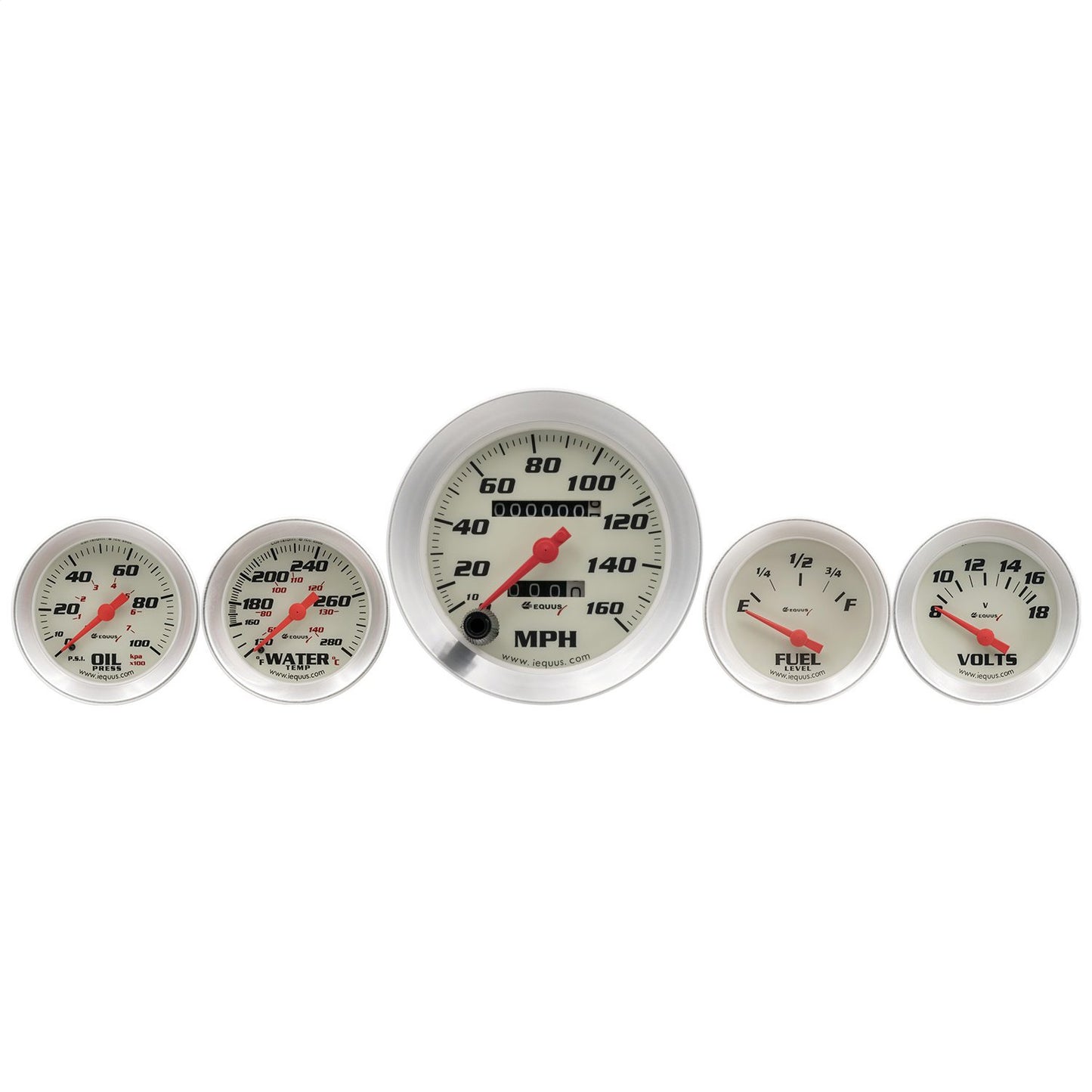

Equus E8500 - Gauge Set, 3-3/8" Mech Speedo, 2" OILP/WTEMP/FUEL/VOLT, Wht, Slvr, 8000 Series

Equus E8500 - Gauge Set, 3-3/8" Mech Speedo, 2" OILP/WTEMP/FUEL/VOLT, Wht, Slvr, 8000 Series

Gauge Kit - 8000 Series - Analog - Fuel Level / Oil Pressure / Speedometer / Voltmeter / Water Temperature - 3-3/8 in / 2 in Diameter - White Face - Kit

EQUUS 8000 SERIES 5 PC. KIT, 3-3/8" SPEEDO

This accurate, durable, and simple to install iEquus 8000 Performance series five piece mechanical gauge set features white dial, satin silver aluminum bezel, backlit instruments using super lightweight construction and race inspired styling for monitoring speed, oil pressure, water temperature, voltage and fuel level. Installation hardware included. Additional adapters sold separately. Perfect for a variety of applications from hot rods to trucks and off road vehicles.

• Set includes 3 3/8 in. 160 MPH mechanical speedometer, 2 in. 100 PSI/ 70 kPA mechanical oil pressure, 2 in. 280 degree F/ 140 degree C mechanical water temperature, 2 in. 18V electric voltmeter, and 2 in. electric 0-90 ohm fuel level gauges
• Back-Lit™ illumination for night use. Includes red, green, blue and yellow bulb covers.
• Includes the following installation hardware: 3/8 in. & 1/2 in. NPT brass adapter fittings for temperature gauge, 6 ft. nylon tubing with 1/8 compression fittings
• 1/8 in. NPT female to 1/4 in. NPT male brass adapter for pressure gauge, 1/4 female spade terminals for voltmeter, and universal 5 bolt fuel level sensor which is adjustable for 5-24 inches of tank depth.
• One million mile odometer with one thousand mile resettable trip meter.
• Configured for 1:1 Drive Ratio (1,000 cable RPM at 60 MPH)
• 5/8 x 18 male thread attachment point for 0.104" square drive speedometer cables. Additional adapters sold separately.
• Matching tachometer is available in Equus model 8068
• Includes installation instructions in English, French, and Spanish.
