Edelbrock 85552 - Head Stud Kit Chrysler E-Series Small Block

MSRP: $114.39
$103.99
( saved $10.40 )
Write a Review
  • Edelbrock 85552 - Head Stud Kit Chrysler E-Series Small Block
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Verify fitment with your vehicle
GO
Clear
Adding to cart… The item has been added
SKU:
EDEL-85552
UPC:
085347855520
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Edelbrock - 85552

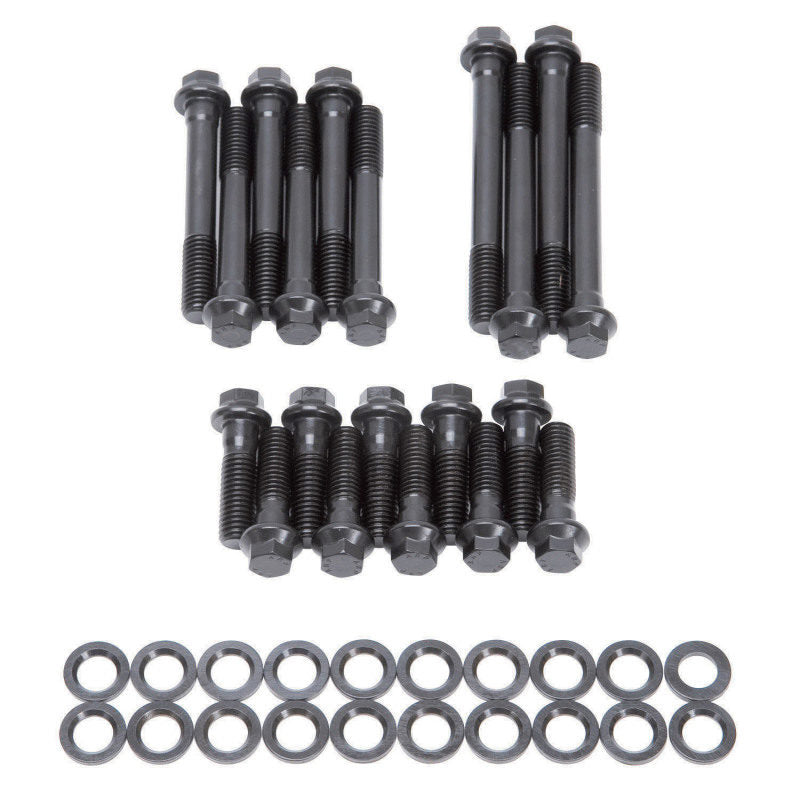

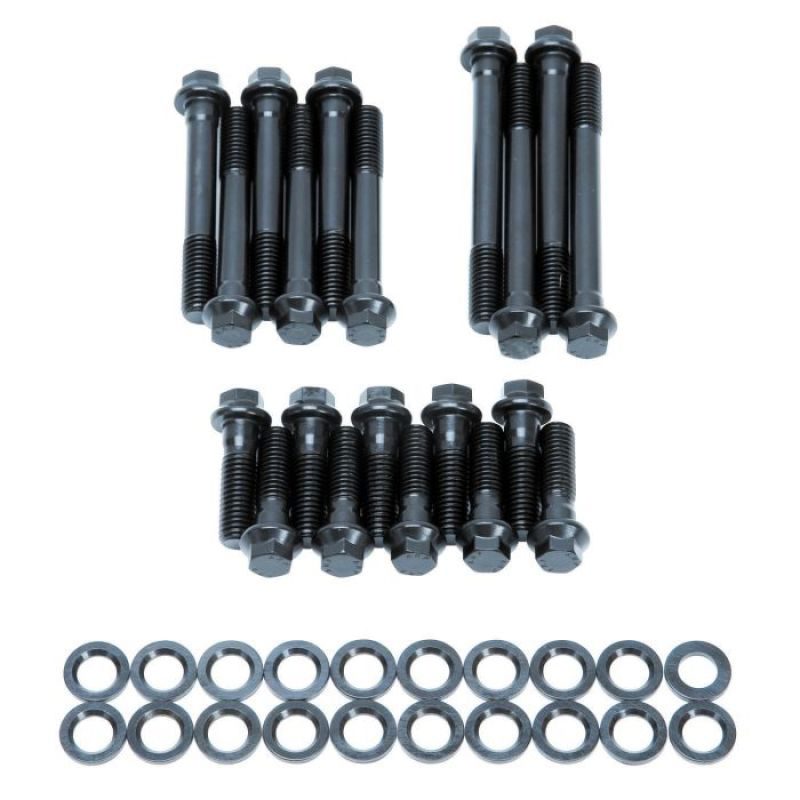

Cylinder Head Bolt Kit - E-Series - Hex Head - Chromoly - Black Oxide - Small Block Mopar - Kit

Edelbrock #85552 is a Head Bolt Kit for Small-Block Chrysler 318-360 "LA" Engines with Edelbrock #60769, 60175, 60179, 60775, 60779 Performer RPM Cylinder Heads. Complete set of Head Bolts & Washers for a pair of heads. Not for Stock Heads.

Edelbrock E-Series Cylinder Head Bolt Kit #85552 is a high-quality replacement bolt set for Chrysler small-block engines equipped with Performer RPM #60779, #60775, #60175 and #60179 aluminum heads. This E-Series bolt kit is required when installing Edelbrock heads on an engine previously equipped with iron heads. Included in this kit are two long bolts per head where the factory only has one. With Edelbrock and other aftermarket aluminum heads, use of washers are required and the bolts in this kit are longer to compensate for the included hardened washers. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.

  • Highest Quality Head Bolts
  • Cold-Formed; Heat Treated
  • Ensures Molecular Integrity
  • Reduced Diameter Bolt Heads
  • Hardened/Parallel-Ground Washers Included
  • Rated At 170000 psi
  • Manufactured By ARP

Head Drive Type: Hex
Material: 8740 Chromoly
Thread Type: Coarse
Thread Diameter: 0.5
Minimum Length: 2
Washers Included: Yes
Finish: Black Oxide
Grade Type: Performance
Quantity: Kit
Length: (10) 2.00 in, (6) 3.75 in, (4) 4.50
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Year
Make
Model
Submodel
Engine
1955
Chrysler
300
Base
5.4L
1956
Chrysler
300
Base
5.8L
1962 - 1966
Chrysler
300
Base
6.3L
1957 - 1958
Chrysler
300
Base
6.4L
1959 - 1965
Chrysler
300
Base
6.7L
1959 - 1961, 1964 - 1965
Chrysler
300
Base
6.8L
1963
Chrysler
300
Base
7.0L
1966 - 1971
Chrysler
300
Base
7.2L
2005 - 2021
Chrysler
300
C
5.7L
2006
Chrysler
300
C Heritage
5.7L
2007
Chrysler
300
C Heritage Edition II
5.7L
2007 - 2010, 2012 - 2013
Chrysler
300
C Lujo
5.7L
2012 - 2014
Chrysler
300
C Luxury
5.7L
2015 - 2017
Chrysler
300
C Platinum
5.7L
2005 - 2010
Chrysler
300
C SRT8
6.1L
2017 - 2019
Chrysler
300
Hemi
5.7L
2010, 2012 - 2021
Chrysler
300
S
5.7L
1962 - 1963
Chrysler
300
Sport
6.3L
1962 - 1963
Chrysler
300
Sport
6.8L
