Edelbrock 8510 - LSR Cylinder Head Stud Kit

Edelbrock 8510 - LSR Cylinder Head Stud Kit

Edelbrock | 8510
SKU: EDEL-8510
$1,979.95 USD
$2,177.94 USD $1,979.95 USD
Sale Sold out
Shipping calculated at checkout.

7 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 8510 - LSR Cylinder Head Stud Kit

Cylinder Head Stud Kit for LSR

Edelbrock #8510 is a cylinder head stud kit for our LSR cylinder heads #770468 & #770469. This head stud kit is required when using our LSR heads on GM LSX engine blocks.

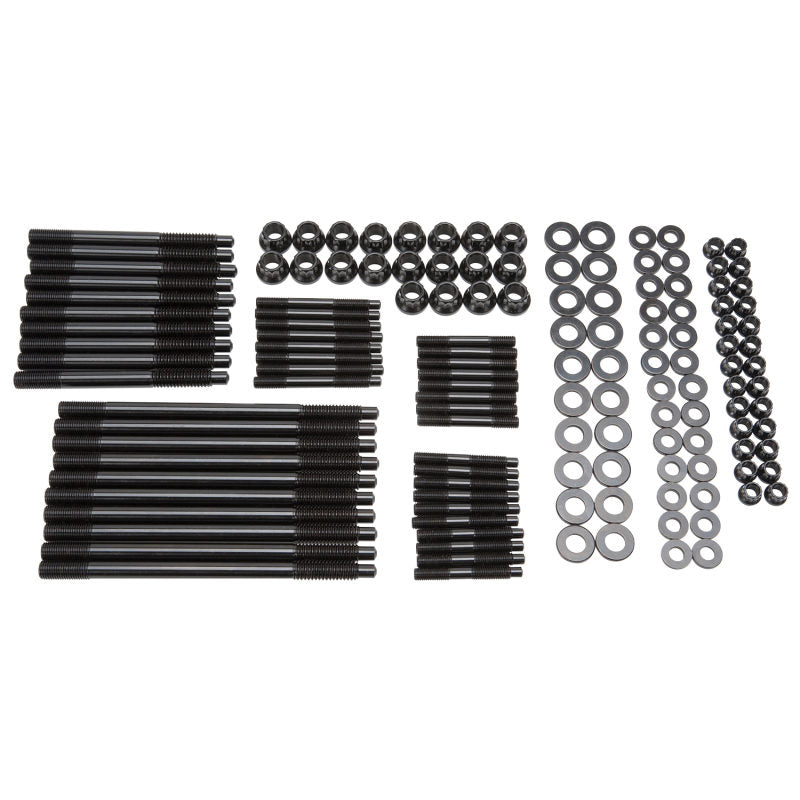

This head stud kit is required when using Edelbrock LS-R cylinder heads #770468 and #770469 on GM LSX engine blocks. Includes 10 7/16" long studs, 10 7/16" short studs, 8 5/16" exhaust studs, 10 5/16" intake flange studs, 8 5/16" valley studs, 20 7/16" washers with nuts and 26 5/16" washers with nuts.

  • Stud Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
End 1 Thread Diameter: 0.4375
Length: (8-Valley) 2.35 in, (10-Intake) 2.40 in, (8-Outside) 3.00 in, (10-Short) 4.95 in, (10-Long) 7.37
Finish: Black Oxide
Quantity: Kit
End 2 Thread Diameter: 0.3125
Washers Included: Yes
End 2 Thread Type: Fine
Material: Chromoly
Grade: Performance
Recommended Use: With Part #770468, #770469
End 1 Thread Type: Fine
