Edelbrock - 77189
Cylinder Head - Victor JR. - Assembled - 2.050 / 1.600 in Valves - 210 cc Intake - 60 cc Chamber - 1.550 in Springs - Angle Plug - Aluminum - Small Block Ford - Each

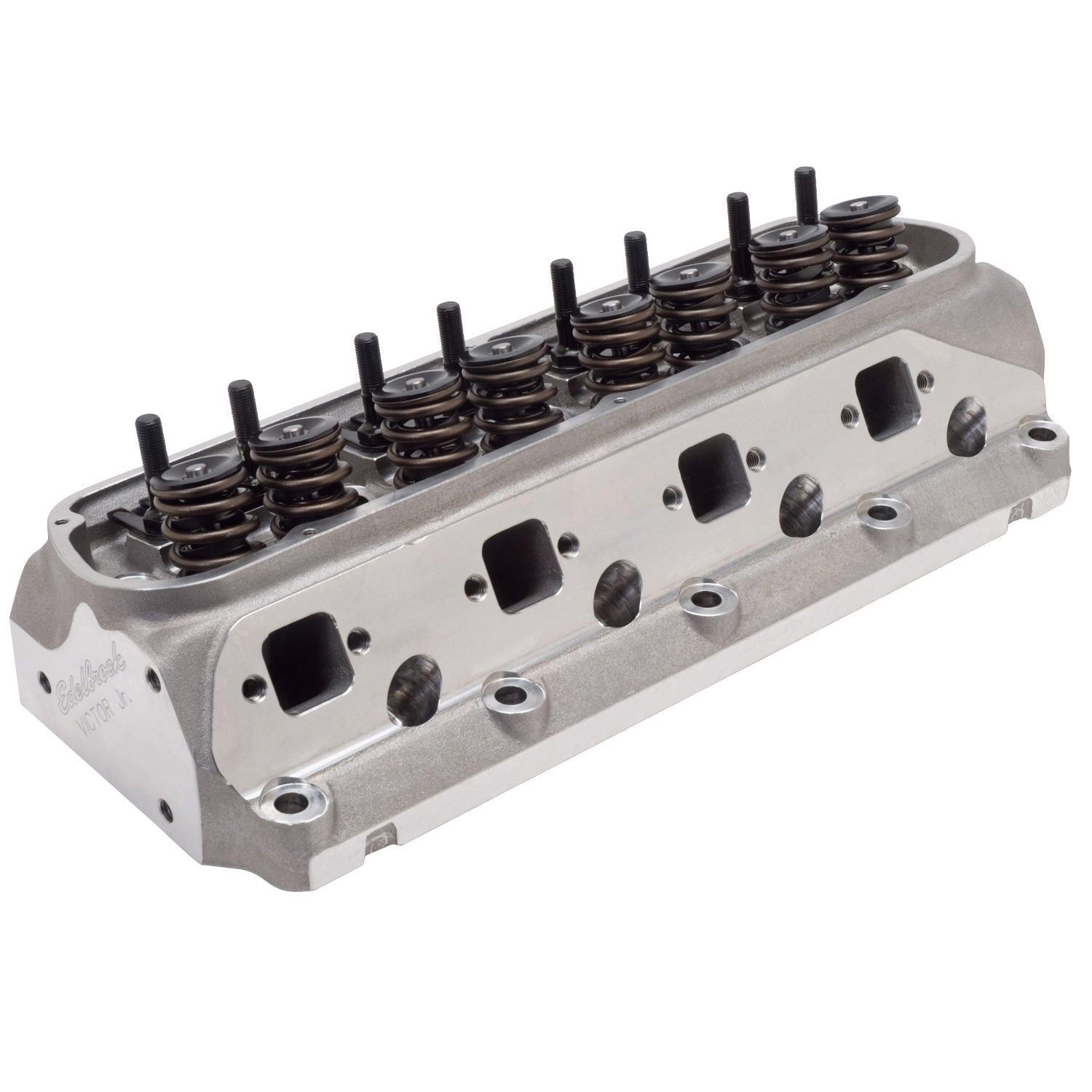

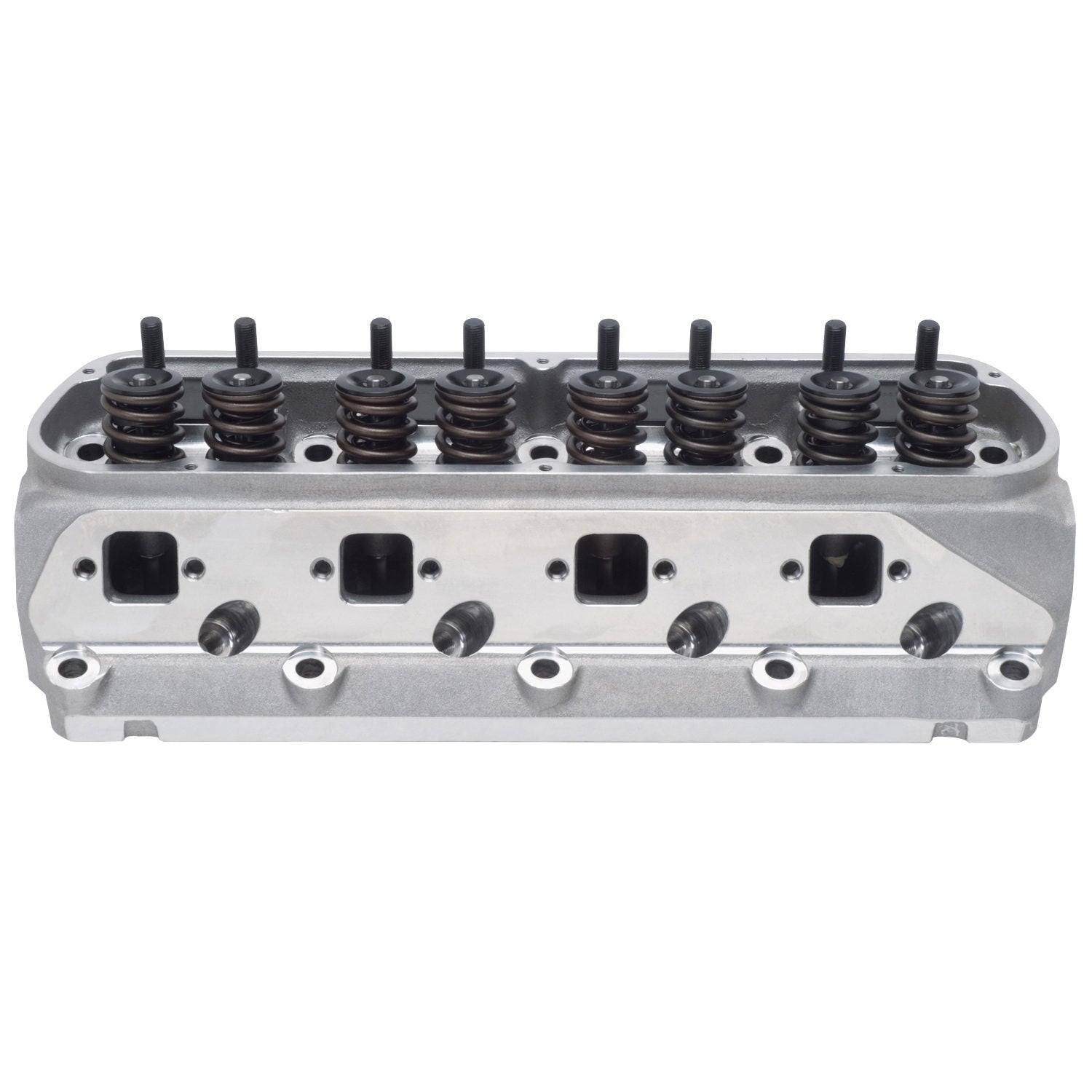

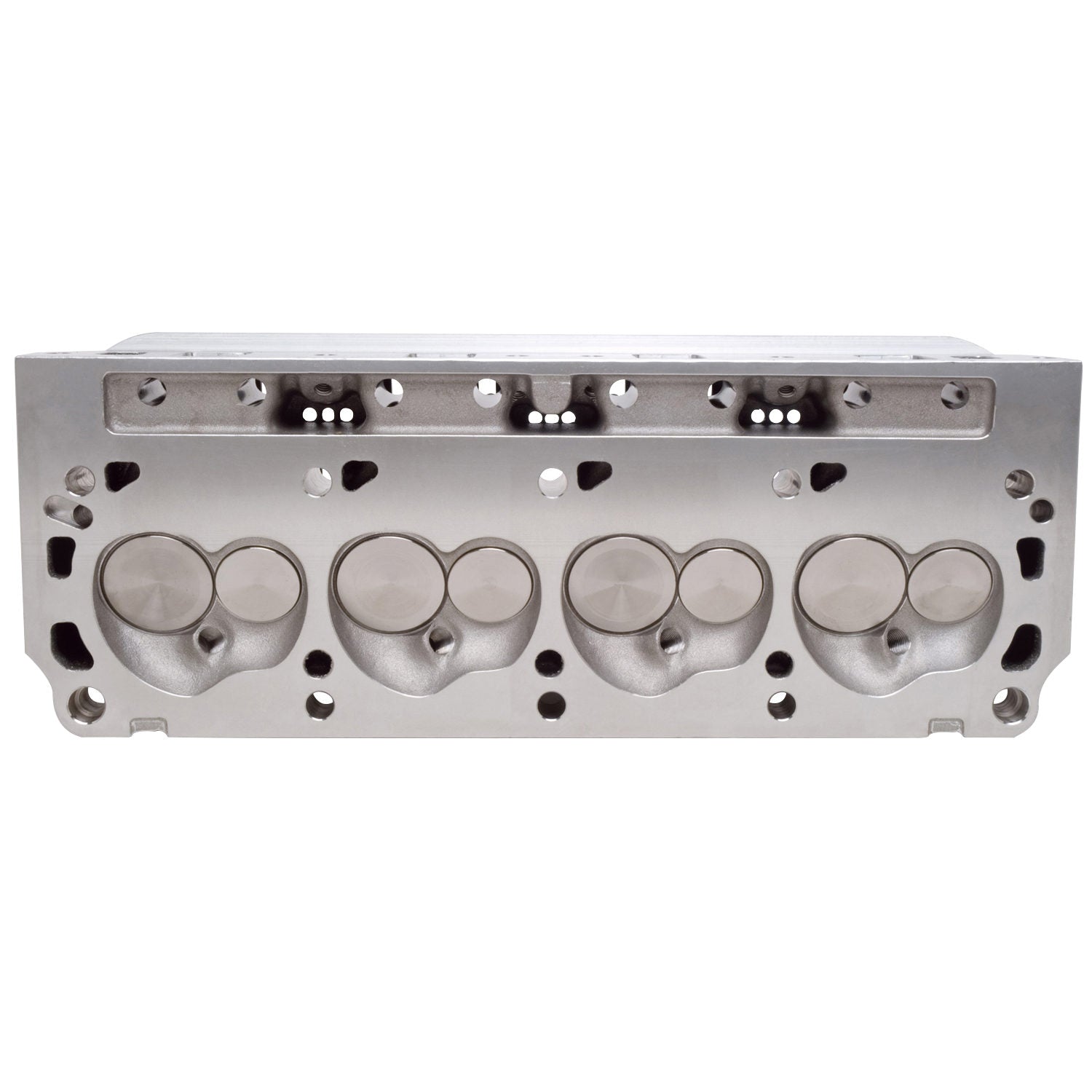

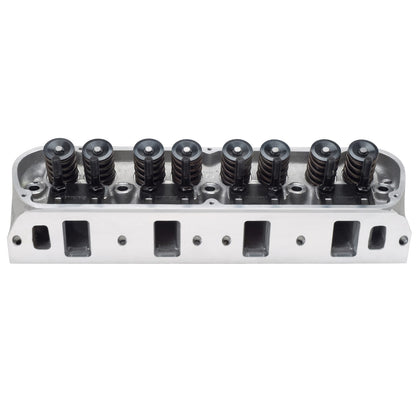

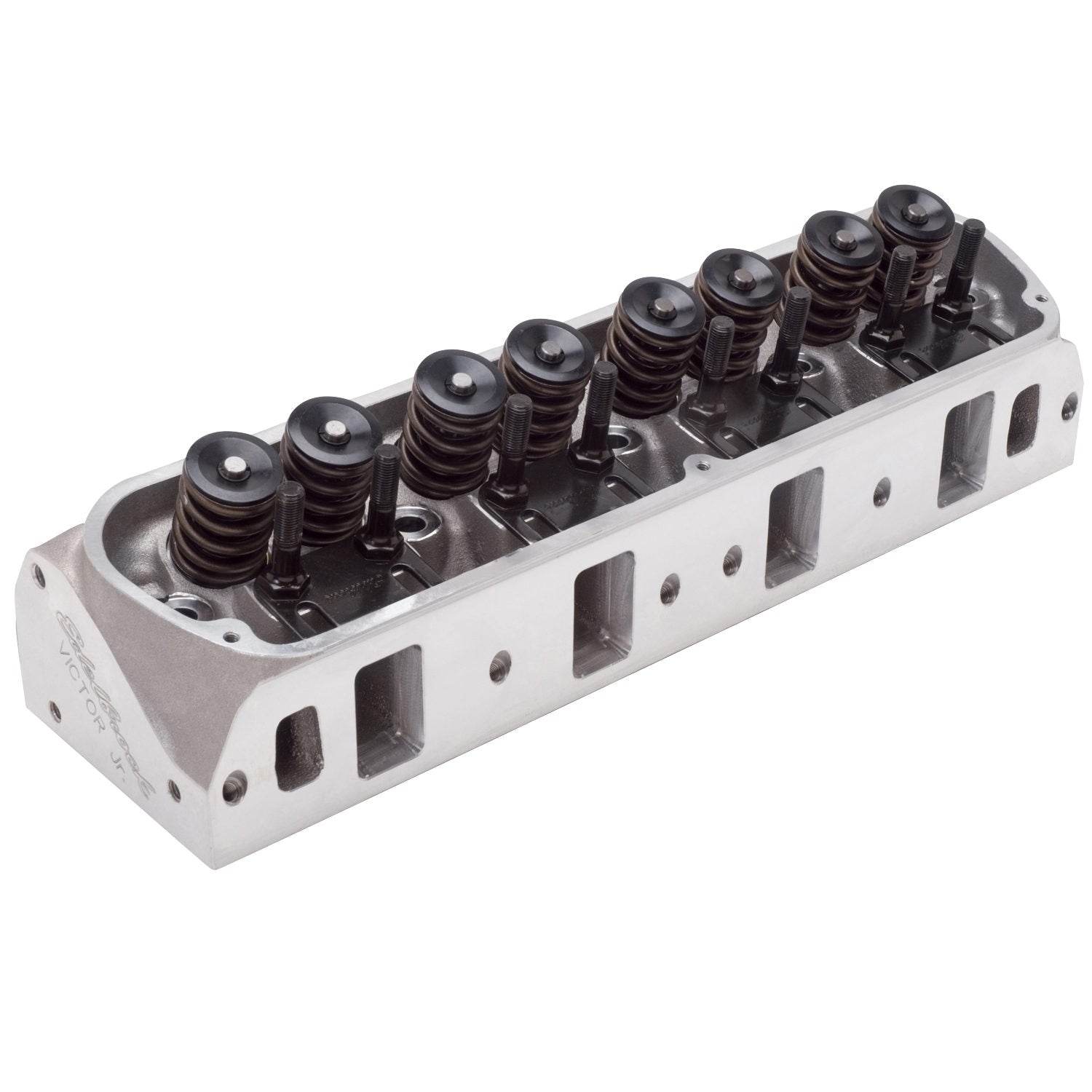

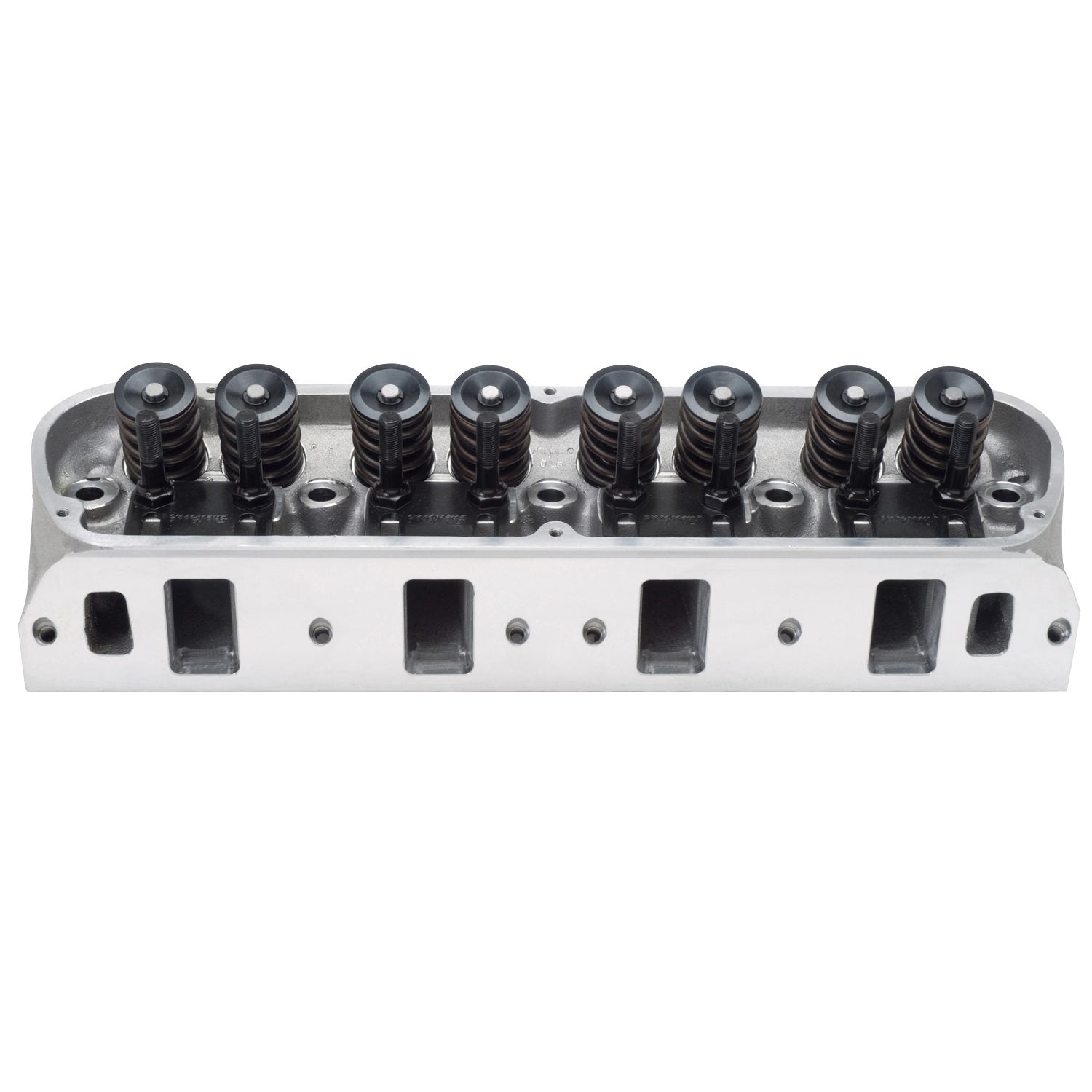

Edelbrock part #77189 Victor Jr. 20 Degree is a complete cylinder head designed for S/B Ford 289-351W engines. This head has the potential of 500+ Horsepower out-of-the-box using a stock valve train geometry.
The Edelbrock 77189 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20deg - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing the head
- Out-of-the-Box Bolt-On Performance
- Affordable; Top Quality
- 500+ HP Potential
- High-Flow 210cc Intake Ports
- CNC Gasket-Matched Part Entries/Exits
- Spark Plugs/Valves In The Stock Location
