Edelbrock 7521-KIT - Small Block Ford RPM Air-Gap Manifold & Install Kit

Edelbrock 7521-KIT - Small Block Ford RPM Air-Gap Manifold & Install Kit

Edelbrock | 7521-KIT
SKU: EDEL-7521-KIT
$532.99 USD
$586.29 USD $532.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Edelbrock 7521-KIT - Small Block Ford RPM Air-Gap Manifold & Install Kit

Intake Manifold - RPM Air-Gap 302 - Square Bore - Dual Plane - Gaskets / Hardware Included - Aluminum - Natural - Small Block Ford - Kit

Upgrade your existing Small-Block Ford intake manifold to the powerful RPM Air Gap. This kit #7521-KIT contains commonly needed installation items all in one box, including the manifold, gaskets, intake bolts, and carb studs.

Easily upgrade your existing Small-Block Ford to the powerful Edelbrock RPM Air-Gap intake manifold with this all-in-one box solution, eliminating the guesswork from the installation while saving you time and money. This kit includes an RPM Air-Gap intake manifold (PN 7521) for a Small-Block Ford, along with all the commonly needed installation items such as the gaskets, intake bolts, and carburetor studs.

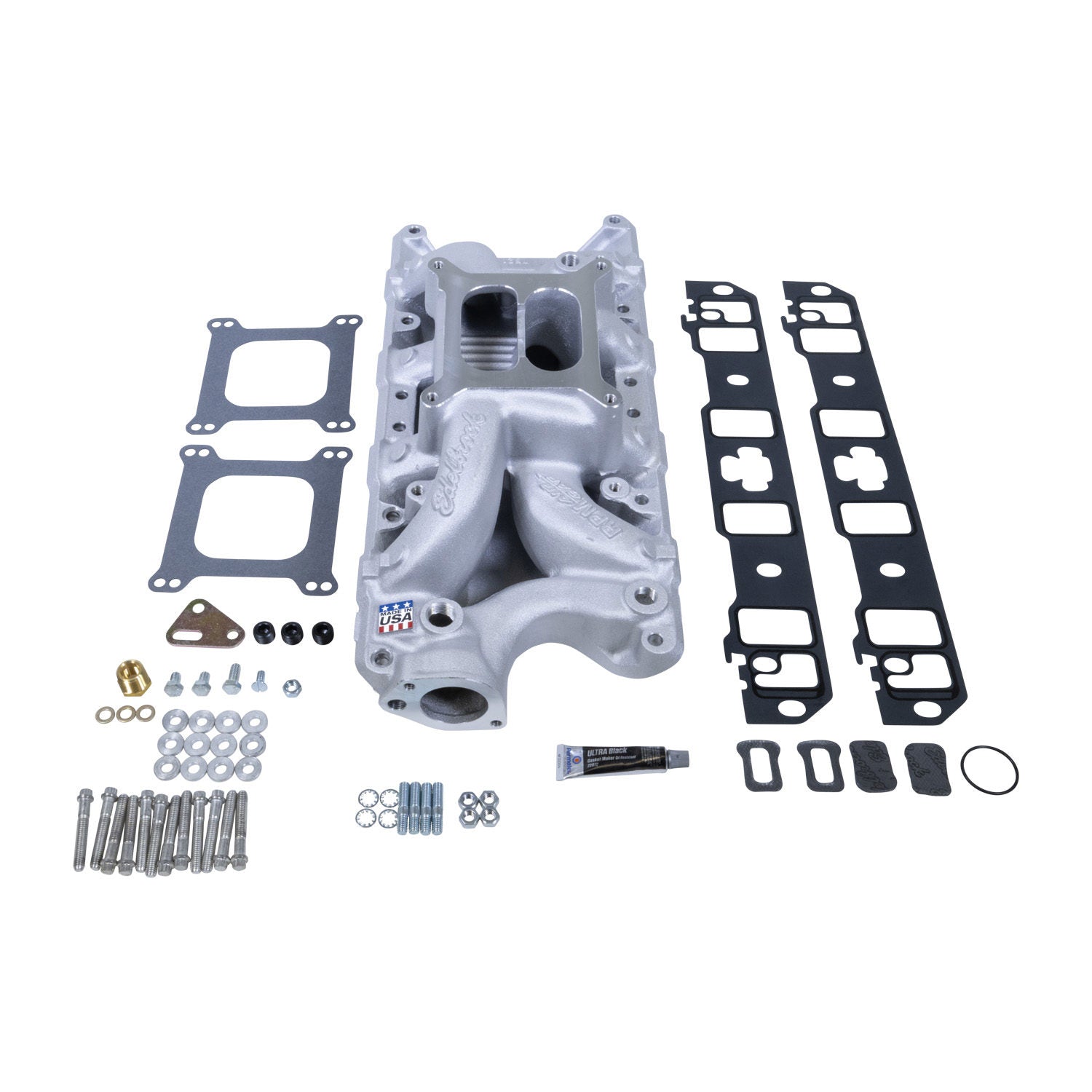

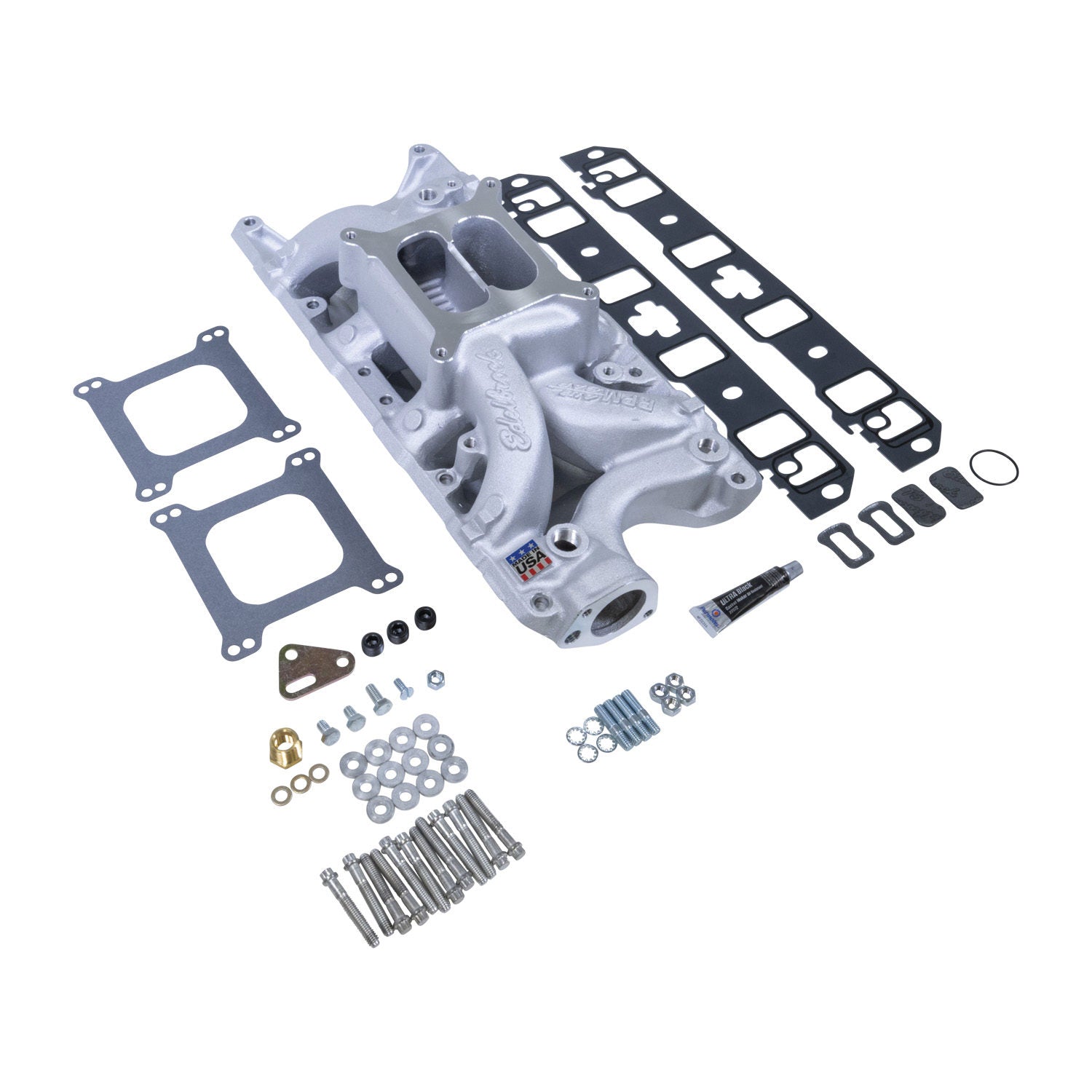

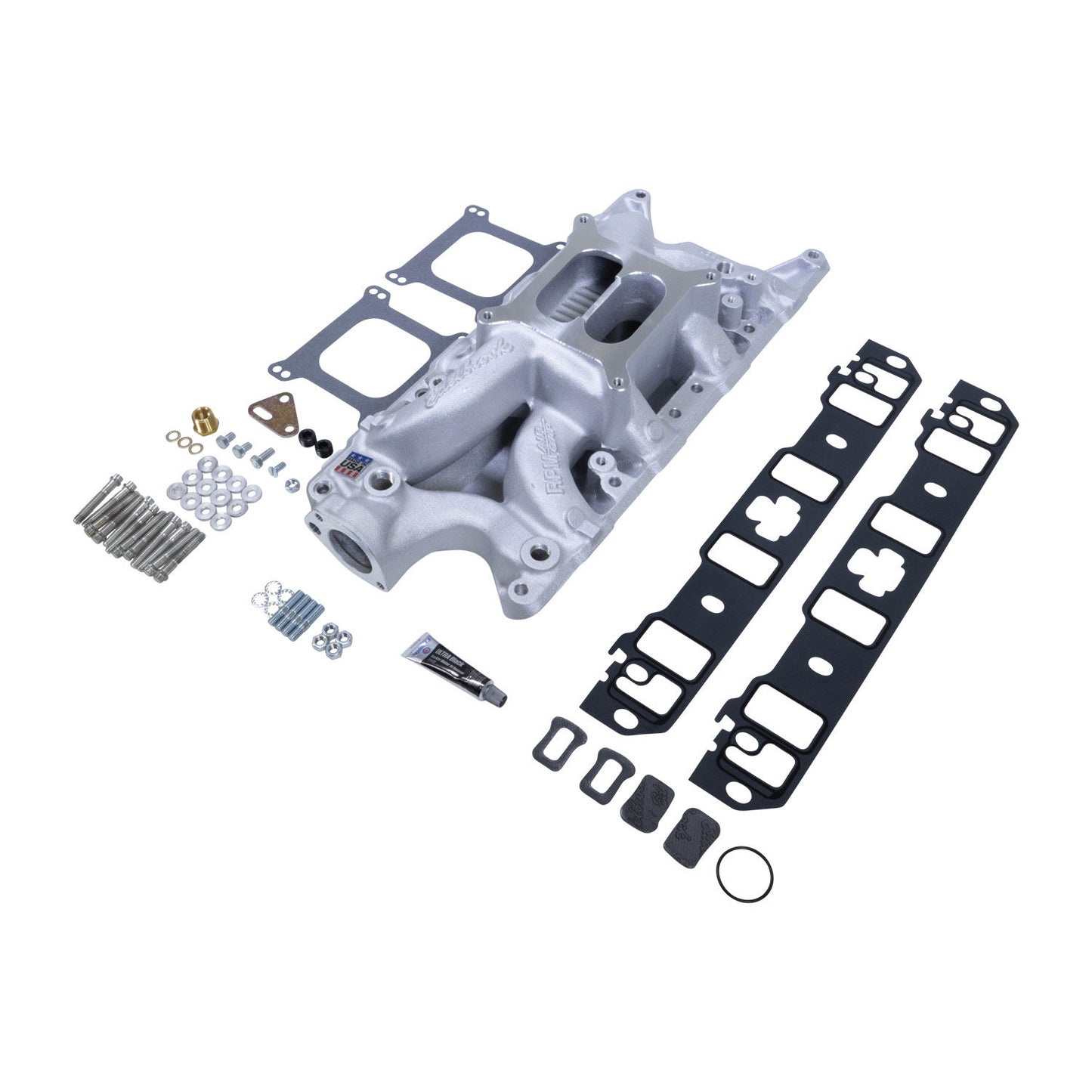

  • Includes manifold, gaskets, intake bolts and carb studs
  • No guess work
  • All items in one box
Related Products: EPS or AVS2 600-650 Carburetor, VRS-4150 650 CFM carburetor, 1221 Air Cleaner
Cross sell / Upsell Part Numbers: PN 2091 or PN 2043 complete Power Packages
Grade Type: Performance
Series: RPM Air-Gap
Material: Aluminum
Finish: Satin
Vehicle Model: Ford
RPM Range: 1500-6500
Installation Notes: Will not fit 255 c.i.d. V8; Not recommended for 289; Recommended intake gasket: Edelbrock #7220; Manifold Height: A-4.30", B-5.50"; Carb pad height: 4.90"; Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. For automatic transmissions use #1483 and #1490 or #1844.; Port exit dimensions: 1.04" x 1.85"; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Rear Maximum Height: 5.500
Single Or Dual Plane Type: Dual
