Edelbrock 61779 - Cyl Head Perf RPM Chrys Magnum V8 92Up 5 2L 93Up 5 9L Complete

Edelbrock 61779 - Cyl Head Perf RPM Chrys Magnum V8 92Up 5 2L 93Up 5 9L Complete

Edelbrock | 61779
SKU: EDEL-61779
Regular price $1,397.99 USD
Regular price $1,537.79 USD Sale price $1,397.99 USD
Sale Sold out
Shipping calculated at checkout.

3 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 61779 - Cyl Head Perf RPM Chrys Magnum V8 92Up 5 2L 93Up 5 9L Complete

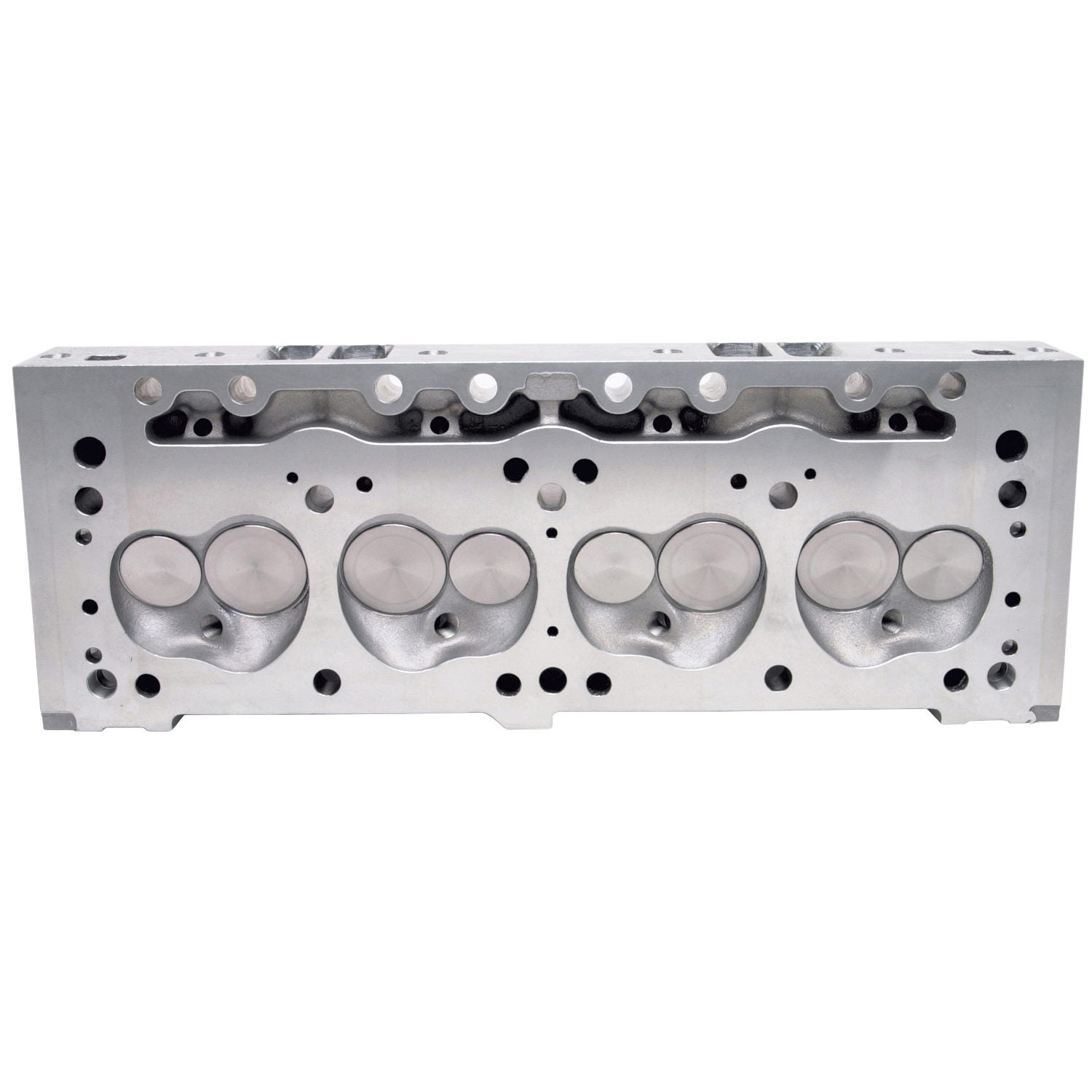

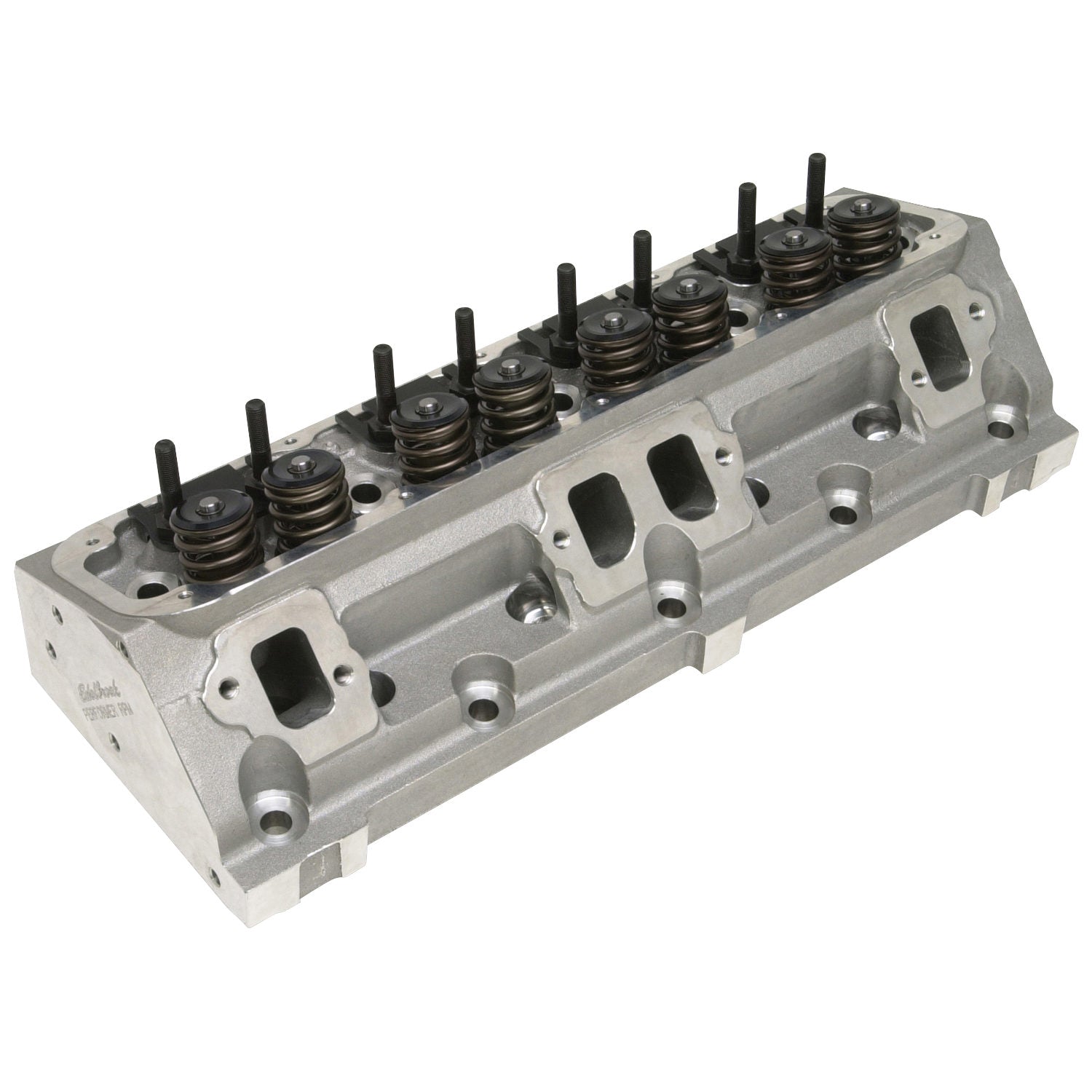

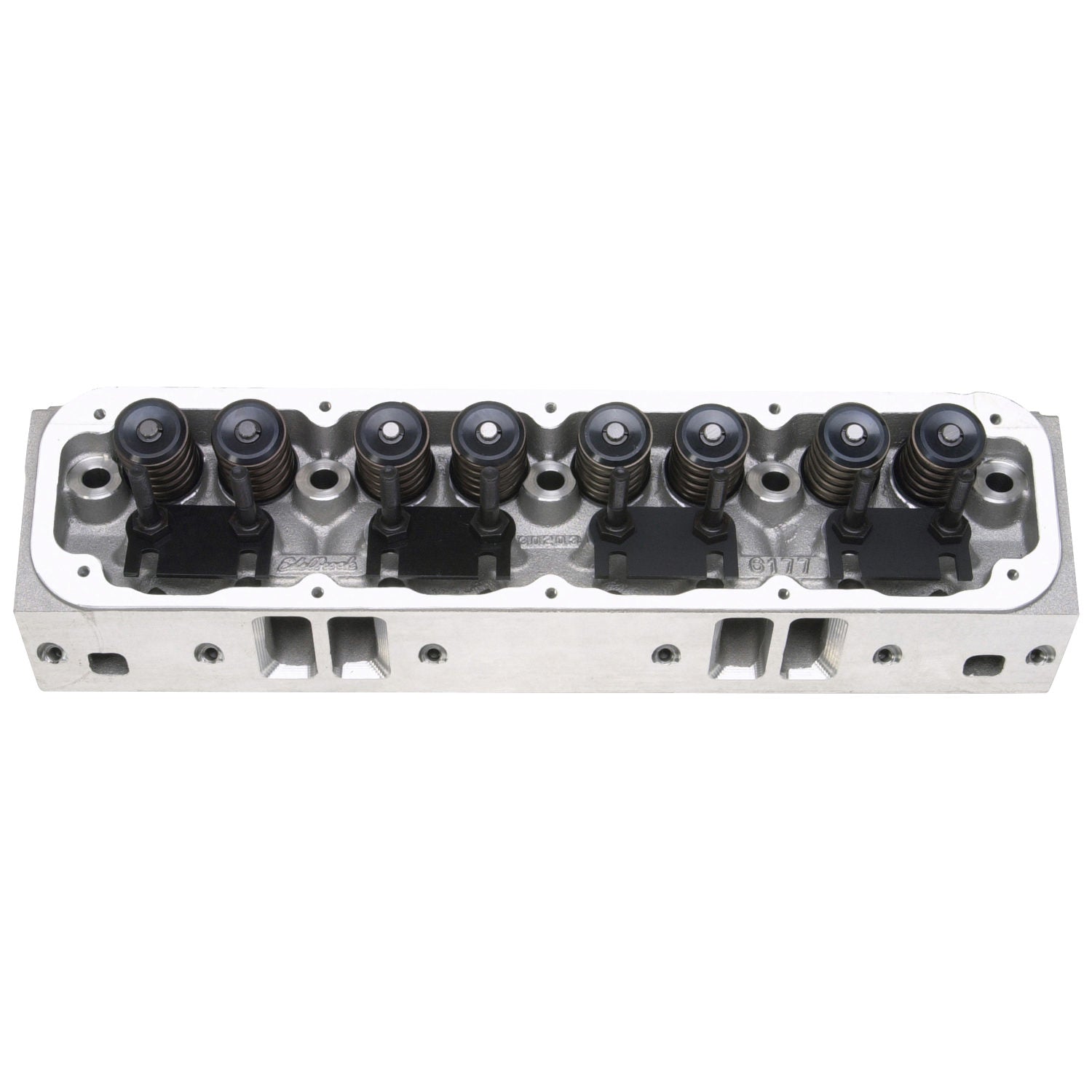

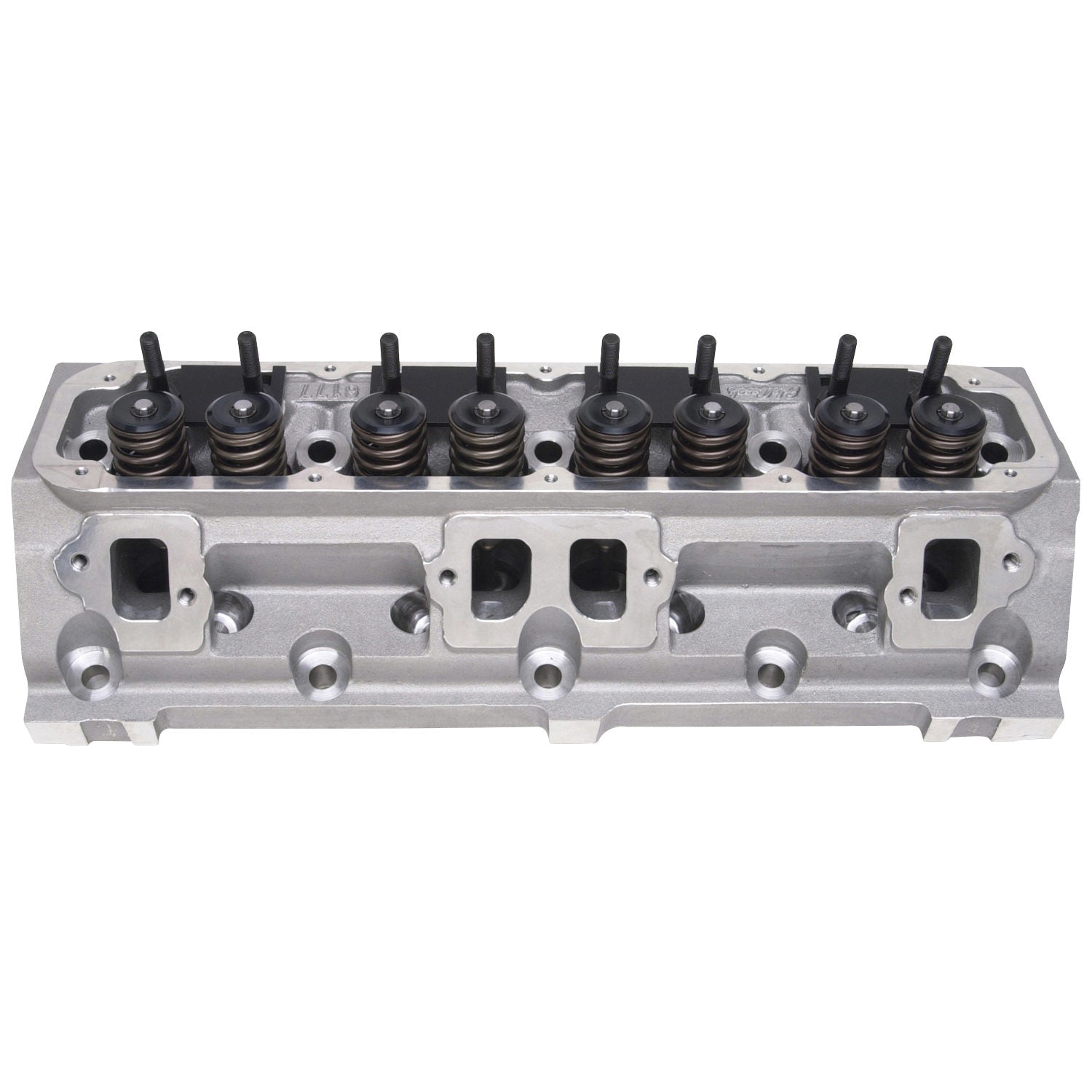

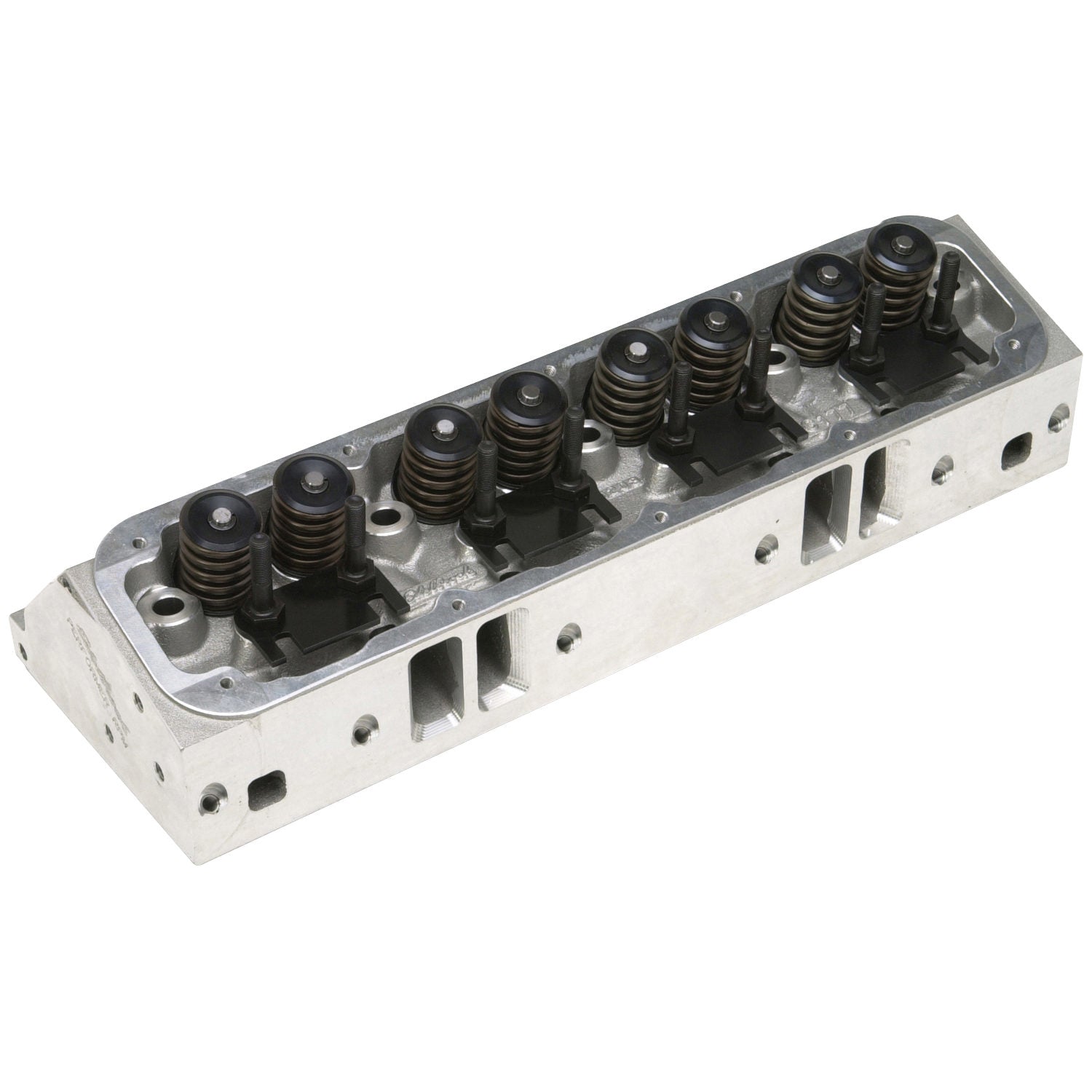

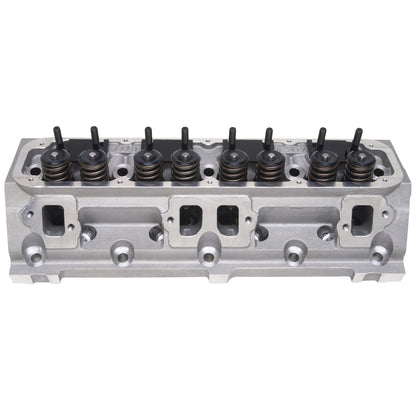

Cylinder Head - Performer RPM - Assembled - 2.020 / 1.600 in Valves - 176 cc Intake - 58 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Small Block Mopar - Each

Edelbrock part #61779 Performer RPM cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications.

The Edelbrock #61779 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61779 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

  • Out-of-the-Box Bolt-On Performance
  • Stock Magnum Intake/Exhaust Flange/Port Locations
  • Must Use Adjustable Aftermarket Rocker Arms
  • Not For Emission Controlled Applications
  • Uses 2.02 in. Intake / 1.60 in. Exhaust Valves
  • Requires Hardened Push Rods
  • For Bare Version of This Head Use PN[61769]
Valve Stem Diameter: 0.3438
Intake Valve Diameter: 2.02
Rocker Arm Stud Diameter: 0.375
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Horsepower: 350-500
Exhaust Valve Diameter: 1.60
EGR Port: No
Deck Thickness: 0.625
CNC Ported: No
Series: Performer RPM
Family: Performer RPM
Seat Material: Ductile Iron
Valve Angle: 18
Guide Material: Manganese Bronze
Construction Type: Complete
Seat Angle: Exhaust 45 deg/Intake 45
Exhaust Port Location: Standard
Camshaft Type: Flat Tappet
Combustion Chamber Volume: 58
Valve Spring Diameter: 1.46
Valve Spring Maximum Lift: 0.580
Exhaust Runner Volume: 75
Quantity: Sold Individually
Retainer Included: Yes
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Material: Aluminum
Mounting Hardware Included: No
Intake Runner Volume: 176
Head Casting Number: 31-6177
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.6
Cylinder Head Gasket Included: No
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
