Edelbrock 61649 - Single Perf RPM Bb/Ford Cj 460 CNC Head Comp

Edelbrock 61649 - Single Perf RPM Bb/Ford Cj 460 CNC Head Comp

Edelbrock | 61649
SKU: EDEL-61649
Regular price $1,610.99 USD
Regular price $1,772.09 USD Sale price $1,610.99 USD
Sale Sold out
Shipping calculated at checkout.

4 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

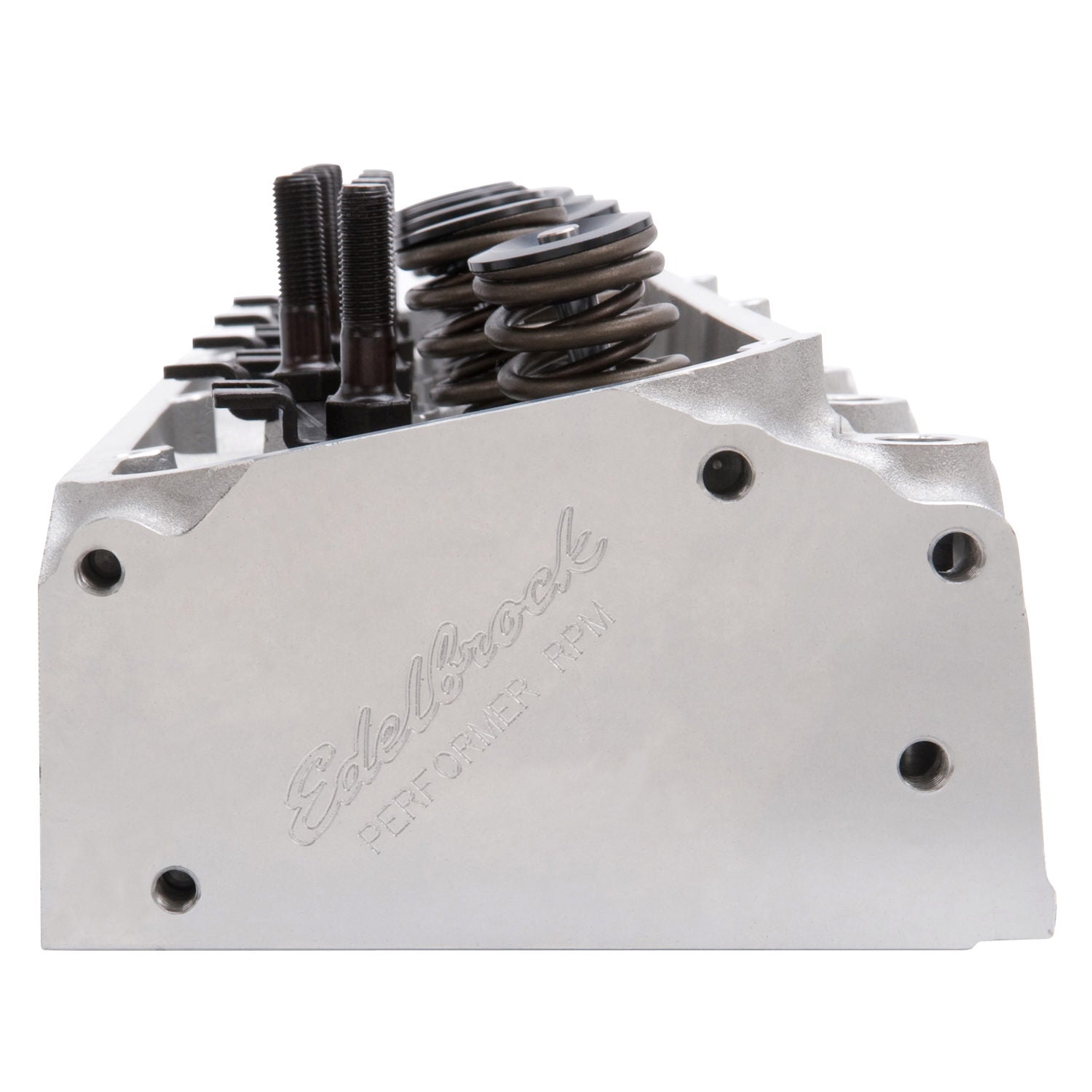

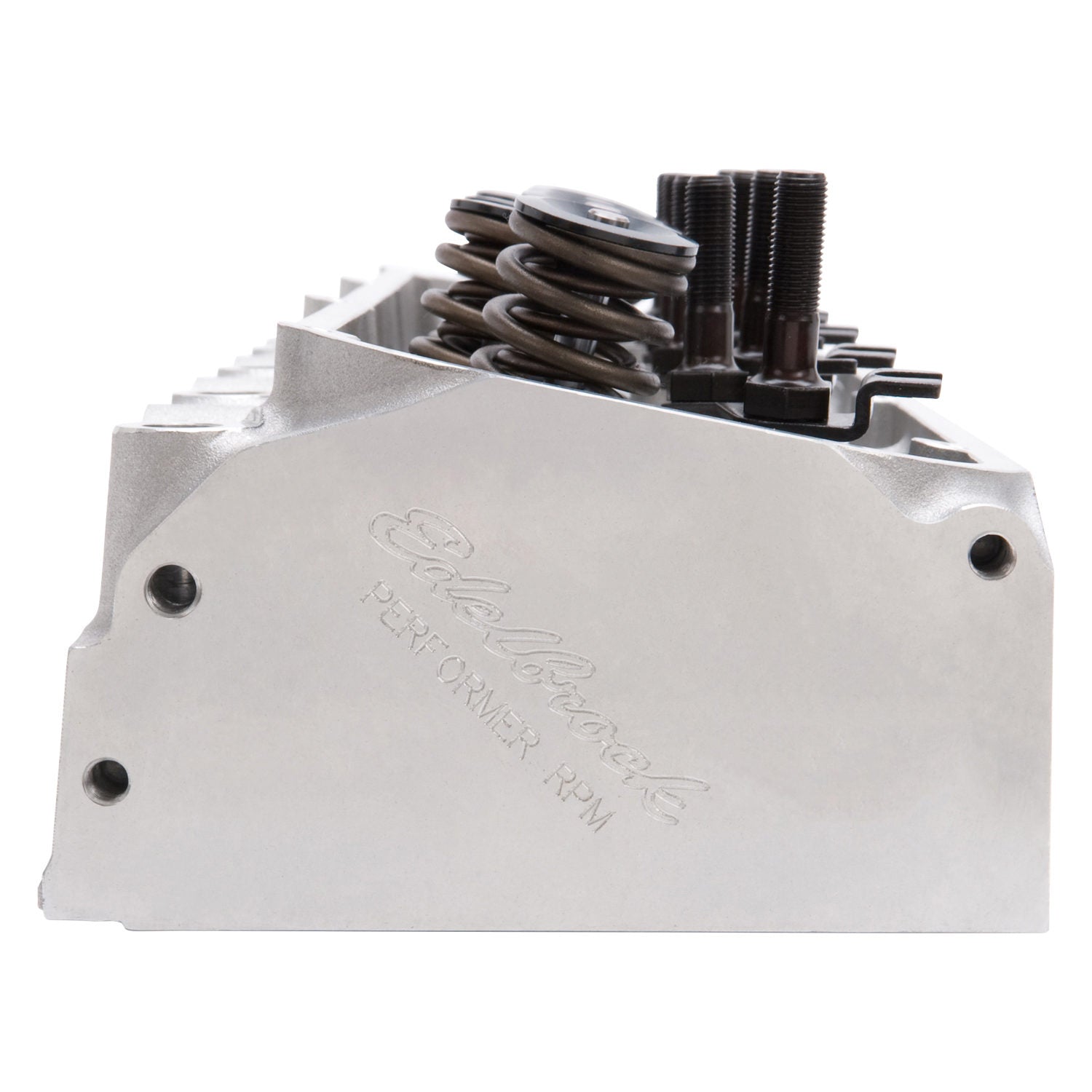

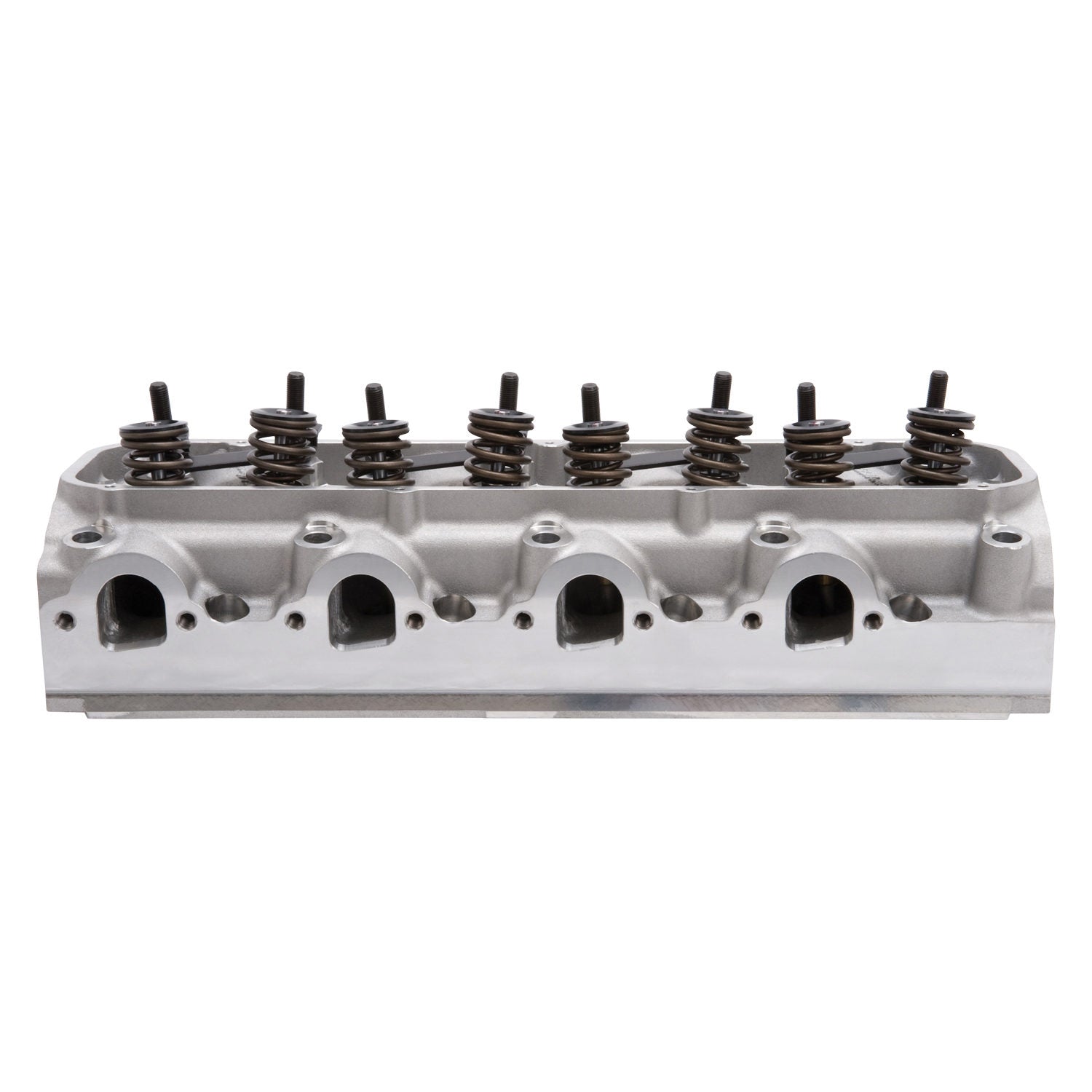

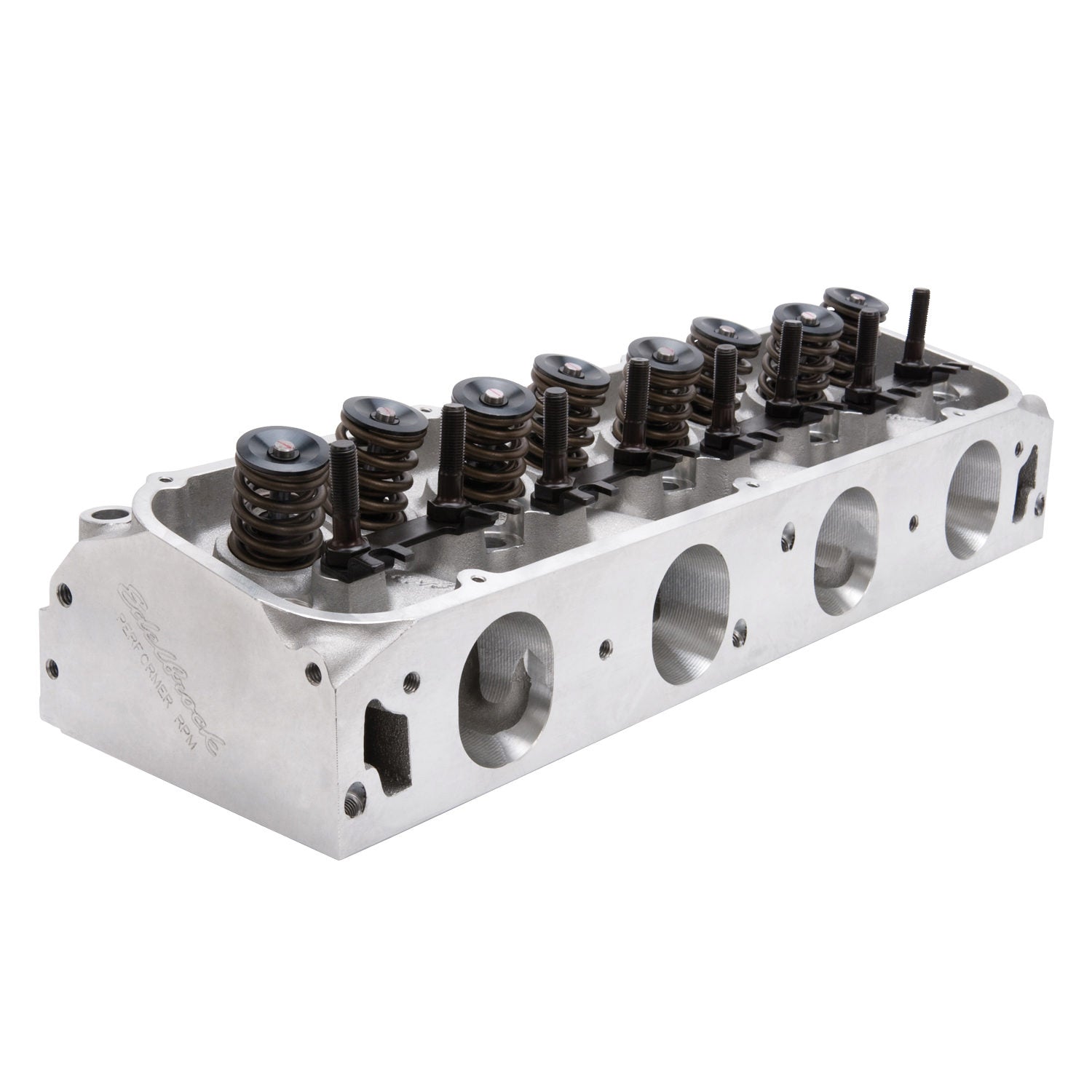

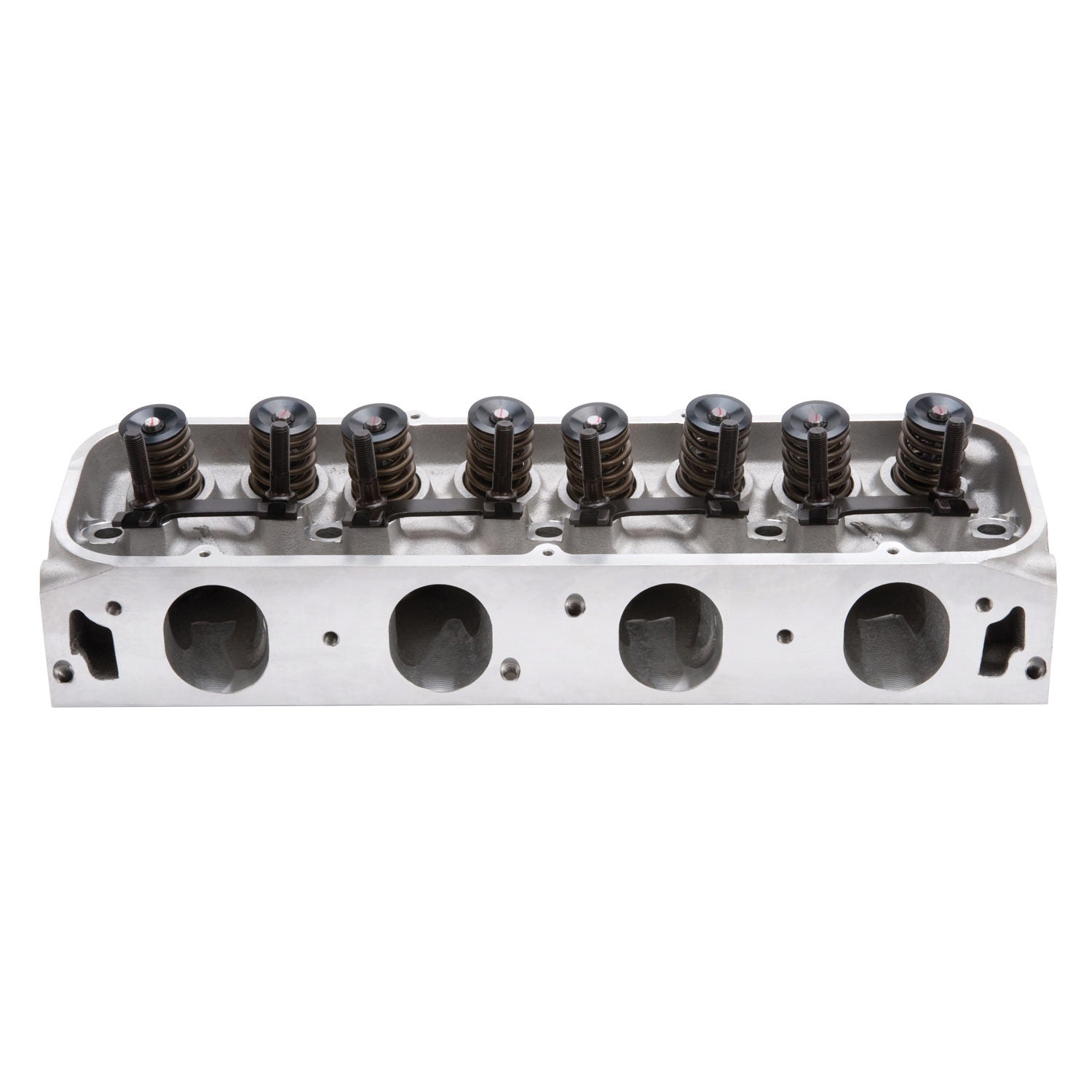

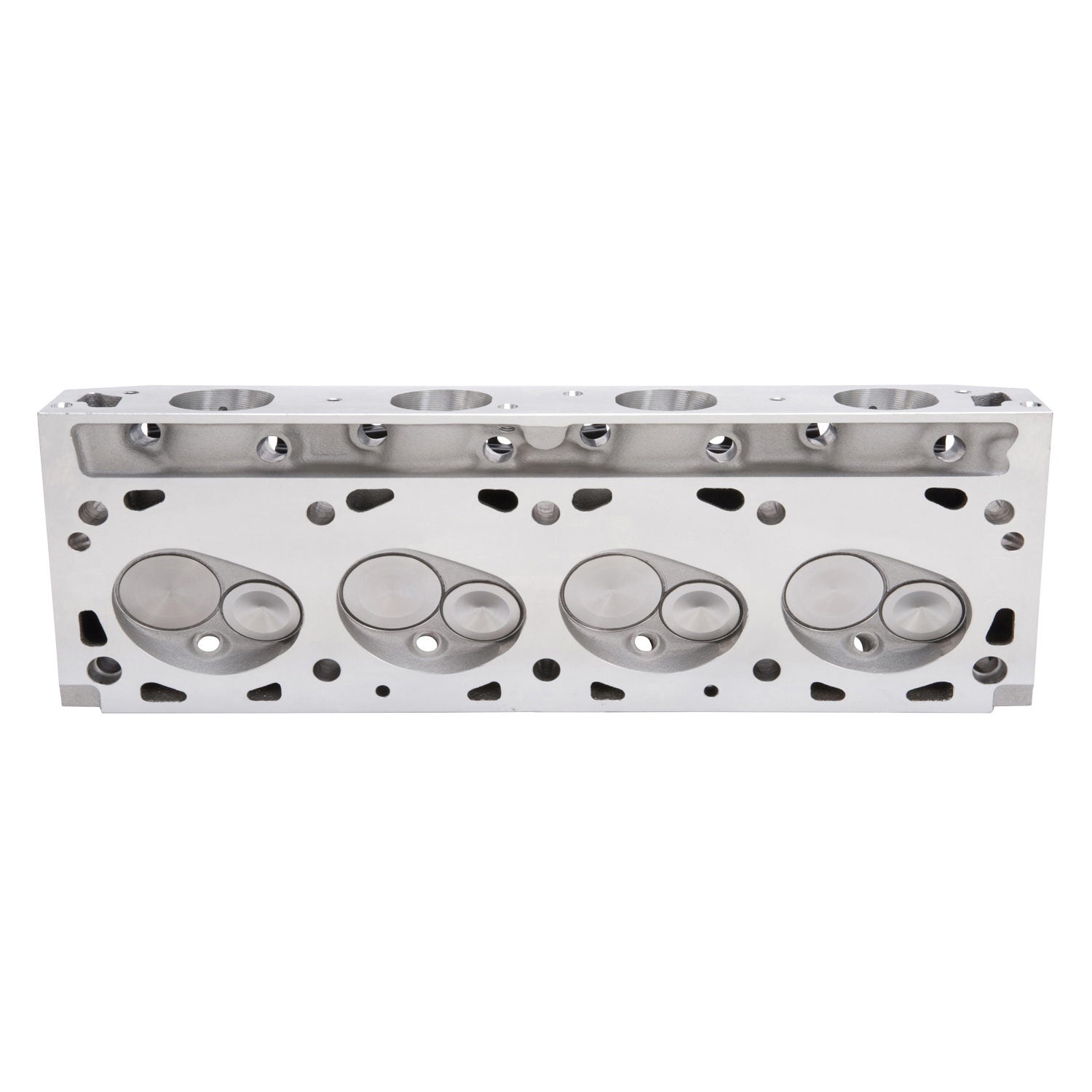

Edelbrock 61649 - Single Perf RPM Bb/Ford Cj 460 CNC Head Comp

Cylinder Head - Performer RPM - Assembled - 2.190 / 1.760 in Valves - 310 cc Intake - 75 cc Chamber - 1.550 in Springs - Angle Plug - Aluminum - Big Block Ford - Each

Edelbrock part #61649 Performer RPM CJ cylinder heads are designed for use with 1968-87 429/460 Fords and SVO 514 engine applications.

The Edelbrock #61649 Performer RPM CJ cylinder head is designed for use with 1968-87 429/460 Fords and SVO 514 engine applications. The Edelbrock #61649 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

  • Machine Profile Cobra Jet Style Intake Port Entry
  • Out-of-the-Box Bolt-On Performance
  • CNC-Matched Intake/Exhaust Ports in Std Location
  • Thicker Deck Surfaces Than Other Brands
  • Heli-Coils in Rocker Studs and Exhaust Bolt Holes
Exhaust Runner Volume: 100
Valve Stem Diameter: 0.3438
Camshaft Type: Flat Tappet
Valve Spring Maximum Lift: 0.700
Guide Material: Manganese Bronze
Horsepower: 550-750
Push Rod Diameter: (Suggested) 0.375
Deck Thickness: 0.625
CNC Ported: No
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Valve Diameter: 2.19
EGR Port: No
Family: Performer RPM
Construction Type: Complete
Rocker Arm Stud Diameter: 0.4375
Exhaust Port Location: Standard
Series: Performer RPM
Exhaust Valve Diameter: 1.76
Valve Spring Diameter: 1.55
Seat Angle: Exhaust 45 deg/Intake 45
Quantity: Sold Individually
Seat Material: Ductile Iron
Retainer Included: Yes
Mounting Hardware Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Material: Aluminum
Assembled: Yes
Intake Runner Volume: 310
Head Casting Number: 31-6067
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 10.322
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 75
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
