Edelbrock - 61625

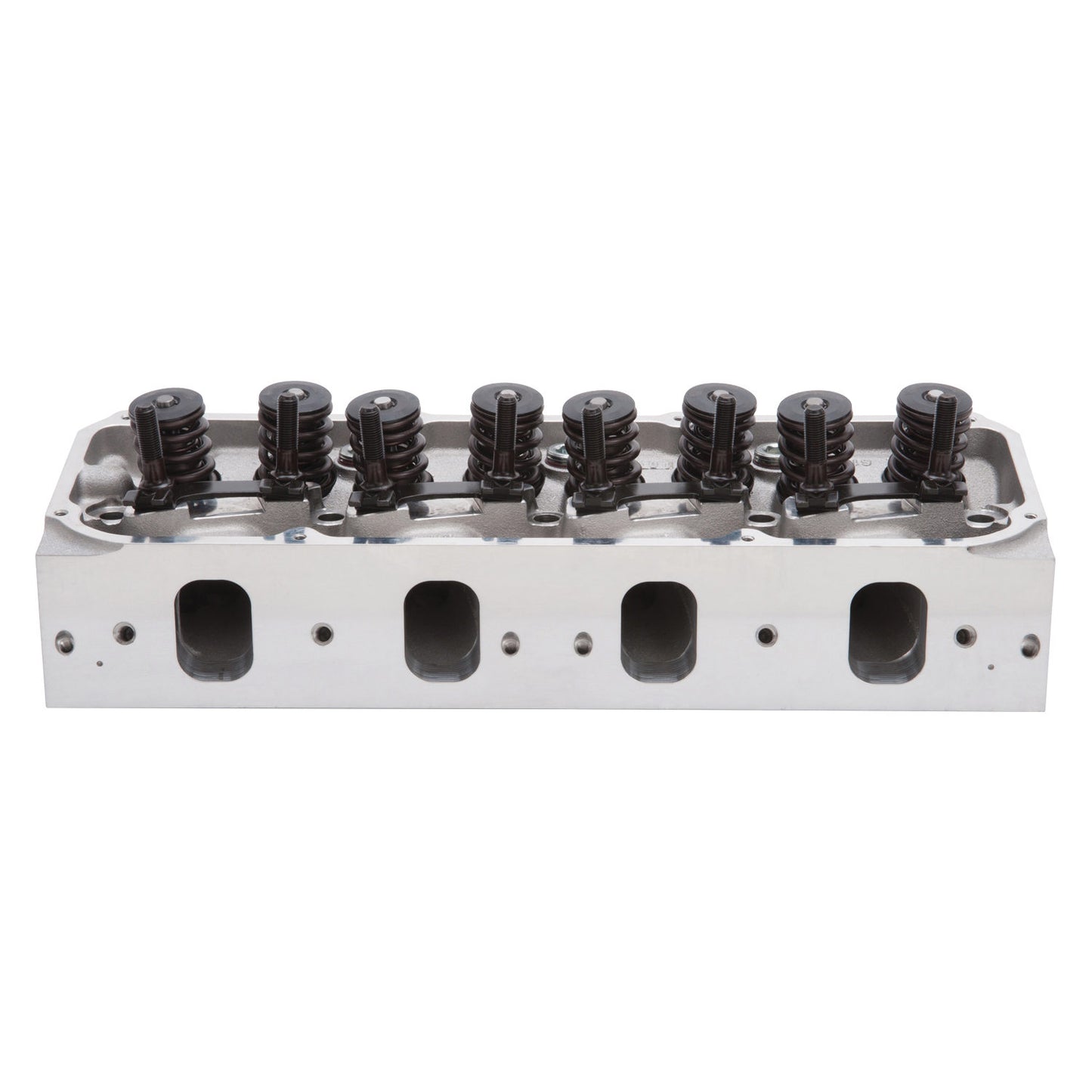

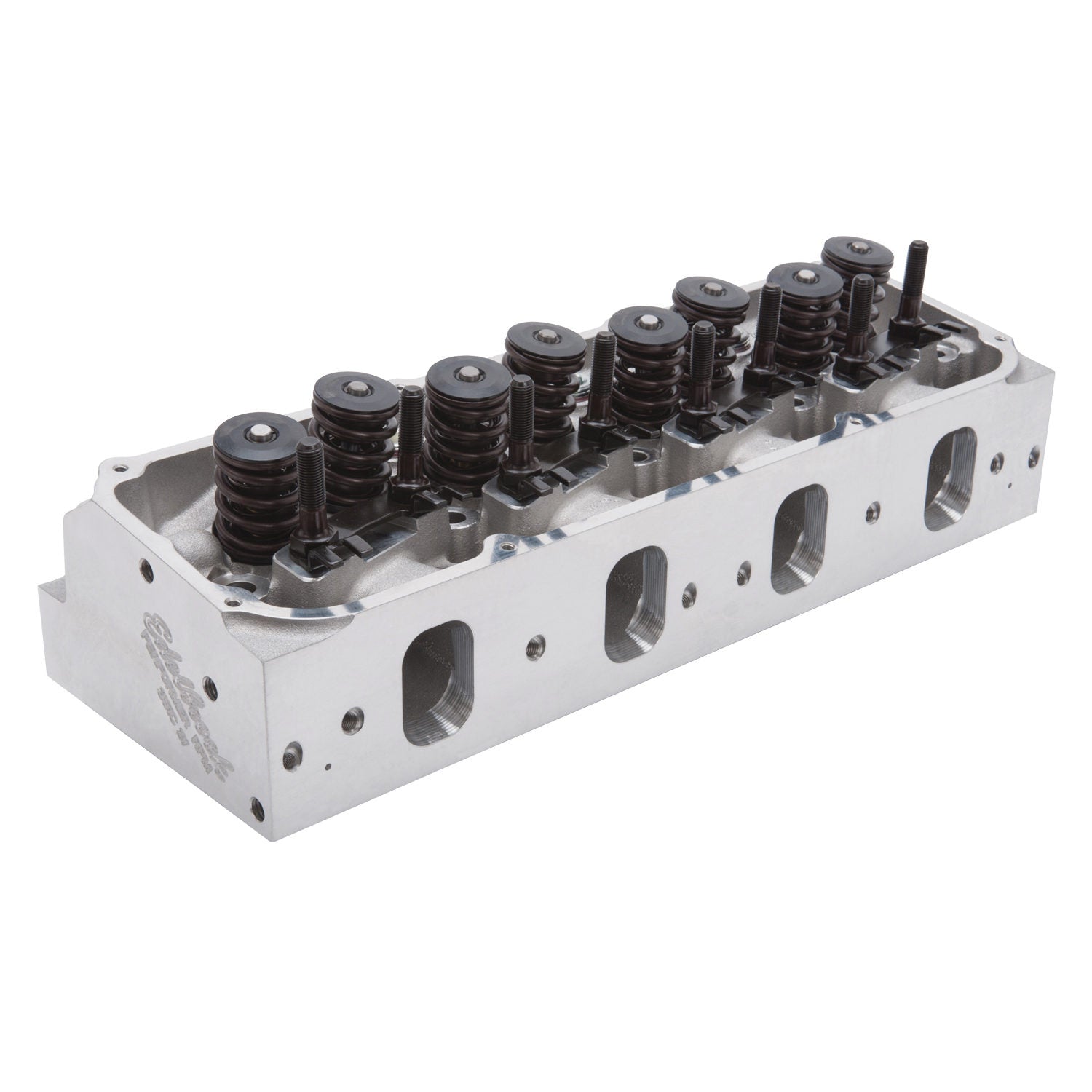

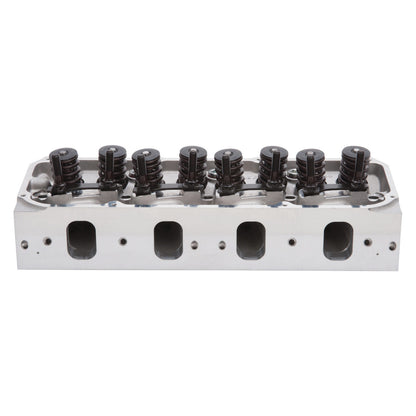

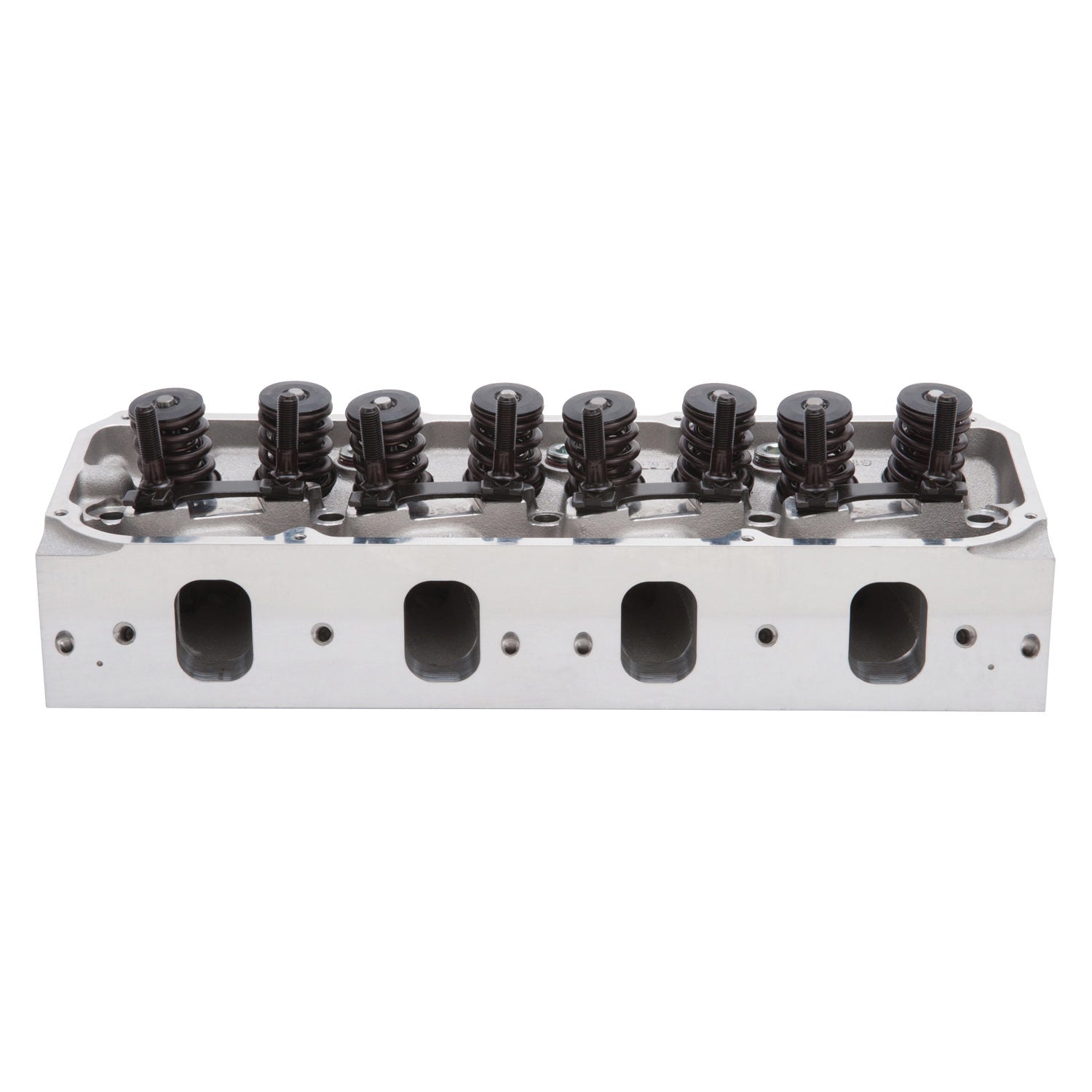

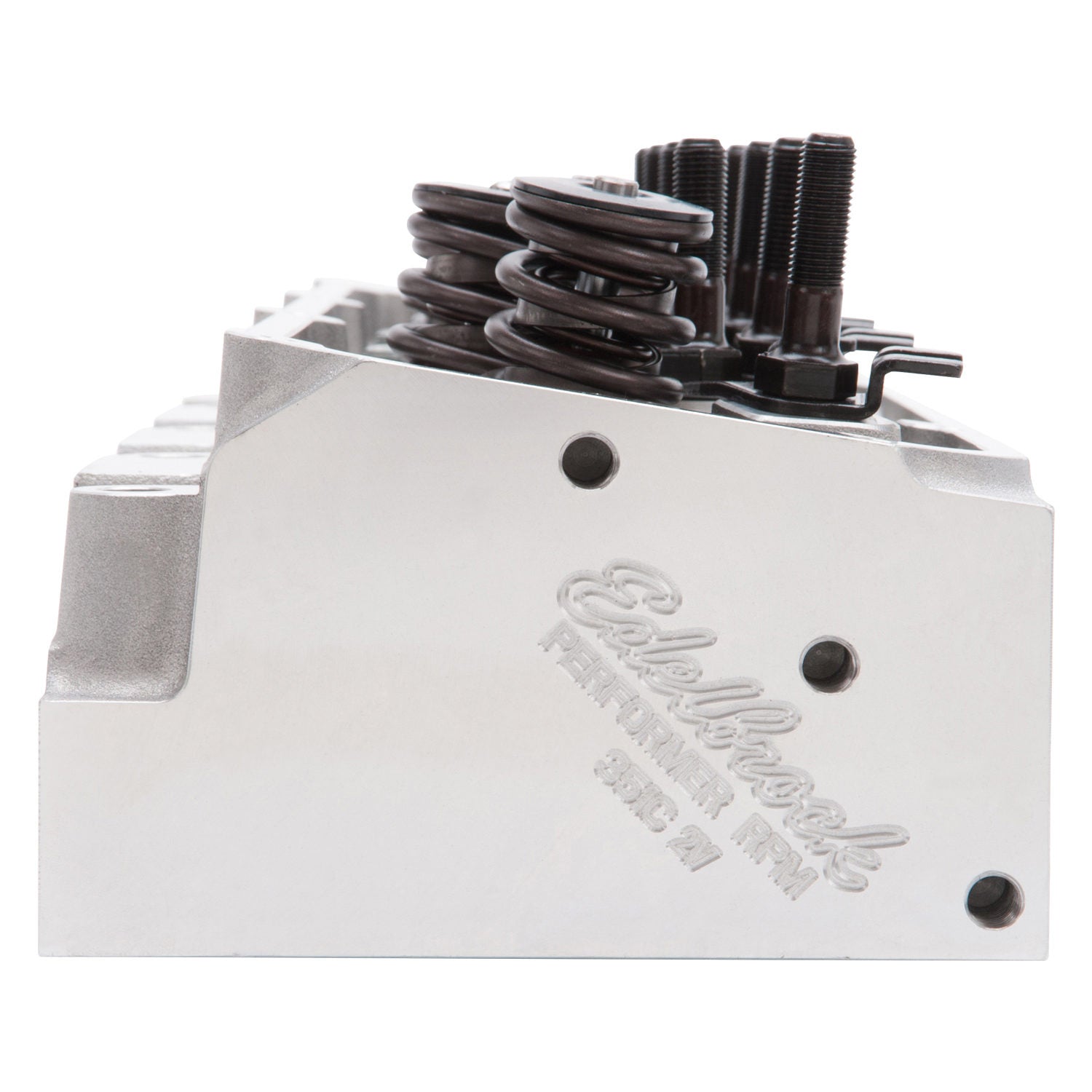

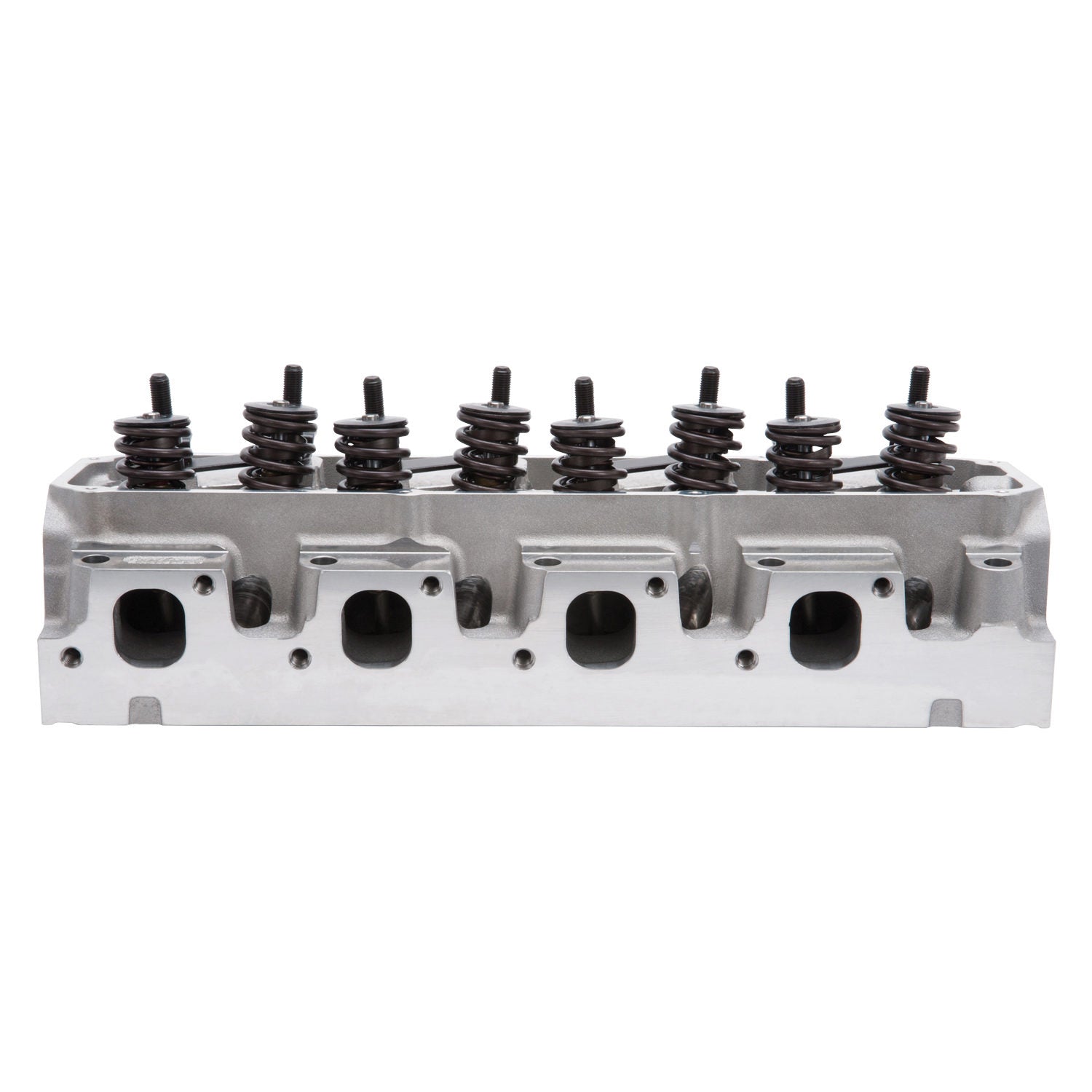

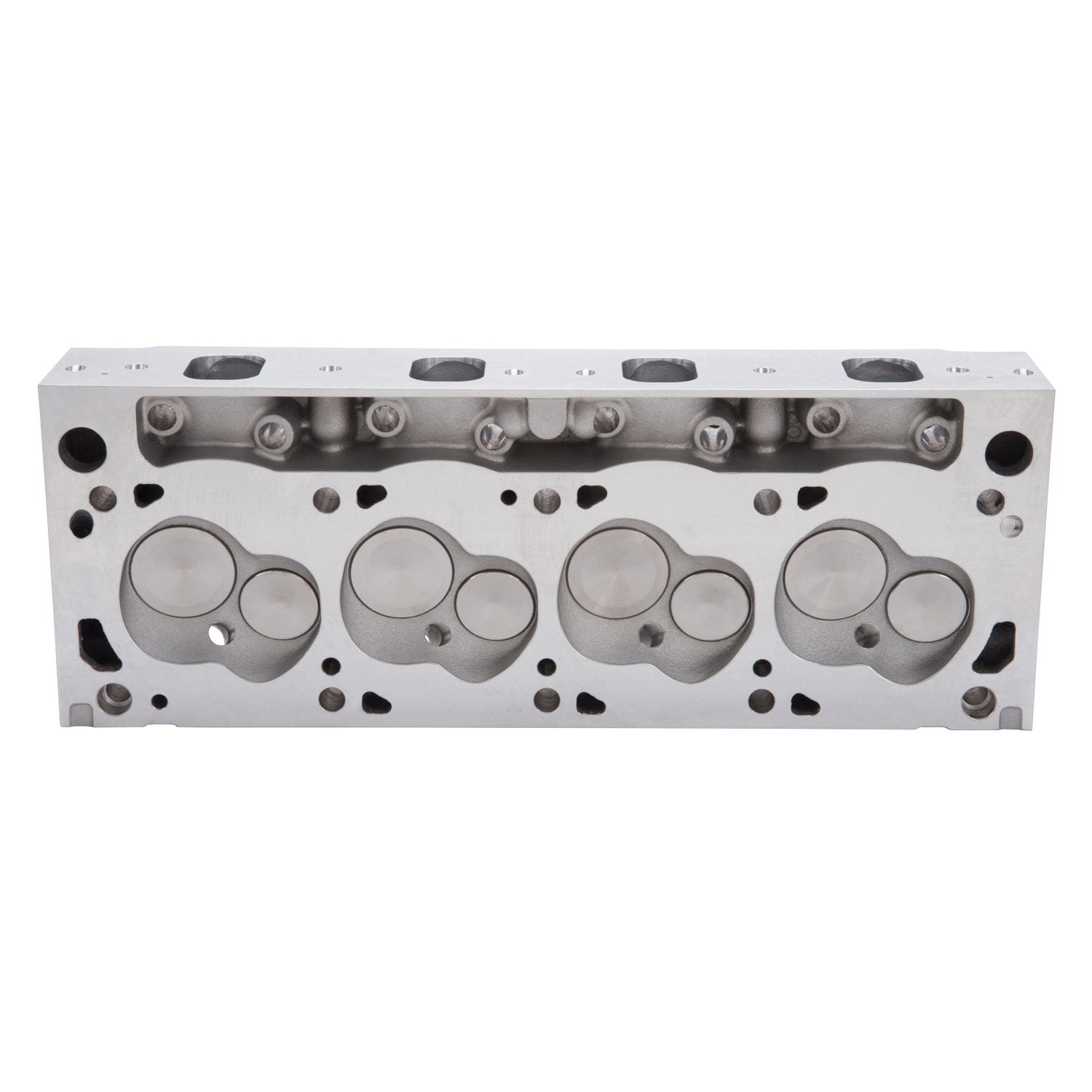

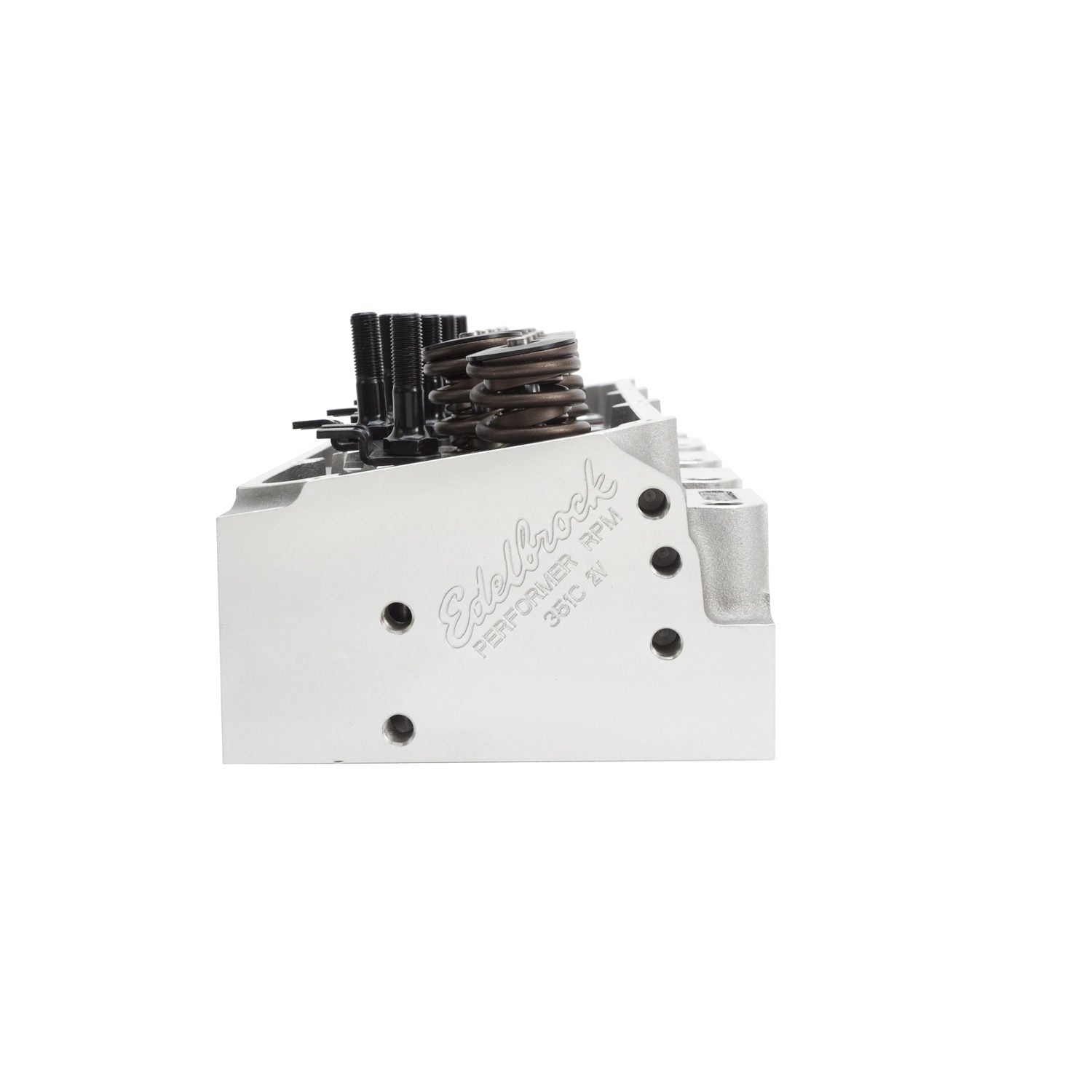

Cylinder Head - Performer RPM - Assembled - 2.050 / 1.600 in Valves - 190 cc Intake - 60 cc Chamber - 1.550 in Springs - Angle Plug - Aluminum - Ford Cleveland / Modified - Each
Edelbrock part #61625 Performer RPM cylinder heads are designed for use with 351C, 351M & 400M Ford engine applications.
The Edelbrock #61625 Performer RPM cylinder head is designed for use with 351C, 351M & 400M Ford engine applications. The Edelbrock #61625 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
- Out-of-the-Box Bolt-On Performance
- Maximum Performance From Idle through Mid-Range
Valve Stem Diameter: 0.3438
Seat Material: Ductile Iron
Push Rod Diameter: (Suggested) 0.3125
Deck Thickness: 0.625
Guide Plates Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Camshaft Type: Hydraulic Roller
Horsepower: 350-500
Exhaust Valve Diameter: 1.60
EGR Port: No
Valve Springs Included: Yes
Material: Aluminum
Rocker Arm Stud Diameter: 0.4375
Exhaust Runner Volume: 90
Grade Type: Performance
Intake Valve Diameter: 2.05
Exhaust Port Location: Standard
Intake Runner Volume: 190
Valve Spring Diameter: 1.55
Seat Angle: Exhaust 45 deg/Intake 45
Series: Performer RPM
Family: Performer RPM
Head Casting Number: N/A
Guide Material: Manganese Bronze
Quantity: Sold Individually
Retainer Included: Yes
Valve Included: Yes
Combustion Chamber Volume: 60
Guide Plate Material: Hardened Steel
CNC Ported: No
Construction Type: Complete
Valve Spring Maximum Lift: 0.580
Valve Angle: 9.5
