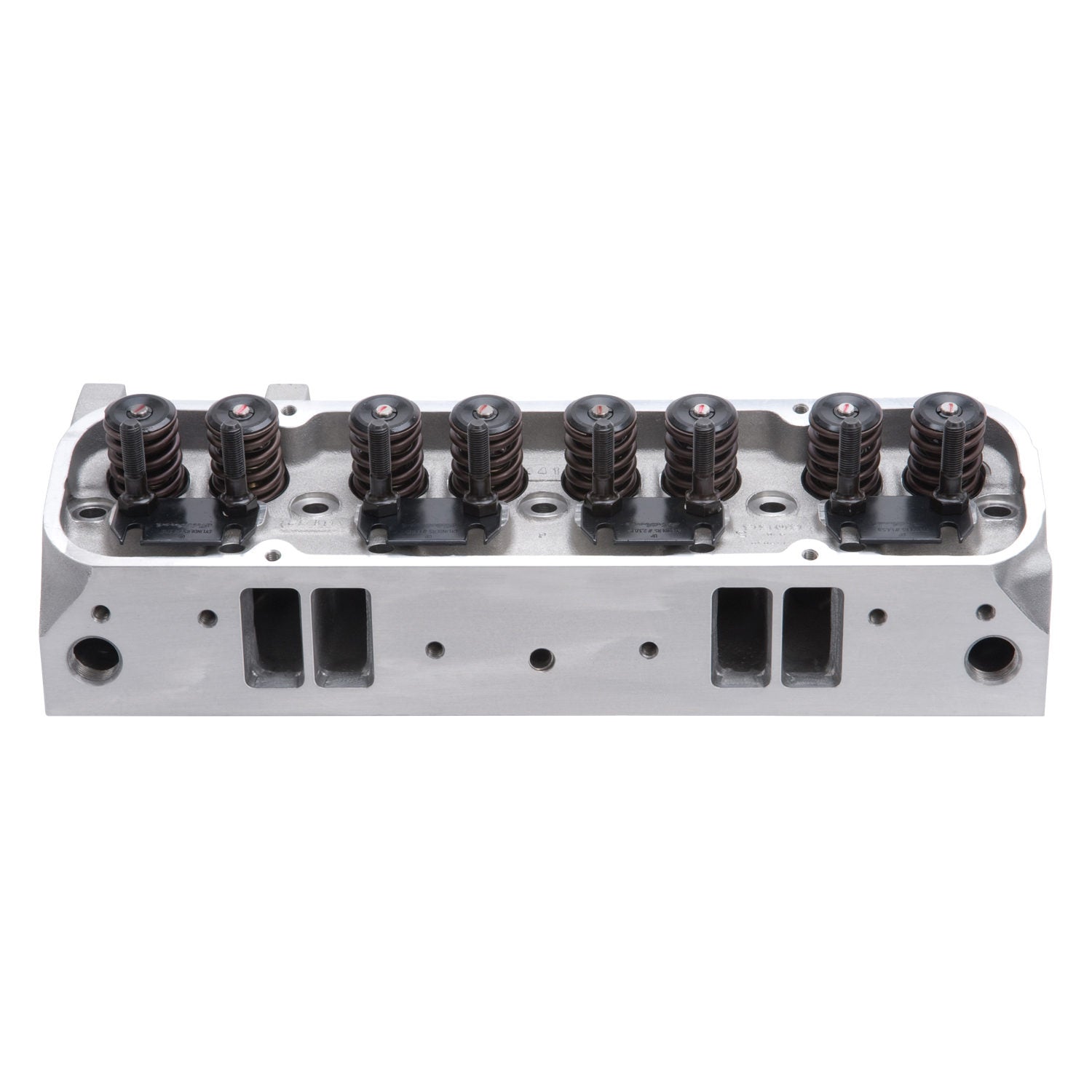

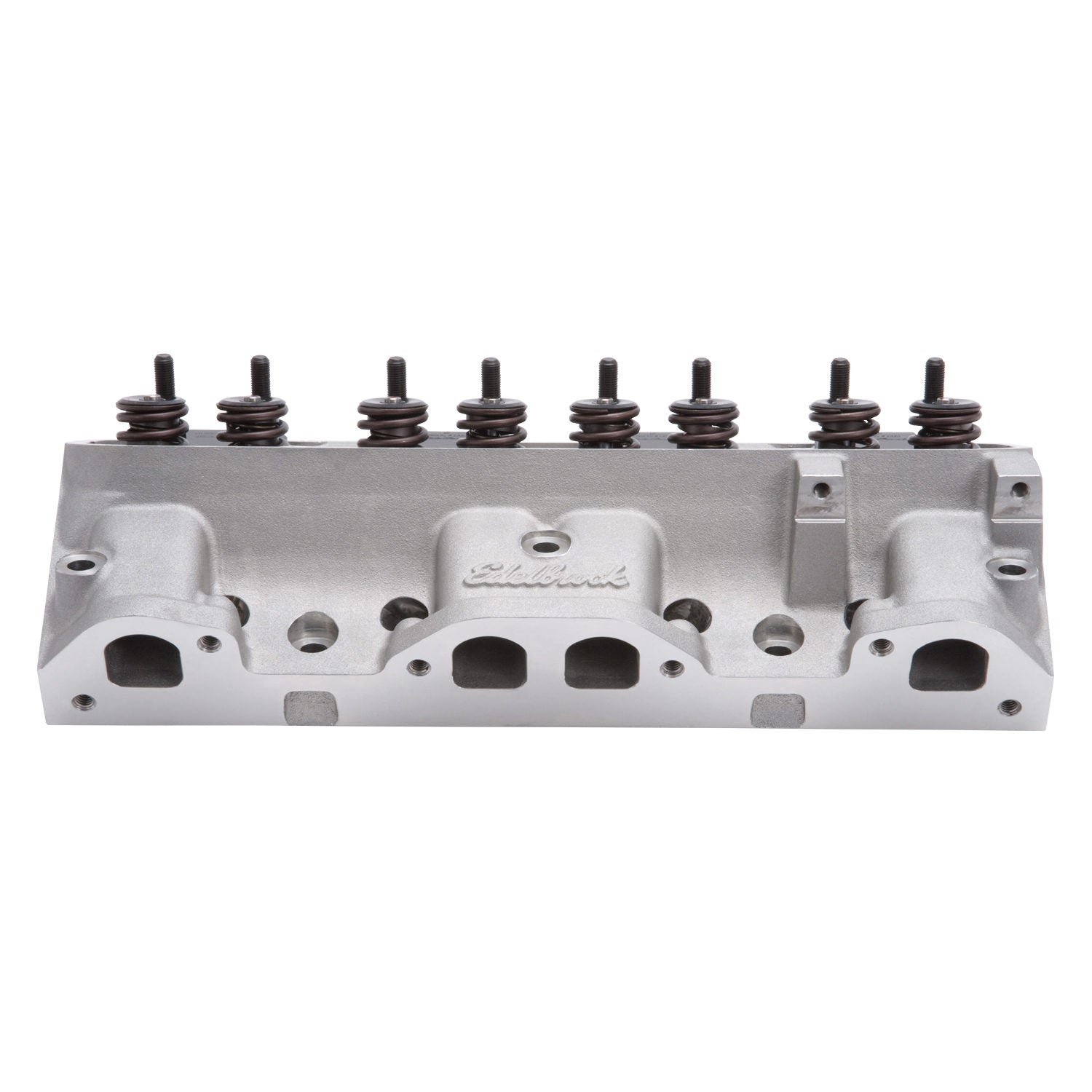

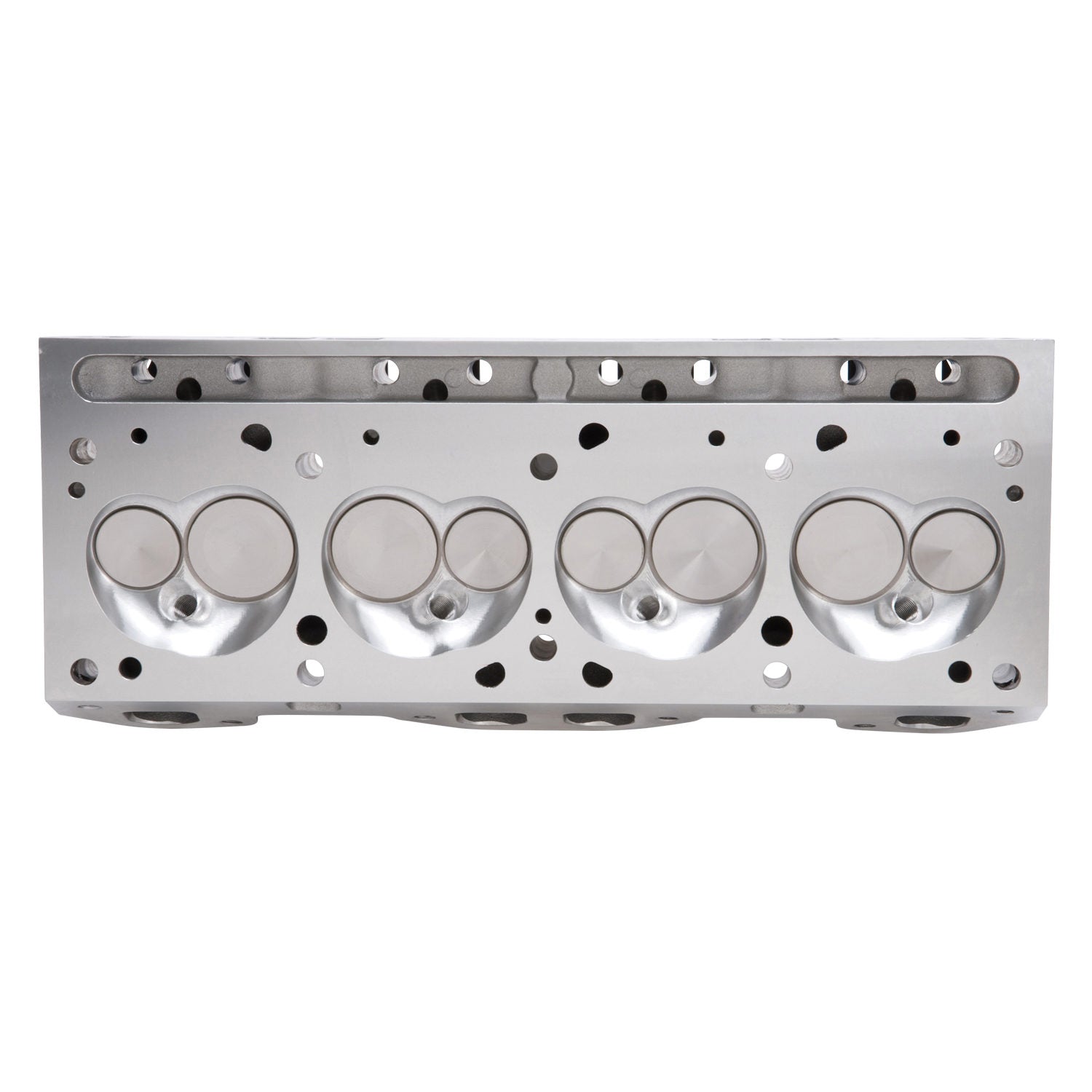

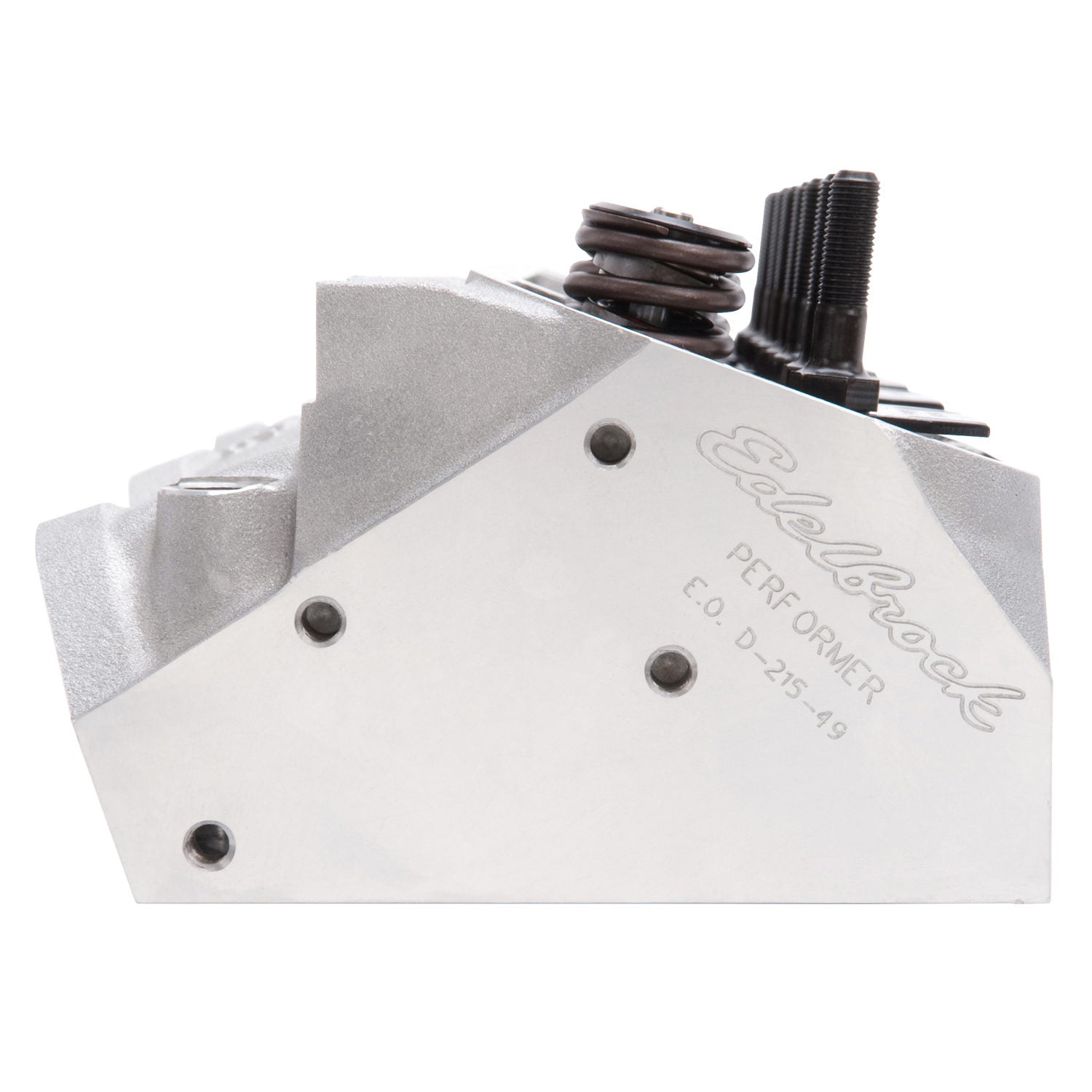

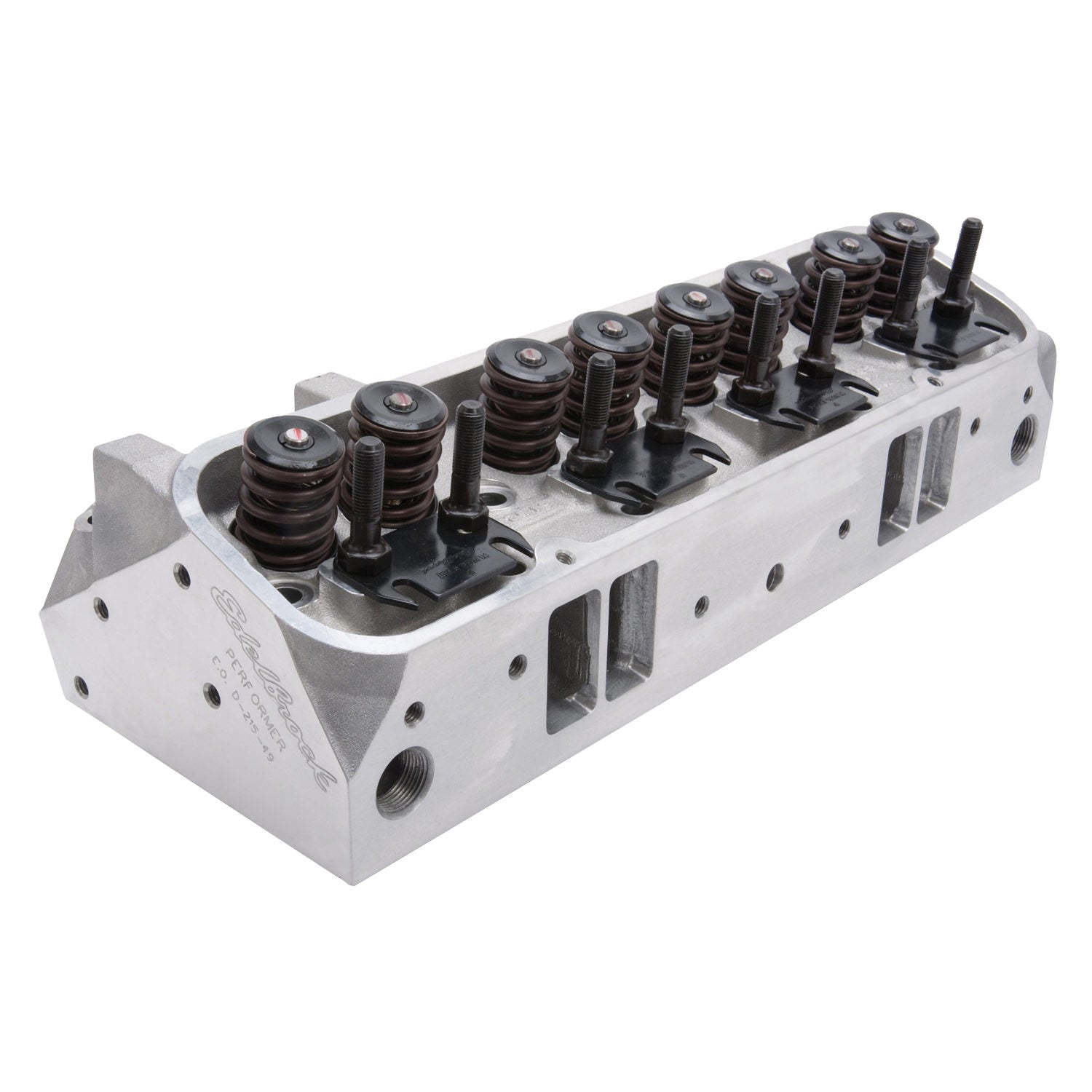

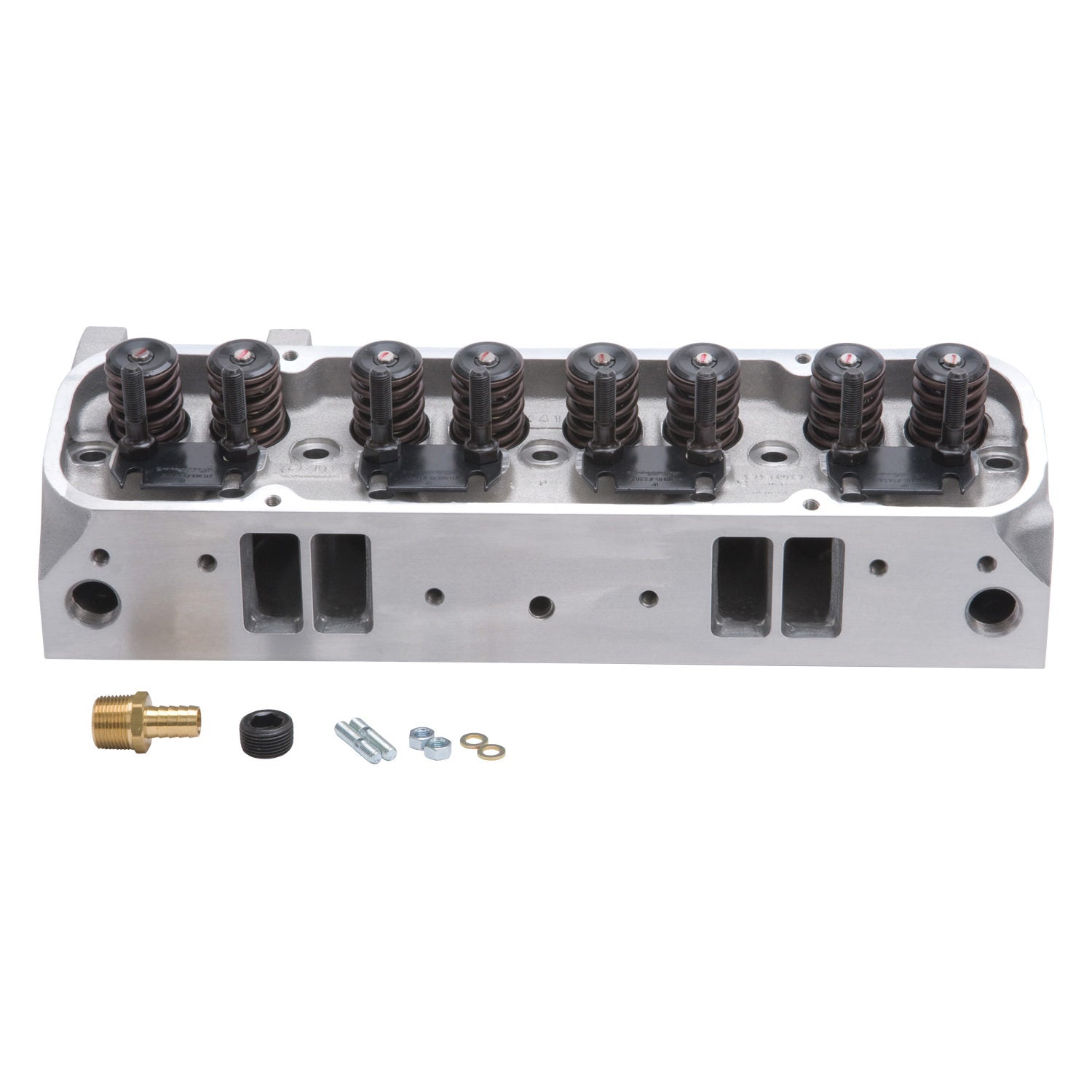

Edelbrock 61525 - Cylinder Head Performer RPM CNC Pontiac 1962-1969 455 CI V8 87 cc Combustion Chamber

Edelbrock 61525 - Cylinder Head Performer RPM CNC Pontiac 1962-1969 455 CI V8 87 cc Combustion Chamber

Edelbrock | 61525
SKU: EDEL-61525
Regular price $1,766.99 USD
Regular price $1,943.69 USD Sale price $1,766.99 USD
Sale Sold out
Shipping calculated at checkout.

6 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 61525 - Cylinder Head Performer RPM CNC Pontiac 1962-1969 455 CI V8 87 cc Combustion Chamber

Cylinder Head - Performer RPM - Assembled - 2.110 / 1.660 in Valves - 215 cc Intake - 87 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Pontiac V8 - Each

Edelbrock part #61525 Performer RPM CNC Cylinder Heads have the same specifications as our popular Performer RPM cylinder heads for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber.

The Edelbrock #61525 Performer RPM CNC Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. The 87cc chamber version is ideal for 9.5:1 engines and will deliver excellent street performance on low octane fuel. The Edelbrock #61525 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.

  • Out-of-the-Box Bolt-On Performance
  • Maximize Performance w/Low-Octane Fuel
  • CNC-Matched Intake/Exhaust Ports in Std Location
  • Thicker Deck Surfaces Than Other Brands
Exhaust Runner Volume: 175
Family: Performer RPM
Construction Type: Complete
Rocker Arm Stud Diameter: 0.4375
Intake Valve Diameter: 2.11
Exhaust Valve Diameter: 1.66
EGR Port: Yes
Quantity: Sold Individually
Horsepower: 450-600
Retainer Included: Yes
Valve Spring Diameter: 1.46
Valve Spring Maximum Lift: 0.575
CNC Ported: Yes
Exhaust Port Location: Standard
Series: Performer RPM
Valve Stem Diameter: 0.3438
Push Rod Diameter: (Suggested) 0.3125
Deck Thickness: 0.625
Valve Angle: 14
Seat Angle: Exhaust 45 deg/Intake 45
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Camshaft Type: Hydraulic Roller
Seat Material: Ductile Iron
Guide Material: Manganese Bronze
Mounting Hardware Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Material: Aluminum
Assembled: Yes
Intake Runner Volume: 215
Head Casting Number: 31-6152
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 10.25
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 87
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
