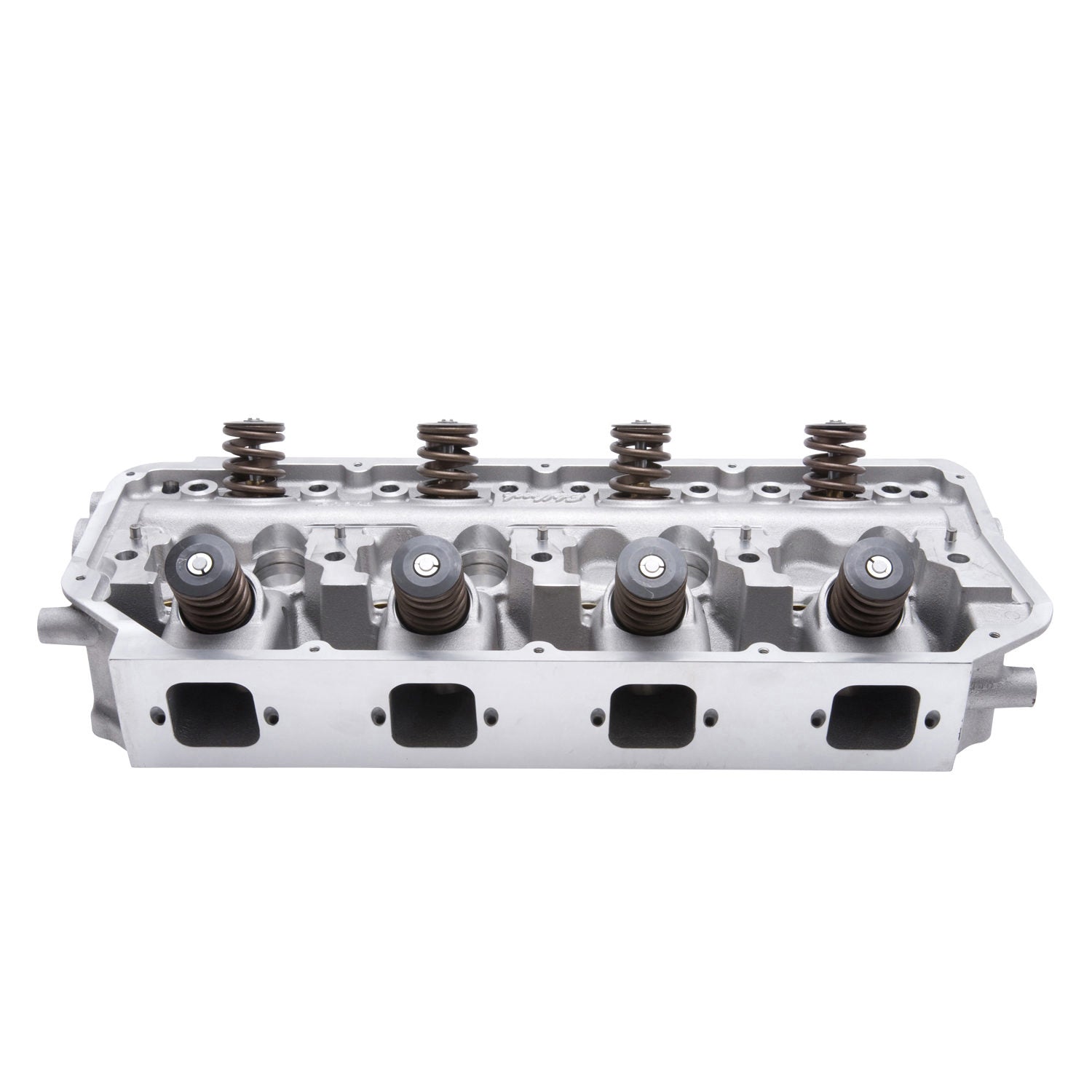

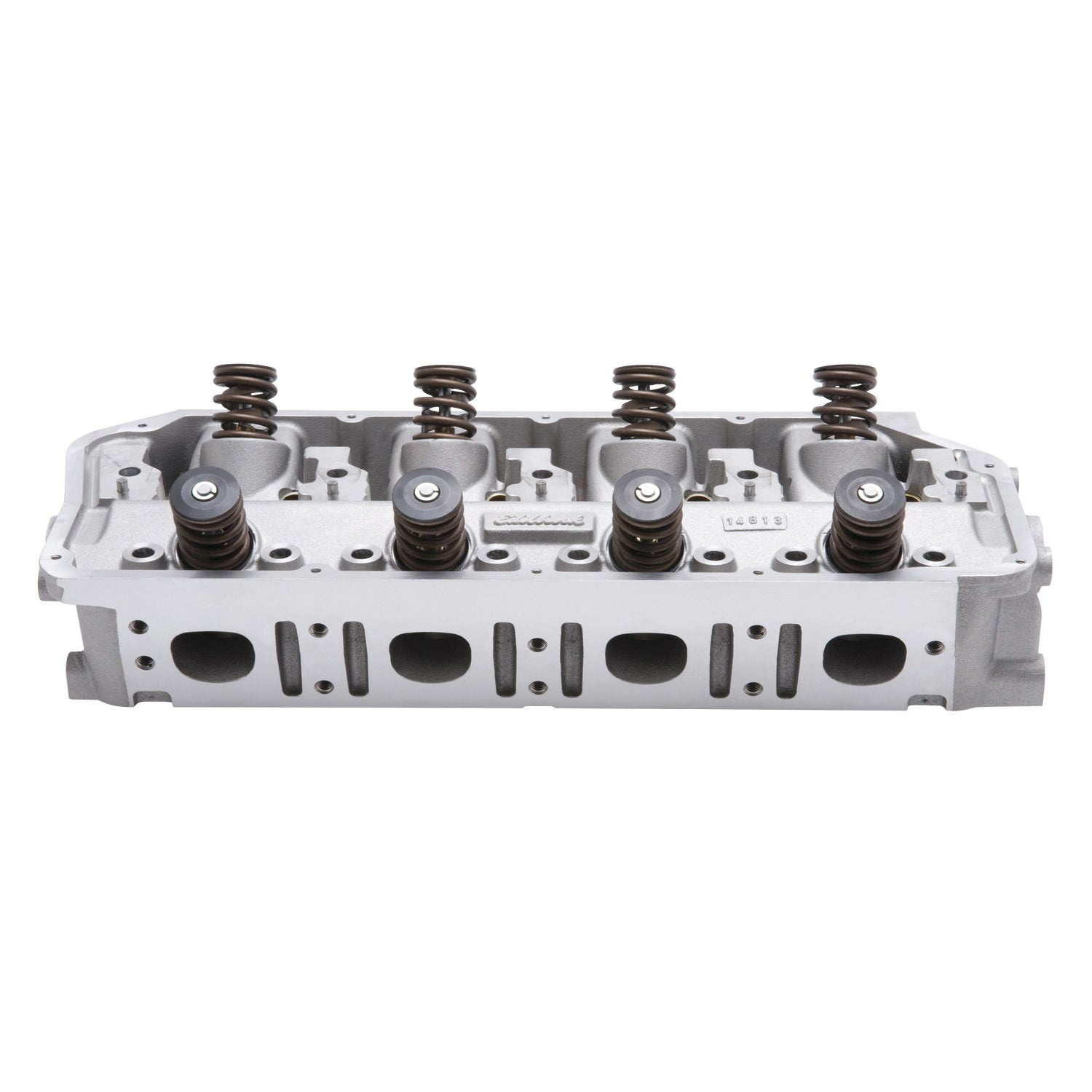

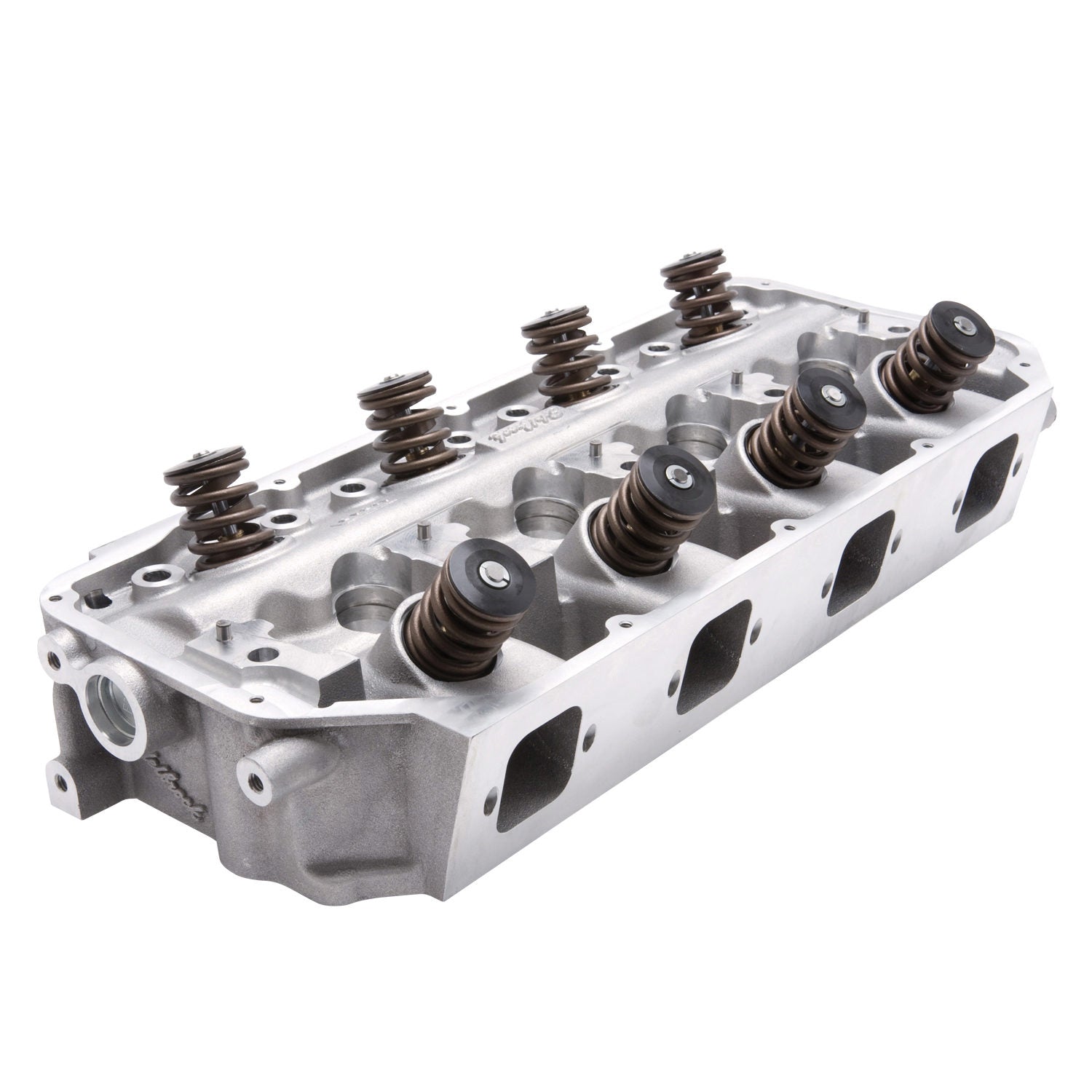

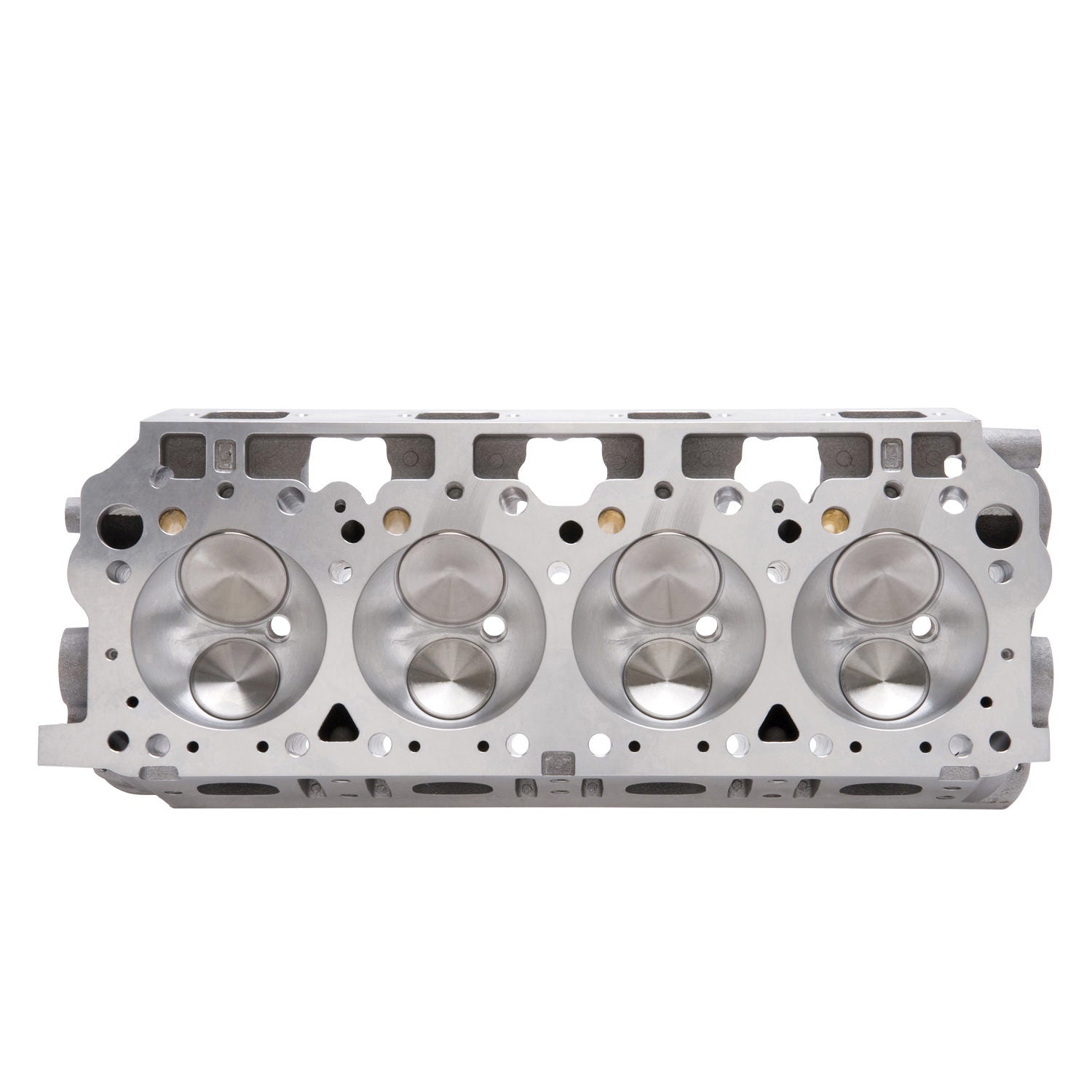

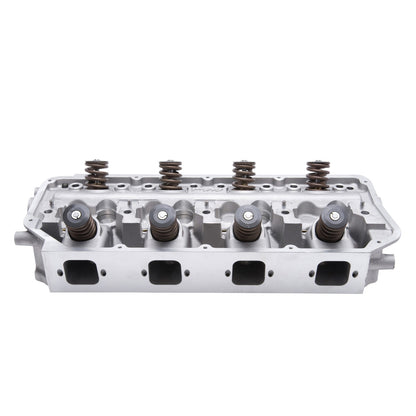

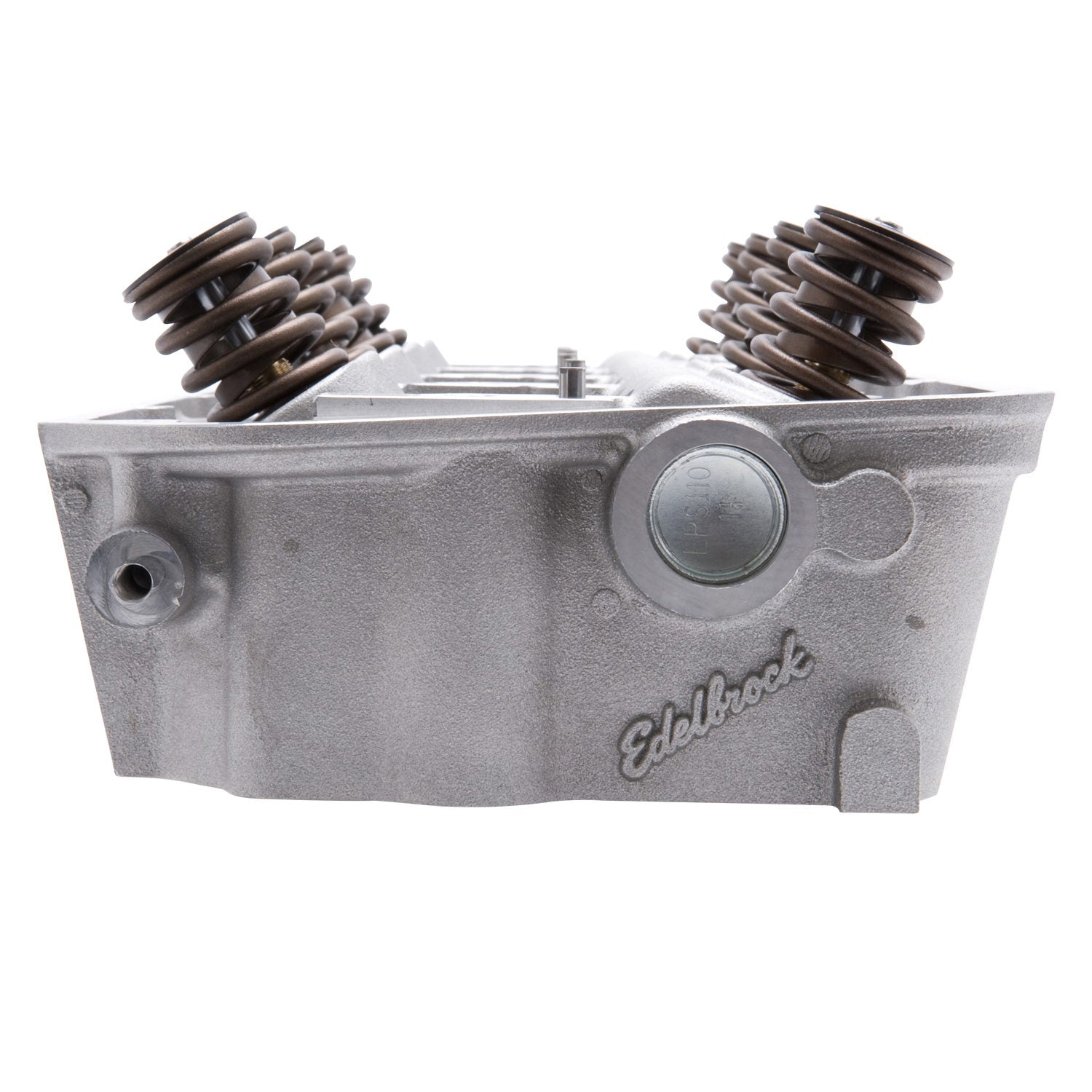

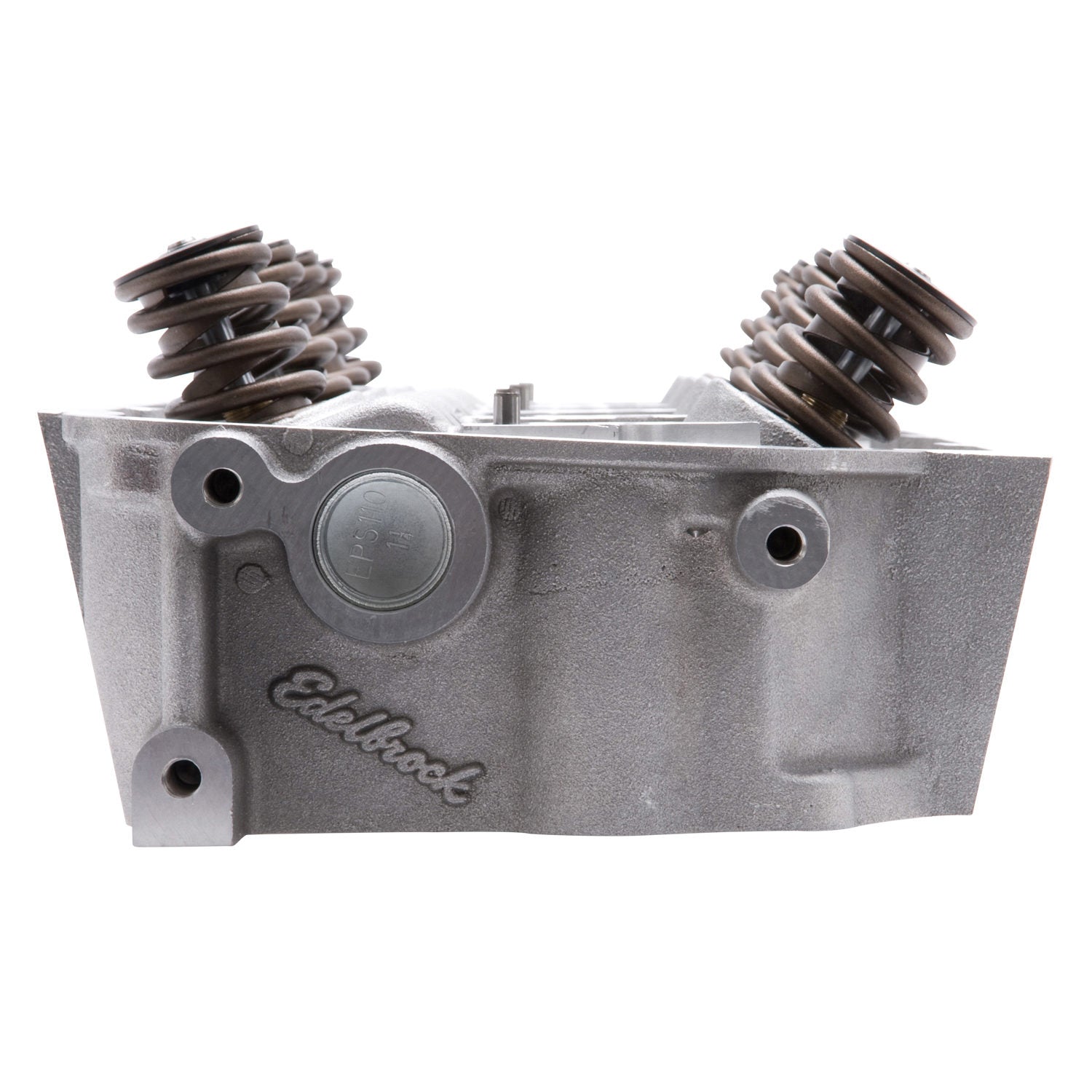

Edelbrock 61175 - Cylinder Head Victor Jr CNC Chrysler 426-572 CI V8 Complete for Hydraulic Roller Camshaft

Edelbrock 61175 - Cylinder Head Victor Jr CNC Chrysler 426-572 CI V8 Complete for Hydraulic Roller Camshaft

Edelbrock | 61175
SKU: EDEL-61175
$1,955.99 USD
$2,151.59 USD $1,955.99 USD
Sale Sold out
Shipping calculated at checkout.

11 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 61175 - Cylinder Head Victor Jr CNC Chrysler 426-572 CI V8 Complete for Hydraulic Roller Camshaft

Cylinder Head - Victor JR. - Assembled - 2.320 / 1.940 in Valves - 245 cc Intake - 170 cc Chamber - 1.540 in Springs - Straight Plug - Aluminum - Mopar 426 Hemi - Each

Our new Edelbrock #61175 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI engines. Fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance.

Our new Edelbrock #61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

  • CNC Chambers
  • Affordable; Top Quality
  • Revised Exhaust Valve Angle
Family: Victor Jr.
Rocker Arm Studs/Bolts Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Mounting Hardware Included: No
Assembled: Yes
Material: Aluminum
Intake Runner Volume: 245
Head Casting Number: 31-6117
Guide Plates Included: No
Grade Type: Performance
Deck Height: 10.72
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 170
Valves Included: Yes
Valve Lock Material: Steel
Seat Material: Ductile Iron
Deck Thickness: 0.625
Valve Angle: Exhaust (Tipped) 1.5-21.5 deg/Intake Stock
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Camshaft Type: Hydraulic Roller
Push Rod Diameter: (Suggested) 0.3125 in Or 0.375
Intake Valve Diameter: 2.320
Exhaust Valve Diameter: 1.94
EGR Port: No
Exhaust Port Location: Standard
Seat Angle: Exhaust 45 deg/Intake 45
CNC Ported: Yes
Exhaust Runner Volume: 105
Horsepower: 550-800
Valve Spring Maximum Lift: 0.700
Guide Material: Manganese Bronze
Quantity: Sold Individually
Valve Stem Diameter: 0.3125
Retainer Included: Yes
Valve Spring Diameter: 1.54
Construction Type: Complete
Series: Victor Jr.
