Edelbrock 60859 - Single Perf SBC C-Bolt Head Comp

Edelbrock 60859 - Single Perf SBC C-Bolt Head Comp

Edelbrock | 60859
SKU: EDEL-60859
Regular price $1,240.99 USD
Regular price $1,365.09 USD Sale price $1,240.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

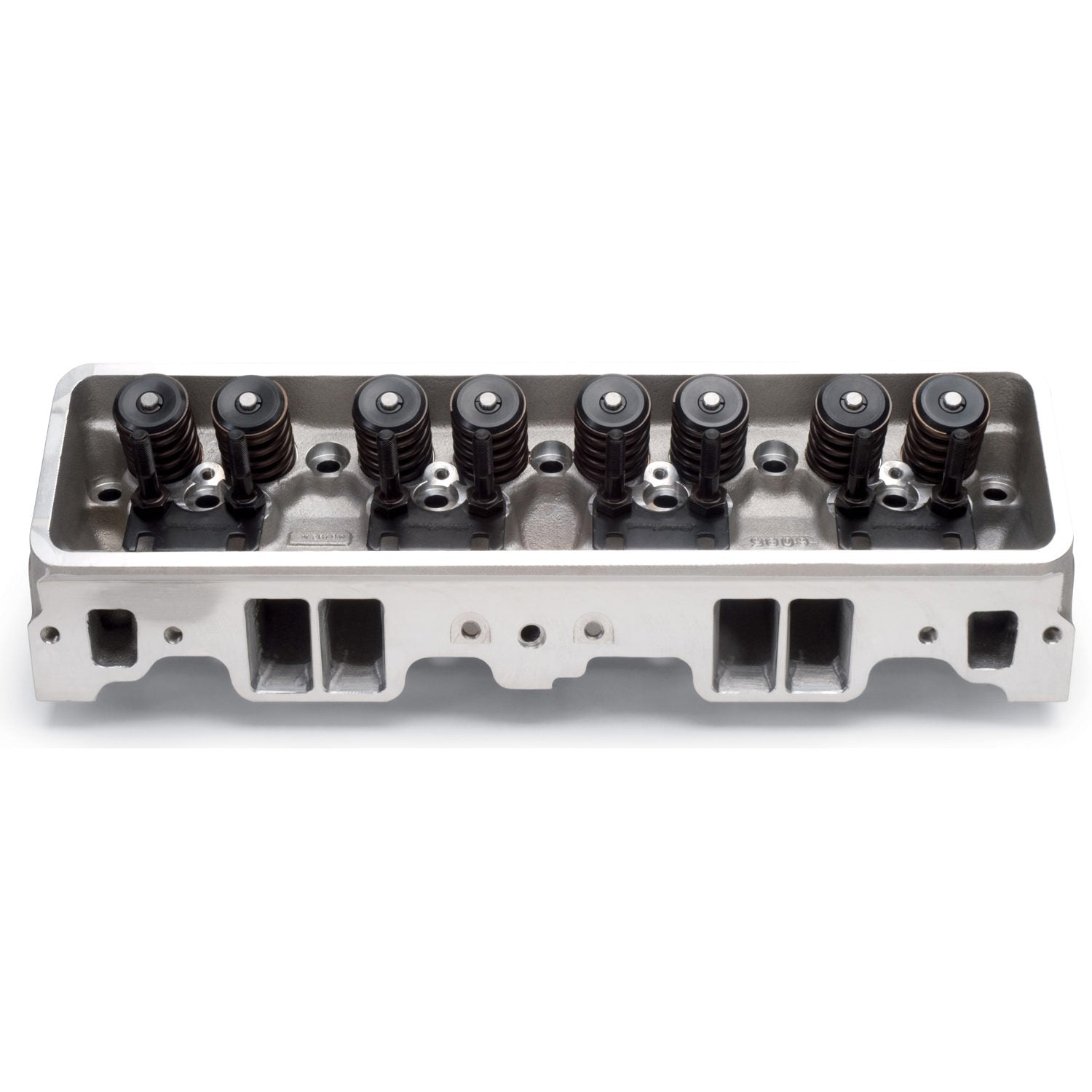

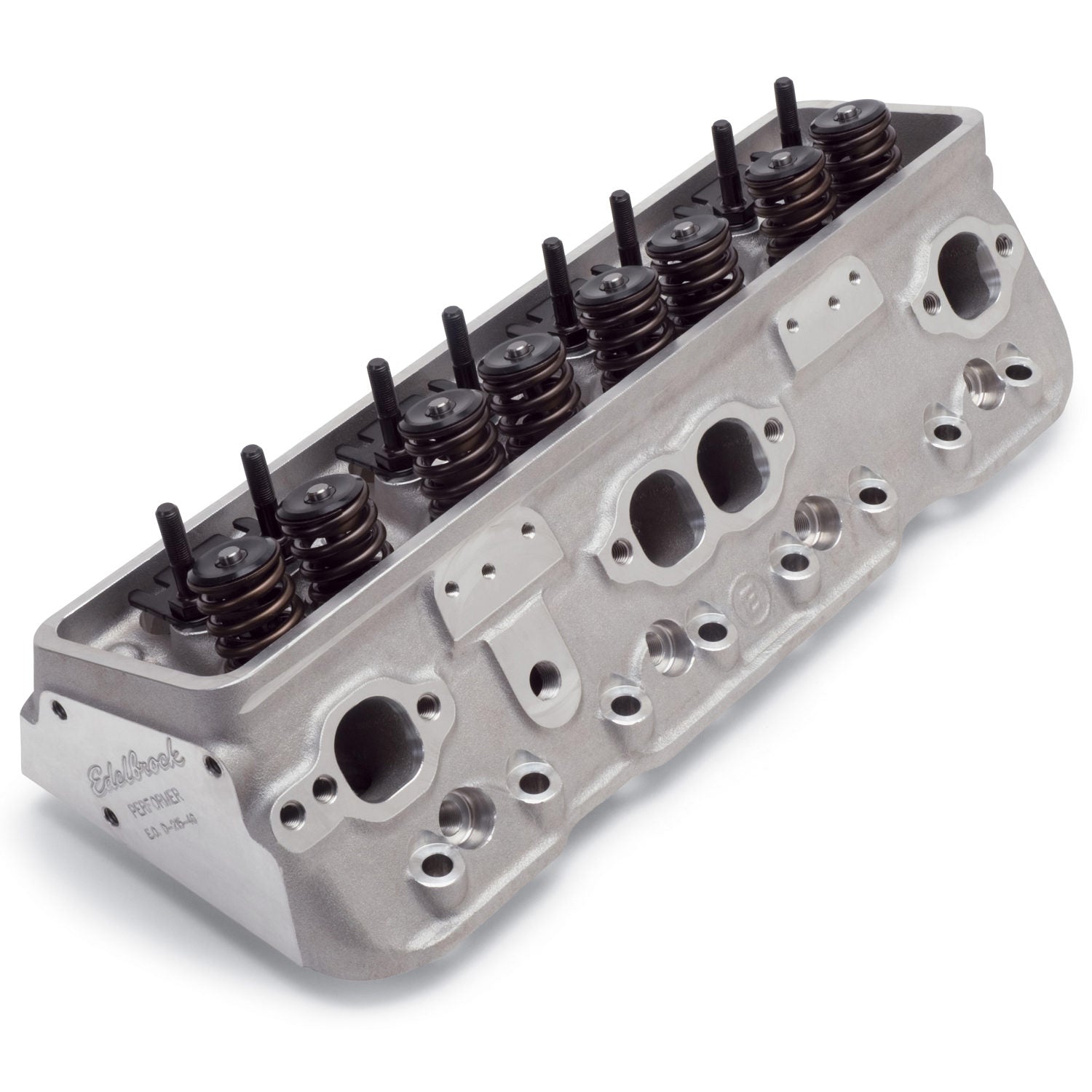

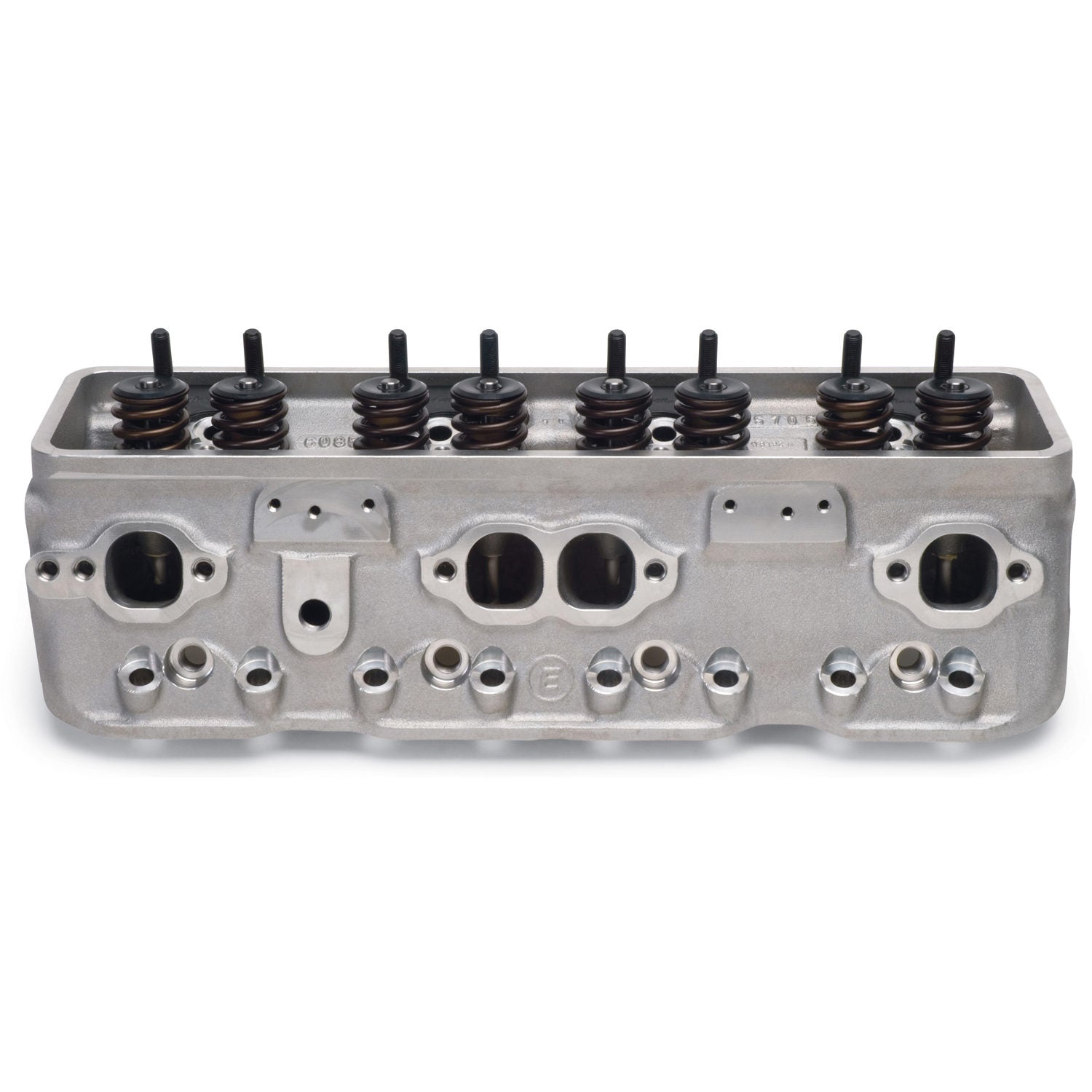

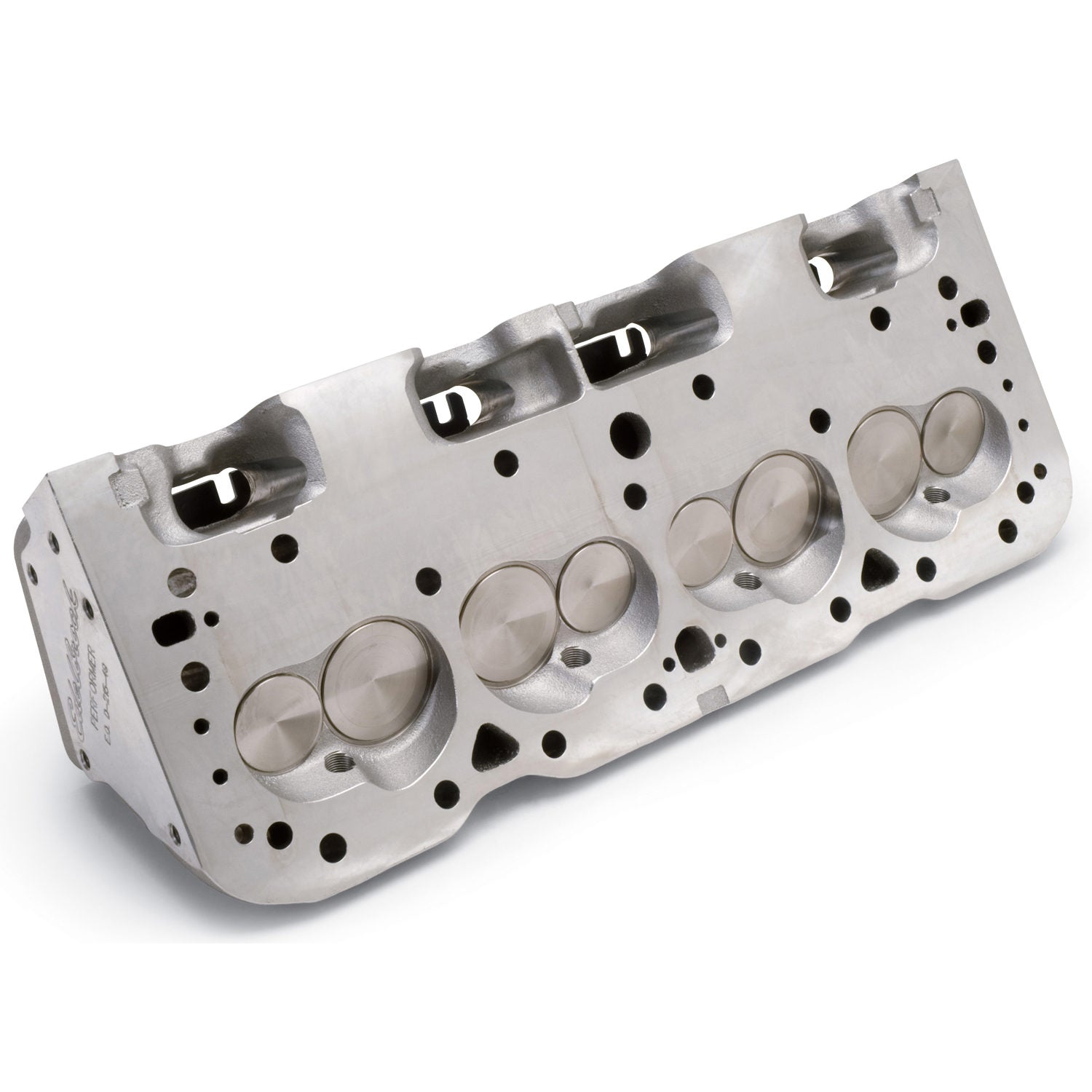

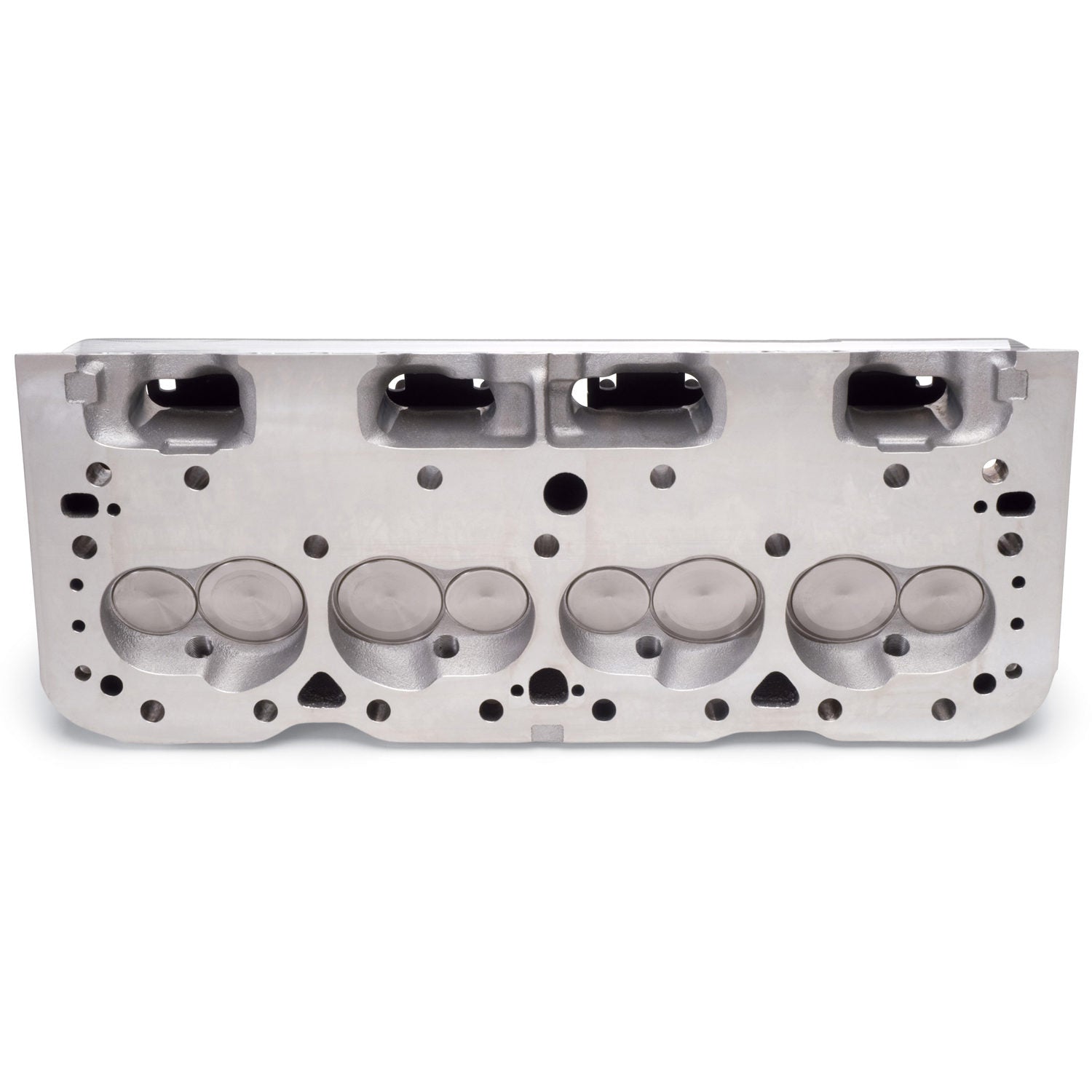

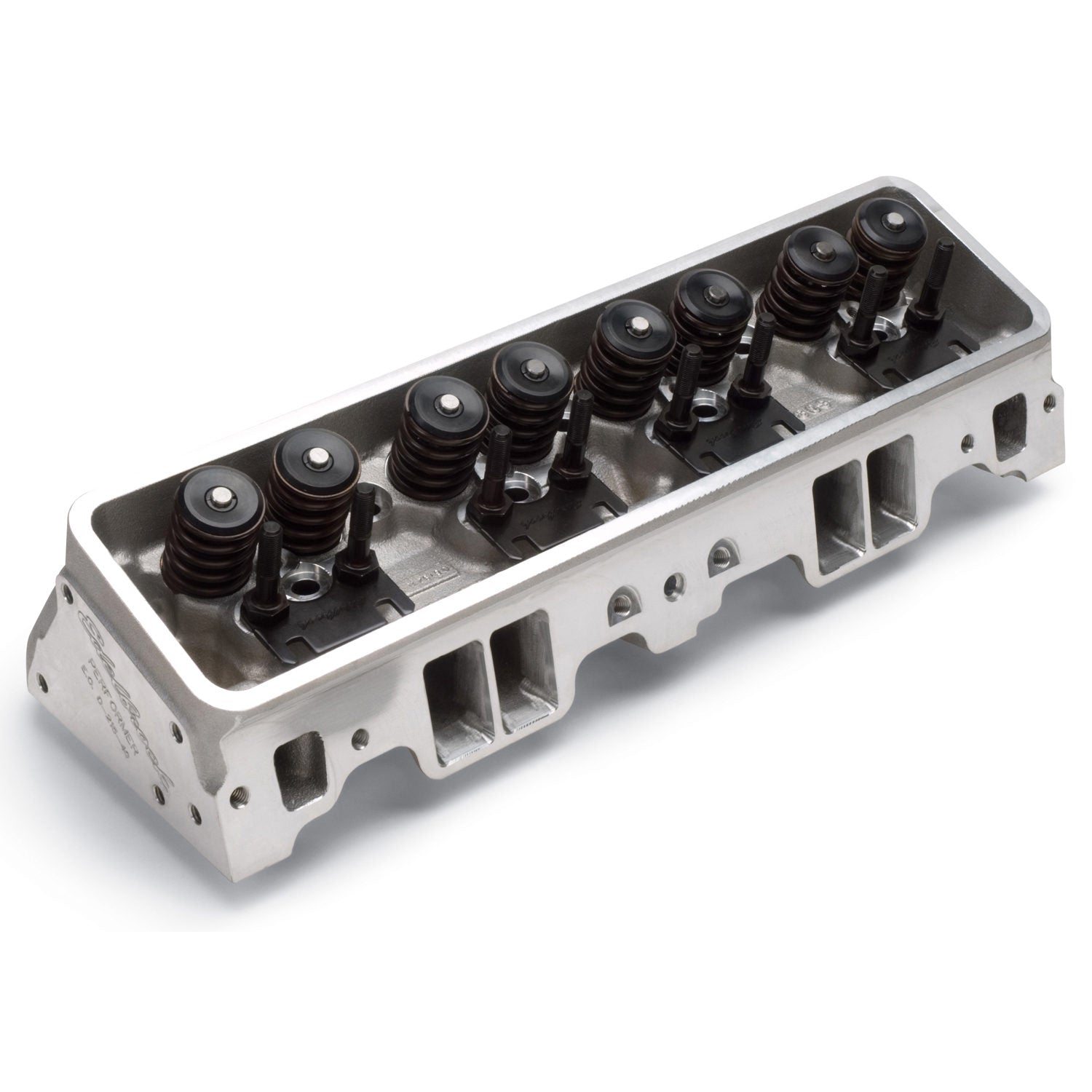

Edelbrock 60859 - Single Perf SBC C-Bolt Head Comp

Cylinder Head - Performer Centerbolt - Assembled - 2.020 / 1.600 in Valves - 165 cc Intake - 60 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - Small Block Chevy - Each

The Edelbrock #60859 Small-block Chevy cylinder head is designed for 1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with center bolt valve covers. Performer center bolt cylinder head is 50-state street legal and accept factory center bolt valve covers. The intake bolt pattern utilizes the 1987-95, 73deg angle on the two center bolts. Will maintain stock compression ratio when used with the recommended head gasket. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.

  • 50-State Street Legal Aluminum Cylinder Head
  • Out-of-the-Box Bolt-On Performance
  • Maintains Stock Compression Ratio
  • Accepts Stock Center Bolt Valve Covers
  • Accepts Edelbrock Aluminum Valve Covers
Construction Type: Complete
9040: D-215-94
CNC Ported: No
Valve Stem Diameter: 0.3438
Rocker Arm Stud Diameter: 0.375
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Exhaust Valve Diameter: 1.60
EGR Port: Yes
Seat Material: Ductile Iron
Deck Thickness: 0.625
Guide Material: Manganese Bronze
Push Rod Diameter: (Suggested) 0.3125
Valve Angle: 23
Seat Angle: Exhaust 45 deg/Intake 45
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Mounting Hardware Included: No
Material: Aluminum
Intake Runner Volume: 165
Head Casting Number: 6085F
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.025
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 60
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Exhaust Port Location: Standard
Family: Performer
Camshaft Type: Flat Tappet
Rotor Center Bore Inside Diameter: Straight
Exhaust Runner Volume: 65
Series: Performer
Quantity: Sold Individually
Horsepower: 250-425
Retainer Included: Yes
Intake Valve Diameter: 2.02
Valve Spring Diameter: 1.46
Valve Spring Maximum Lift: 0.575
