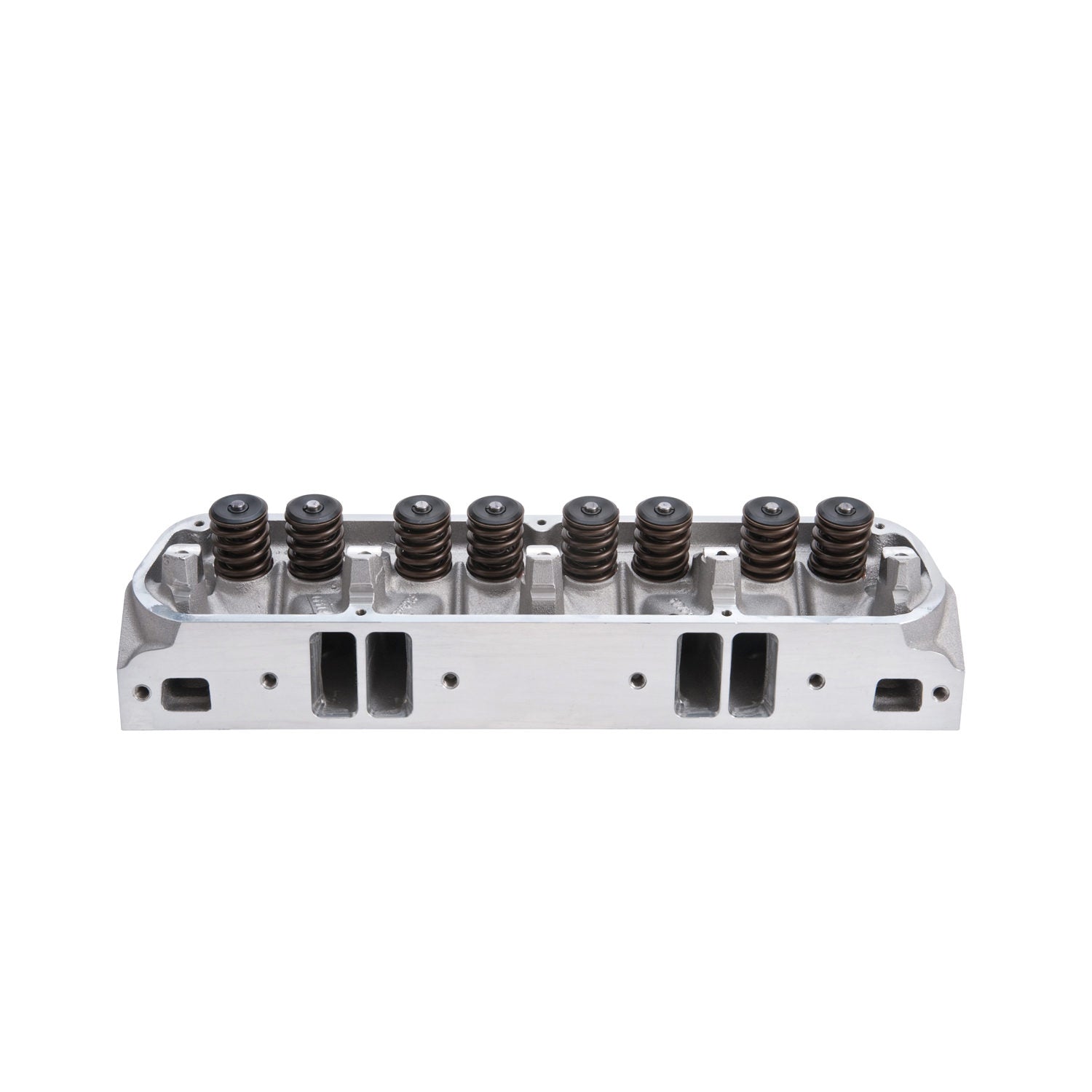

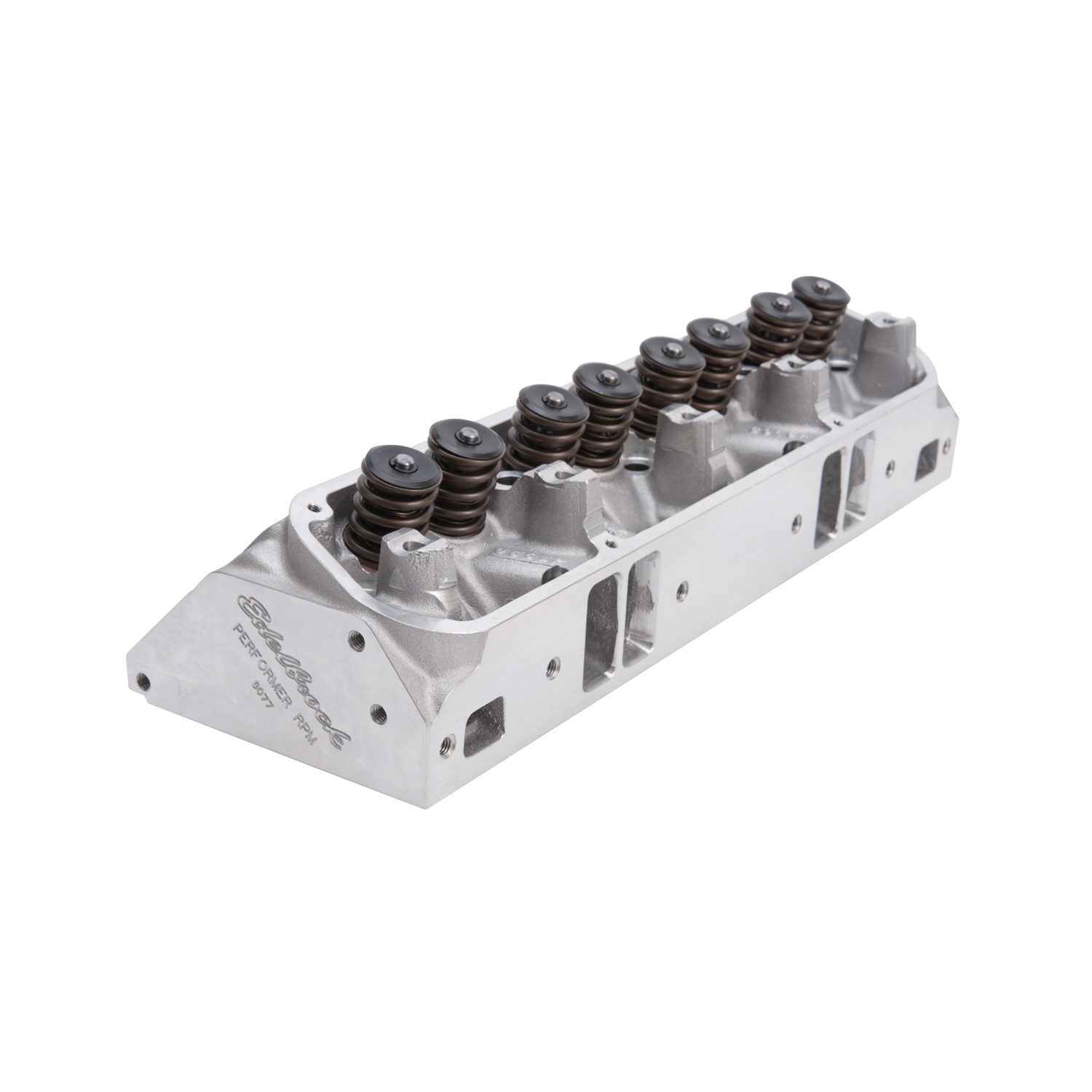

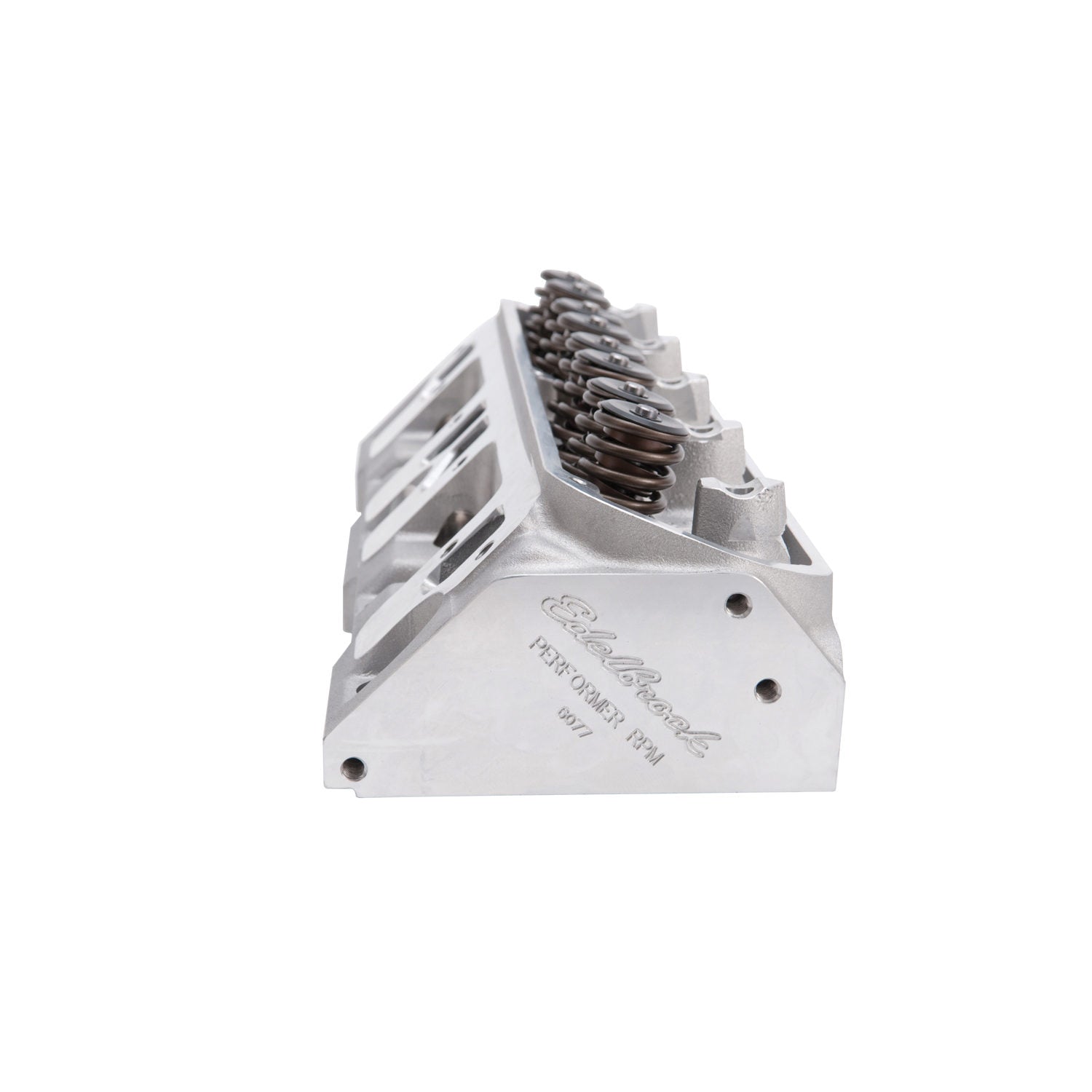

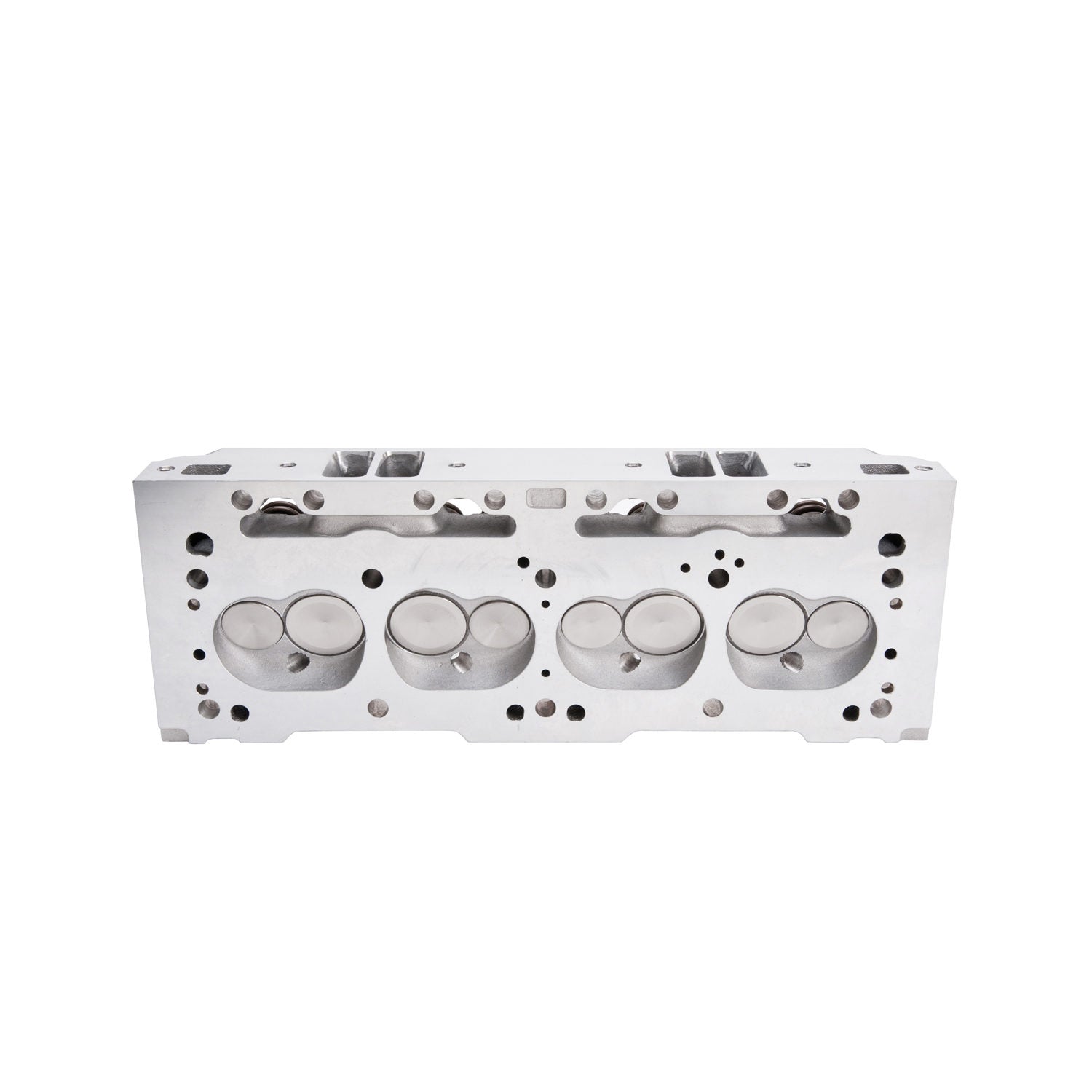

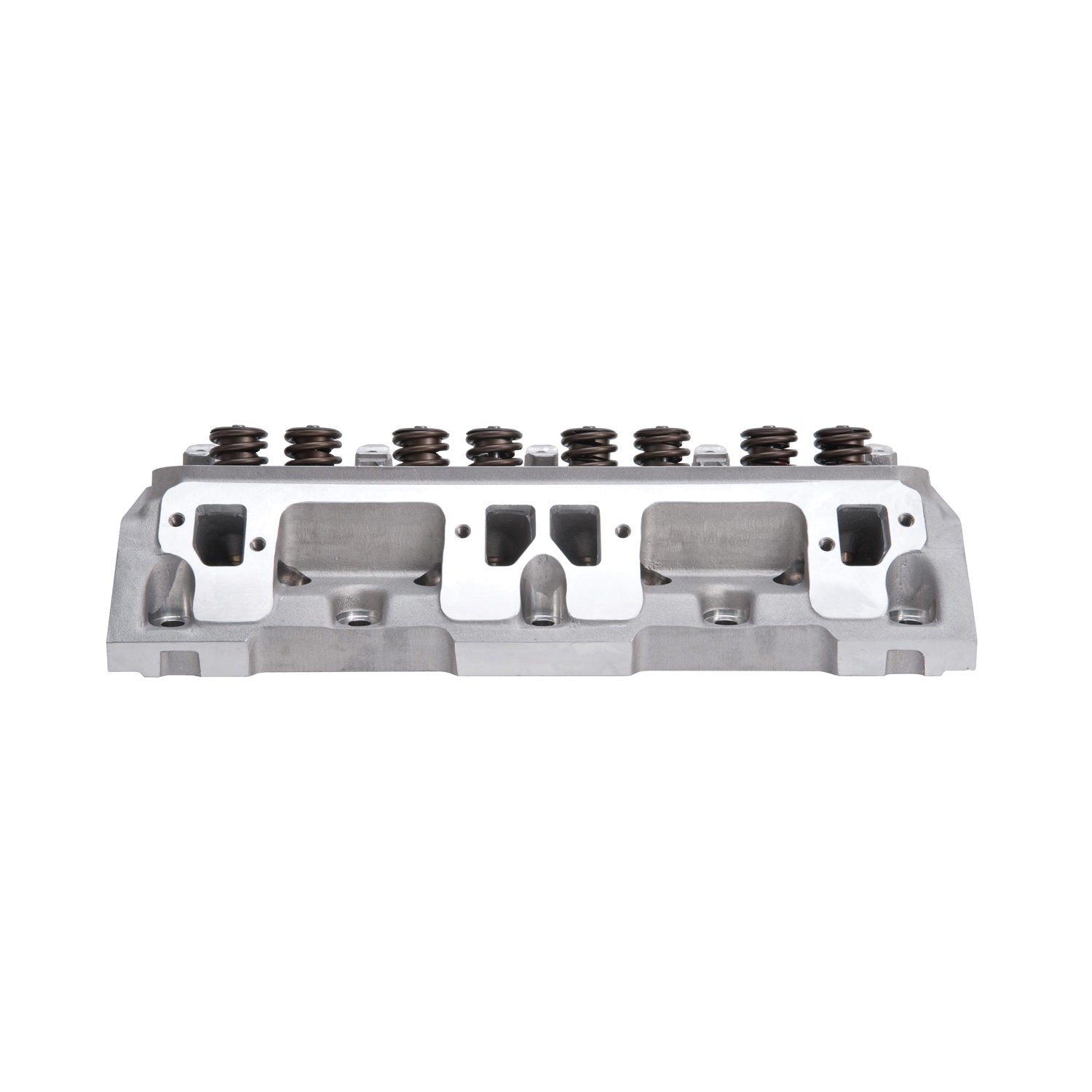

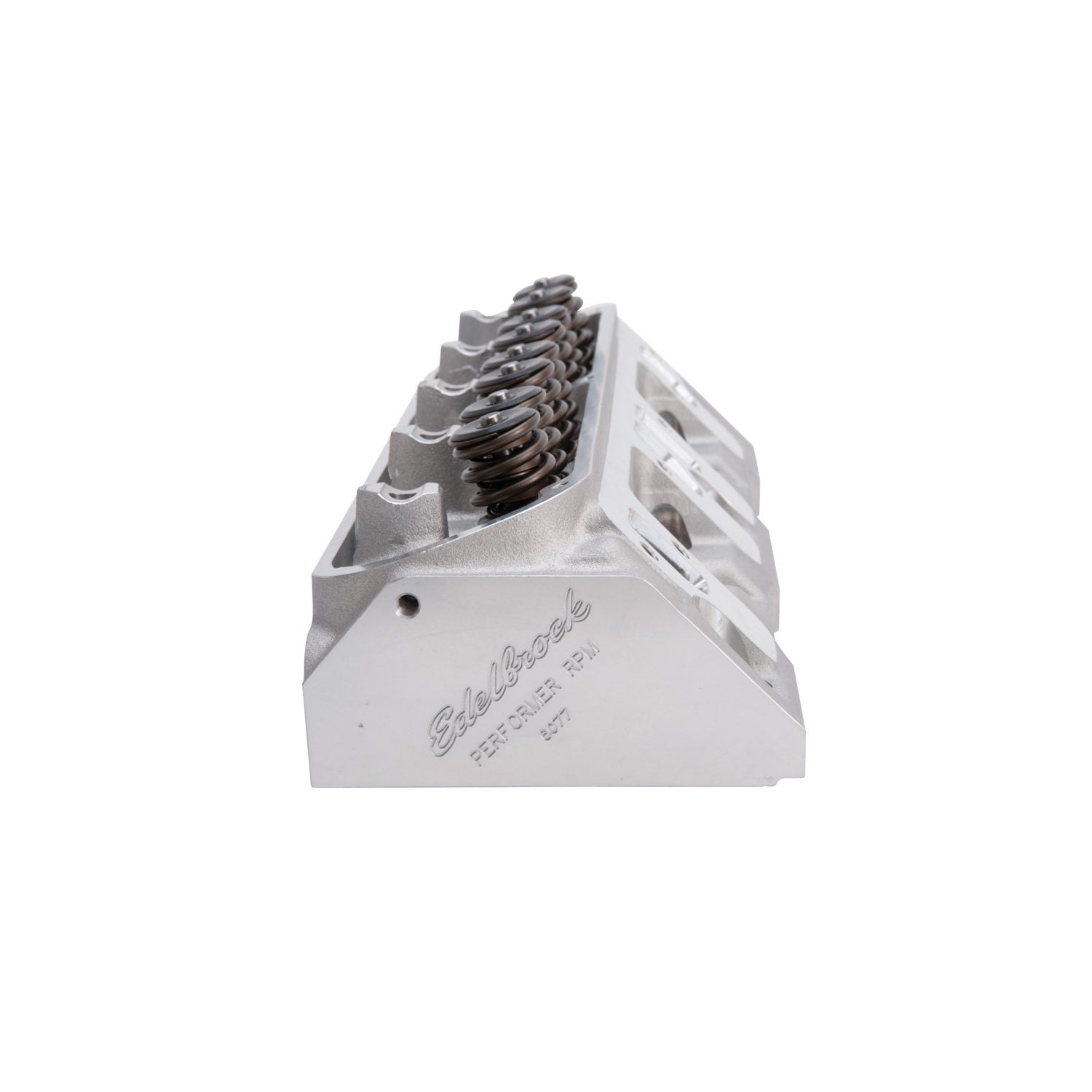

Edelbrock 60775 - Cylinder Head SB Chrysler Performer RPM for Hydraulic Roller Cam Complete (Ea)

Edelbrock 60775 - Cylinder Head SB Chrysler Performer RPM for Hydraulic Roller Cam Complete (Ea)

Edelbrock | 60775
SKU: EDEL-60775
Regular price $1,183.99 USD
Regular price $1,302.39 USD Sale price $1,183.99 USD
Sale Sold out
Shipping calculated at checkout.

10 in stock

Quantity

Edelbrock 60775 - Cylinder Head SB Chrysler Performer RPM for Hydraulic Roller Cam Complete (Ea)

Cylinder Head - Performer RPM - Assembled - 2.020 / 1.600 in Valves - 171 cc Intake - 63 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Small Block Mopar - Each

The Edelbrock #60775 Performer RPM heads are designed for use with non-emission 1968-91 Chrysler 318-340-360 engines. These heads are perfect for street performance, daily drivers and muscle cars where more performance is needed.

The Edelbrock #60775 Performer RPM head is designed for use with non-emission 1968-91 Chrysler 318-340-360 c.i.d. engine applications. The Edelbrock #60775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

  • Out-of-the-Box Bolt-On Performance
  • Hand-Blended Intake and Exhaust Bowls
  • CNC-Matched Intake/Exhaust Ports in Std Location
  • Thicker Deck Surfaces Than Other Brands
Seat Material: Ductile Iron
Construction Type: Complete
Valve Angle: 18
Guide Material: Manganese Bronze
Camshaft Type: Hydraulic Roller
Seat Angle: Exhaust 45 deg/Intake 45
Valve Stem Diameter: 0.3438
Horsepower: 350-450
Intake Valve Diameter: 2.02
Quantity: Sold Individually
Retainer Included: Yes
Valve Spring Diameter: 1.46
Guide Plate Material: Hardened Steel
Deck Thickness: 0.625
CNC Ported: No
Exhaust Port Location: Standard
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Performer RPM
Exhaust Valve Diameter: 1.60
EGR Port: No
Exhaust Runner Volume: 77
Family: Performer RPM
Valve Spring Maximum Lift: 0.575
Rocker Arm Studs/Bolts Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Mounting Hardware Included: No
Assembled: Yes
Material: Aluminum
Intake Runner Volume: 171
Head Casting Number: 31-6076
Guide Plates Included: No
Grade Type: Performance
Deck Height: 9.6
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 63
Valves Included: Yes
Valve Lock Material: Steel
