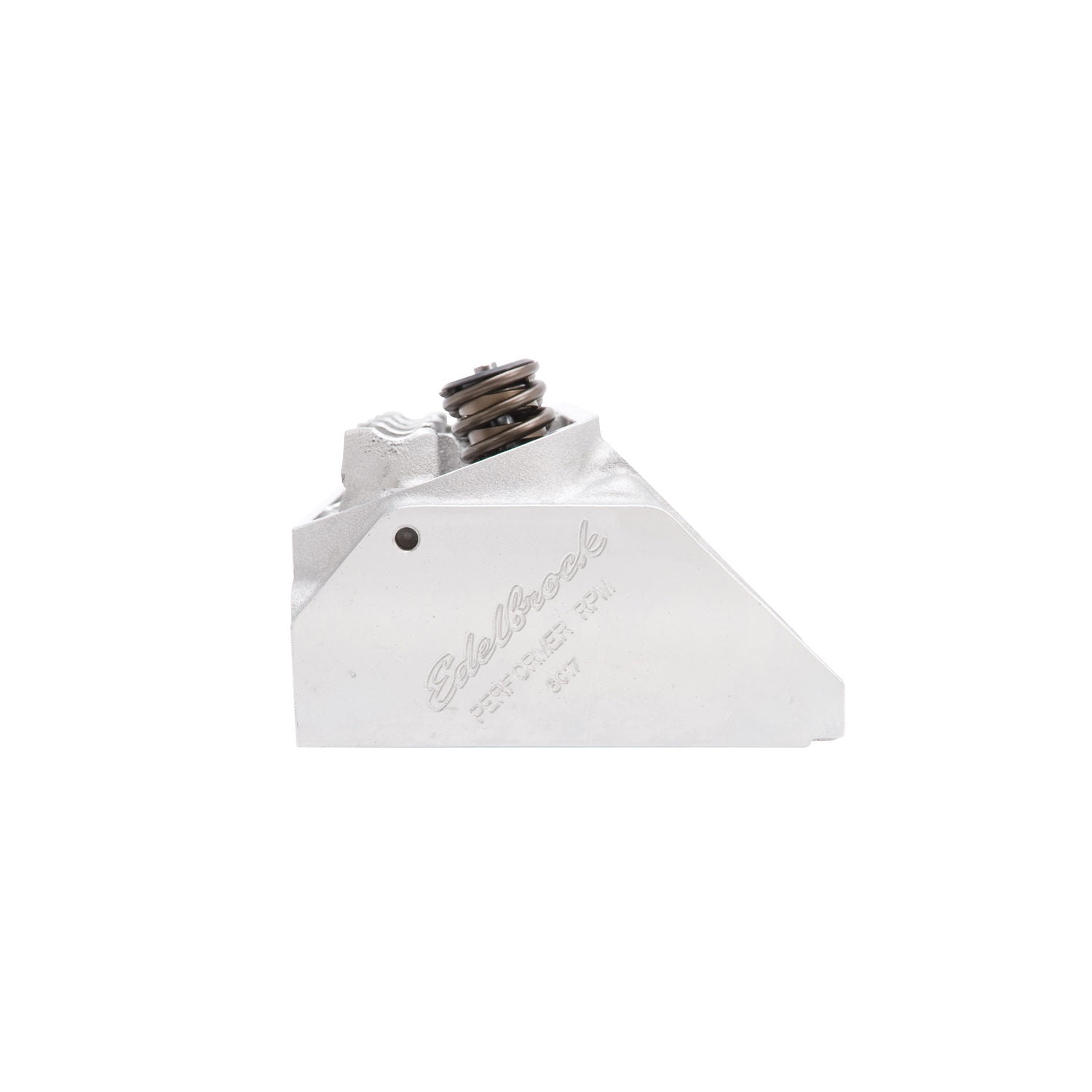

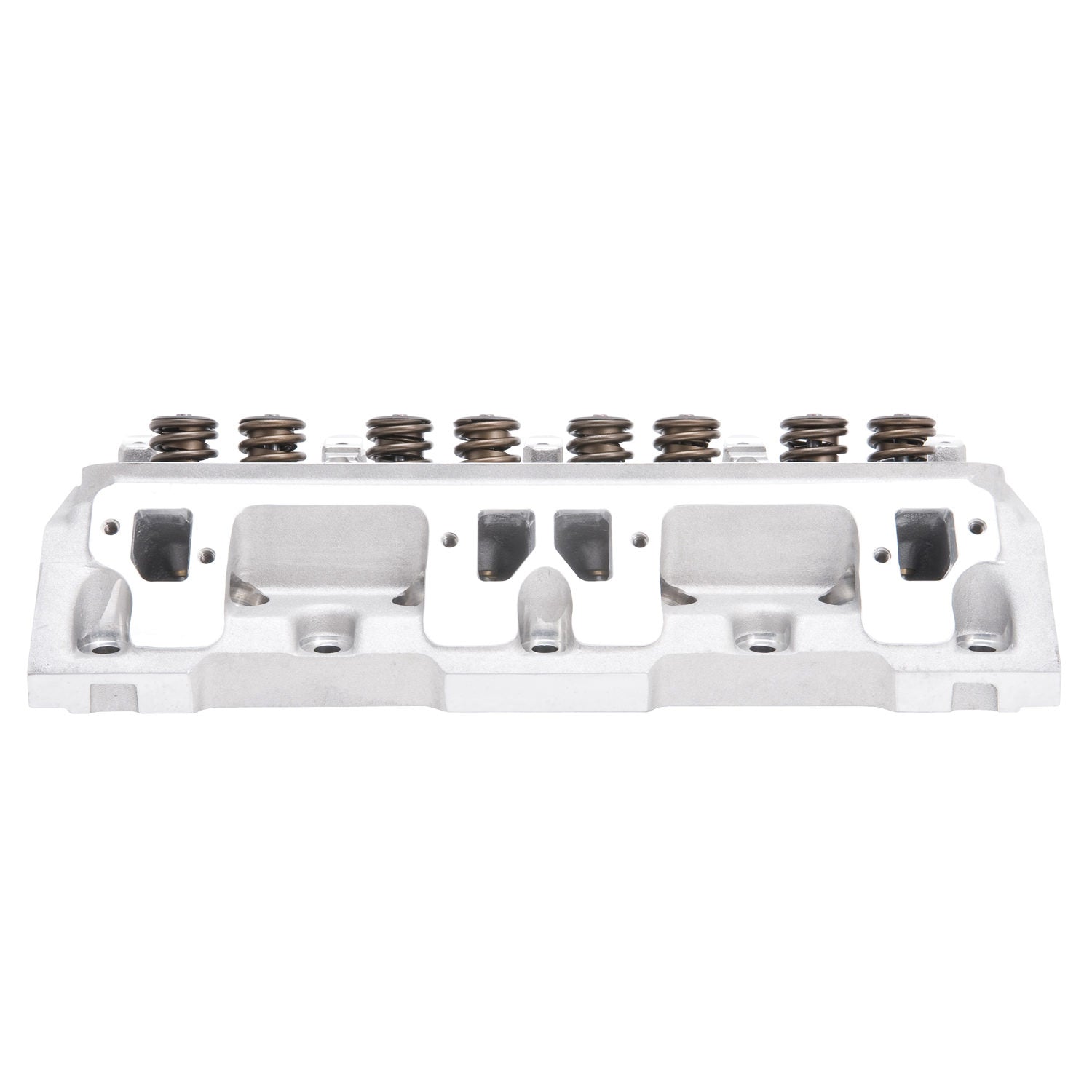

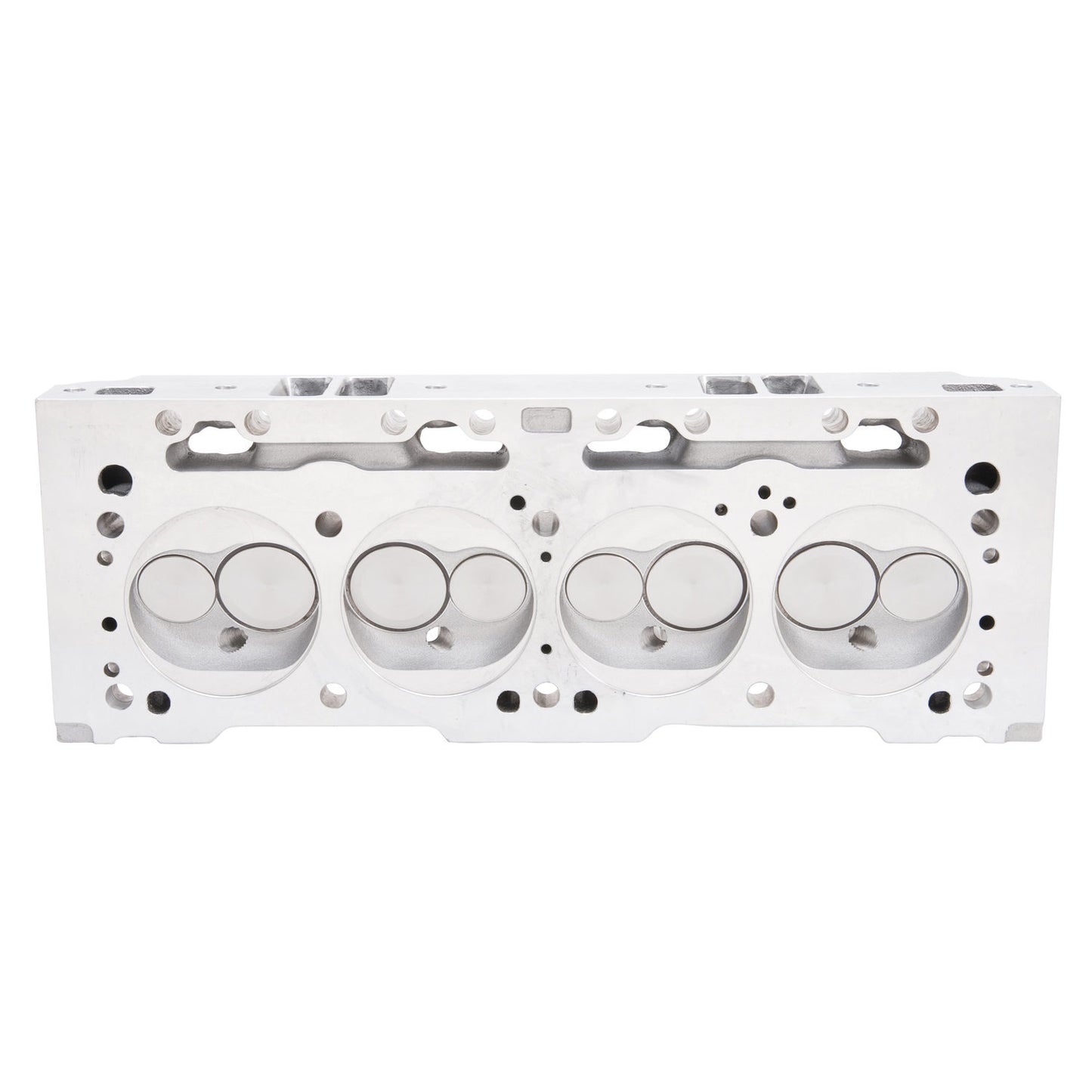

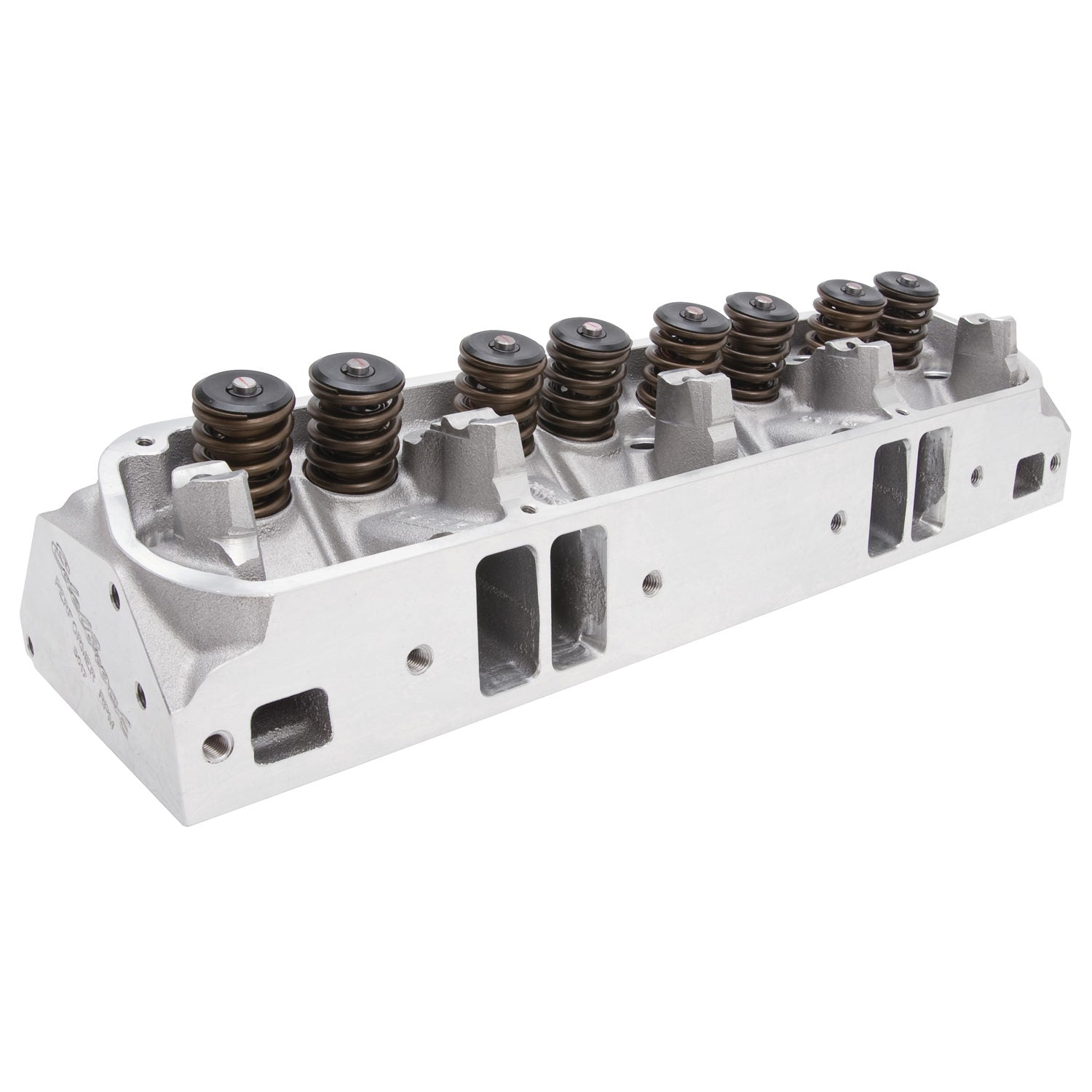

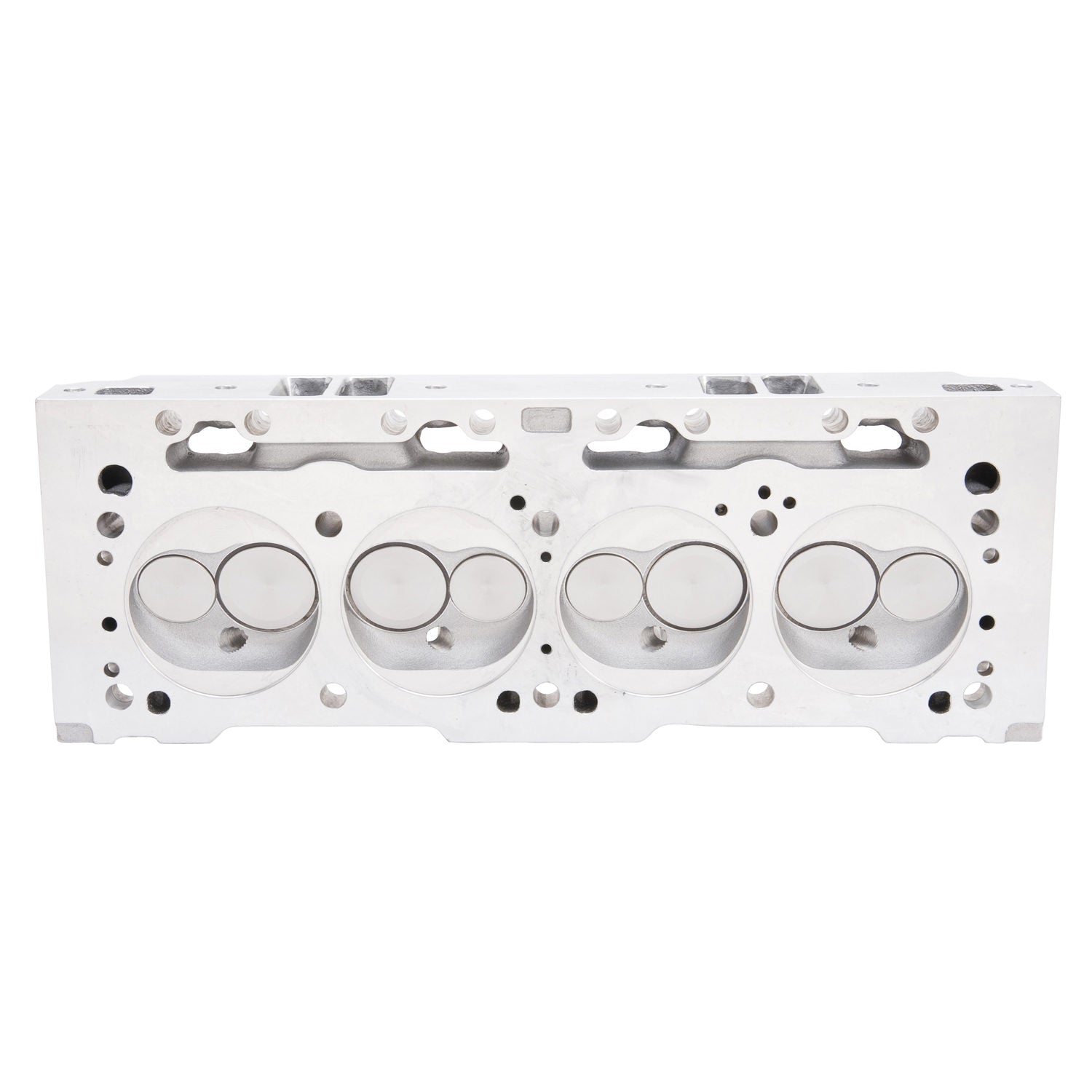

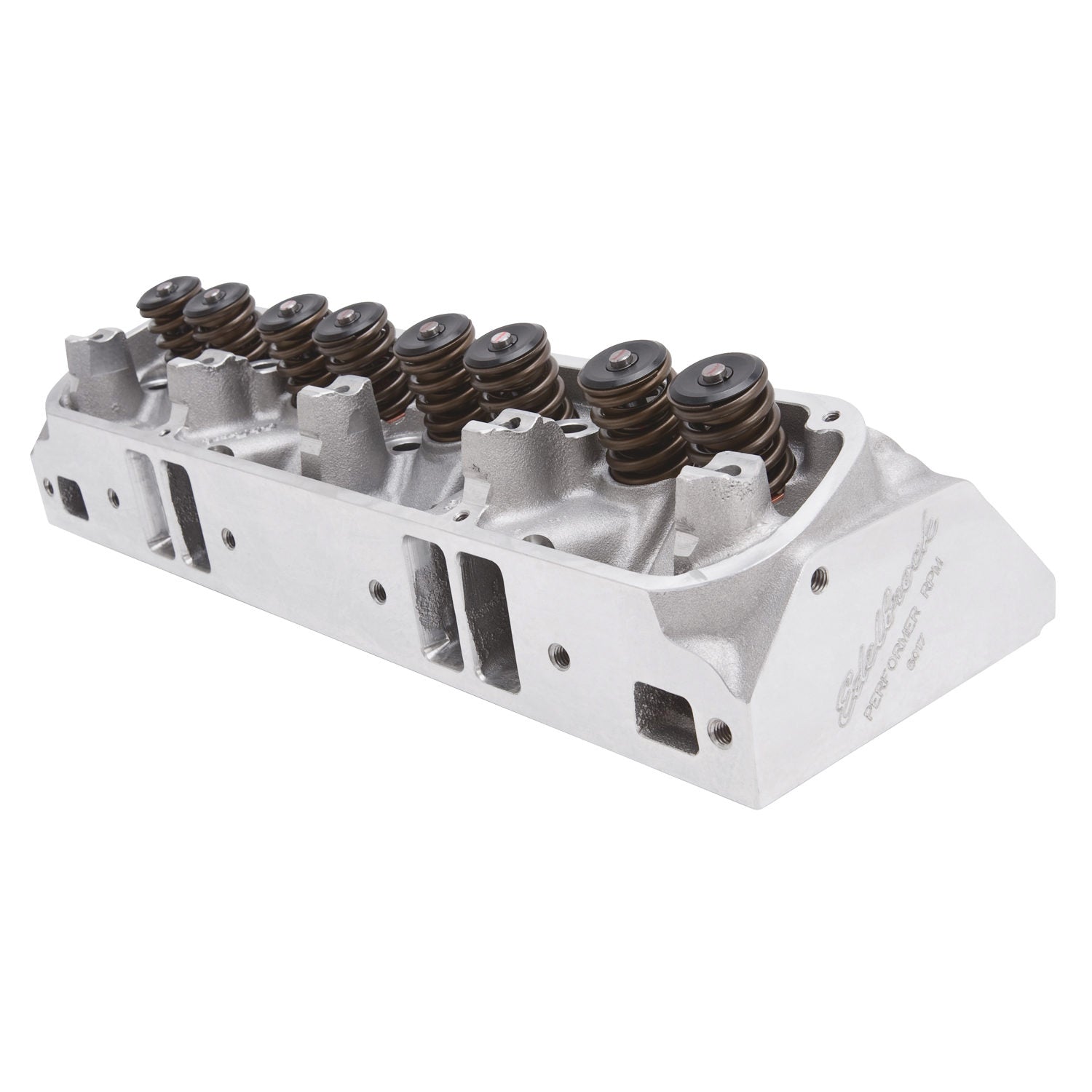

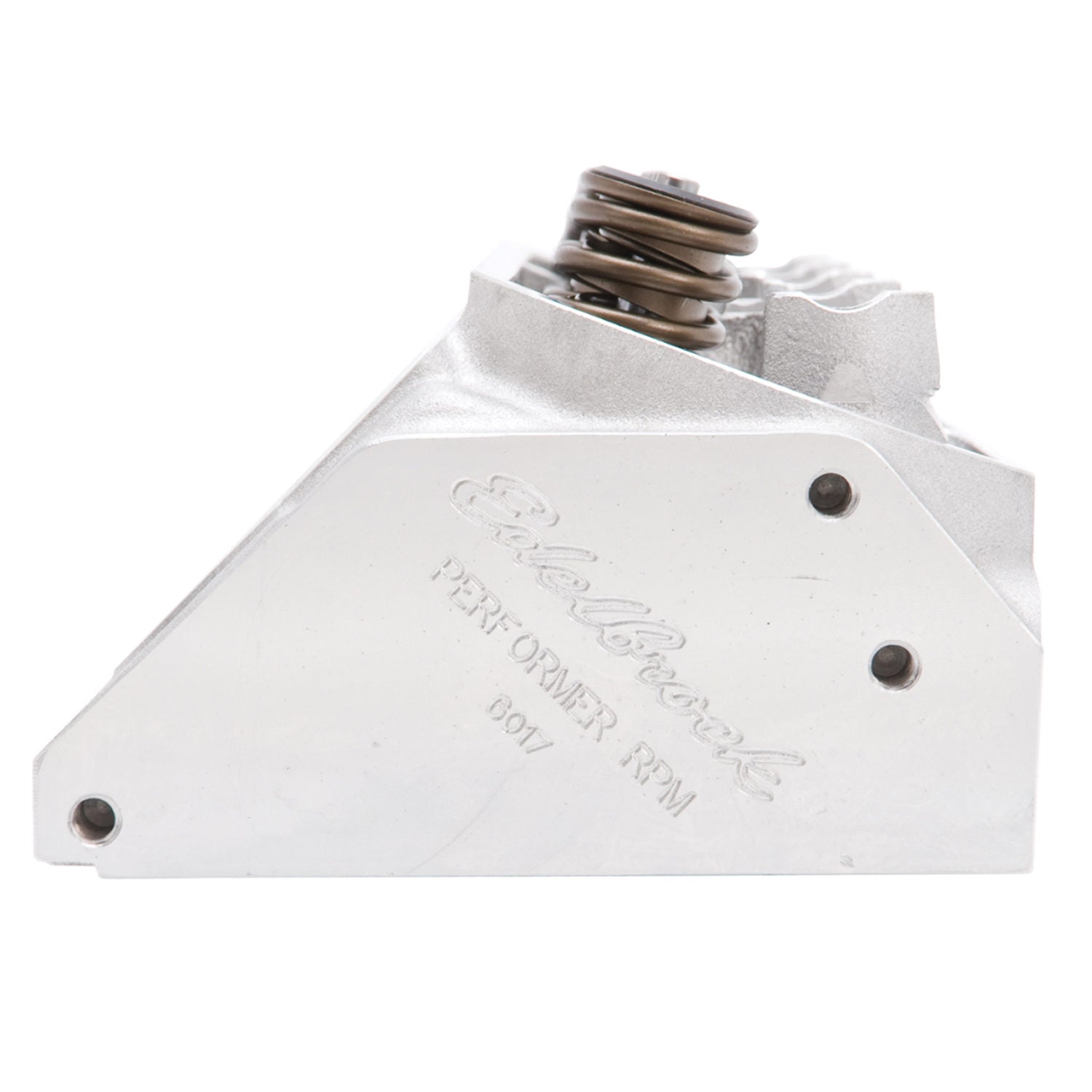

Edelbrock 60175 - Cylinder Head SB Chrysler Performer RPM 340 for Hydraulic Roller Cam

Edelbrock 60175 - Cylinder Head SB Chrysler Performer RPM 340 for Hydraulic Roller Cam

Edelbrock | 60175
SKU: EDEL-60175
Regular price $1,162.99 USD
Regular price $1,279.29 USD Sale price $1,162.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Quantity

Edelbrock 60175 - Cylinder Head SB Chrysler Performer RPM 340 for Hydraulic Roller Cam

Cylinder Head - Performer RPM - Assembled - 2.020 / 1.600 in Valves - 171 cc Intake - 63 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Small Block Mopar - Each

The Edelbrock #60175 Performer RPM heads are designed for use with non-emission 1968-73 Chrysler 340 c.i.d. engines. The Performer RPM heads are perfect for street performance, daily drivers and muscle cars where more performance is needed.

The Edelbrock #60175 Performer RPM head is designed for use with non-emission 1968-73 Chrysler 340 c.i.d. engine applications. The Edelbrock #60175 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

  • Out-of-the-Box Bolt-On Performance
  • Valves Promote Excellent Flow For Streetable Power
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: No
Material: Aluminum
Mounting Hardware Included: No
Intake Runner Volume: 171
Head Casting Number: 31-6076
Guide Plates Included: No
Grade Type: Performance
Deck Height: 9.6
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 65
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Exhaust Runner Volume: 77
Quantity: Sold Individually
Retainer Included: Yes
Valve Spring Diameter: 1.46
Guide Plate Material: Hardened Steel
Exhaust Port Location: Standard
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Performer RPM
Exhaust Valve Diameter: 1.60
EGR Port: No
Family: Performer RPM
Seat Material: Ductile Iron
Construction Type: Complete
Valve Angle: 18
Guide Material: Manganese Bronze
Horsepower: 350-450
Valve Spring Maximum Lift: 0.575
Valve Stem Diameter: 0.3438
Intake Valve Diameter: 2.02
Rocker Arm Stud Diameter: 0.375
Seat Angle: Exhaust 45 deg/Intake 45
Camshaft Type: Hydraulic Roller
Deck Thickness: 0.625
CNC Ported: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
