Edelbrock 5862 - V/S Performer Chev 396-454 Non Rotator

Edelbrock 5862 - V/S Performer Chev 396-454 Non Rotator

Edelbrock | 5862
SKU: EDEL-5862
Regular price $102.99 USD
Regular price $113.29 USD Sale price $102.99 USD
Sale Sold out
Shipping calculated at checkout.

5 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

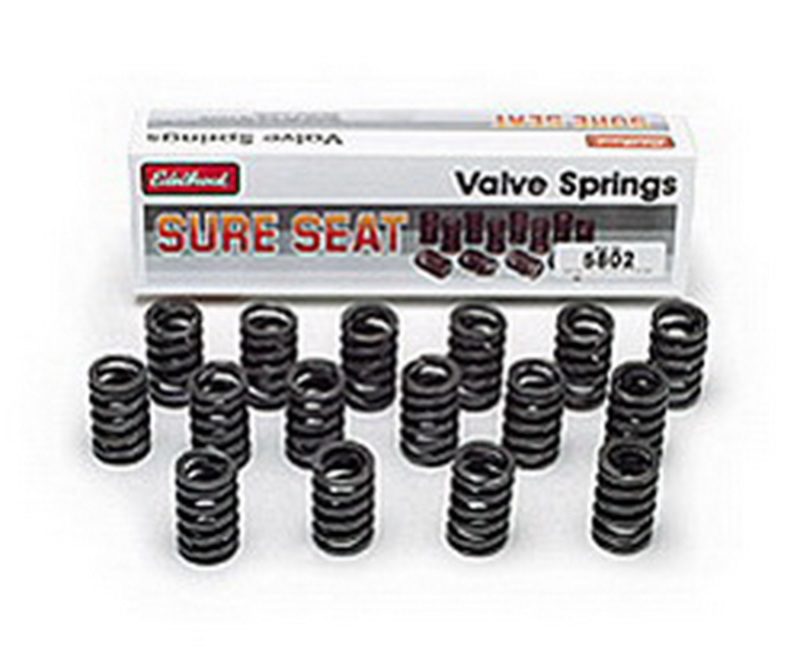

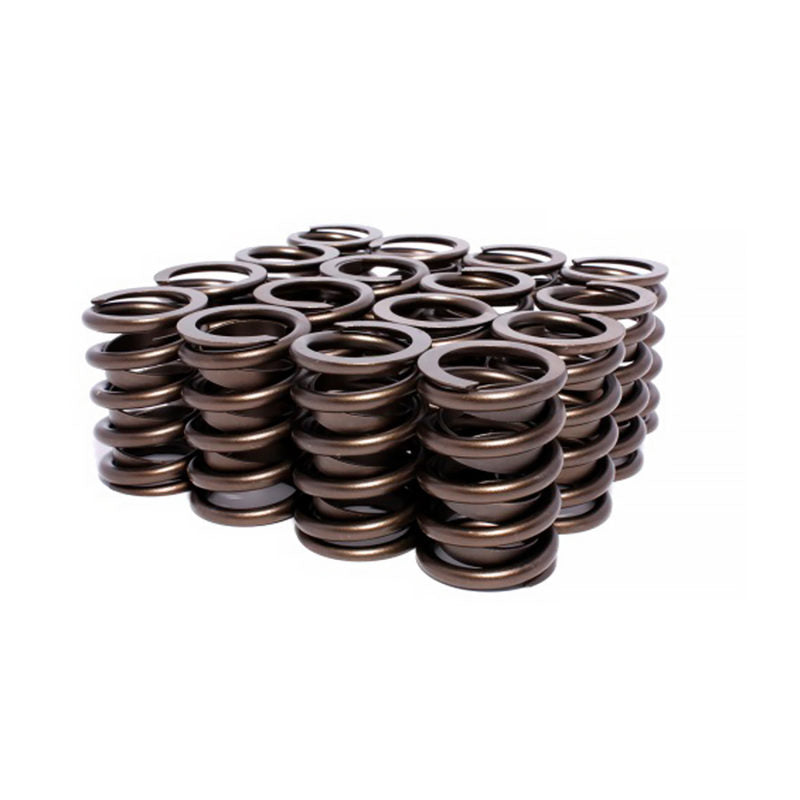

Edelbrock 5862 - V/S Performer Chev 396-454 Non Rotator

Valve Spring - Sure Seat - Single Spring / Damper - 309 lb/in Spring Rate - 1.340 in Coil Bind - 1.500 in OD - Big Block Chevy - Set of 16

The Edelbrock #5862 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

  • For Use With Cast-Iron Heads
  • Springs Made of Highest Quality Spring Wire
  • Springs Precision Wound To Close Tolerances
  • Use with Original Equipment Heads Only
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Material: Chromium Silicon
Inside Diameter: 1.082
Outside Diameter: 1.500
Installed Pressure: 90
Spring Type: Cylindrical
Installed Height: 1.880
Quantity: Set of 16
Camshaft Type: Hydraulic Flat Tappet
Damper Spring Included: Yes
Coil Bind Height: 1.340
Spring Open Height: 0.420
Open Pressure: 220
Springs Per Valve: Single
