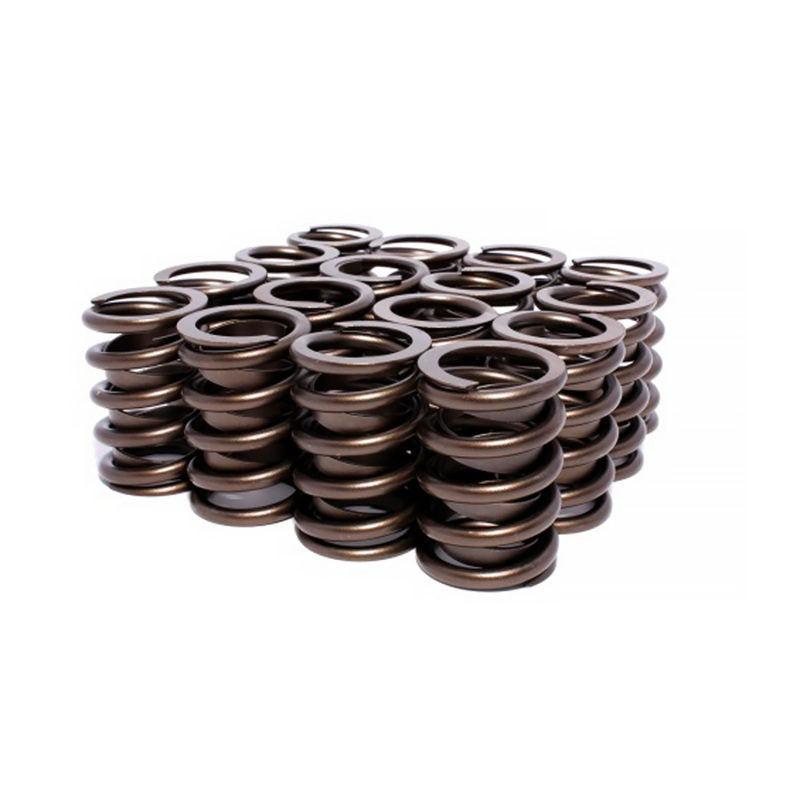

Edelbrock 5825 - Valve Springs RPM 125 Set of 16

Edelbrock 5825 - Valve Springs RPM 125 Set of 16

Edelbrock | 5825
SKU: EDEL-5825
$163.95 USD
$180.34 USD $163.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 5825 - Valve Springs RPM 125 Set of 16

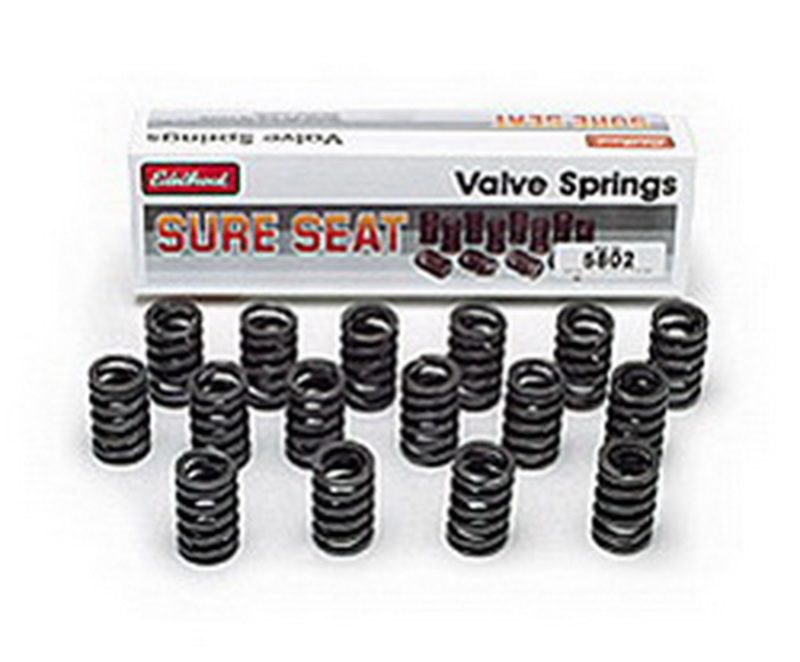

Sure Seat Valve Springs

The Edelbrock #5825 Replacement Sure Seat Valve Spring are for Edelbrock #5085, 60759, 60909, 60719, 60739, 60999, 60899 & 79899 cylinder heads with Flat Tappet Camshafts.

The Edelbrock #5825 Replacement Sure Seat Valve Spring for Edelbrock #5085, 60759, 60909, 60719, 60739, 60999, 60899 & 79899 cylinder heads are made of highest quality spring wire and precision wound to close tolerances.

  • Springs Made of Highest Quality Spring Wire
  • Use with Original Equipment Heads Only
Camshaft Type: Mechanical
Coil Bind Height: 1.125 in.
Inside Diameter: 1.039 in.
Installed Height: 1.850 in.
Installed Pressure: 128 lbs.
Open Height: 1.275 in.
Outside Diameter: 1.460 in.
Position: Exhaust or Intake
Spring Rate (lbs./in.): N/A
Spring Type: Double
Tubing Length: 339
