Edelbrock - 5824
Valve Spring - Sure Seat - Single Spring / Damper - 1.150 in Coil Bind - 1.250 in OD - Edelbrock E-Street - Small Block Chevy / Small Block Ford - Set of 16

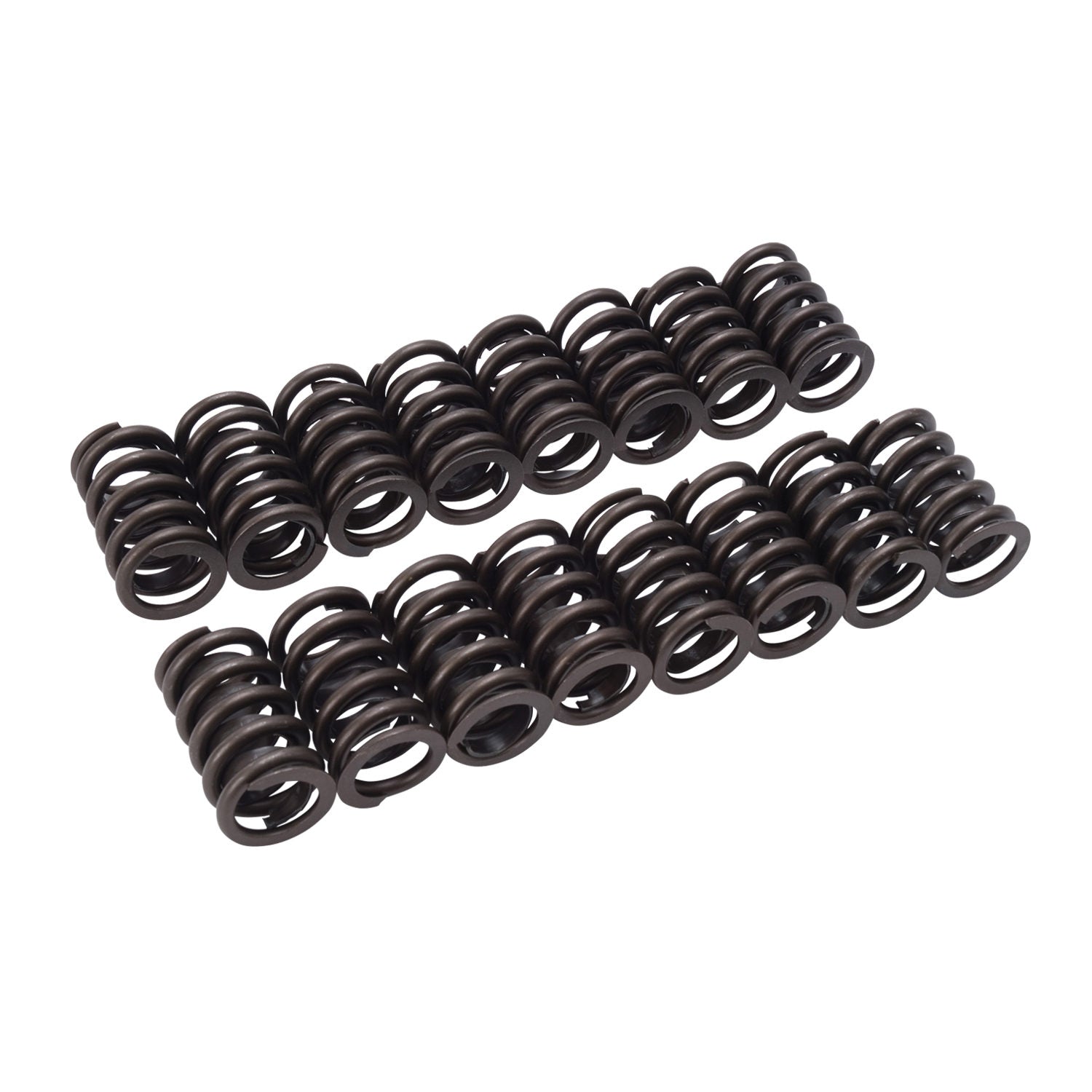

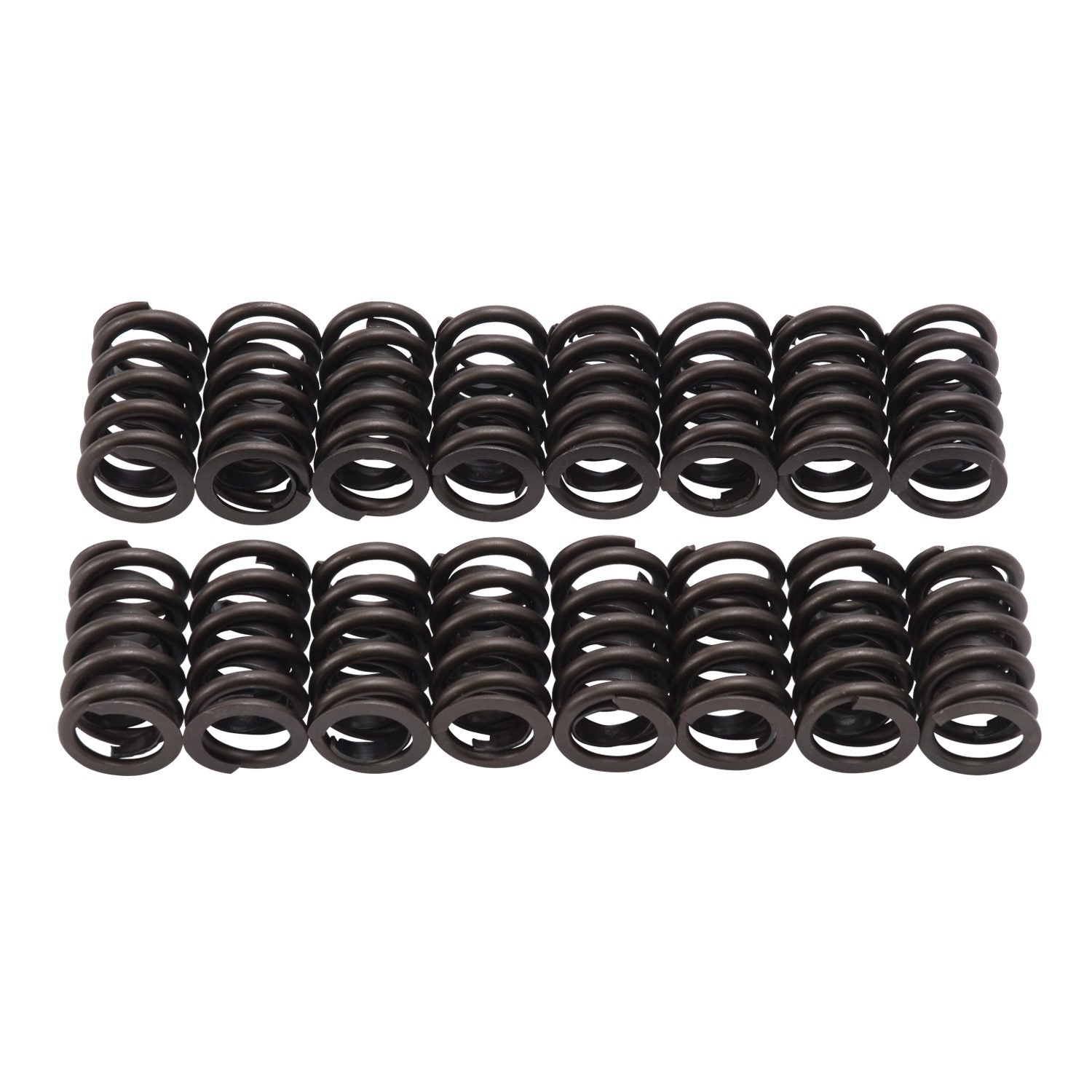

Edelbrock part #5824 Sure Seat Valve Spring Kit are replacement valve springs for early E-Street Cylinder heads with 1.250" dia. Valve springs. Made of highest quality spring wire and precision wound to close tolerances. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 90 lbs. Installed Height: 1.750" Outside diameter: 1.250" Open Pressure: 325 lbs. @ 0.550" Coil Bind: 1.150"
- For Use With Cast-Iron Heads
- Springs Made of Highest Quality Spring Wire
- Springs Precision Wound To Close Tolerances
Camshaft Type: Hydraulic
Coil Bind Height: 1.150 in.
Inside Diameter: 1.030 in.
Installed Height: 1.770 in.
Installed Pressure: 125 lbs.
Open Height: 1.770 in.
Outside Diameter: 1.250 in.
Spring Type: Single
Tubing Length: 300
