Edelbrock - 5823
Valve Spring - Sure Seat - Dual Spring / Damper - 1.170 in Coil Bind - 1.540 in OD - Edelbrock Victor JR. - Small Block Chevy - Set of 16

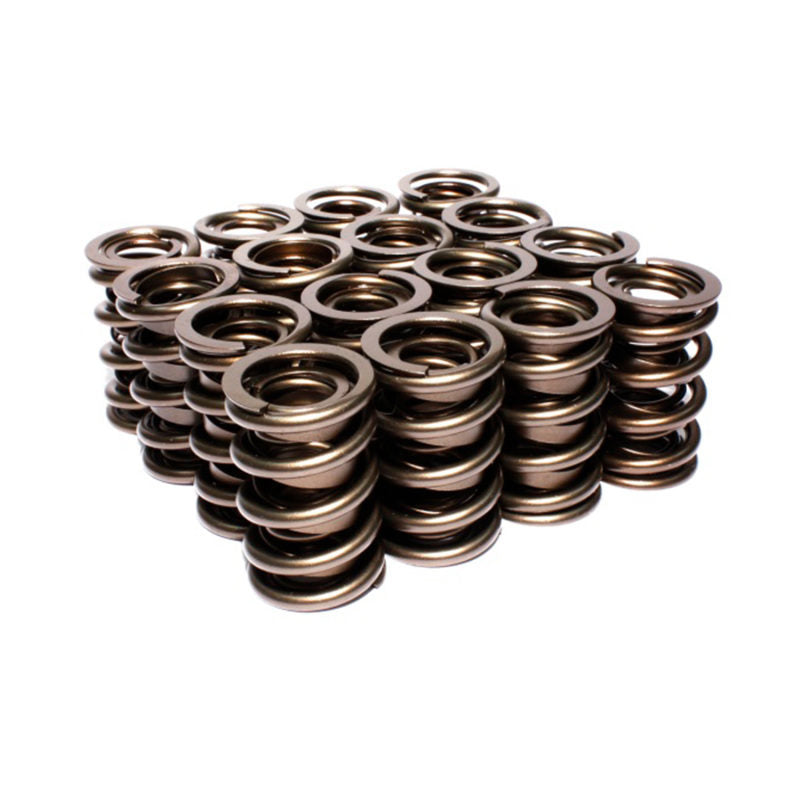

The Edelbrock #5823 Sure Seat Valve Springs are Replacements for Edelbrock Vic Jr. Cylinder Heads with Mechanical Roller Camshafts. They are made of the highest quality spring wire and precision wound to close tolerances.
The Edelbrock #5823 replacement mechanical roller Sure Seat Valve Spring for Edelbrock cylinder heads are made of highest quality spring wire and precision wound to close tolerances.
- For Use With Cast-Iron Heads
- Springs Made of Highest Quality Spring Wire
- Springs Precision Wound To Close Tolerances
- Use with Original Equipment Heads Only
Material: Chromium Silicon
Inside Diameter: 0.731
Quantity: Set of 16
Outside Diameter: 1.540
Spring Open Height: 0.600
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Damper Spring Included: Yes
Installed Pressure: 210
Coil Bind Height: 1.170
Spring Type: Cylindrical
Camshaft Type: Hydraulic Roller
Installed Height: 1.900
Springs Per Valve: Dual
