Edelbrock 5814 - V/S Performer Chev V6 4 3L 87-95 Non Rotator

Edelbrock 5814 - V/S Performer Chev V6 4 3L 87-95 Non Rotator

Edelbrock | 5814
SKU: EDEL-5814
Regular price $62.99 USD
Regular price $69.29 USD Sale price $62.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 5814 - V/S Performer Chev V6 4 3L 87-95 Non Rotator

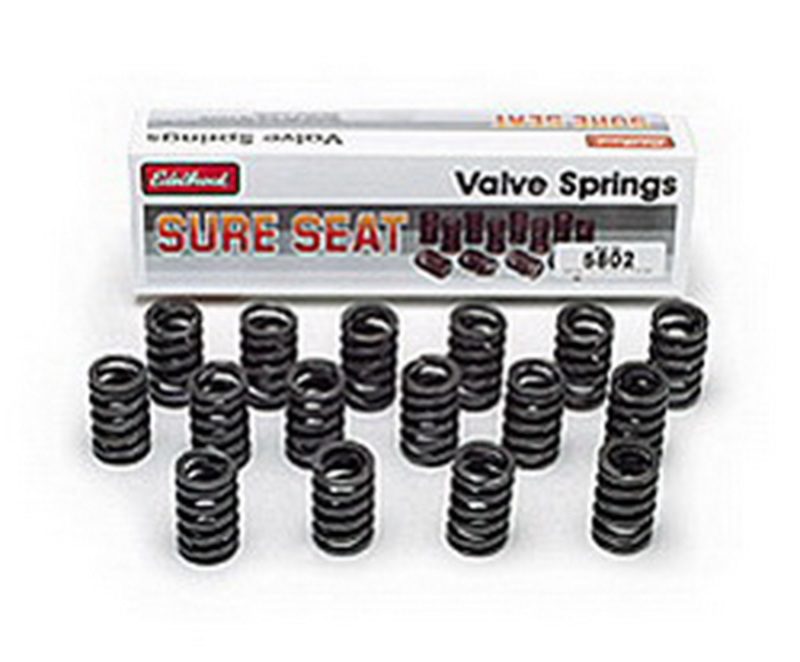

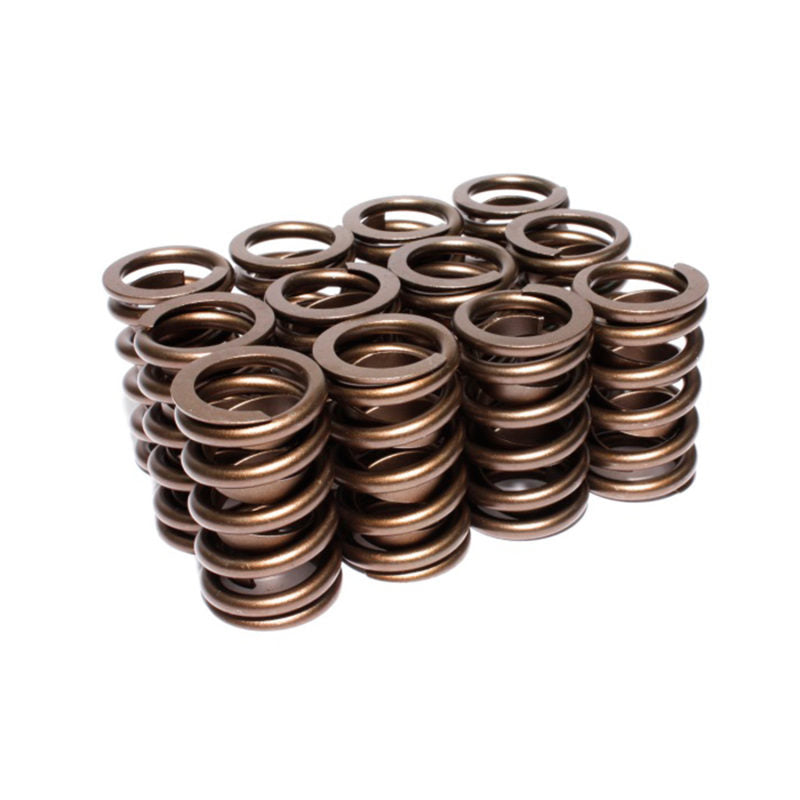

Sure Seat Valve Springs for Chevy 4.3L 90? V6 1987-95

The Edelbrock #5814 Sure Seat Valve Spring for Chevy 4.3L 90 Deg V6 1987-95 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

  • For Use With Cast-Iron Heads
  • Springs Made of Highest Quality Spring Wire
  • Springs Precision Wound To Close Tolerances
  • Use with Original Equipment Heads Only
Damper Spring Included: Yes
Installed Height: 1.700
Springs Per Valve: Single
Spring Open Height: 0.490
Spring Type: Cylindrical
Coil Bind Height: 1.160
Material: Chromium Silicon
Inside Diameter: 0.750
Outside Diameter: 1.250
Camshaft Type: Hydraulic Flat Tappet
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Quantity: Set of 12
Installed Pressure: 110
Open Pressure: 285
