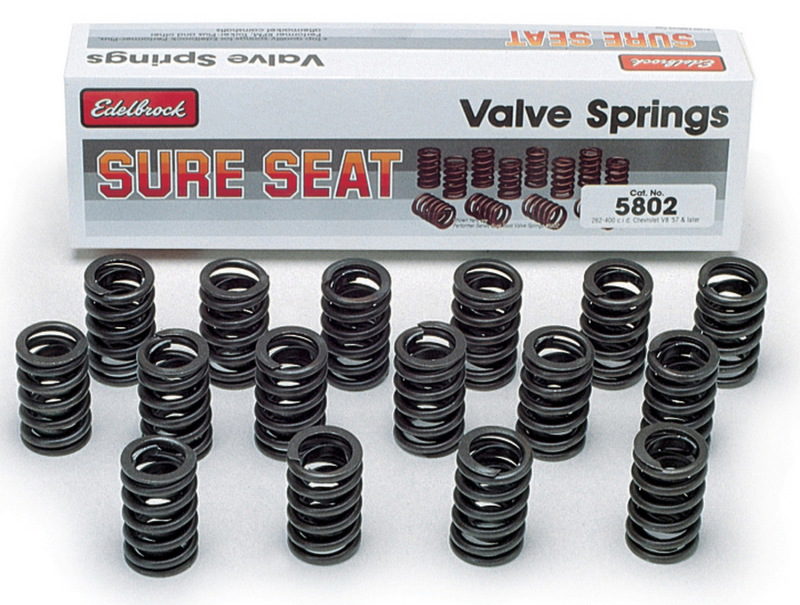

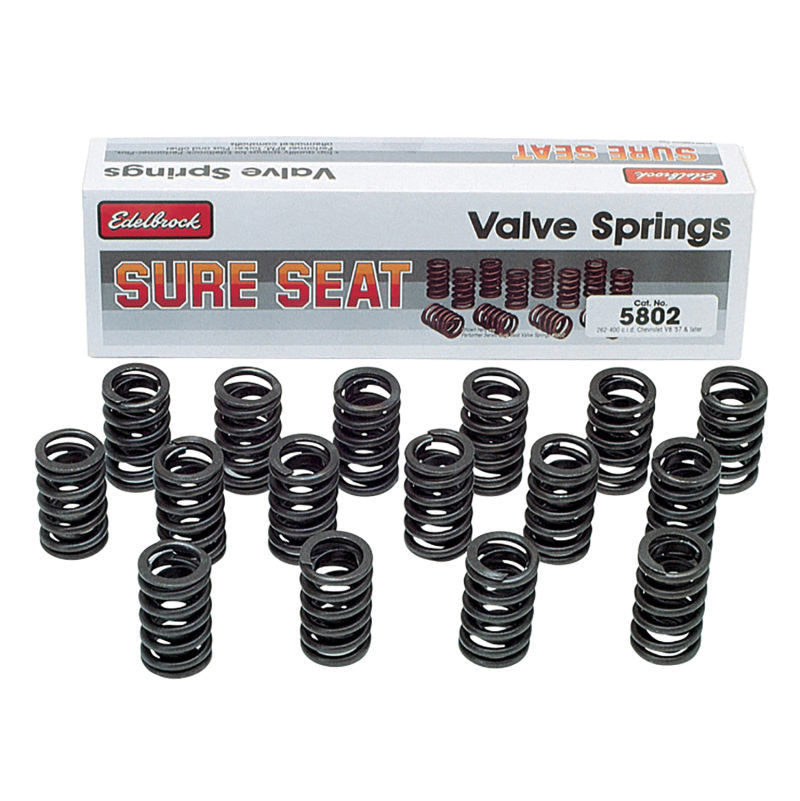

Edelbrock - 5802
Valve Spring - Sure Seat - Single Spring - 1.150 in Coil Bind - 1.222 in OD - Small Block Chevy - Set of 16
The Edelbrock #5802 Sure Seat Valve Spring for Chevy 262-400 V8 1957-95 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.
- For Use With Cast-Iron Heads
- Springs Made of Highest Quality Spring Wire
- Springs Precision Wound To Close Tolerances
- Use with Original Equipment Heads Only
Springs Per Valve: Single
Installed Pressure: 80
Damper Spring Included: Yes
Outside Diameter: 0.875
Quantity: Set of 16
Camshaft Type: Hydraulic Flat Tappet
Spring Open Height: 0.475
Open Pressure: 200
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Material: Chromium Silicon
Inside Diameter: 1.222
Installed Height: 1.700
Coil Bind Height: 1.150
Spring Type: Cylindrical
