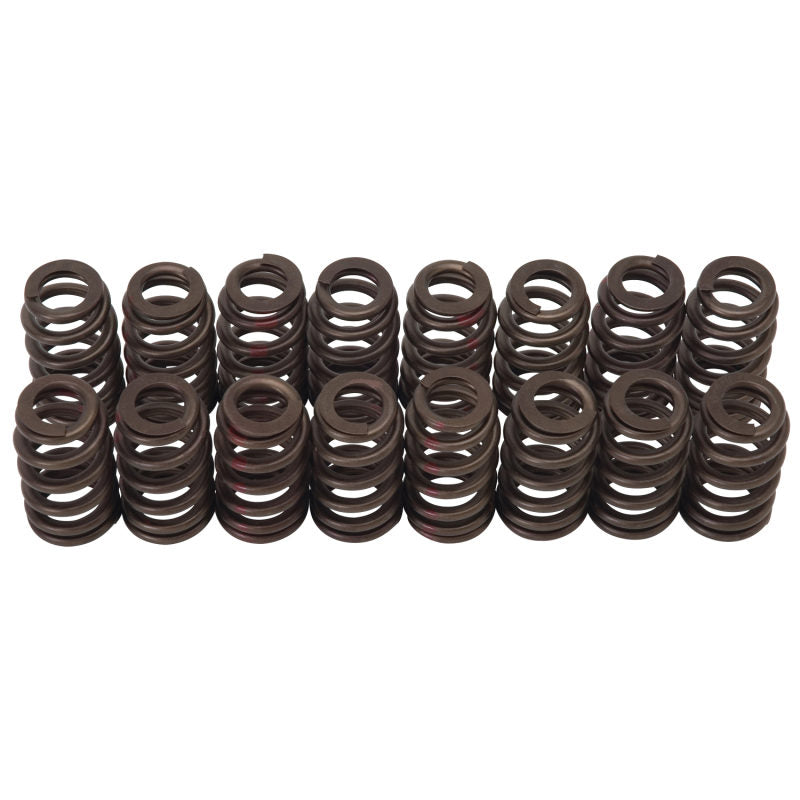

Edelbrock 5768 - Chevy LS V8 Sure Seat Valve Springs

Edelbrock 5768 - Chevy LS V8 Sure Seat Valve Springs

Edelbrock | 5768
SKU: EDEL-5768
$345.95 USD
$380.54 USD $345.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 5768 - Chevy LS V8 Sure Seat Valve Springs

Sure Seat Valve Springs for Chevy LS V8

The Edelbrock #5768 Sure Seat Valve Spring for Chevy LS V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

  • Replacement For PN[61939] LT4 RPM Xtreme Heads
  • Springs Made of Highest Quality Spring Wire
  • Springs Precision Wound To Close Tolerances
Outside Diameter: (Top) 1.066 in, (Bottom) 1.300
Material: Chromium Silicon
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Quantity: Set of 16
Spring Type: Beehive
Installed Pressure: 138
Camshaft Type: Hydraulic Roller
Spring Open Height: 0.600
Inside Diameter: (Top) 0.650 in, (Bottom) 0.885
Damper Spring Included: No
Installed Height: 1.800
Coil Bind Height: 1.140
Open Pressure: 326
Springs Per Valve: Single
