Edelbrock - 5767

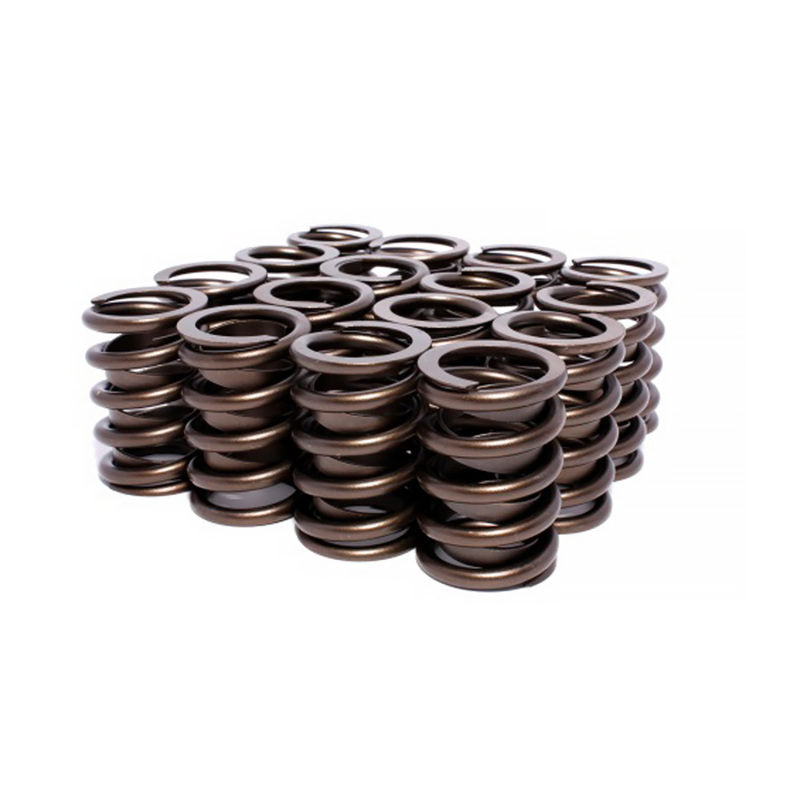

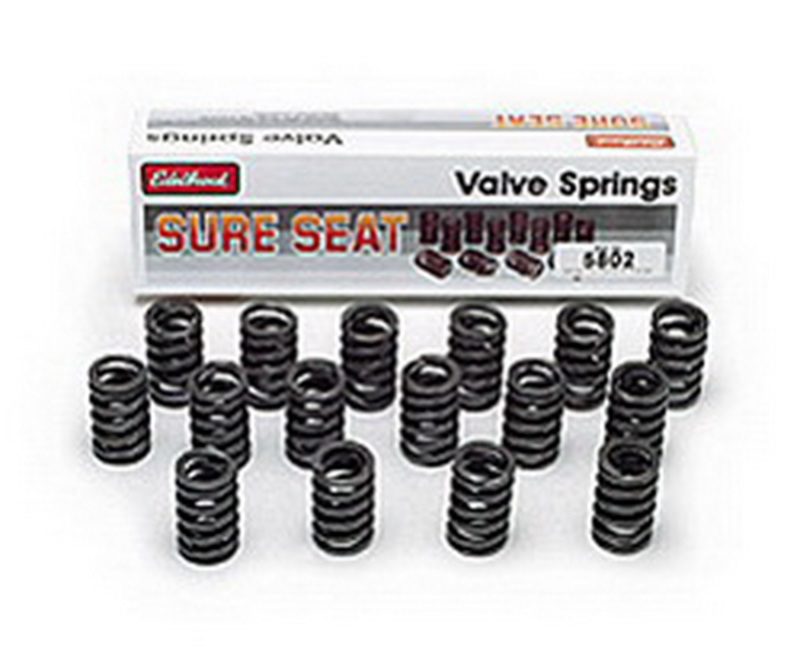

Valve Spring - Sure Seat - Single Spring / Damper - 1.130 in Coil Bind - 1.460 in OD - Big Block Ford - Set of 16
The Edelbrock #5767 Sure Seat Valve Spring for Ford 429/460 V8 1969-1987 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance'springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.
- For Use With Cast-Iron Heads
- Springs Made of Highest Quality Spring Wire
- Springs Precision Wound To Close Tolerances
- Use with Original Equipment Heads Only
Inside Diameter: 1.060
Outside Diameter: 1.460
Quantity: Set of 16
Coil Bind Height: 1.130
Open Pressure: 310
Springs Per Valve: Single
Material: Chromium Silicon
Camshaft Type: Hydraulic Flat Tappet
Spring Type: Cylindrical
Installed Pressure: 120
Damper Spring Included: Yes
Spring Open Height: 0.580
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installed Height: 1.800
