Edelbrock - 5087

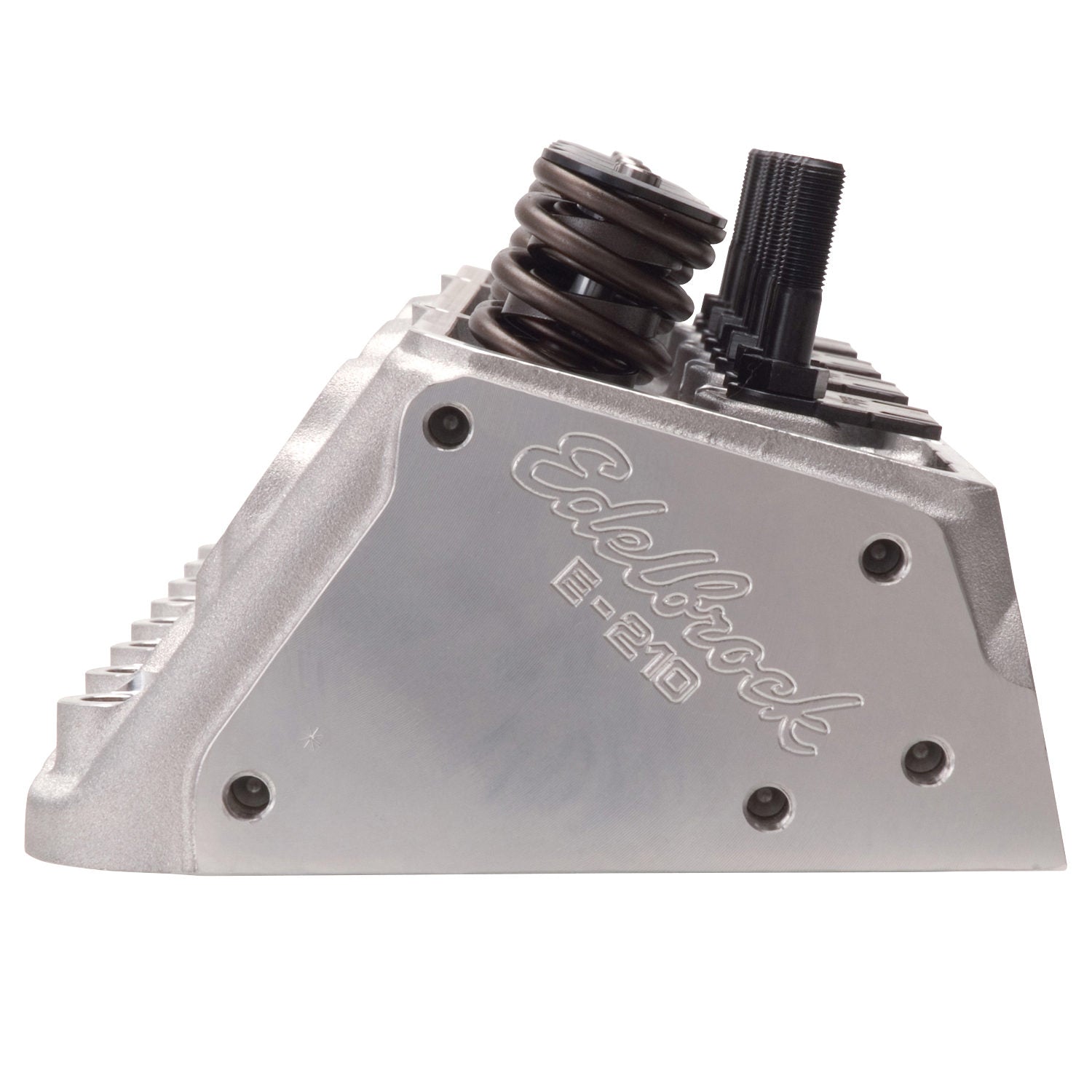

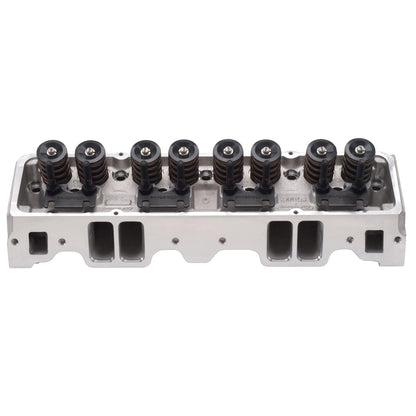

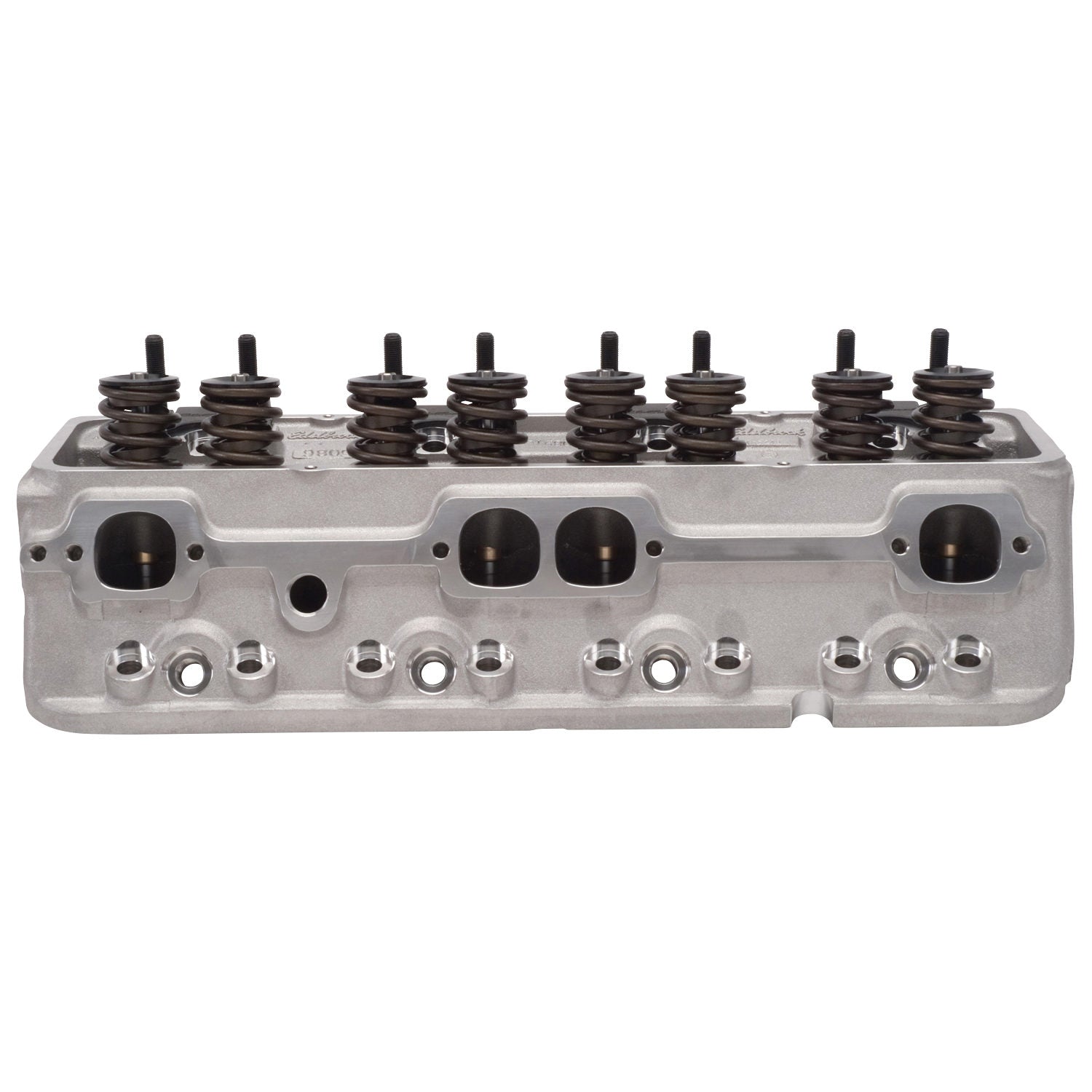

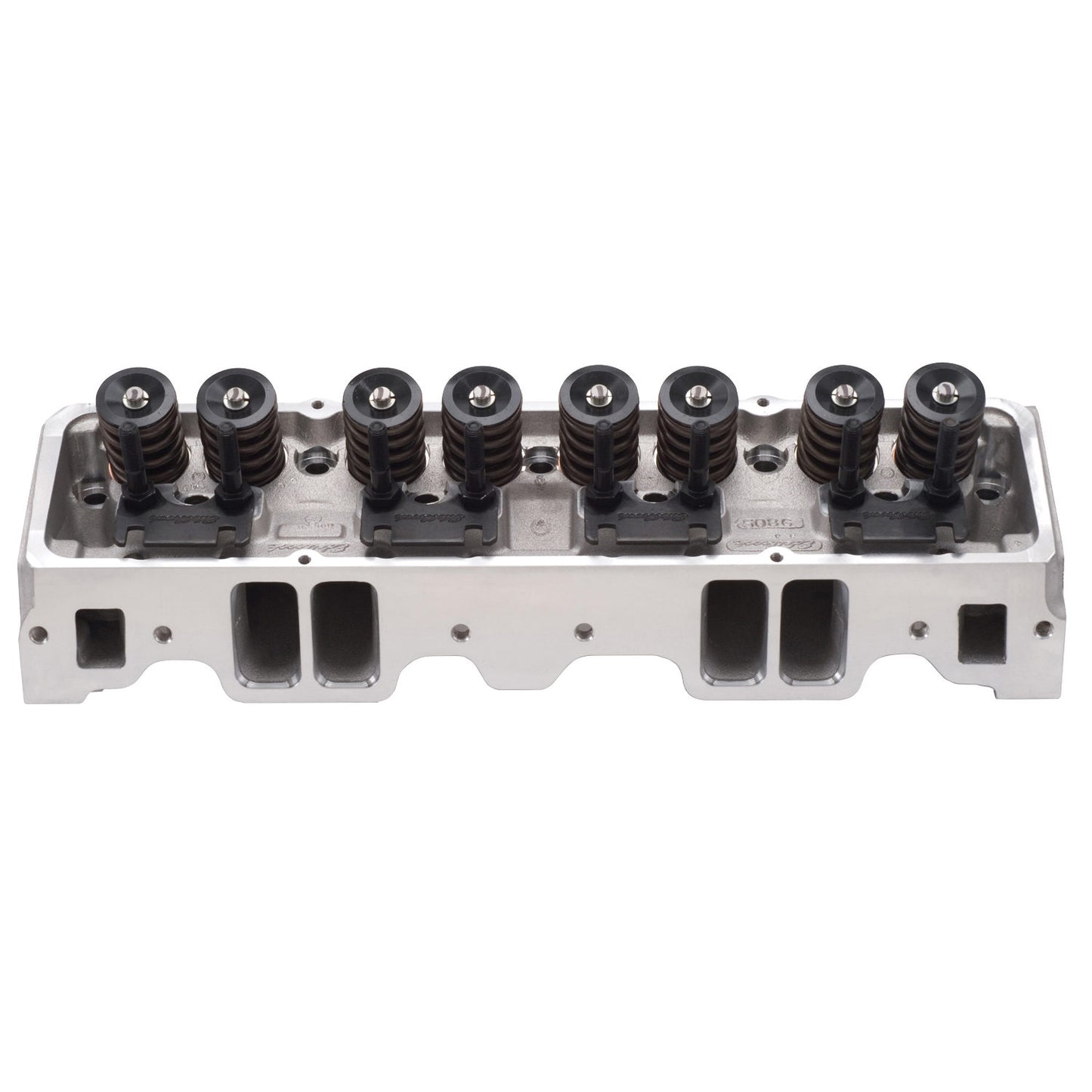

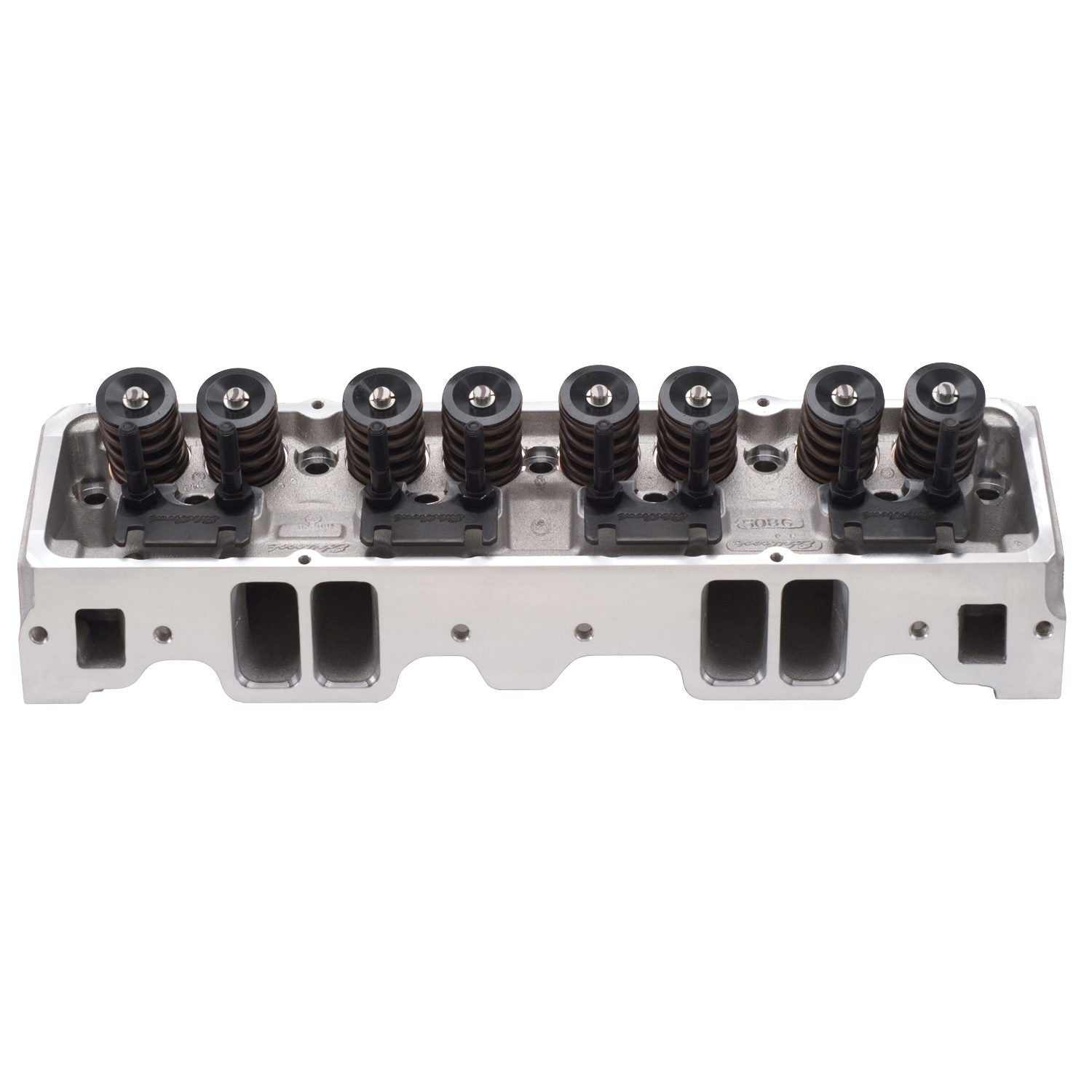

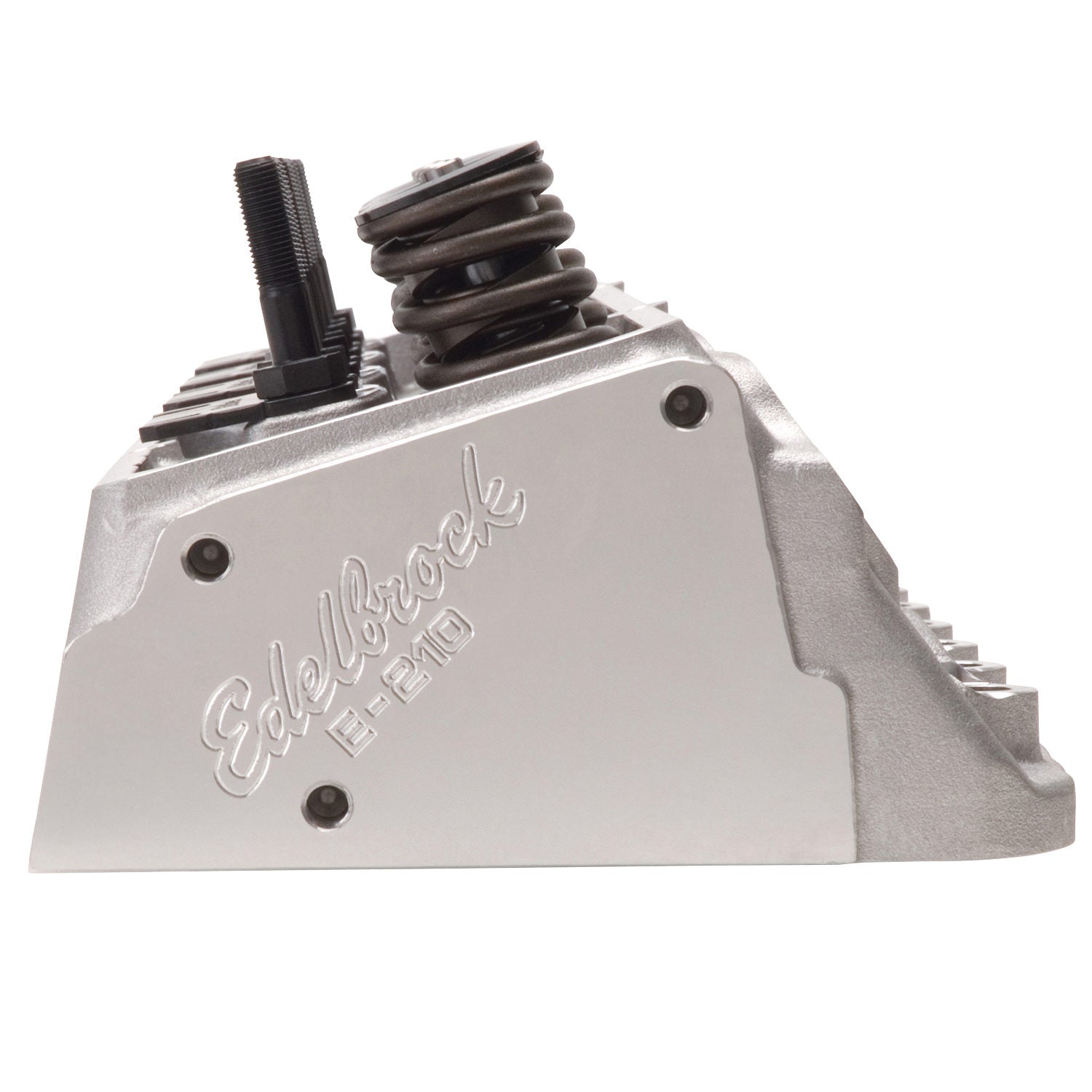

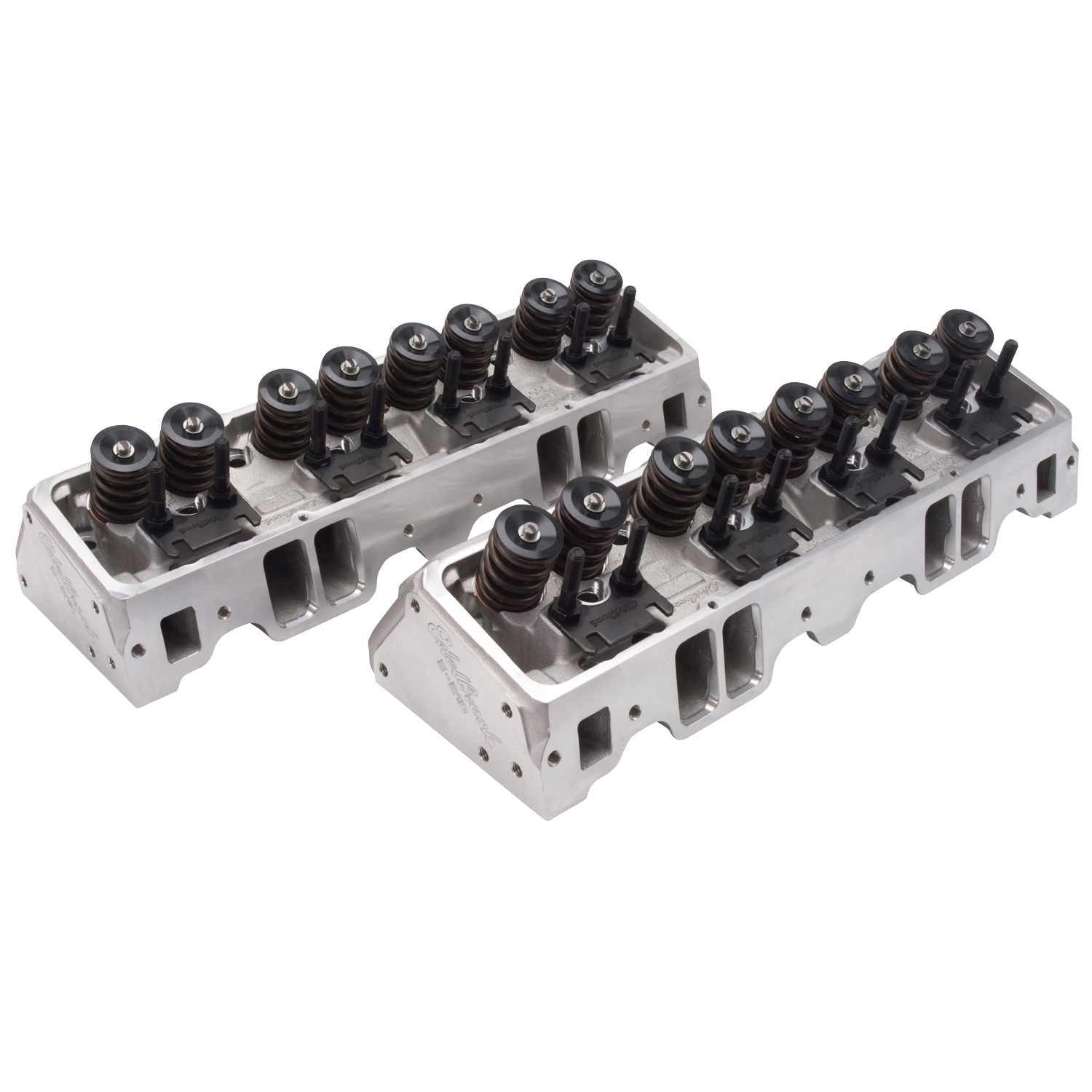

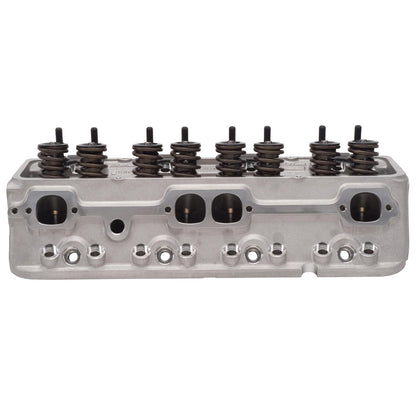

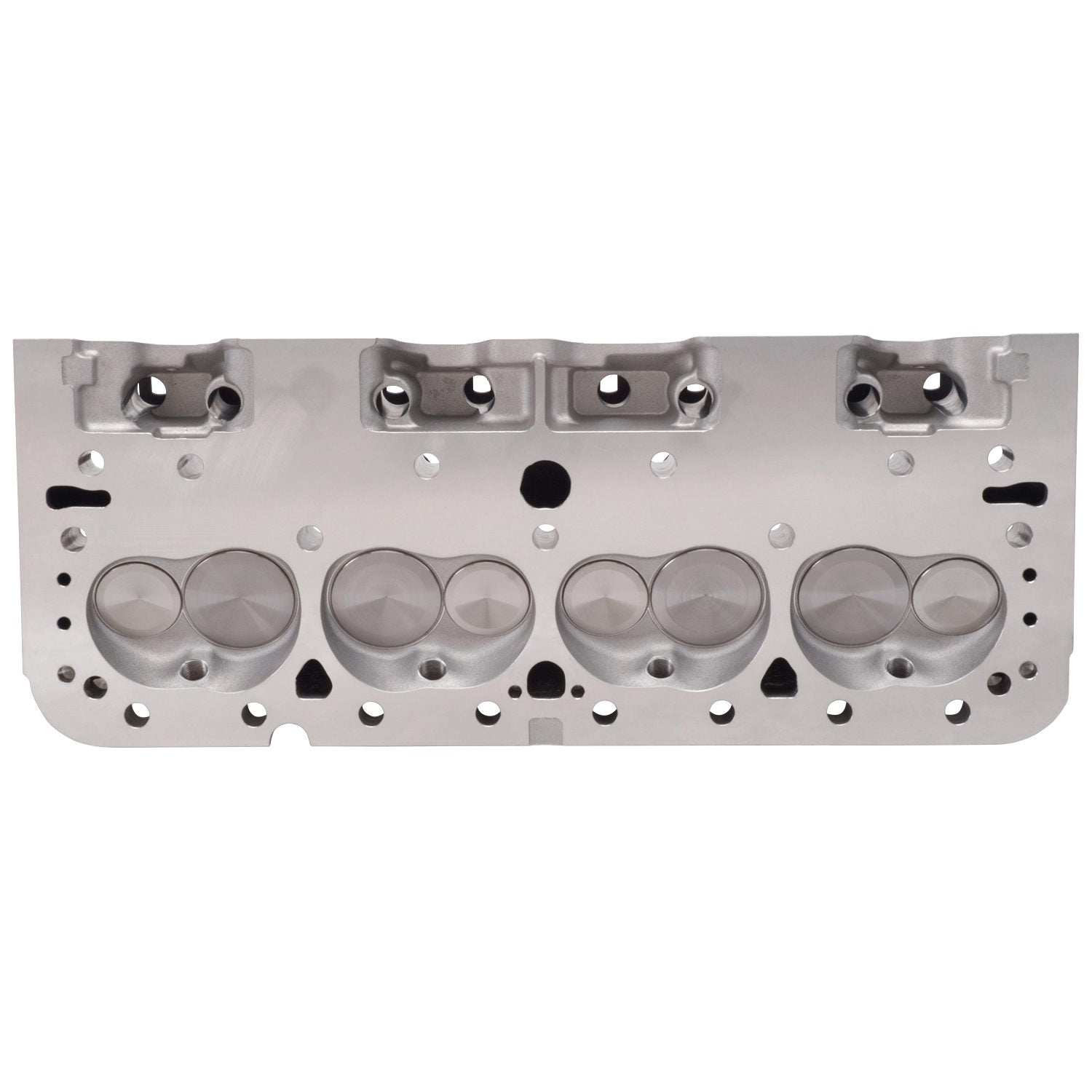

Cylinder Head - E-Series E-210 - Assembled - 2.080 / 1.600 in Valves - 210 cc Intake - 64 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - Small Block Chevy - Pair
The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
- Race Level Performance
- Fully Compatible With OEM Equipment
- Can Support 500+ Horsepower/6500 RPM
- Larger Runners For Increased Airflow
- Revised Exhaust Ports/Larger Diameter Springs
- Ideal For Spec Series Racer
- Exhaust Port Flange In Stock Location
- Made In The U.S.A.
Exhaust Runner Volume: 75
Valve Stem Diameter: 0.3438
Intake Valve Diameter: 2.08
Rocker Arm Stud Diameter: 0.375
EGR Port: No
Material: Aluminum
Construction Type: Complete
Valve Springs Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Center Bore Inside Diameter: Straight
Combustion Chamber Volume: 64
Exhaust Valve Diameter: 1.60
Valve Spring Maximum Lift: 0.650
Guide Plates Included: Yes
Family: E-Series
Seat Material: Ductile Iron
Seat Angle: Exhaust 45 deg/Intake 45
Quantity: Set of 2
Camshaft Type: Hydraulic Roller
Deck Thickness: 0.5625
Valve Spring Diameter: 1.55
Series: E-Series
Horsepower: 400-550
Retainer Included: Yes
Push Rod Diameter: (Suggested) 0.5625
Intake Runner Volume: 210
Valve Angle: 23
Guide Plate Material: Hardened Steel
Valve Included: Yes
CNC Ported: No
Exhaust Port Location: Standard
Grade Type: Performance
Head Casting Number: N/A
Guide Material: Manganese Bronze
