Edelbrock 5025 - Cylinder Head E-Street SB Ford 2 02 Intake (Complete Pair)

Edelbrock 5025 - Cylinder Head E-Street SB Ford 2 02 Intake (Complete Pair)

Edelbrock | 5025
SKU: EDEL-5025
Regular price $1,769.99 USD
Regular price $1,946.99 USD Sale price $1,769.99 USD
Sale Sold out
Shipping calculated at checkout.

13 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

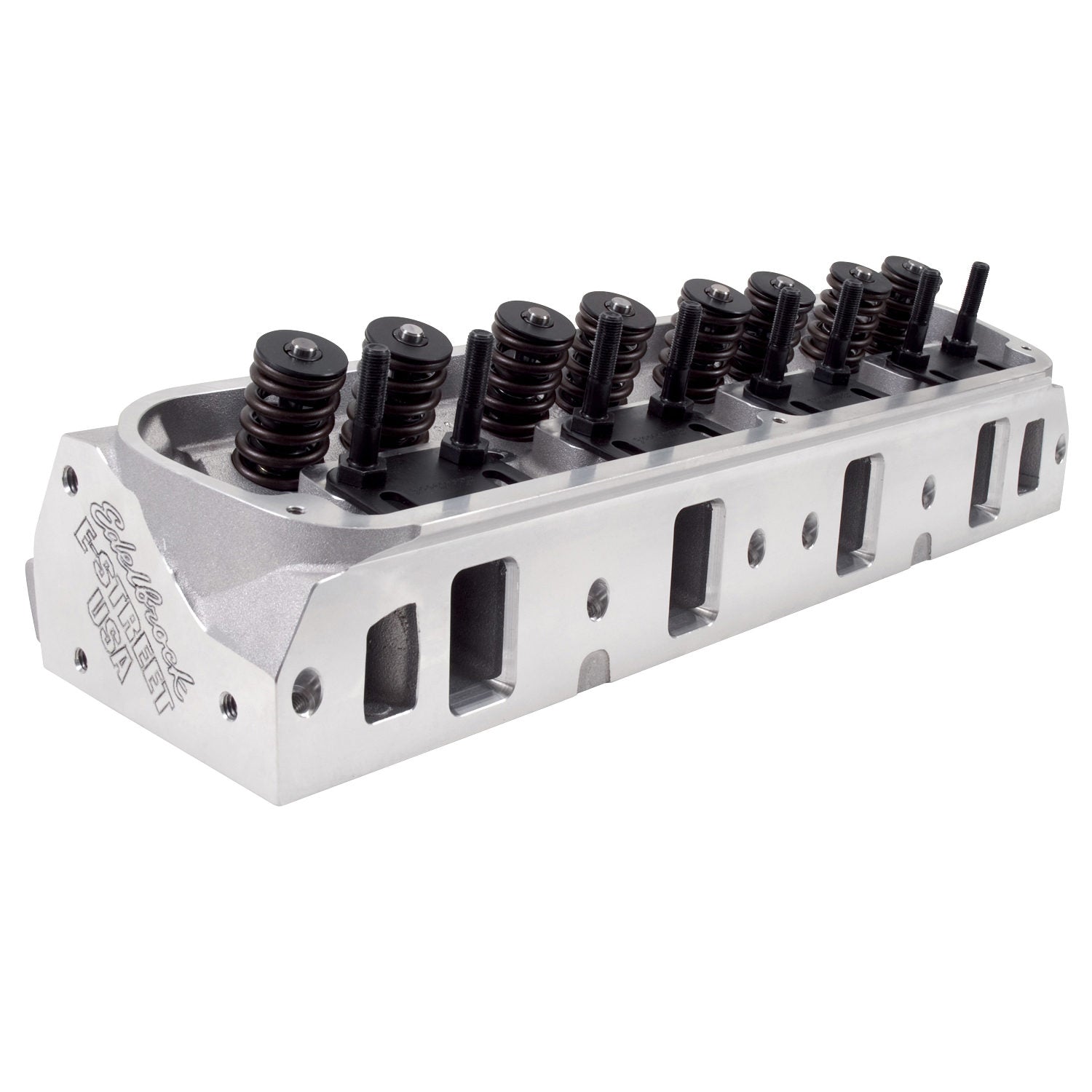

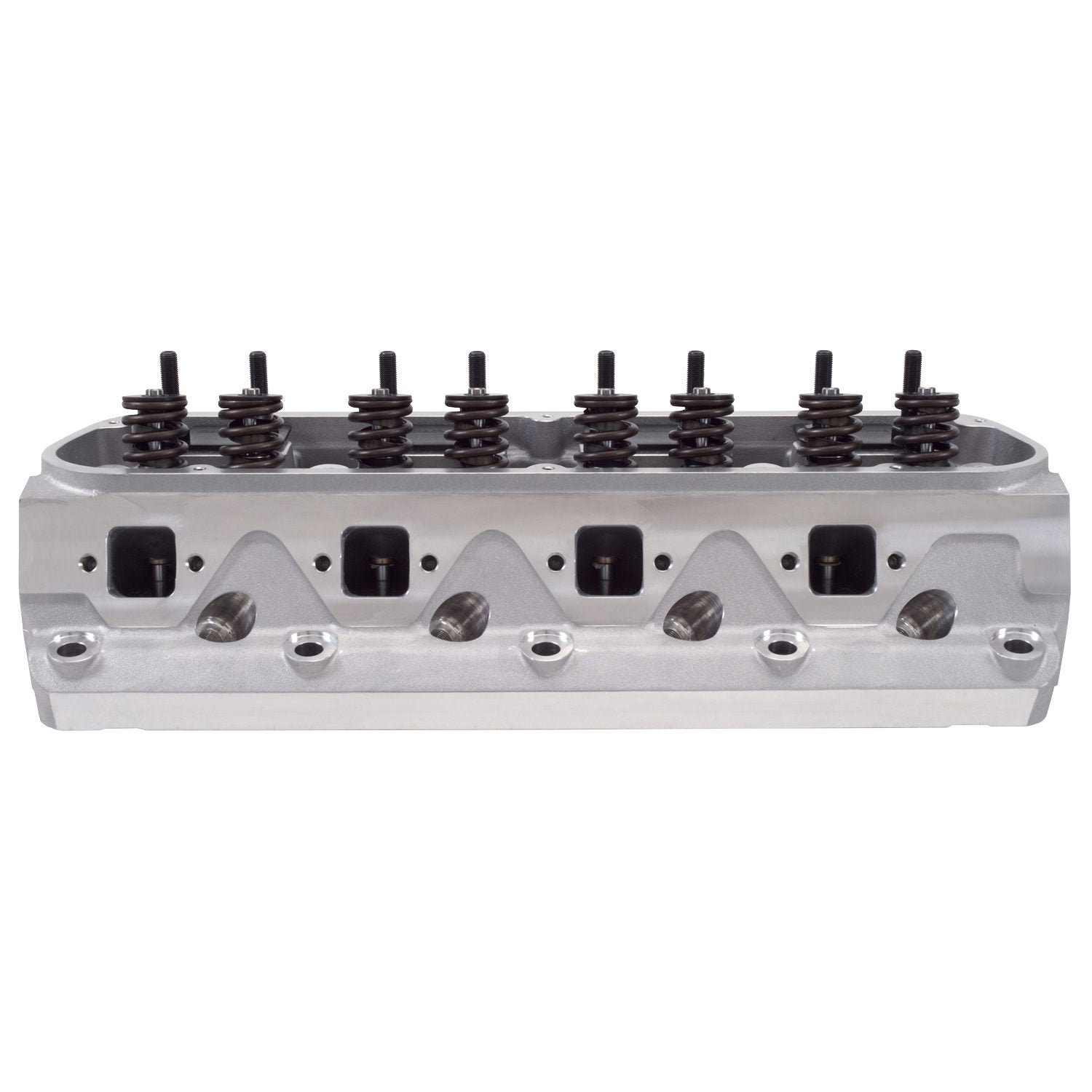

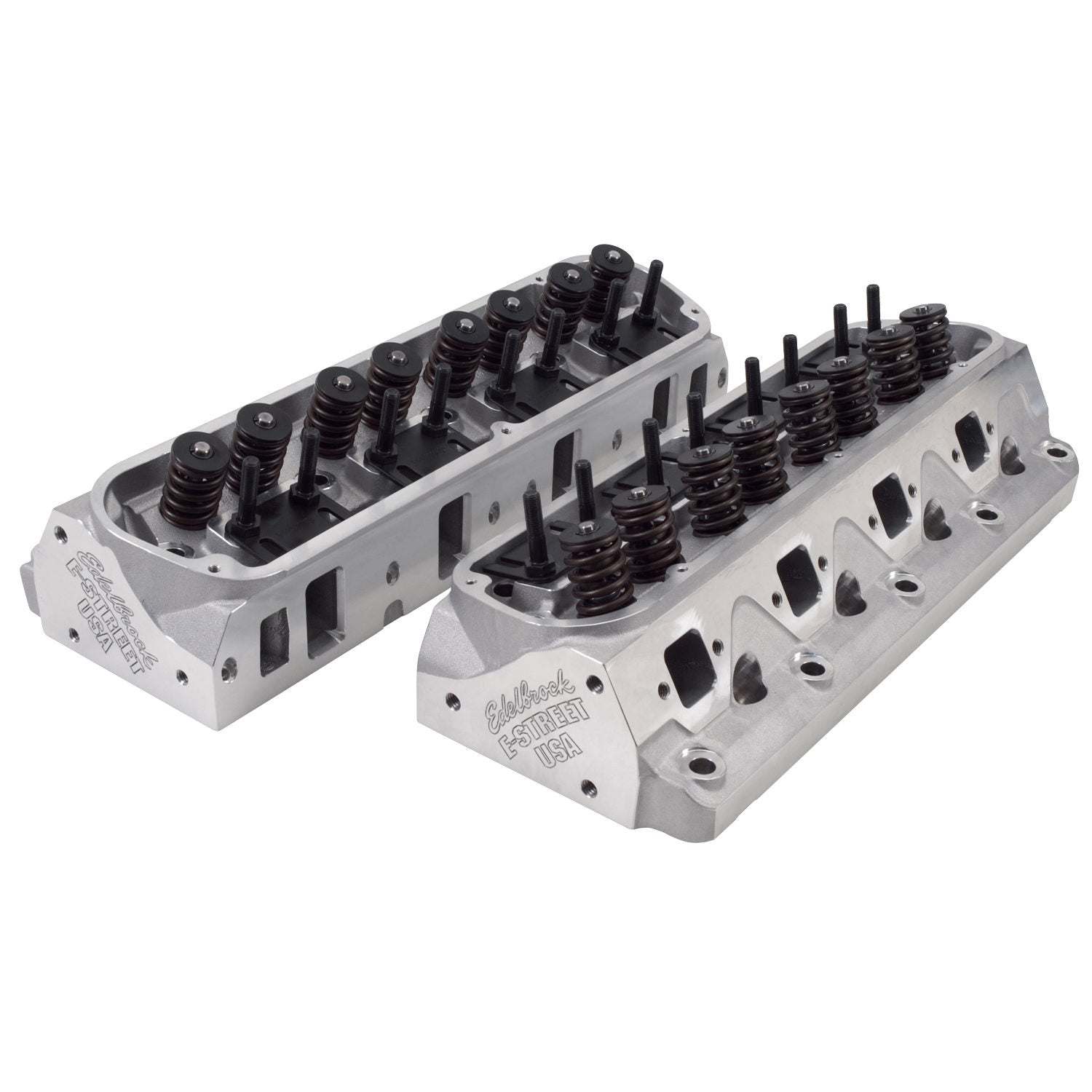

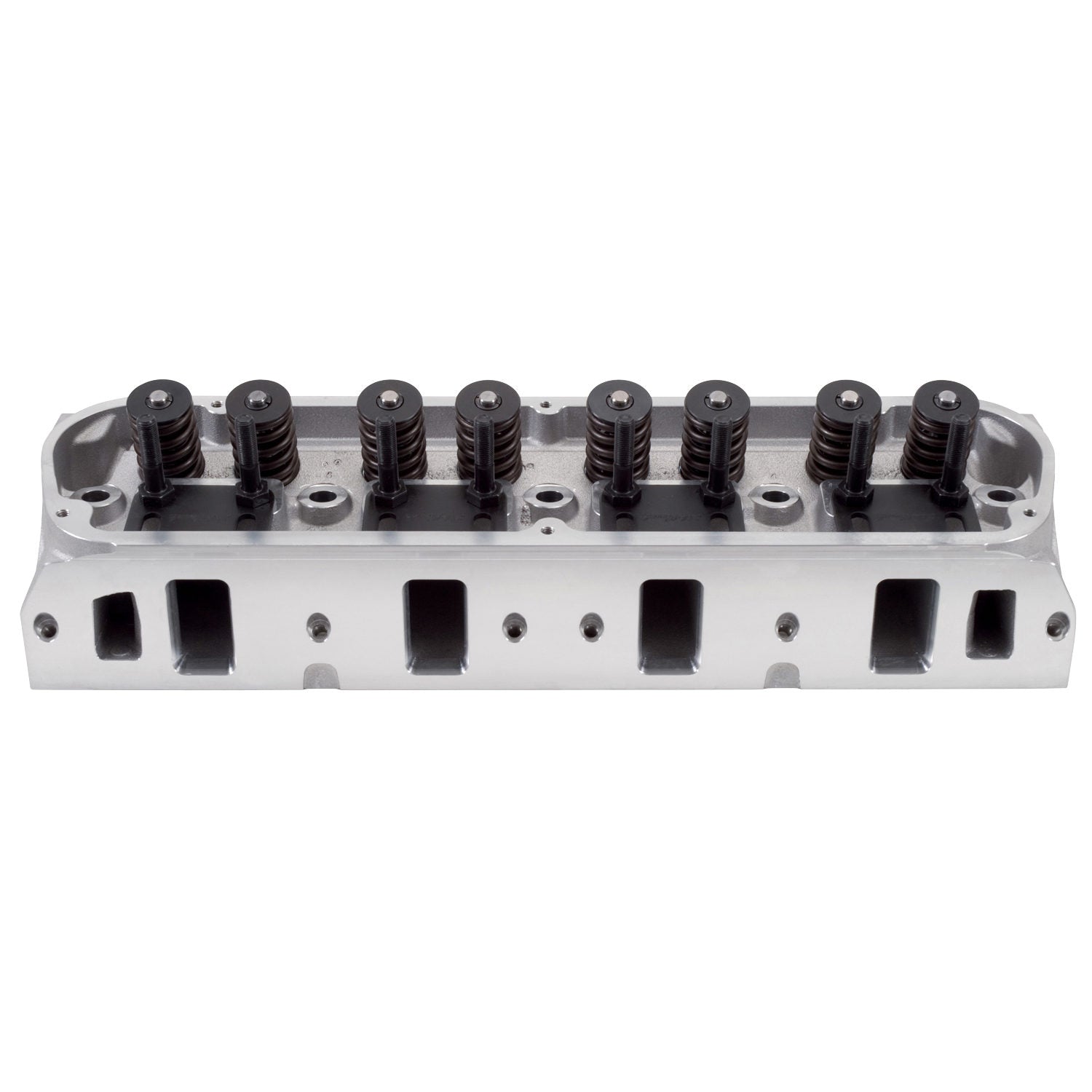

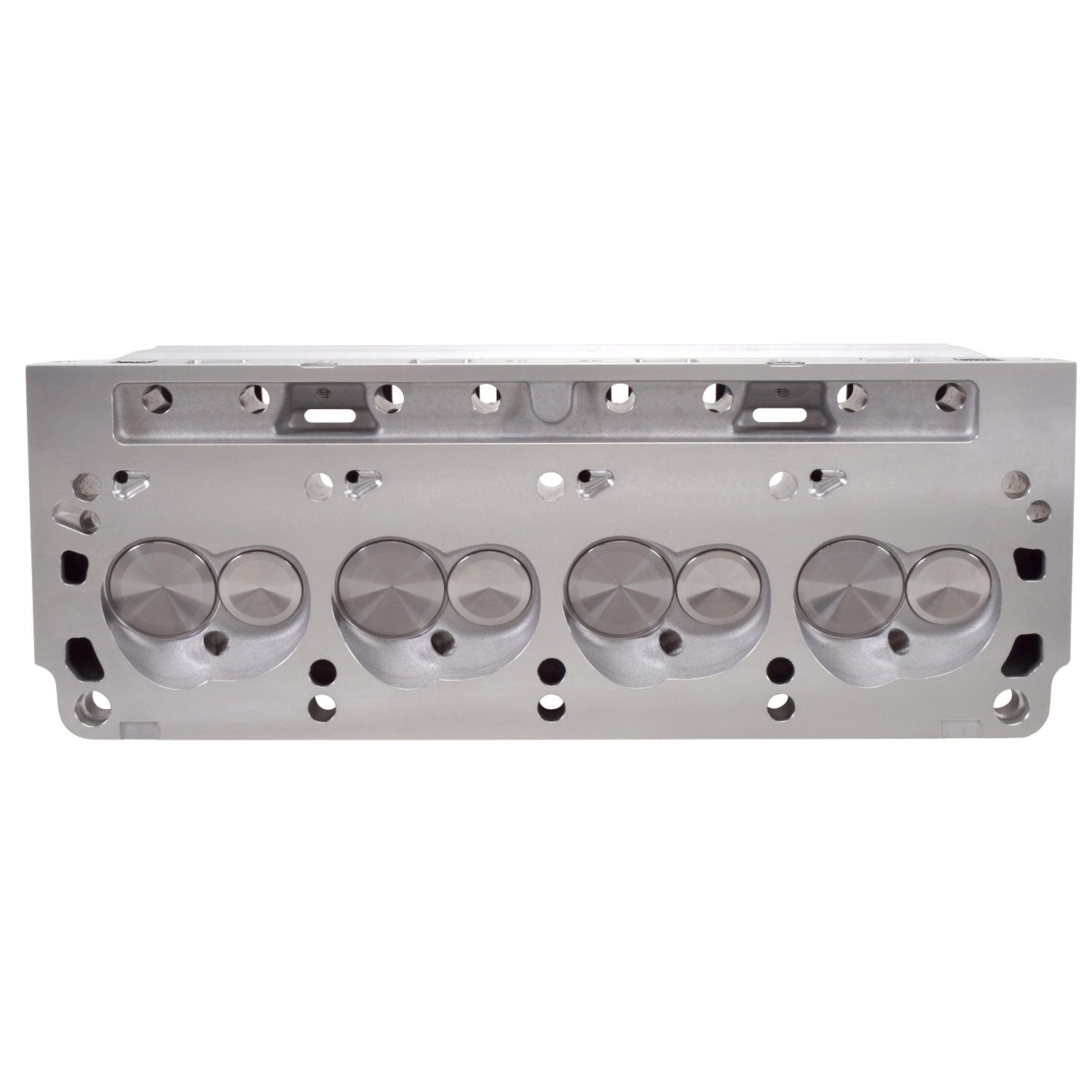

Edelbrock 5025 - Cylinder Head E-Street SB Ford 2 02 Intake (Complete Pair)

Cylinder Head - E-Street - Assembled - 2.020 / 1.600 in Valves - 170 cc Intake - 60 cc Chamber - 1.460 in Springs - Angle Plug - Aluminum - Small Block Ford - Pair

The Edelbrock #5025 E-Street cylinder heads are designed for Ford 289-351 W V8 applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

  • Entry Level Street Performance Upgrade
  • A356 Aluminum
  • Sold As A Pair
  • Edelbrock Quality And Performance
  • Affordable Price
  • Made In U.S.A.
Exhaust Port Location: Standard
Horsepower: 200-400
Valve Spring Maximum Lift: 0.550
Seat Angle: Exhaust 45 deg/Intake 45
Series: E-Street
Family: E-Street
Seat Material: Ductile Iron
Retainer Included: Yes
Valve Spring Diameter: 1.46
Construction Type: Complete
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Exhaust Valve Diameter: 1.60
EGR Port: No
Valve Stem Diameter: 0.341
Deck Thickness: 0.625
CNC Ported: No
Valve Angle: 12
Guide Material: Manganese Bronze
Exhaust Runner Volume: 60
Push Rod Diameter: (Suggested) 0.3125
Intake Valve Diameter: 2.02
Rocker Arm Stud Diameter: 0.375
Mounting Hardware Included: No
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Material: Aluminum
Assembled: Yes
Intake Runner Volume: 170
Head Casting Number: 6025P
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 8.2
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 60
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
Quantity: Set of 2
Camshaft Type: Flat Tappet
