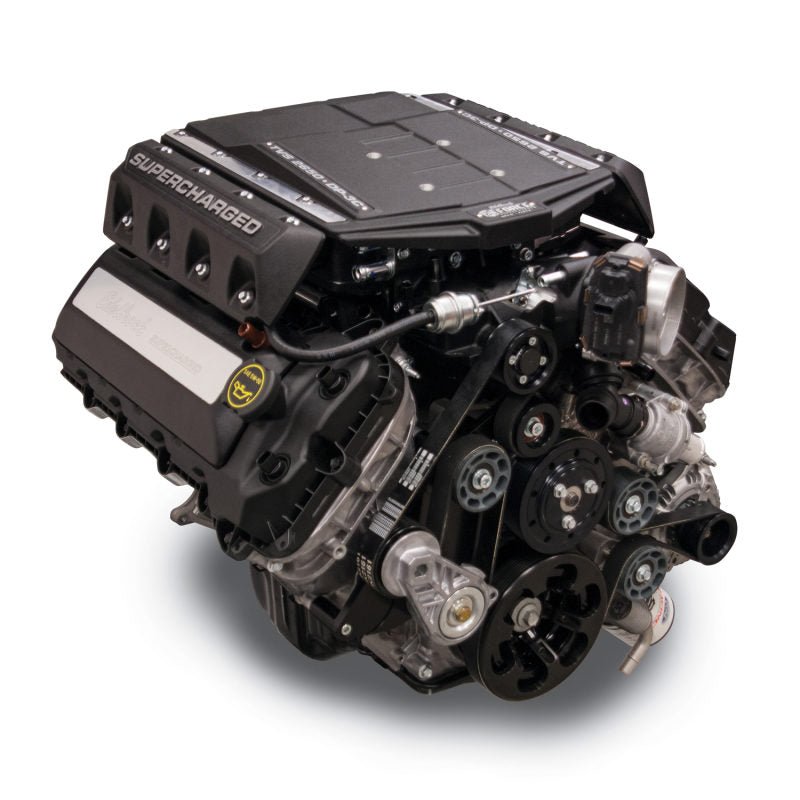

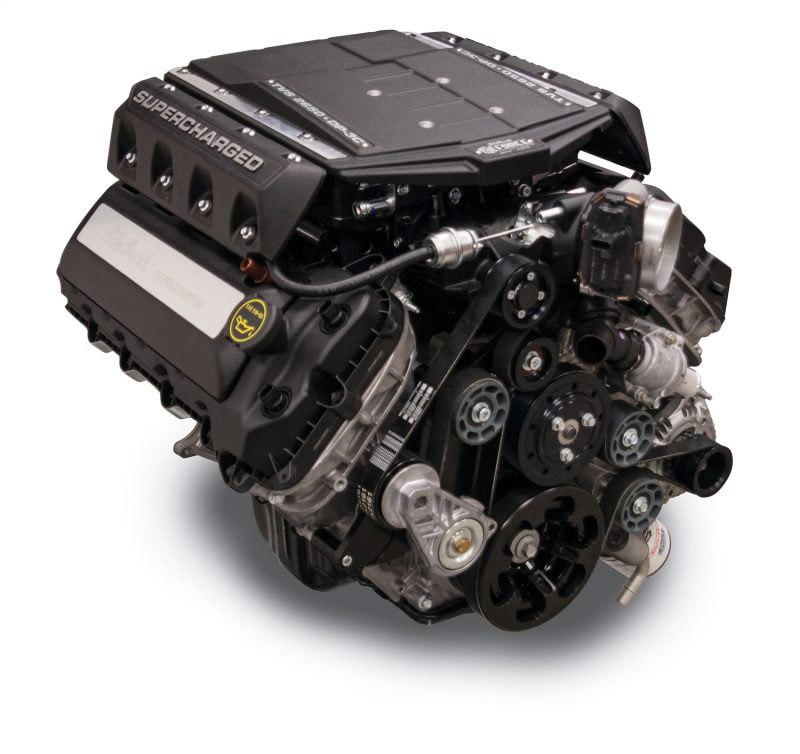

Edelbrock 46890 - Crate Engine Supercharged Gen2 Coyote 5.0L w/8-Rib Belt Drive & Electronics (R2650-DP3C)

Edelbrock 46890 - Crate Engine Supercharged Gen2 Coyote 5.0L w/8-Rib Belt Drive & Electronics (R2650-DP3C)

Edelbrock | 46890
SKU: EDEL-46890
$34,934.99 USD
$38,428.49 USD $34,934.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 46890 - Crate Engine Supercharged Gen2 Coyote 5.0L w/8-Rib Belt Drive & Electronics (R2650-DP3C)

Crate Engine #46890 Ford Coyote 302, Supercharged, 785 HP, 660 ft-lbs

Edelbrock part #46890 Supercharged Ford Coyote crate engine is a complete 5.0L supercharged, mod engine, that produces an astounding 785 horsepower and 660 ft-lbs. of torque, on 93 octane pump gas.

Edelbrock supercharged 5.0L Ford Coyote crate engine part #46890 produced 785 hp and 660 ft-lbs. of torque (with 93 octane fuel) at the flywheel. The core of this engine is a brand new Ford lightweight aluminum block with forged and balanced crankshaft, forged Manley H-Beam connecting rods and Mahle forged aluminum pistons. Sitting on top is an Edelbrock E-Force supercharger with Eaton TVS R2650 rotors. Also included are the essential supercharger kit components, such as the 8 rib drive belt, electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, coils, mass air flow sensor (MAFS) housing and re-usable air filter. Includes all front end drive accessories: water pump, alternator, idlers, tensioners, belts and hardware. Pair with universal heat exchangers for a complete installation. Engine Specifications:- Finish: Black powder coated- Displacement: 5.0L (302 c.i.d.)- Horsepower: 785 hp- Torque: 660 ft-lbs.- Compression: 9.5:1- Block: Ford Aluminum- Crankshaft: Forged- Pistons: Mahle Forged Aluminum- Rods: Manley Forged H-Beam- Camshafts: Stock Ford- Rocker Arms: Stock Ford 2-1 Ratio- Induction: E-Force Supercharger System- Cylinder Heads: Stock Four-Valve Aluminum w/ Boss 302 valve springs- Warranty: 2-year / Unlimited mileage

  • 785 Horsepower and 660 ft.-lbs. Of Torque
  • Ford Aluminum Block
  • Forged Crankshaft
  • Mahle Forged Aluminum Pistons
  • Manley Forged H-Beam Rods
  • Stock Ford Crankshaft
  • Stock Ford 2:1 Ratio Rocker Arms
  • E-Force R2650 Supercharger System
  • Stock Four Valve Alum. w/302 302 Valve Springs Cyl. Heads
  • 2 Year/Unlimited Mileage
Crankshaft Material: Forged Steel
Oil Pan Included: Yes
Timing Cover Included: Yes
Plug Wire and Boot Included: Yes
Main Bearing Cap Bolt Quantity: 4-Bolt
Alternator Included: Yes
ECU Included: Yes
Induction Type: Supercharged
Flywheel Included: No
Rocker Arm Ratio: 2:1
Camshaft Type: 243deg/254deg, .660/.651, 114 LSA
Cylinder Head Type: Ford Racing
Horsepower: 785
Spark Plugs Included: Yes
Compression Ratio: 9.5:1
Type: Ford Coyote
Calibration: Yes
Wire Harness Included: Yes
Air Cleaner Type: Not Included
Cylinder Head Material: Aluminum
Distributor Included: No
Torque: 660
Valve Cover Included: No
Rocker Arm Type: Ford OEM
Universal Or Specific Fit: Specific Fit
Engine Block Material: Cast Iron
Quantity: Sold Individually
Intake Manifold Type: EFI
Valve Cover Material: N/A
Displacement: 302
Piston Type: Forged Aluminum
Water Pump Included: Yes, Standard
Carburetor Choke Type: N/A
Valve Cover Type: N/A
Outside Pulley Diameter: 3.00
Oil Filter Included: Yes
Carburetor Type: Not Included
Manifold Material: N/A
Grade Type: Performance
Construction Type: Assembled
Rotor Type: Eaton TVS 2650, Black Powder Coated
Pulley Belt Width: 8-Rib
Harmonic Balancer Included: Yes
Idler Pulley Included: Yes
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Throttle Body Included: Yes
Rear Main Seal Type: 1-Piece
Hardware Included: Yes
