Edelbrock 3686 - 60 Lb/Hr High Impedance Fuel Injector (Set of 8)
Edelbrock 3686 - 60 Lb/Hr High Impedance Fuel Injector (Set of 8)
SKU: EDEL-3686
Regular price
$754.99 USD
Regular price
$830.49 USD
Sale price
$754.99 USD
Shipping calculated at checkout.
3 in stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

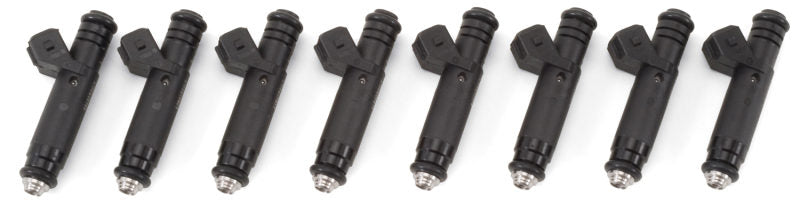

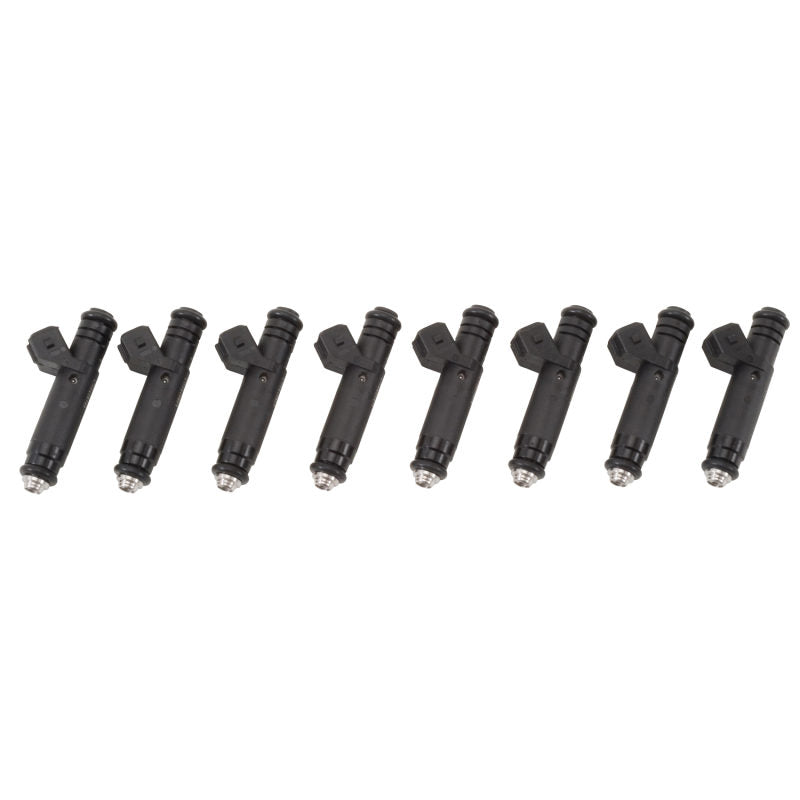

Edelbrock 3686 - 60 Lb/Hr High Impedance Fuel Injector (Set of 8)
61 Lb/Hr Fuel Injector for Edelbrock ProFlo and Pro-Tuner EFI Systems Set of 8
The Edelbrock #3686 injectors have standard ?Bosch style ?O-ring to O-ring dimensions and are high impedance 61 lb/hr at 43.5 psi. They are a Long Body Injector for Edelbrock Pro-Tuner and ProFlo EFI Systems. Set of 8
- Fuel Injector
- Highest Quality Standards
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Attachment Method: Push-In
Body Material: Plastic
Quantity: Set of 8
Recommended Use: Use With Part Number 1585, 1587, 1589
Impedance: 14.9
Terminal Type: Pin
Flow Rate: 60
Retainer Clips Included: No
Mounting Hardware Included: No
Terminal Quantity: 2
Body Type: Long
Terminal Gender: Male
Fuel Injection Type: Port, SC, TBI
Spray Nozzle Type: Cone
Type: Deka IV Tall, Minitimer
Connector Gender: Female
Wiring Harness Included: No
Pressure Rating: 43.5
Injection Type: EFI - Port Injection
Length: 60
Gasket Or Seal Included: Yes
