Edelbrock 35718 - Pro Flo 4 EFI ECU and Electronics Kit, Ford 351W

Name: Edelbrock 35718 - Pro Flo 4 EFI ECU and Electronics Kit, Ford 351W
Brand: Edelbrock
SKU: EDEL-35718
Price: 1451.99 USD
Availability: OutOfStock

Edelbrock 35718 - Pro Flo 4 EFI ECU and Electronics Kit, Ford 351W

Edelbrock | 35718
SKU: EDEL-35718

$1,451.99 USD

~~$1,597.19 USD~~ $1,451.99 USD

Sale Sold out

Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 35718 - Pro Flo 4 EFI ECU and Electronics Kit, Ford 351W

The Pro-Flo 4 ECU & Electronics Kit for Ford 351W allows customers with existing EFI induction systems to upgrade to the PF4 system. Includes sensors, ECU, harness, and other components to be controlled with iOS/Android E-Tuner software.

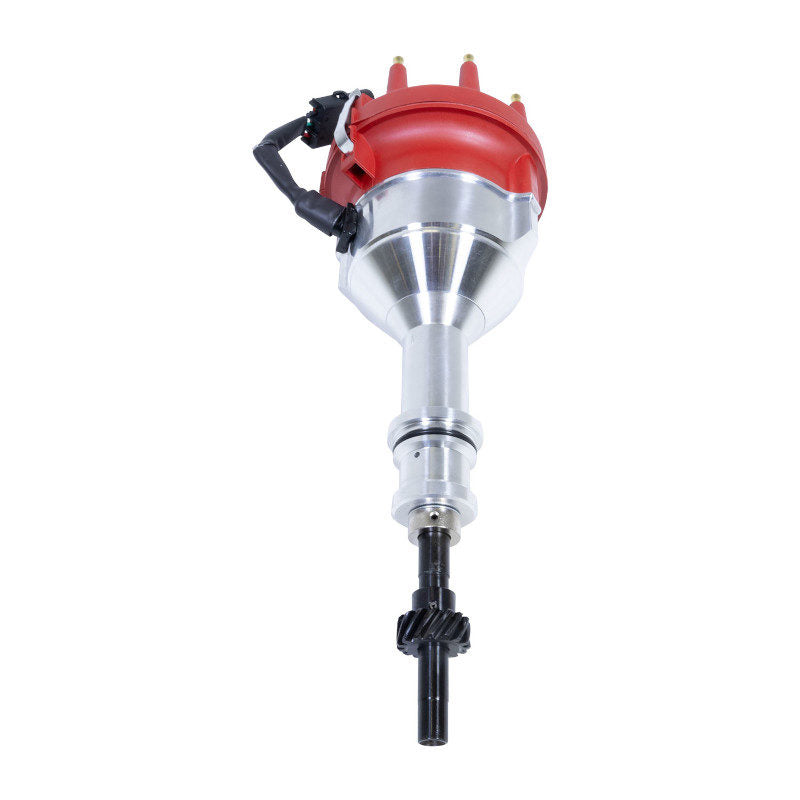

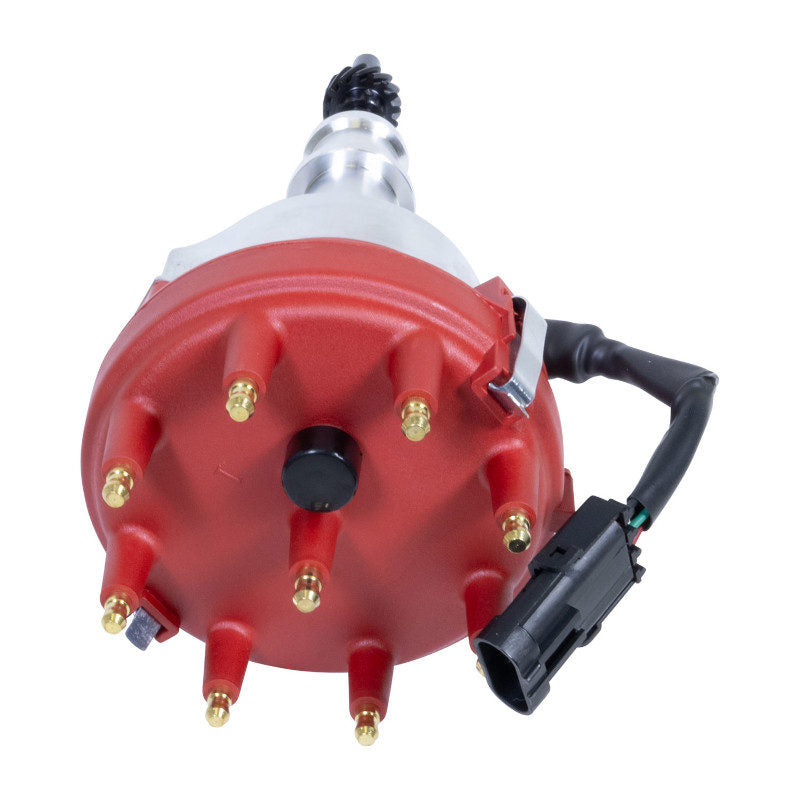

This Pro-Flo 4 ECU and Electronics Kit for Ford 351 Windsor engines offers an economical, plug-and-play solution for enthusiasts who want to keep their existing EFI Induction system (intake manifold, fuel rails, and accessories) but want the performance advantages of the Pro-Flo 4 EFI system. Pro Flo 4 EFI ECU and Electronics kits include supporting sensors, a distributor, an ECU, a wide-band O2 sensor, a wiring harness, and components for Ford 351 Windsor applications. This EFI system has both fuel and spark control features. The ECU includes a learning capability feature that adjusts the fuel injection calibration to maintain the specified target air-fuel ratio. Minimal setup and tuning adjustments are required with Edelbrockï¿½s E-Tuner Software for IOS and Android tablets and cell phones. The software includes base calibrations for most applications and necessary adjustments for AFR target, ignition curve, idle speed, acceleration tuning, coolant fans, rev limiter, etc. The customer must provide an induction system including a manifold, throttle body, fuel rails, and injectors. Also, a fuel pump, regulator, or fuel lines are not included. Users must refer to the Calibration Matrix in the instructions for the required injector size, depending on engine cubic inches and HP requirements. Required injector sizes 29 lb./hr., 35 lb./hr., 42 lb./hr., and 60 lb./hr. Compatibility with forced induction applications requires 80 lb./hr. injectors.

Economical EFI System solution for Ford 351W users with existing EFI components Simplified installation, providing all existing features of Pro Flo 4 EFI
Simplified installation, providing all existing features of Pro Flo 4 EFI

High or Low Impedence: High

Required Products: Fuel Injection Intake assembly including Fuel Rails and Injectors

Related Products: All Edelbrock and FAST EFI Ford 351W Manifolds 22746 Ignition Coil FAST and Edelbrock Throttle Bodies IAC Adapter FAST #307022, Edelbrock #3855 Edelbrock Pico and Siemens Fuel Injectors 29LbHr, 35LbHr, 42LbHr. 60LbHr, 80LbHr Air Cleaners EFI Fuel systems 36031 Edelbrock Fuel Sump 8041 Throttle and Trans Kick Down Bracket

Cross sell /Upsell Part Numbers: 35950 29245

Notes: System tuning supported by E Tuner 4 App

Quantity: Sold as a kit

Maximum Horsepower with Gas: 900

Power Adder Compatible: Yes

Self-Tuning: Yes

User Tunable: Yes

Transmission Controller Included: No

ECU Included: Yes

Wiring harness included: Yes

Fuel Injectors included: No

Drive-By-Wire Capable: No

Throttle Body Included: No

Injection Style: Sequential Port Injection

Timing Control Compatible: Yes

Fuel Pump Included: No

EGR: No

Metering Style: Speed Density

Intake Manifold Included: No

Fuel Rails Included:: No

Fuel Pressure Regulator Included: No

MAP Sensor Included: Yes

IAT Sensor Included: Yes

TPS Sensor Included: No

IAC Motor Included: No

Oxygen Sensor Included: Yes

Display Included: No

Handheld Controller Included: No

Data Logger: Yes

Distributor Included: Yes

Injector Connector Type: Minitimer / EV1

Number of Connectors Supported: 8
