Edelbrock 35717 - Pro Flo 4 EFI ECU and Electronics Kit for Ford 289/302 Engines

Edelbrock 35717 - Pro Flo 4 EFI ECU and Electronics Kit for Ford 289/302 Engines

Edelbrock | 35717
SKU: EDEL-35717
$1,440.99 USD
$1,585.09 USD $1,440.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 35717 - Pro Flo 4 EFI ECU and Electronics Kit for Ford 289/302 Engines

The Pro-Flo 4 ECU & Electronics Kit for Ford 289/302 allows customers with existing EFI induction systems to upgrade to the PF4 system. Includes sensors, ECU, harness, and other components to be controlled with iOS/Android E-Tuner software.

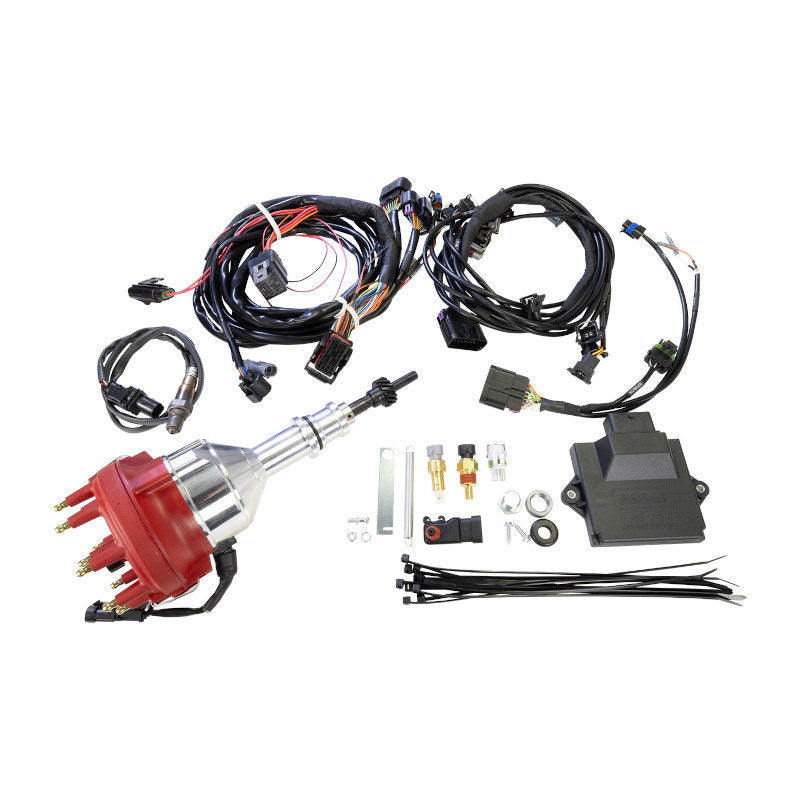

This Pro-Flo 4 ECU and Electronics Kit for Ford 289/302 engines offers an economical, plug-and-play solution for enthusiasts who want to keep their existing EFI Induction system (intake manifold, fuel rails, and accessories) but want the performance advantages of the Pro-Flo 4 EFI system. Pro Flo 4 EFI ECU and Electronics kits include supporting sensors, a distributor, an ECU, a wide-band O2 sensor, a wiring harness, and components for Ford 289/302 applications. This EFI system has both fuel and spark control features. The ECU includes a learning capability feature that adjusts the fuel injection calibration to maintain the specified target air-fuel ratio. Minimal setup and tuning adjustments are required with Edelbrock’s E-Tuner Software for IOS and Android tablets and cell phones. The software includes base calibrations for most applications and necessary adjustments for AFR target, ignition curve, idle speed, acceleration tuning, coolant fans, rev limiter, etc. The customer must provide an induction system including a manifold, throttle body, fuel rails, and injectors. Also, a fuel pump, regulator, or fuel lines are not included. Users must refer to the Calibration Matrix in the instructions for the required injector size, depending on engine cubic inches and HP requirements. Required injector sizes 29 lb./hr., 35 lb./hr., 42 lb./hr., and 60 lb./hr. Compatibility with forced induction applications requires 80 lb./hr. injectors.

  • Economical EFI System solution for Ford 289/302users with existing EFI components Simplified installation, providing all existing features of Pro Flo 4 EFI
  • Simplified installation, providing all existing features of Pro Flo 4 EFI
Datalogging Support: Yes

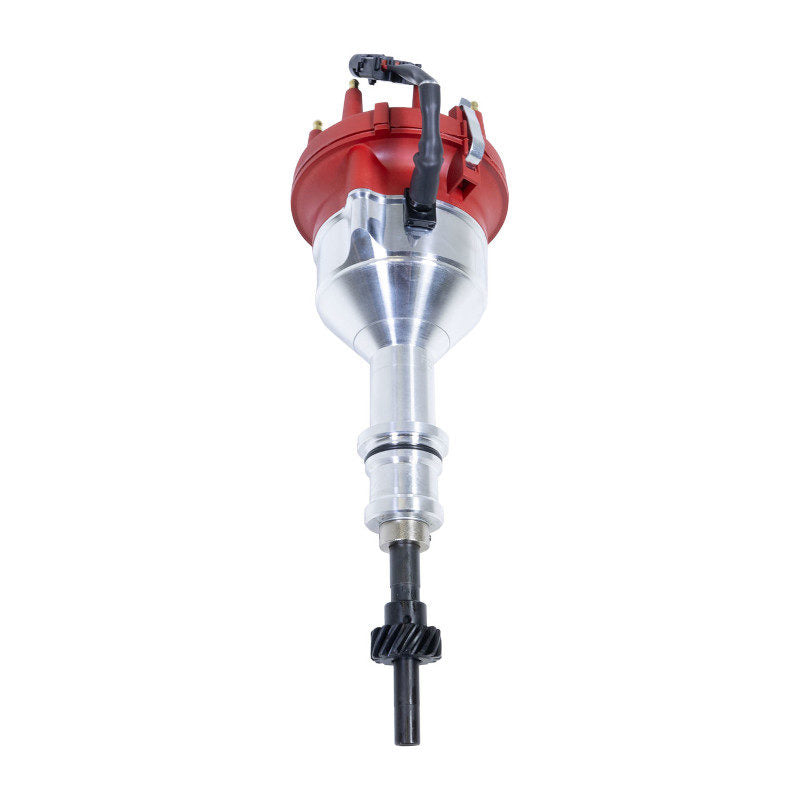

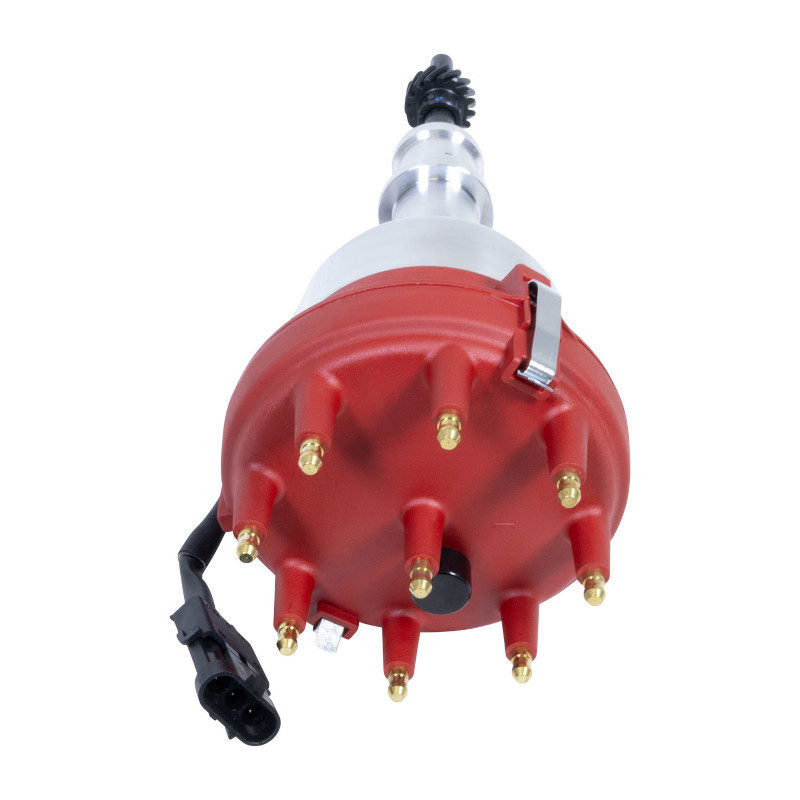

Distributor Included: Yes
Fuel Pressure Regulator Included: No
Fuel Pump Included: No
Fuel Injectors Included: No
Self-Tuning: Yes
Maximum Horsepower W/ Gas: 900
Injection Style: Sequential Port
Metering Style: Speed Density
Notes: System tuning supported by E Tuner 4 App
Quantity: Sold as a kit
Power Adder Compatible: Yes
User Tunable: Yes
Transmission Controller Included: No
ECU Included: Yes
Wiring harness included: Yes
Drive-By-Wire Capable: No
Throttle Body Included: No
Timing Control Compatible: Yes
EGR: No
Intake Manifold Included: No
Fuel Rails Included:: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: No
IAC Motor Included: No
Oxygen Sensor Included: Yes
Display Included: No
Handheld Controller Included: No
Data Logger: Yes
Required Products: Fuel Injection Intake assembly including Fuel Rails and Injectors
Related Products: All Edelbrock and FAST EFI Ford 289/302 Manifolds 22746 Ignition Coil FAST and Edelbrock Throttle Bodies IAC Adapter FAST #307022, Edelbrock #3855 Edelbrock Pico and Siemens Fuel Injectors 29LbHr, 35LbHr, 42LbHr. 60LbHr, 80LbHr Air Cleaners EFI Fuel systems 36031 Edelbrock Fuel Sump 8041 Throttle and Trans Kick Down Bracket
Cross sell / Upsell Part Numbers: 35930 29215
Injector Connector Type: Minitimer / EV1
Number of Connectors Supported: 8
High or Low Impedence: High
