Edelbrock 35715 - Pro-Flo 4 EFI Upgrade Kit (from Legacy Pro-Flo to Pro-Flo 4)

Pro-Flo 4 EFI Upgrade Kit (from Legacy Pro-Flo to Pro-Flo 4)

This upgrade kit includes a harness, supporting sensors, and components to convert from a Legacy Pro-Flo EFI System to Pro-Flo 4 EFI. Includes sensors, ECU, harness, and other components to be controlled with iOS/Android E-Tuner software.

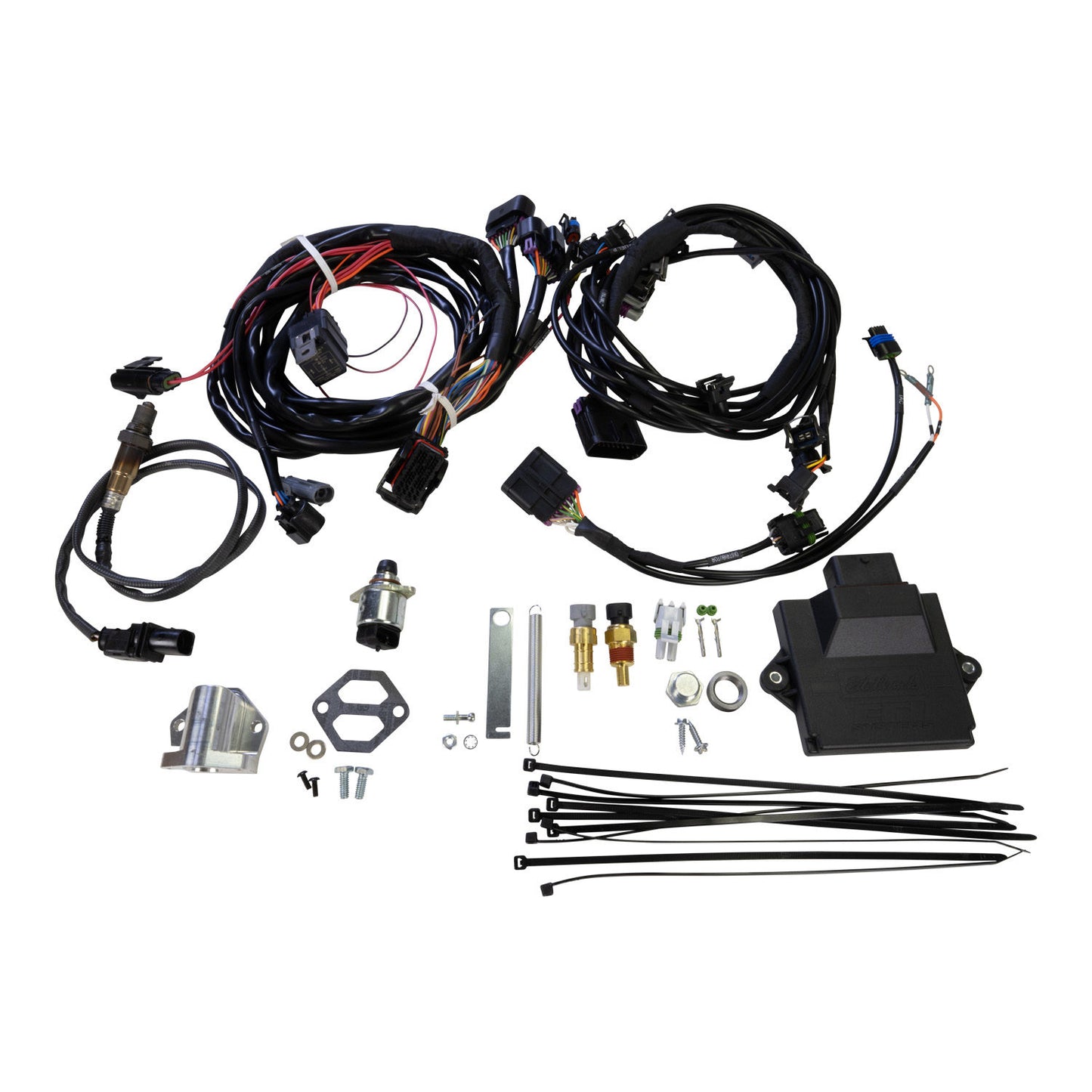

This Pro-Flo 4 EFI kit provides a solution for consumers who own a legacy Pro-Flo EFI System and want to upgrade to Pro-Flo 4. The Legacy Pro-Flo to Pro-Flo 4 EFI Upgrade Kit includes a harness, supporting sensors, and components for converting from a Legacy Pro-Flo EFI System to Pro-Flo 4 EFI. This kit consists of supporting sensors, ECU, wide-band O2 sensor, wiring harness, IAC valve, and IAC adapter. This EFI system has both fuel and spark control features. The ECU includes a learning capability feature that adjusts the fuel injection calibration to maintain the specified target air-fuel ratio. Minimal setup and tuning adjustments are required with Edelbrock’s E-Tuner Software for IOS and Android tablets and cell phones. The software includes base calibrations for most applications and necessary adjustments for AFR target, ignition curve, idle speed, acceleration tuning, coolant fans, rev limiter, etc. The customer must provide an induction system, including the manifold, throttle body, fuel rails, and injectors, as well as a Pro-Flo distributor, fuel pump, regulator, and fuel lines. Users must refer to the Calibration Matrix in the instructions for the required injector size, depending on engine cubic inches and HP requirements. Required injector sizes 29 lb./hr., 35 lb./hr., 42 lb./hr., and 60 lb./hr. Compatibility with forced induction applications requires 80 lb./hr. injectors.

  • Economical EFI System solution for users with existing legacy Edelbrock Pro Flo 1,2 or 3 EFI systems and components.
  • Simplified installation, providing all existing features of Pro Flo 4 EFI
Throttle Body Finish: N/A
Injection Style: Sequential Port
Timing Control Compatible: Yes
Fuel Pump Included: No
EGR: No
Metering Style: Speed Density
Intake Manifold Included: No
Intake Material: N/A
Intake Finish: N/A
Fuel Rails Included: No
Fuel Pressure Regulator Included: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: No
IAC Motor Included: No
Oxygen Sensor Included: Yes
Display Included: No
Handheld Controller Included: No
Data Logger: Yes
Quantity: Sold as kit
Notes: System tuning supported by E Tuner 4 App
Required Products: A legacy Edelbrock Pro Flo EFI system
Related Products: All Edelbrock and FAST EFI Manifolds 22746 Ignition Coil FAST and Edelbrock Throttle Bodies IAC Adapter FAST #307022, Edelbrock #3855 Edelbrock Pico and Siemens Fuel Injectors 29LbHr, 35LbHr, 42LbHr. 60LbHr, 80LbHr Air Cleaners EFI Fuel systems 36031 Edelbrock Fuel Sump 8041 Throttle and Trans Kick Down Bracket
Cross sell / Upsell Part Numbers: 35760 35820 35823 35810 35813 35790 35793 35870 35873 35860 29785 71383 7136 71363 7138 71383 29045 7137 71373
Distributor Included: No
Injector Connector Type: Minitimer / EV1
Number of Connectors Supported: 8
High or Low Impedence: High
Maximum Horsepower with Gas: 900
Power Adder Compatible: Yes
Self Tuning: Yes
User Tunable: Yes
Transmission Controller Included: No
ECU Included: Yes
Wiring harness included: Yes
Fuel Injectors included: No
Injector Size (lbs/hr): N/A
Drive-By-Wire Capable: No
Throttle Body Included: No
Throttle Body Material: N/A
