Edelbrock 3522 - Fuel Injector 80 Lb/Hr Short Body - Set of 8

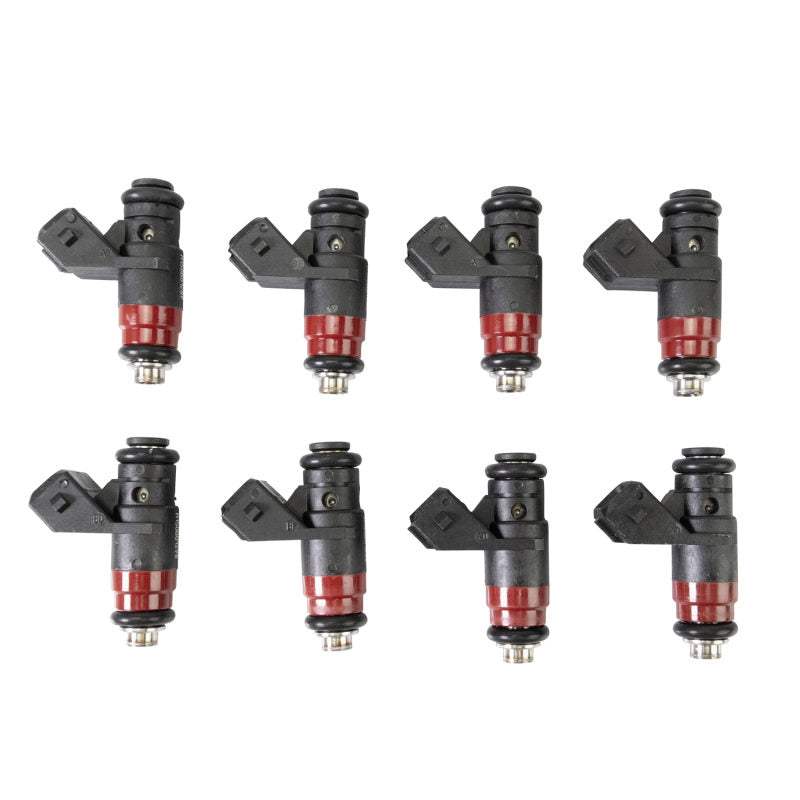

Edelbrock Fuel Injector #3522 80 Lb/Hr, Short Body (Qty 8)
Edelbrock part #3522 is a set of (8), short body Siemens Deka High Impedance (12.5 ohms) fuel injector with a flow rate of 80 lb/hr (830cc) @ 43.5psi.
Maximum Outside Diameter: 34.5
Fuel Type: Gasoline, Ethanol Flex Fuel
Retainer Clips Included: No
Gasket Or Seal Included: Yes
Connector Shape: Cone
Maximum Pressure Reading: 43.5
Mounting Hardware Included: No
Terminal Gender: Male
Attachment Method: Push-In
Connector Gender: Male
Wiring Harness Included: No
Injection Type: EFI - Port Injection
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Length: 48
Flow Rate: 80
Body Material: Plastic
Fuel Injection Type: Port, SC, TBI
O-Ring Quantity: 2
Type: Deka V Short
Body Type: Short
Quantity: Set of 8
Impedance: 12.5
Terminal Type: 2-Pin
Terminal Quantity: 1
