Edelbrock - 2916
Intake Manifold - Super Victor BBC - Dominator Flange - Single Plane - Rectangle Port - Aluminum - Natural - Big Block Chevy - Each

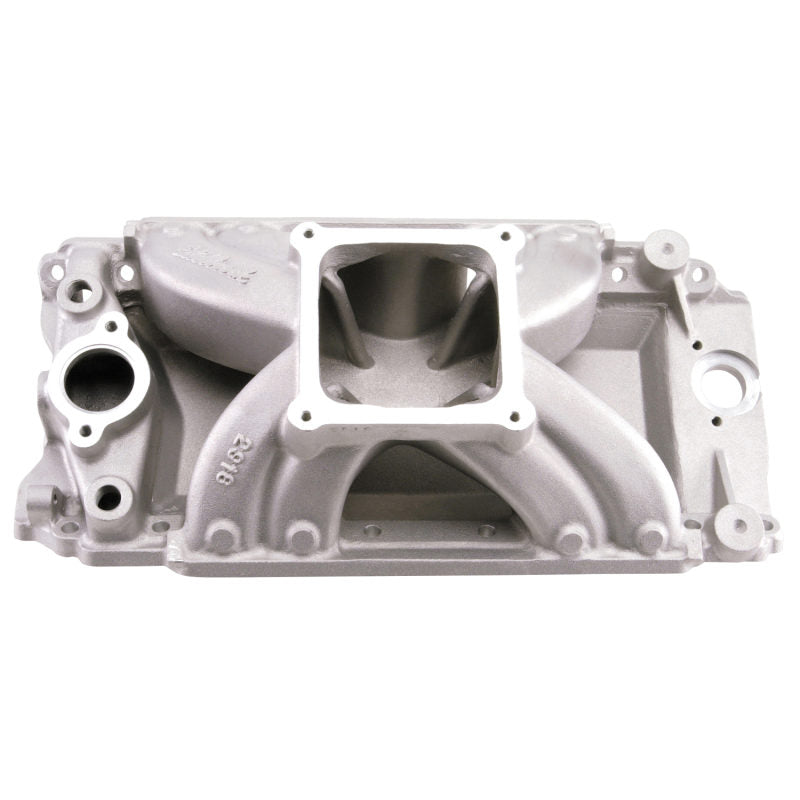

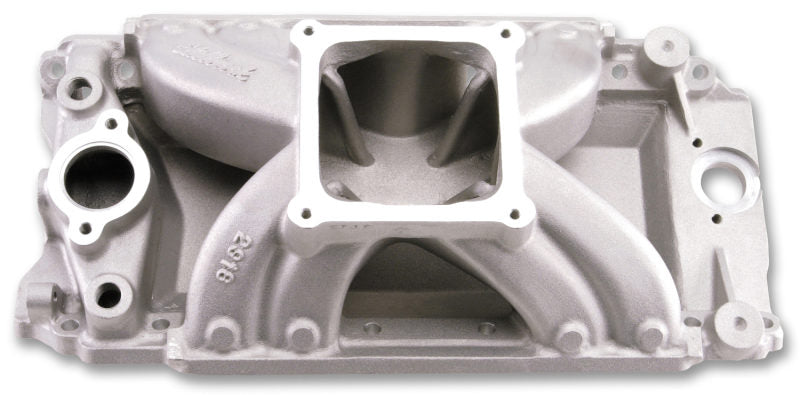

Edelbrock Super Victor Tall Deck Intake Manifold For Chevrolet 500+ Ci. Big-Block V8
Edelbrock part #2916 Super Victor BBC Tall-Deck intake manifold is designed for Chevy big-blocks with rectangular port cylinder heads. This single-plane manifold is ideal for 500+ cubic-inches or any big-block drag race engine with high air flow requirements. In dyno testing, Super Victor #2916 Tall-Deck outperformed the competition out-of-the-box with just a port match and minor blending of critical surfaces.
- For 3500 to 8000 RPM High-Performance Engines
- Ideal For 500+ cid Engines
- Ideal For Big Block Drag Eng. w/High Flow Req.
- Single-Plane Manifold
- Use On Tall-Deck Blocks w/o Manifold Spacers
- For Race Use Only
CNC Ported: No
Grade Type: Performance
Series: Victor
Vehicle Model: Chevrolet
Material: Aluminum
Basic Operating RPM Range: 3500-8500
Single Or Dual Plane Type: Single
Front Maximum Height: 6.950
EGR Port: No
Flange Type: 4500
Finish: Satin
Rear Maximum Height: 6.950
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Gasket Or Seal Included: No
Center Maximum Height: 6.950
