Edelbrock - 29085
Intake Manifold - Victor JR. LS1 - Competition EFI Flange - Single Plane - Cathedral Port - Aluminum - Natural - GM LS-Series - Each

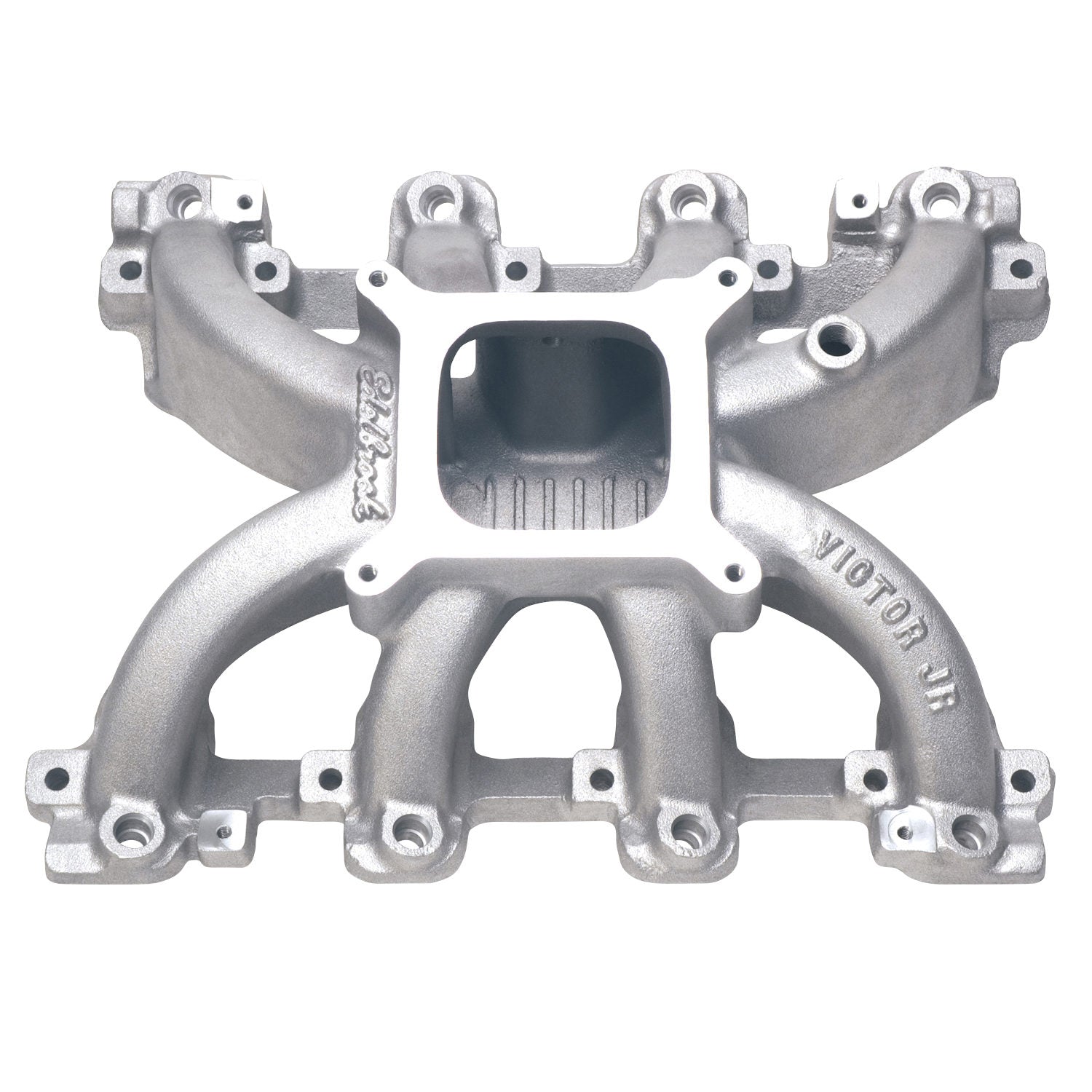

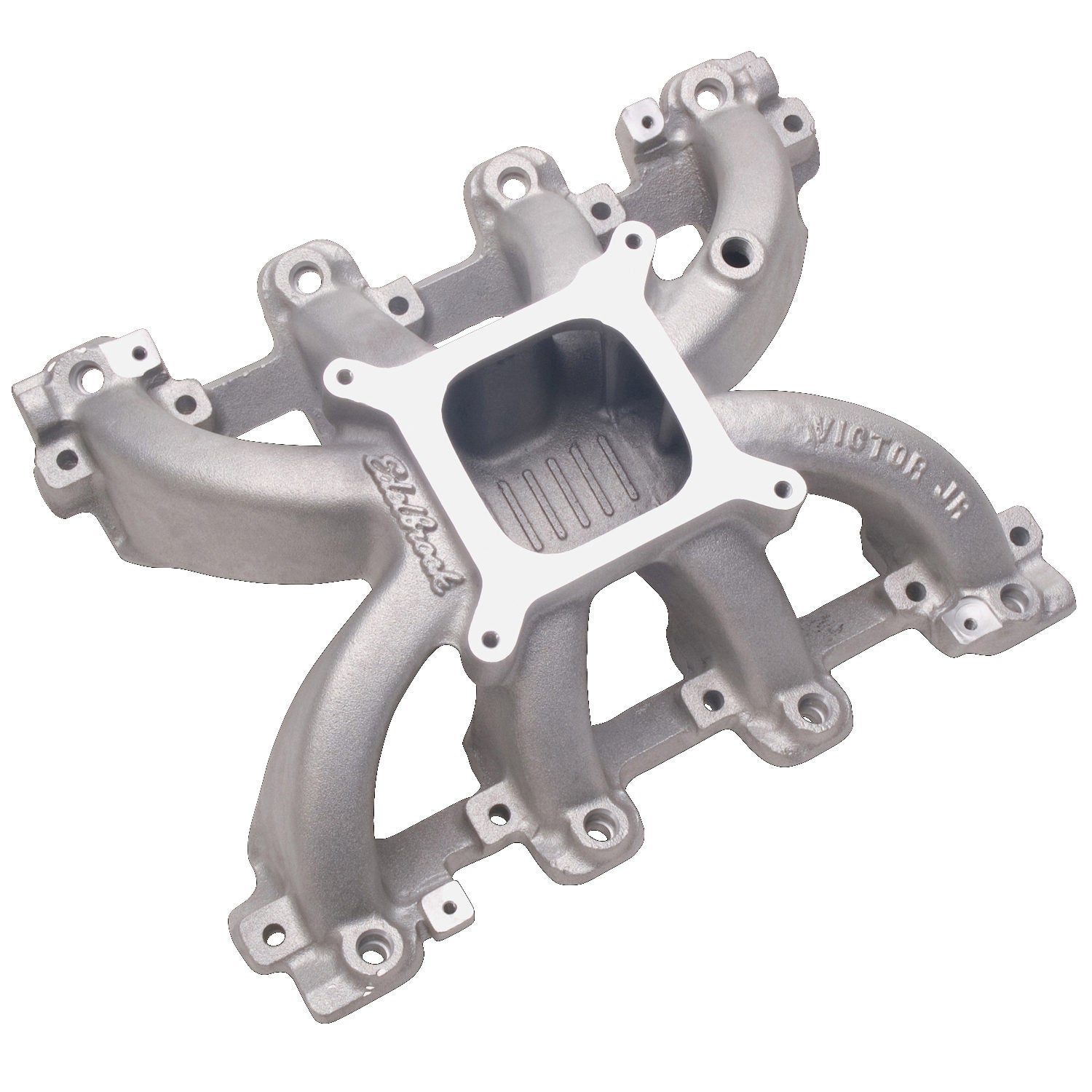

Edelbrock Victor Jr. LS1 EFI Intake Manifold Only For Chevrolet LS Gen III
Edelbrock part #29085 Victor Jr. LS1 EFI intake manifold accepts a standard square bore throttle body. This compact single-plane intake is capable of supporting up to 650 hp. The Edelbrock Victor Jr. LS1 EFI intake manifold continues the Edelbrock tradition of enhanced engine breathing and balanced cylinder-to-cylinder air/fuel distribution for improved performance. Includes a throttle bracket designed to work with 700-R4, 200-4R and Turbo 350 transmissions. Most applications will require hood modification.
- EFI Manifold Only
- Throttle Brkt Included for 700R-4/200R-4/Turbo 350
- Use OEM Factory O-Rings for Intake Gasket
Basic Operating RPM Range: 3500-7500
Rear Maximum Height: 4.950
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Victor
Vehicle Model: Chevrolet
CNC Ported: No
Center Maximum Height: 4.950
Material: Aluminum
Finish: Satin
Flange Type: 4150
Grade Type: Performance
Single Or Dual Plane Type: Single
EGR Port: No
Front Maximum Height: 4.950
Gasket Or Seal Included: No
