Edelbrock - 2908
Intake Manifold - Victor JR. LS1 - Square Bore - Single Plane - Cathedral Port - Aluminum - Natural - Timing Control - GM LS-Series - Each
Edelbrock Victor Jr. LS Cathedral Port Carbureted Intake Manifold with Timing Control Module For GM LS Gen III and Gen IV Engines

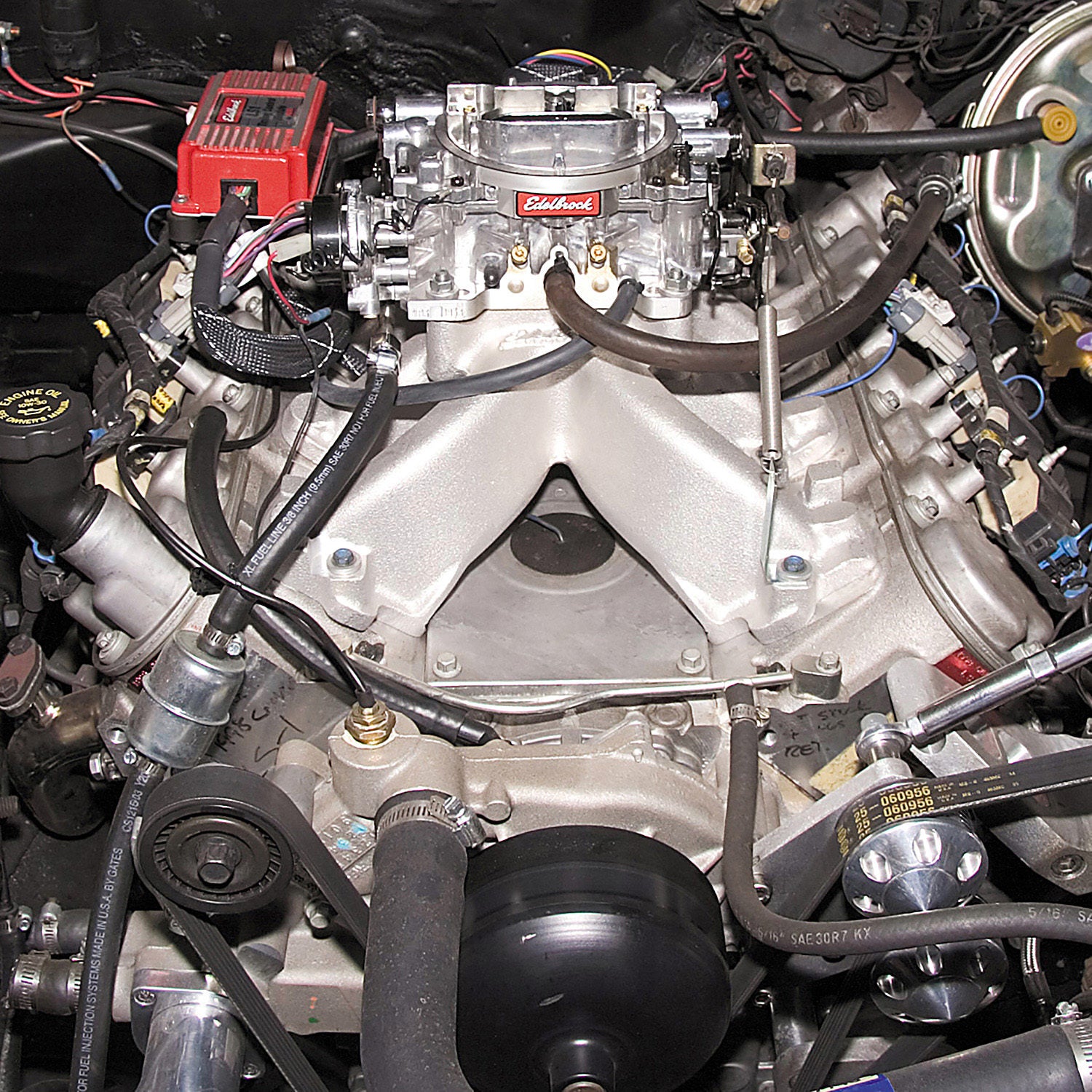

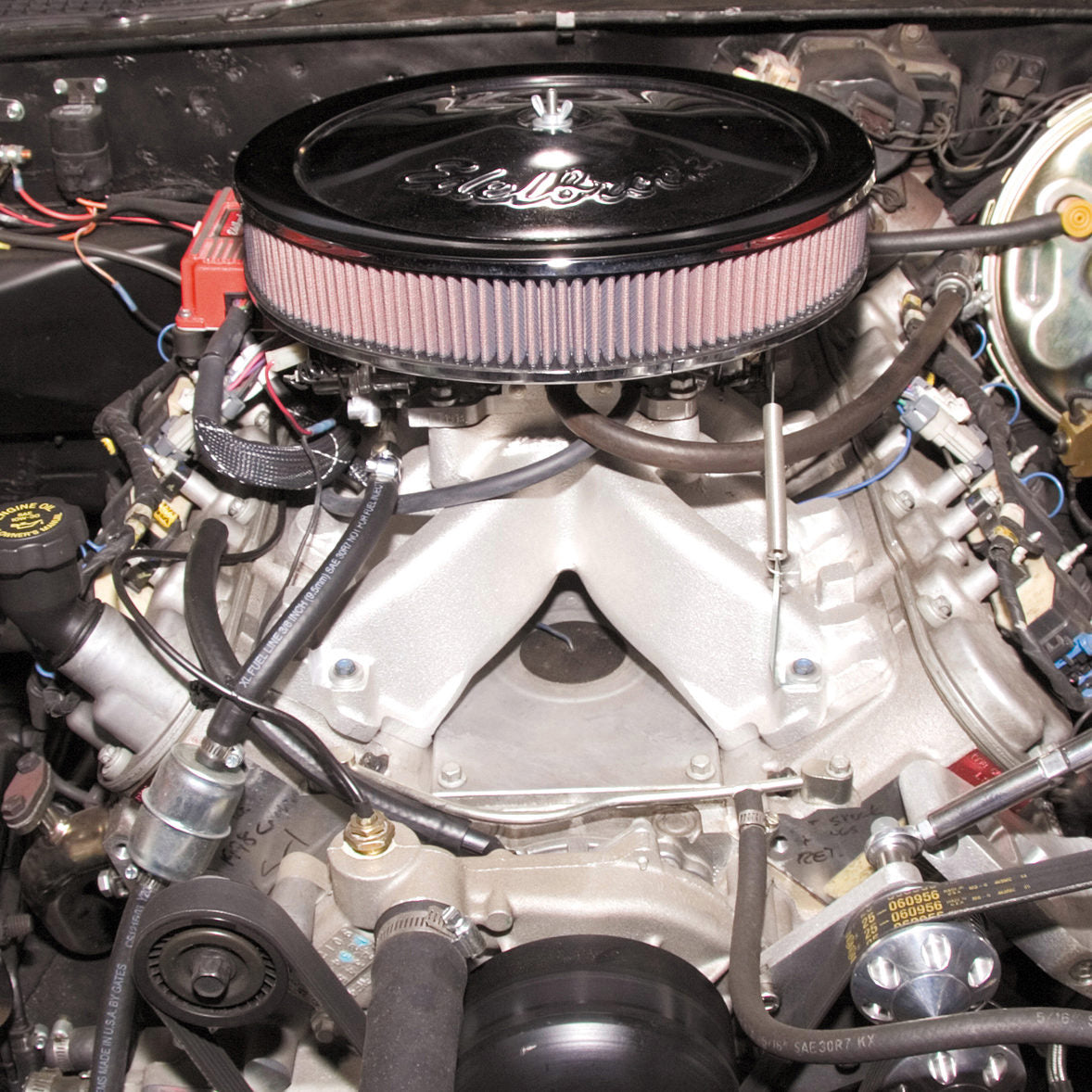

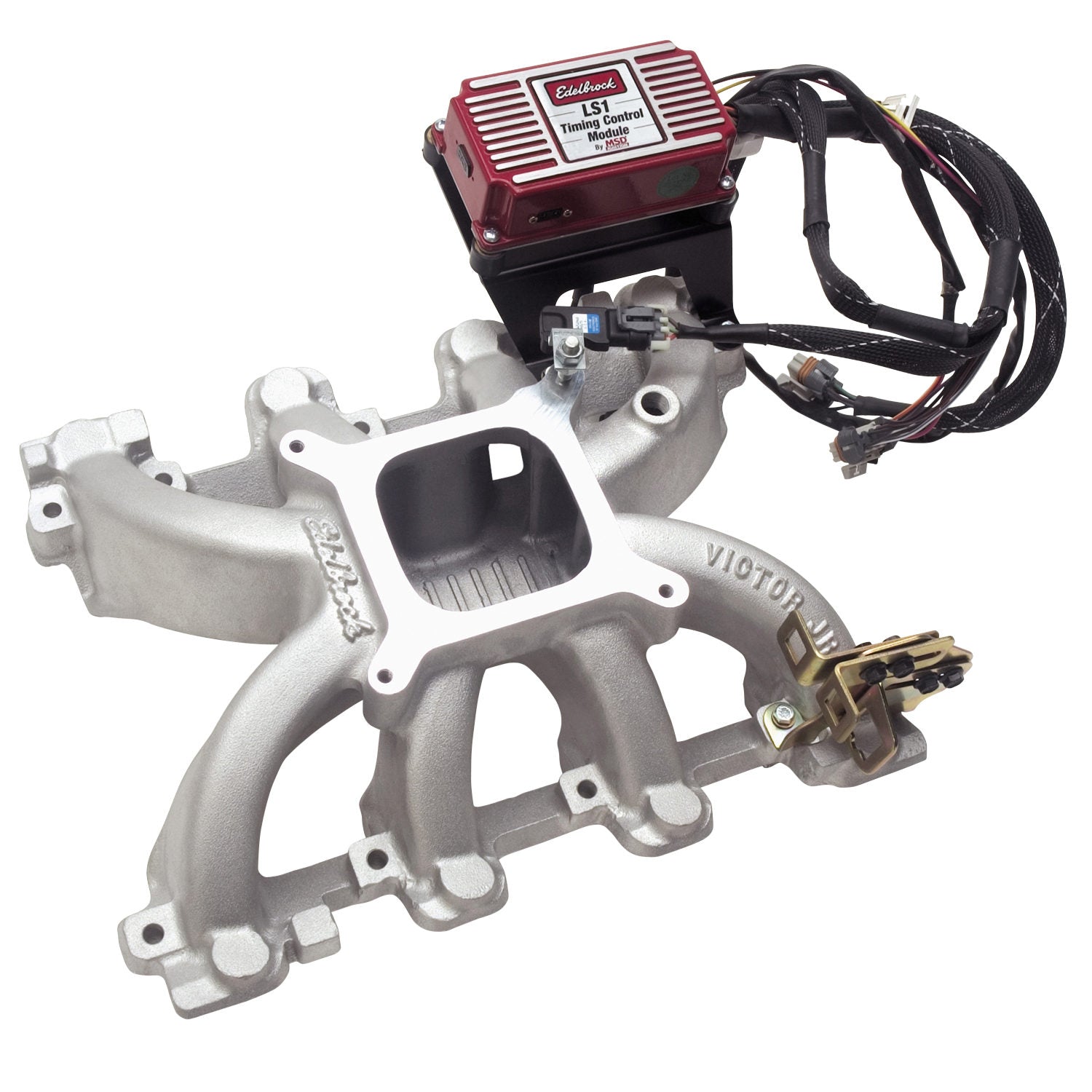

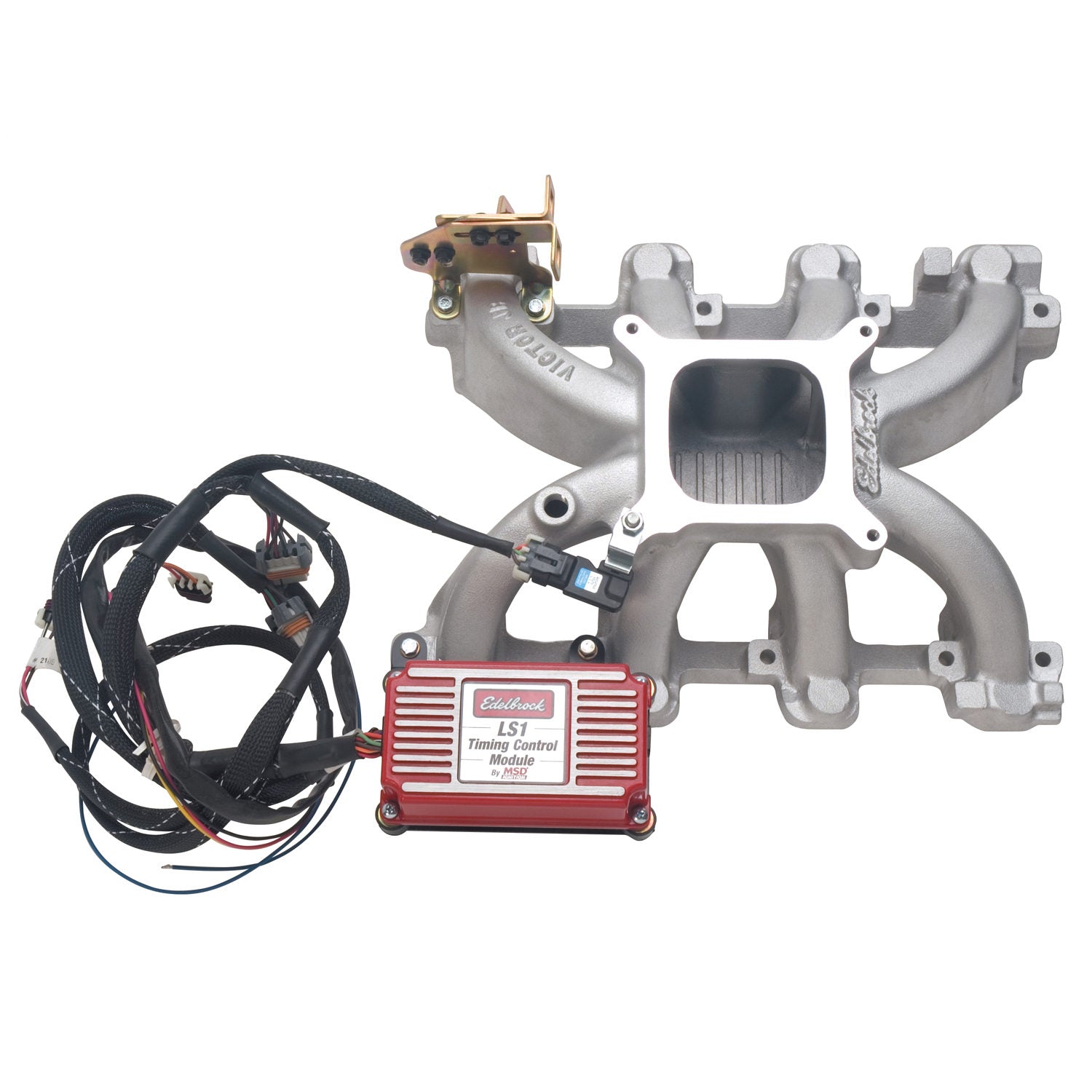

Edelbrock part #2908 Victor Jr. Cathedral Port intake manifold is a low-rise single plane intake capable of supporting up to 600 hp. The Victor Jr. Cathedral Port accepts a square bore carburetor and includes an electronic timing module that picks up MAP, crank position, and cam position in order to drive the stock LS Coil-on-Plug ignition system. It accepts either 24x or 58x input signal. The module offers a choice of 6 built-in timing curves, each tailored for engine displacement, cam profiles, and fuel grades. Can also be tuned using a laptop to control features such as launch and max rev limit, individual cylinder timing, and nitrous retard. The kit includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Uses stock o-ring gaskets GM PN 12533587. Fittings and mounting bolts included.
- Converts LS1 Engine to Square Bore Carburetor
- Use OEM Factory O-Rings for Intake Gasket
- Module picks up MAP; Crank and Cam Position
- Module Drives Stock Coil-on-Plug System
- Module Includes Multiple Timing Curves
- Throttle Brkt Included for 700R-4/200R-4/Turbo 350
