Edelbrock 22717 - Spark Plug Wire Set GM LS Engines Heat Shields w/o Red Wire (Set of 8)

Edelbrock 22717 - Spark Plug Wire Set GM LS Engines Heat Shields w/o Red Wire (Set of 8)

Edelbrock | 22717
SKU: EDEL-22717
Regular price $89.99 USD
Regular price $98.99 USD Sale price $89.99 USD
Sale Sold out
Shipping calculated at checkout.

100 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 22717 - Spark Plug Wire Set GM LS Engines Heat Shields w/o Red Wire (Set of 8)

Edelbrock Max-Fire High Performance Spark Plug Wires without Heat Shields, 8.5mm red silicone outer jacket, Kevlar inner core, 50 ohms per foot resistance, excellent EMI/RFI suppresion

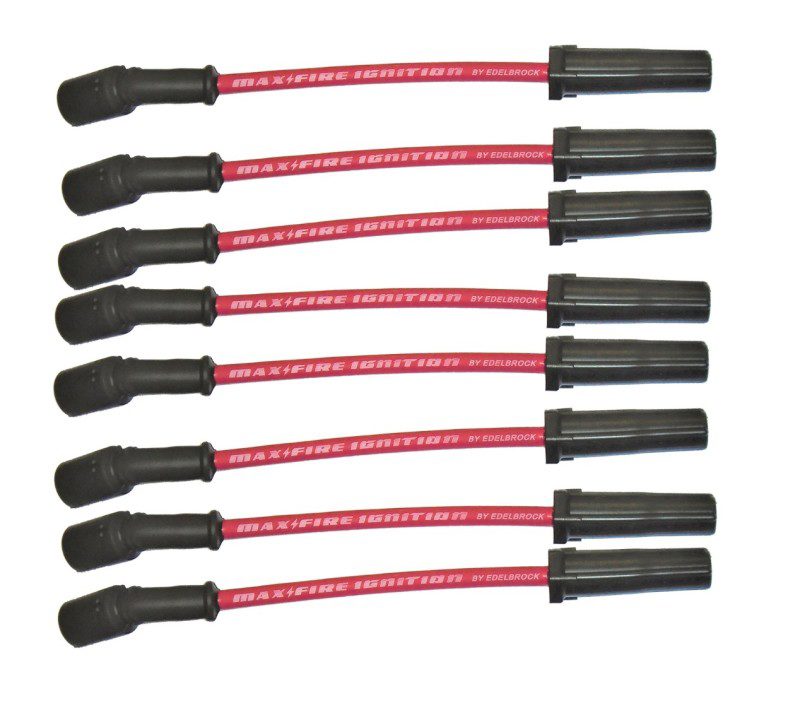

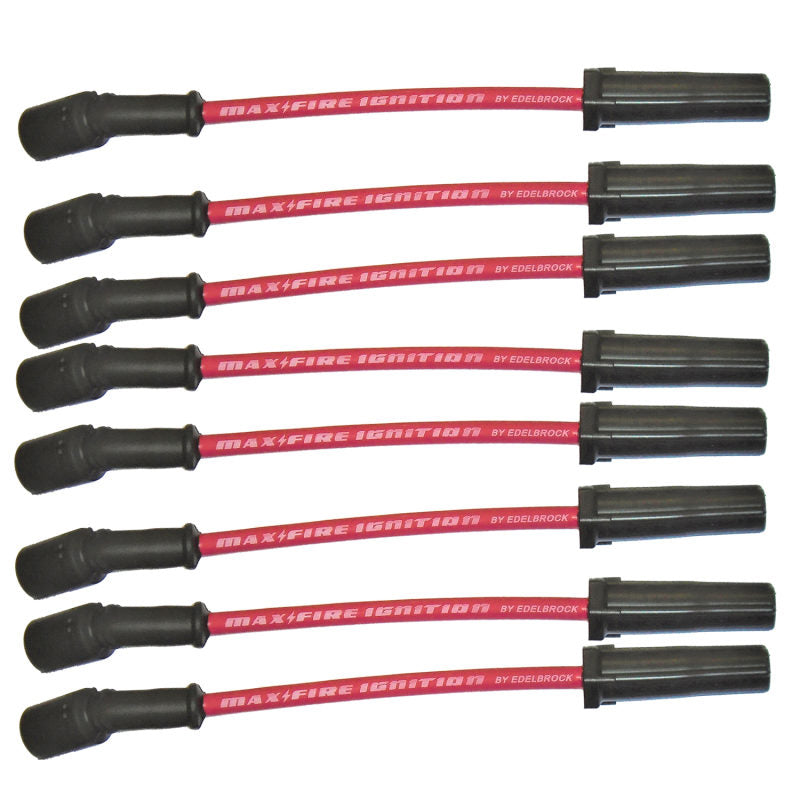

Edelbrock Max-Fire LS Ignition Wire Kits #22717 is a preassembled set of eight spark plug wires for General Motors LS engines. These wires are manufactured using high-quality materials to ensure the best performance possible with a heavy-duty 8.5mm red silicone outer jacket to protect the spiral-wound Kevlar inner core from heat, moisture and chemicals. This direct-fit wire set delivers maximum voltage with extremely high EMI/RFI suppression with 50 ohms per foot of resistance. This kit is ideal for LS builds that demand a high-performance ignition system upgrade with a precision fit and a show-quality appearance. See application chart for engine- or vehicle-specific Max-Fire kits.

  • Complete preassembled set of LS ignition wires that require no cutting or splicing
  • Red 8.5mm outer silicone jacket
  • Excellent protection from heat, chemicals and moisture
  • 50 ohms per foot of resistance
  • Excellent EMI/RFI suppresion
Universal Or Specific Fit: Specific
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Coil Wire Length: 12.5
Insulation Color: White
Spark Plug End Boot Color: Black
Wire 5 Length: 12.5
Wire 8 Length: 13.0
Outside Diameter: 8.5
Spark Plug End Boot Degree: 45
Wire Separators Included: No
Wire 2 Length: 12.5
Noise Suppression Type: Yes
Core Material: Magnetic Kevlar Core
Coil End Boot Color: Black
Wire 1 Length: 12.5
Wire 4 Length: 12.5
Wire 7 Length: 12.5
Spark Plug Wire Resistance: 50
Spark Plug End Terminal Type: LS
Insulation Material: EPDM
Spark Plug Boot Material: Compact Silicone
Spark Plug End Boot Quantity Straight: 8
Wire 3 Length: 12.5
Wire 6 Length: 12.5
Insulation Outside Diameter: 0.23
Resistance: 50
