Edelbrock

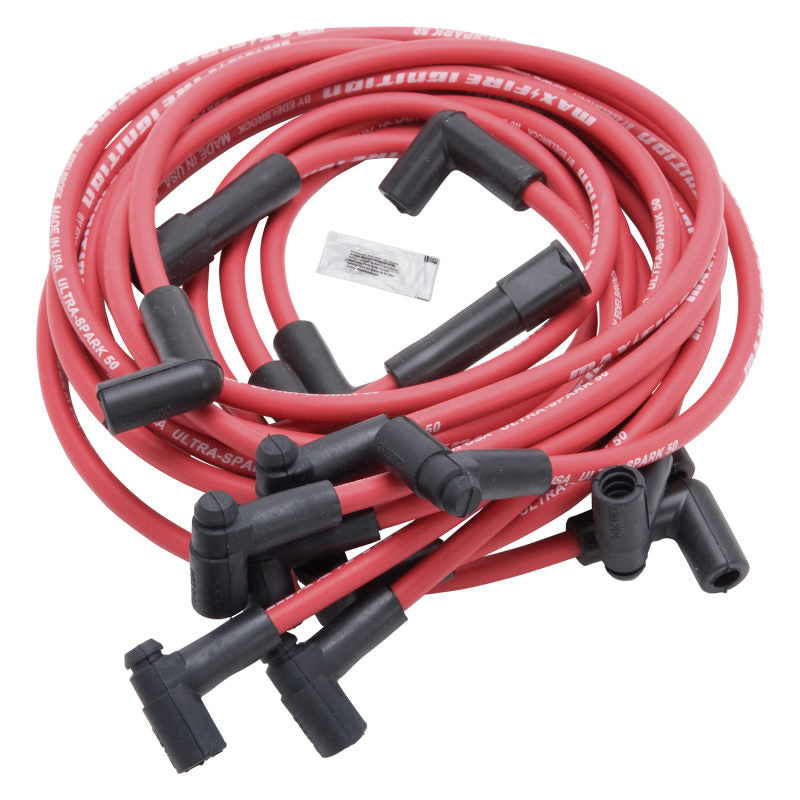

Edelbrock 22713 - Spark Plug Wire Set SBC 78-86 V8 Hei 50 Ohm Resistance Red Wire (Set of 8)

MSRP: $98.94
$89.95
( saved $8.99 )
Write a Review
  • Edelbrock 22713 - Spark Plug Wire Set SBC 78-86 V8 Hei 50 Ohm Resistance Red Wire (Set of 8)
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
EDEL-22713
UPC:
085347227136
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Edelbrock - 22713

Spark Plug Wire Set - Max-Fire - Spiral Core - 8.5 mm - Red - 90 Degree Plug Boots - HEI Style Terminal - Small Block Chevy - Kit

Max-Fire Engine Specific (Ultra-Spark 50) High Performance Spark Plug Wire Set

The Edelbrock #22713 Max-Fire Ultra-Spark 50 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ? ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. They are engineered for high performance engines that need all of the voltage they can get for maximum power output. Made with wire leads that deliver a low 40 ohms of resistance per-foot for maximum EMI/RFI noise suppression. This makes them ideal for engines with aftermarket high performance upgrades that require maximum voltage. See application chart for engine or vehicle specific kits.

  • Compact Silicone Boots
  • Fold-Over Crimping
  • Tempered 8.5mm Silicone Outer Jacket
  • Stainless Steel Conductive Winding
  • Kevlar Core

Core Material: Magnetic Kevlar Core
Spark Plug Boot Material: Compact Silicone
Wire 7 Length: 41.0
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Wire Separators Included: No
Distributor Coil End Boot Degree: 90
Spark Plug End Boot Quantity Angled: 6
Wire 4 Length: 32.0
Distributor Coil End Terminal Type: HEI
Wire 3 Length: 32.0
Insulation Outside Diameter: 0.23
Insulation Color: White
Spark Plug End Boot Color: Black
Resistance: 50
Coil End Boot Color: Black
Spark Plug End Boot Quantity Straight: 2
Wire 1 Length: 22.0
Wire 2 Length: 28.0
Outside Diameter: 8.5
Spark Plug End Terminal Type: Standard
Distributor Coil End Boot Type: HEI
Noise Suppression Type: Yes
Wire 6 Length: 41.0
Spark Plug Wire Resistance: 50
Insulation Material: EPDM
Universal Or Specific Fit: Specific
Wire 5 Length: 40.0
Wire 8 Length: 44.0
