Edelbrock 2240 - Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit

Edelbrock 2240 - Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit

Edelbrock | 2240
SKU: EDEL-2240
$1,583.99 USD
$1,742.39 USD $1,583.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 2240 - Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit

E-Street Cylinder Heads SB Chevy 262-400, Hydraulic Flat Tappet With Install kit

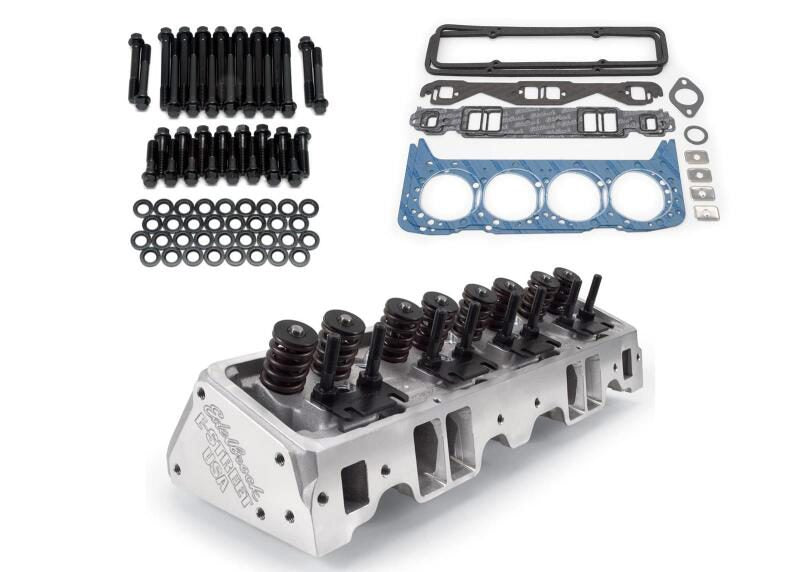

Edelbrock Complete Small Block Chevy E-Street Cylinder Heads with Install kit

Cylinder Head Specifications: Combustion chamber volume: 70cc / 64cc; Intake runner volume: 185cc; Exhaust runner volume: 60cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.460"; Valve spring maximum lift: .550"; Rocker stud: 3/8" with guide plate; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 23°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat * Use with Hydraulic Flat Tappet Camshafts .550" max lift. (NOT Compatible with Hydraulic Roller Camshafts) Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Requires hardened pushrods. Not legal for sale or use on pollution controlled motor vehicles.

  • E-Street Cylinder Head
Valve Angle: 23
Quantity: Set of 2
Deck Thickness: 0.5625
Combustion Chamber Volume: 64
Intake Runner Volume: 185
CNC Ported: No
Rotor Center Bore Inside Diameter: Straight
Exhaust Valve Diameter: 1.60
EGR Port: No
Family: E-Street
Guide Plates Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Seat Material: Ductile Iron
Construction Type: Complete
Valve Springs Included: Yes
Guide Material: Manganese Bronze
Valve Stem Diameter: 0.3438
Horsepower: 300-400
Push Rod Diameter: (Suggested) 0.3125
Valve Spring Maximum Lift: 0.550
Rocker Arm Stud Diameter: 0.375
Seat Angle: Exhaust 45 deg/Intake 45
Exhaust Port Location: Standard
Exhaust Runner Volume: 60
Camshaft Type: Flat Tappet
Grade Type: Performance
Head Casting Number: N/A
Series: E-Street
Material: Aluminum
Retainer Included: Yes
Valve Included: Yes
Valve Spring Diameter: 1.46
Guide Plate Material: Hardened Steel
Intake Valve Diameter: 2.02
