Edelbrock - 2040
Intake Manifold - Performer EPS - Square Bore - Dual Plane - Gaskets / Hardware - Aluminum - Natural - Small Block Chevy - Kit

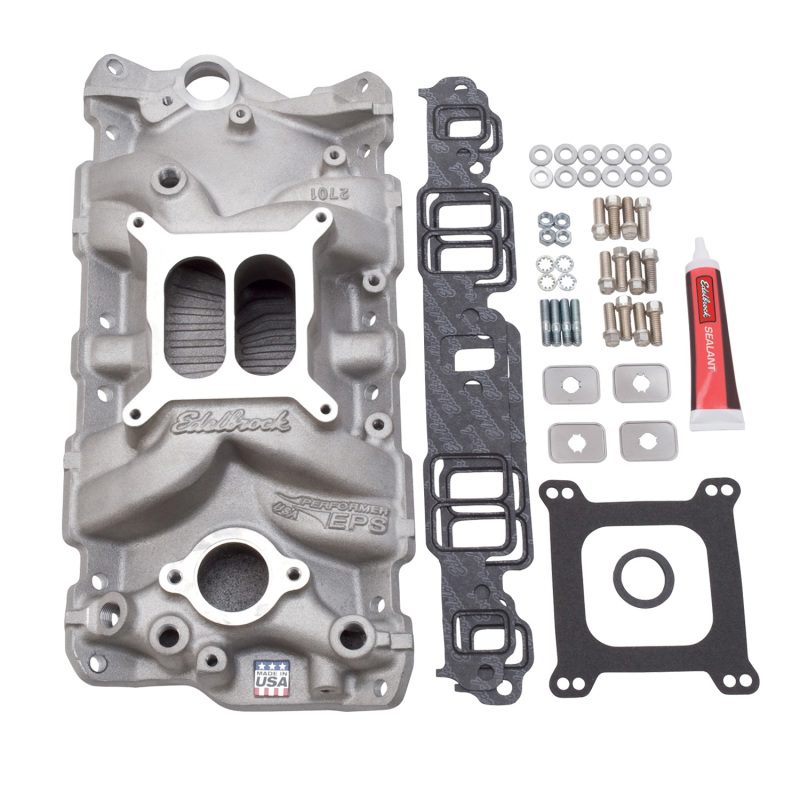

Edelbrock part #2040 Manifold Installation kit will simplify the process of adding more power and efficiency to your street rod or muscle car. It combines all the necessary components to replace your stock iron intake manifold with an Edelbrock aluminum intake manifold. Kit includes: Performer EPS intake manifold #2701, intake gasket set, carburetor base gasket, RTV sealant, intake bolts and carb studs.
- Clean Positive Seal
- Embossed Silicone Bead Surrounding The Port
- Matched To Manifolds And Cylinder Heads
Basic Operating RPM Range: Idle-5500

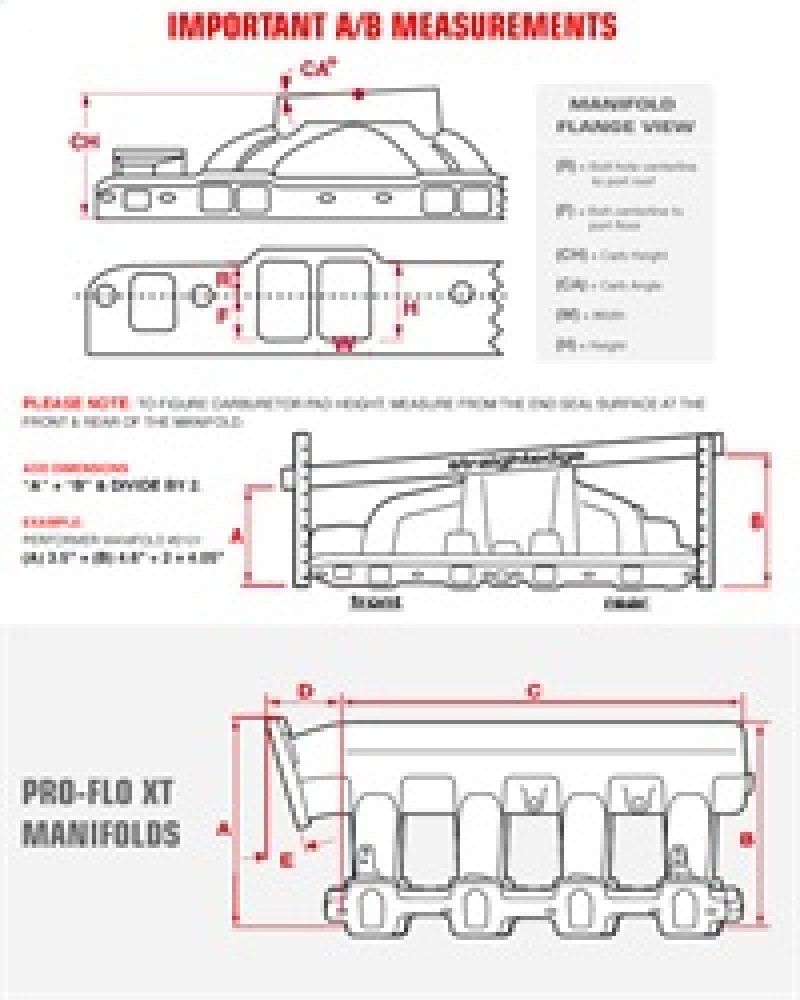

Rear Maximum Height: (B) (Measured To Engine Block) 4.80
Center Maximum Height: (Carb Pad) 4.27
CNC Ported: No
Series: Performer
Finish: Satin
Mounting Hole Quantity: (Carb Bolt) 4
Carburetor Quantity: One
Fastener Material: Steel
EGR Port: No
Material: Aluminum
Family: Performer
Gasket Or Seal Included: Yes
Angle: (Carb) 3
Deck Height: Standard
Flange Type: 4150
Hardware Included: Yes
Port Exit Dimensions: 1.15 x 1.87
Intake Manifold Type: Part #2701
Bolts Or Studs Included: Yes
Front Maximum Height: (A) 4.45
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Vehicle Model: Chevrolet
Quantity: Kit
Mounting Hole Diameter: (Carb Bolt) 5/16-18 UNC
Single Or Dual Plane Type: Dual
