Edelbrock - 1902

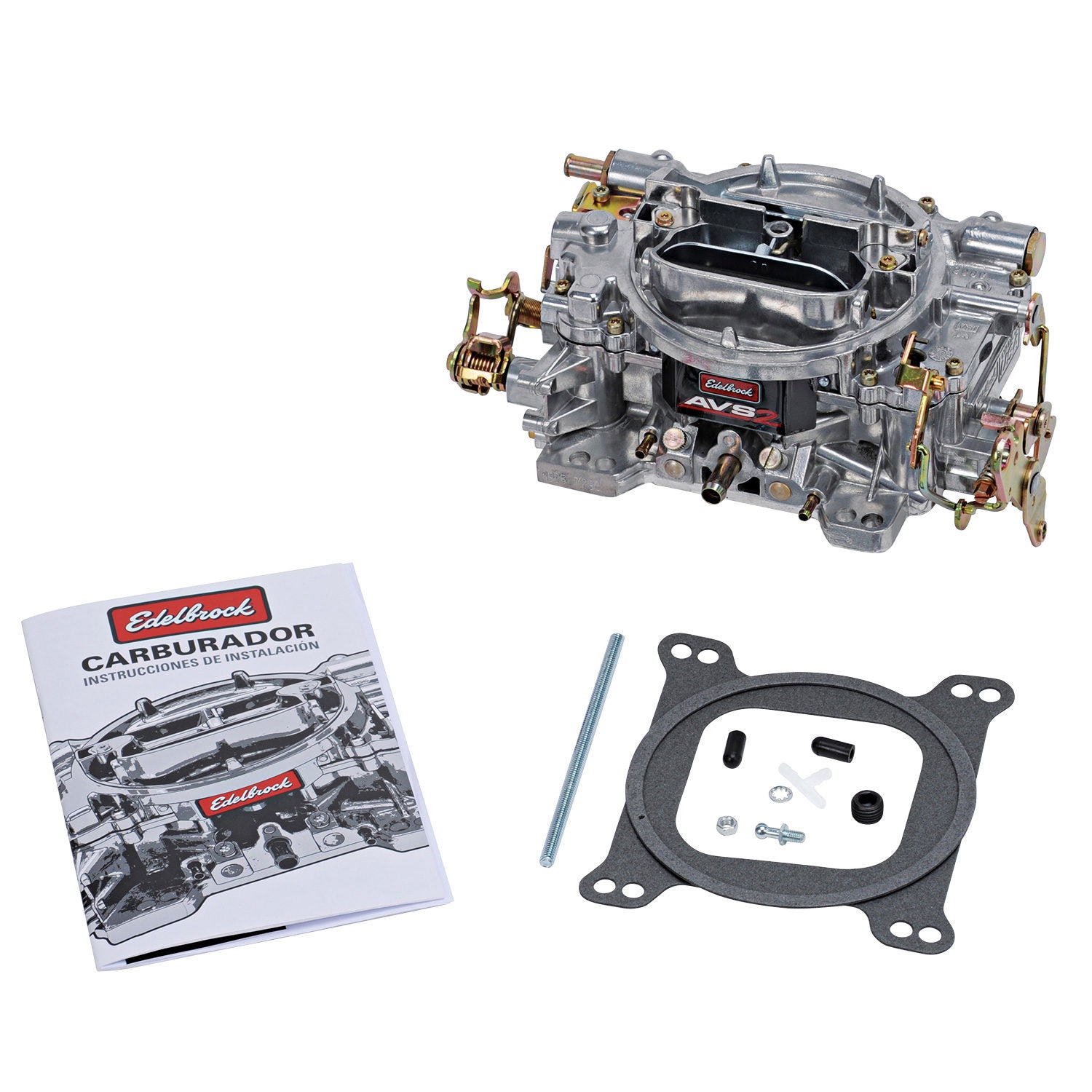

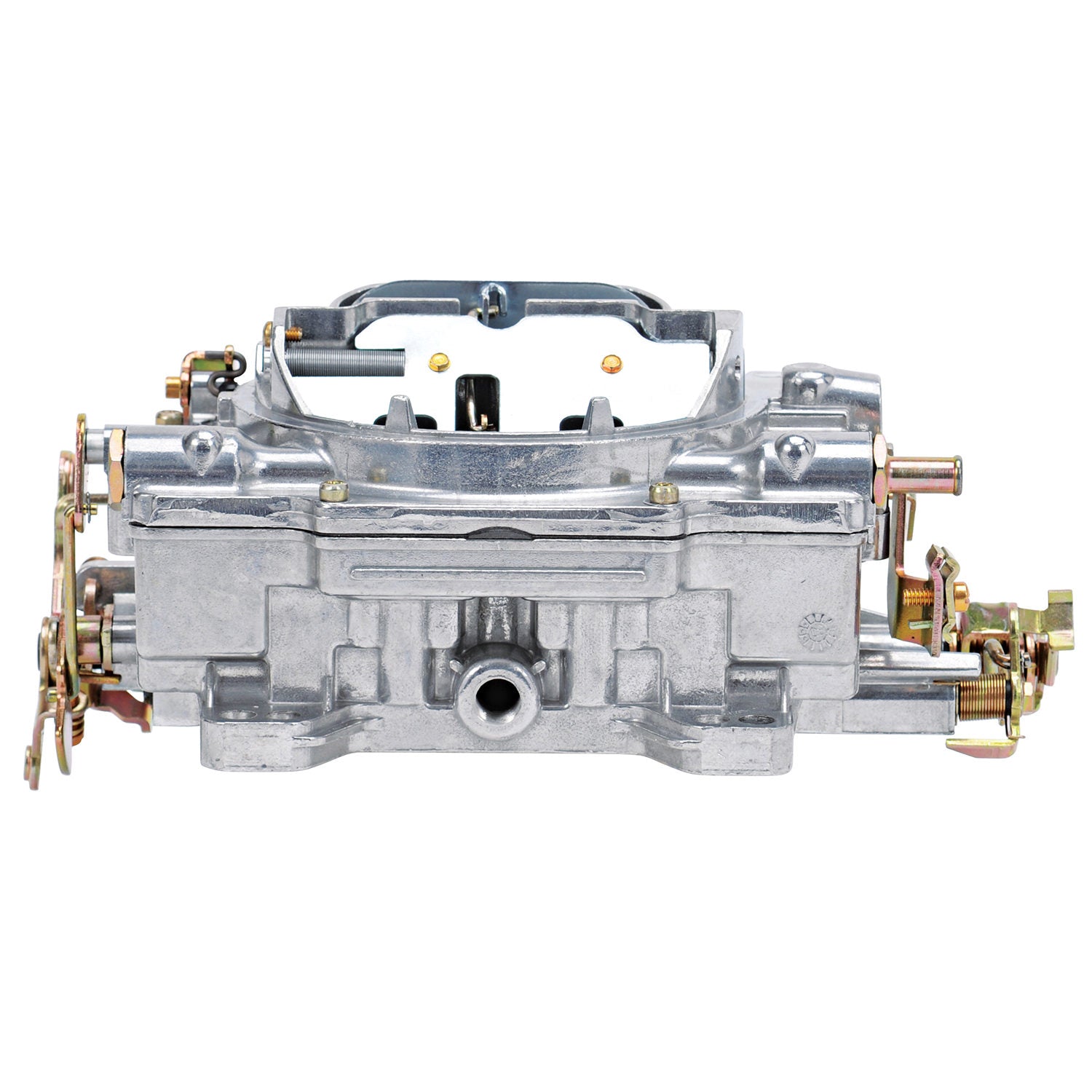

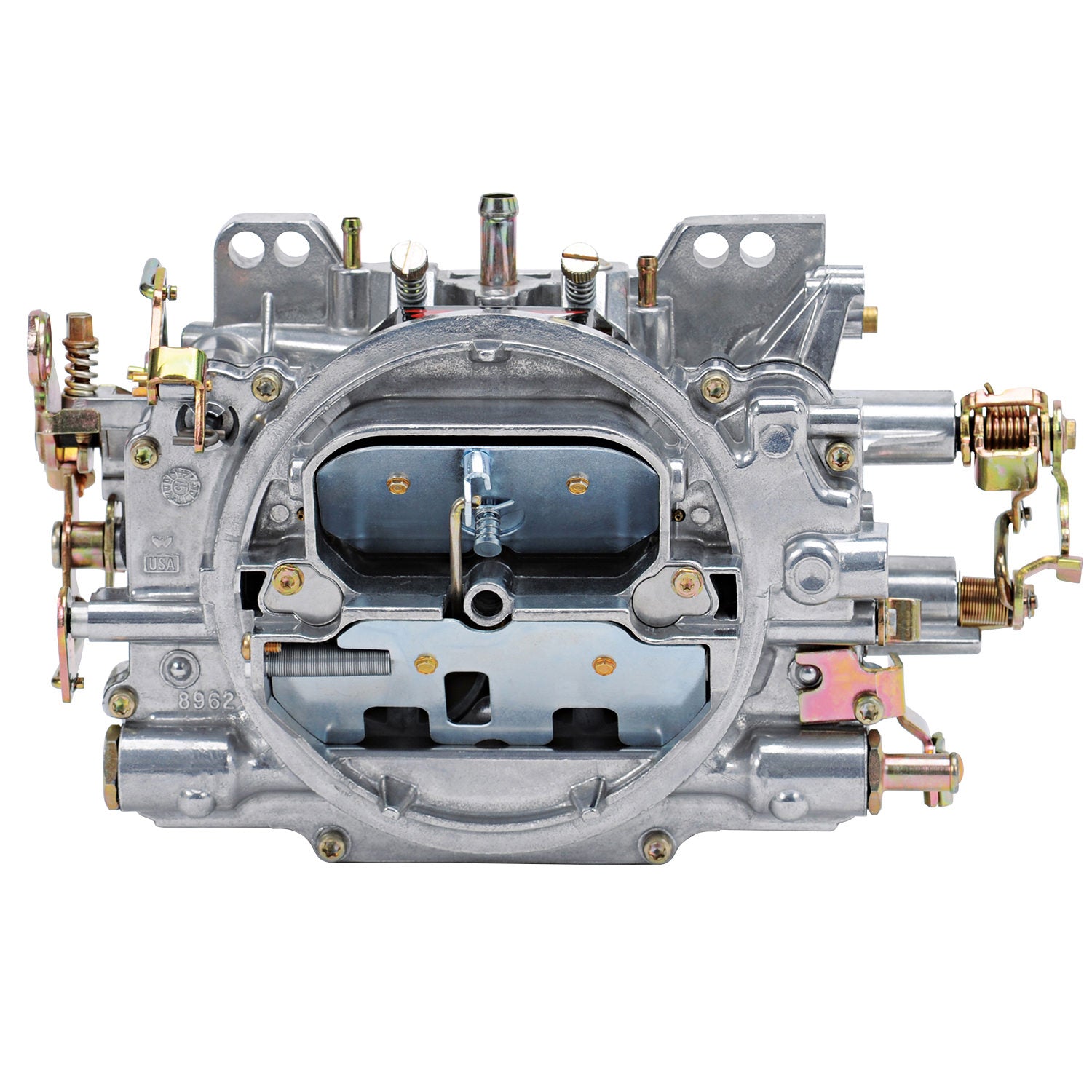

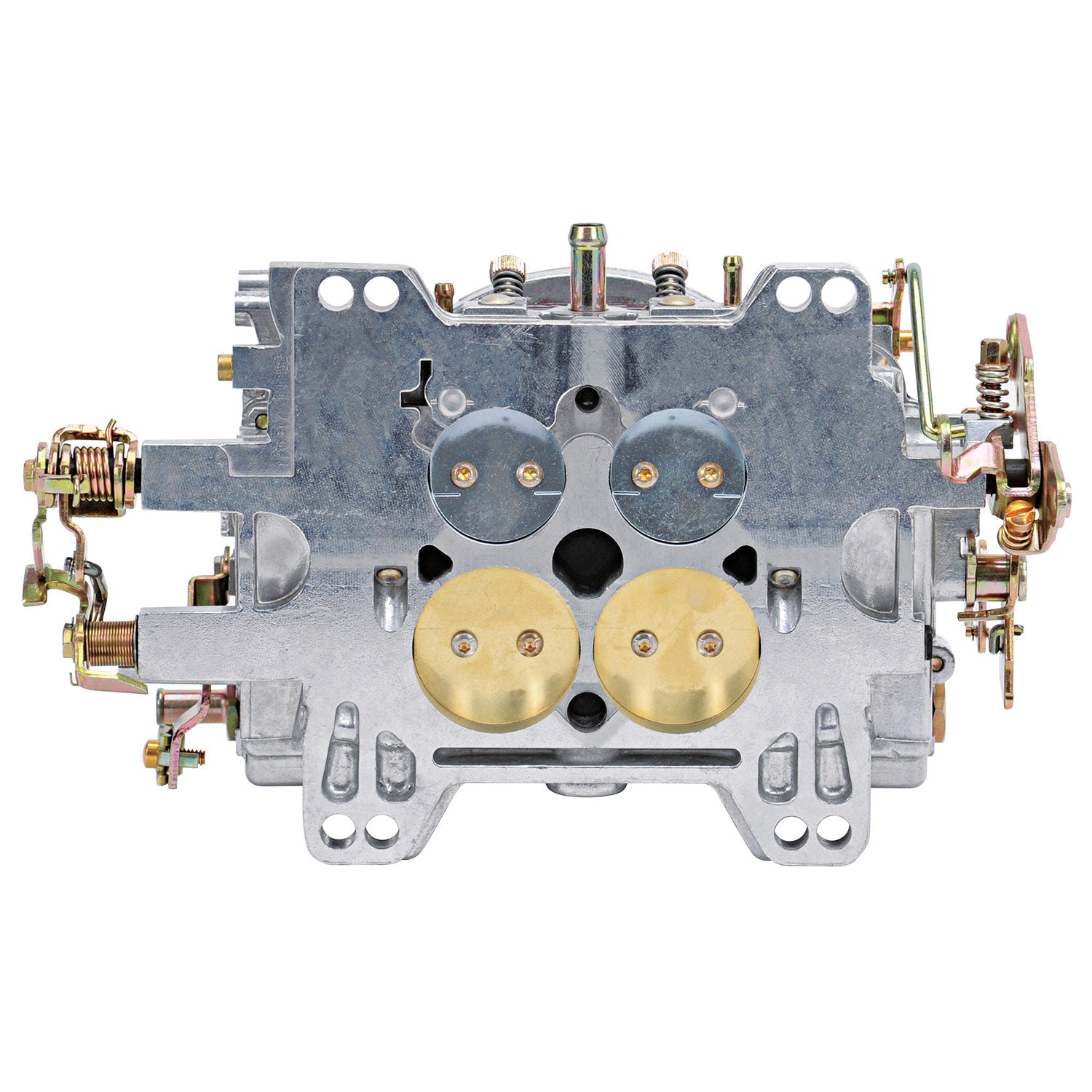

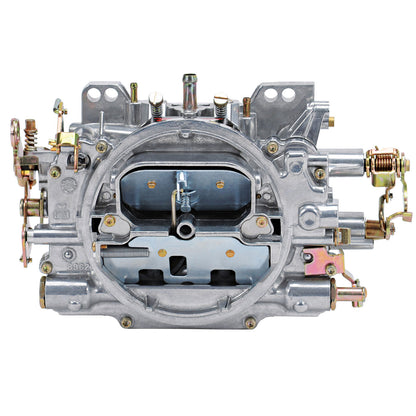

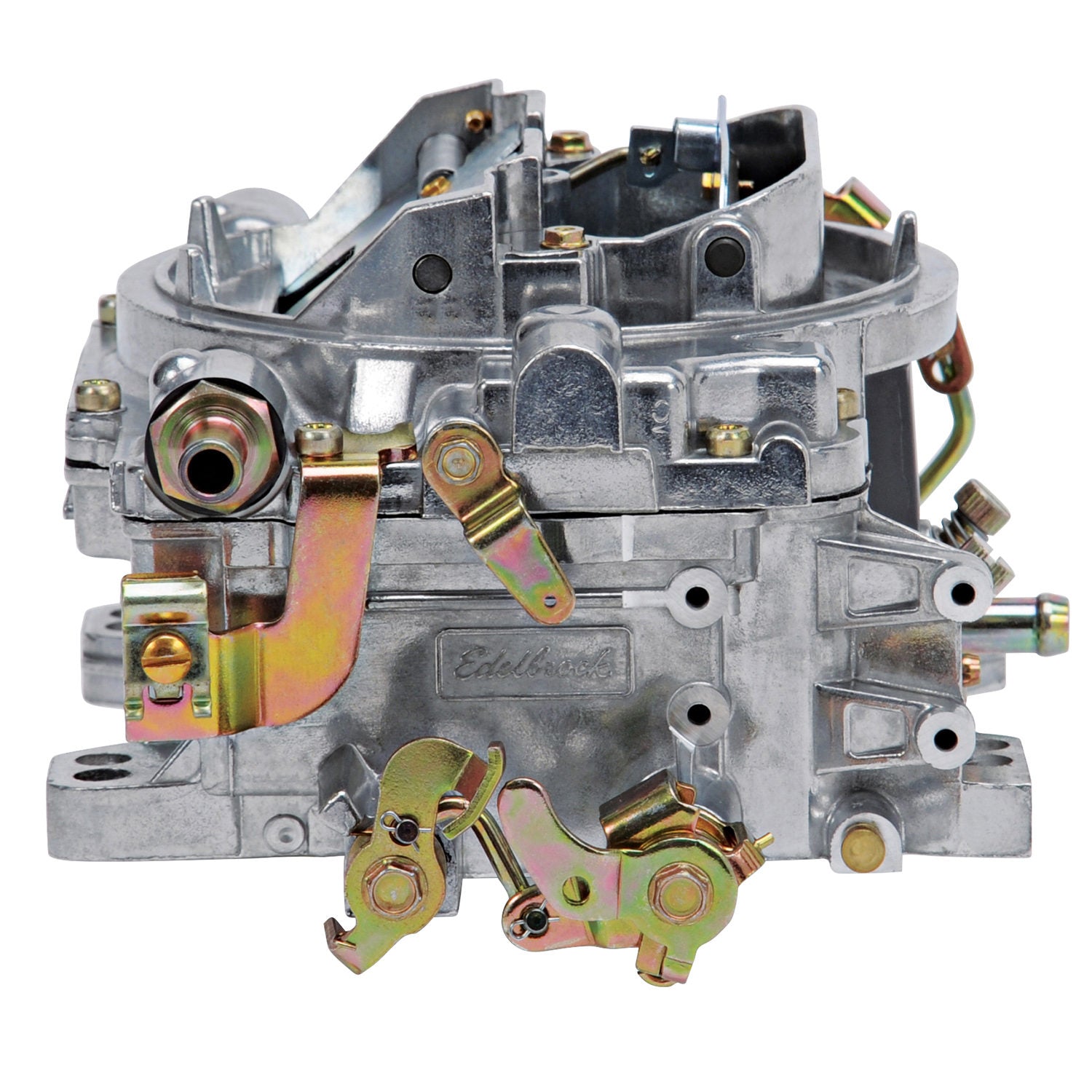

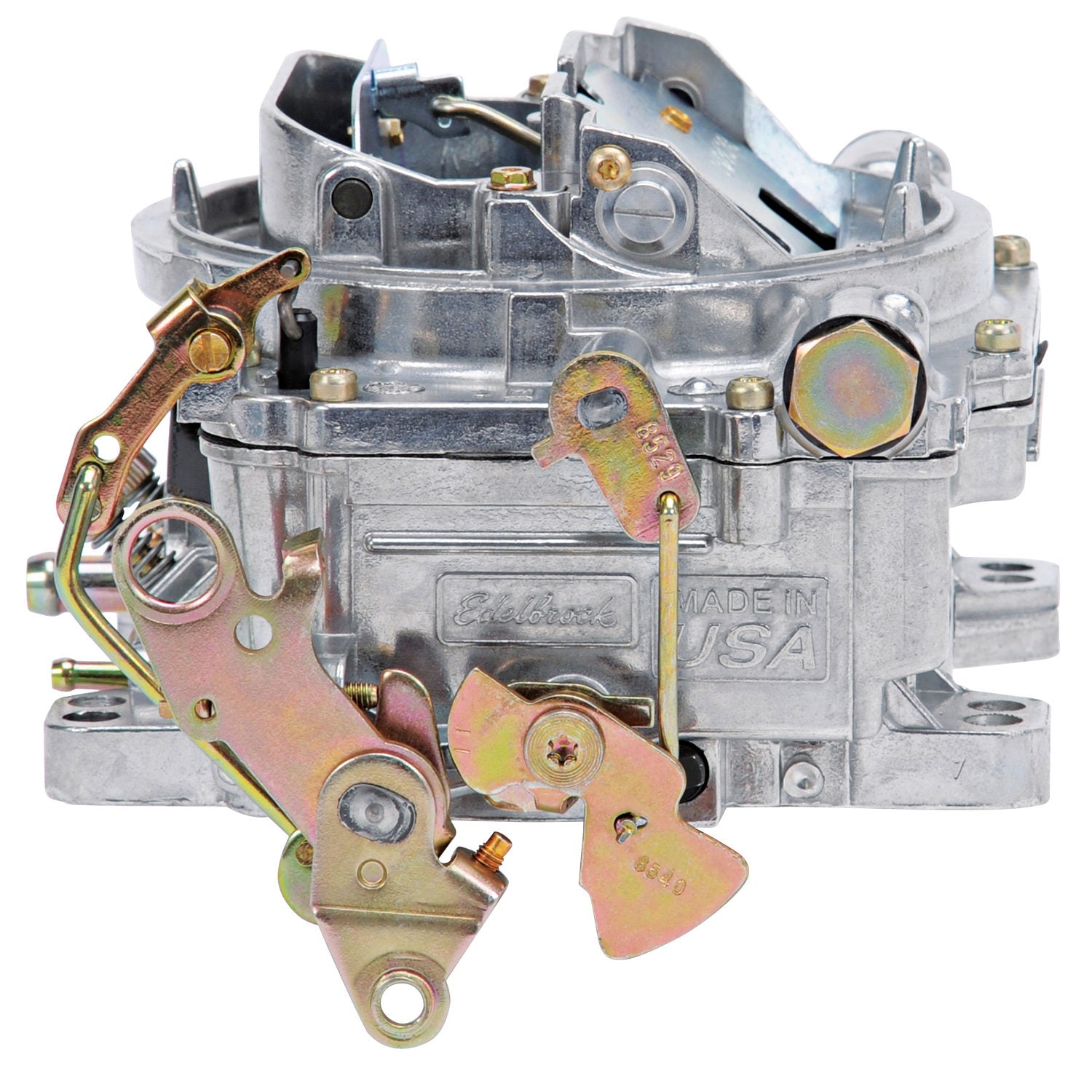

Carburetor - AVS2 - 4-Barrel - 500 CFM - Square Bore - Manual Choke - Mechanical Secondary - Single Inlet - Aluminum - Tumble Polished - Each
The Edelbrock #1902 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1902 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.
- The Next Generation in Edelbrock Carburetors.
- Annular Flow Primary Boosters
- Delivers Improved Fuel Atomization To Eliminate Flat Spots
- Improved Flow Metering Make It Ideal For Small/Big Block Engines
- For Single Or Dual Plane Intake Manifolds
- Includes Both Timed and Full Vacuum Ports For Ignition Advance
EGR Port: No
Finish: Satin
Barrel Quantity: 4 Barrel
Series: AVS2
Choke Type: Manual
Primary Jet Diameter: 0.095
Material: Aluminum
Gasket Or Seal Included: Yes
Body Height: 3.25
Spring Force: 5" Hg (Orange)
Bore Diameter: Primary Bore 1.44; Secondary Bore 1.6875
Main Venturi Diameter: 1.19
Recommended Use: For Single Carb Applications
Condition: New
Metering Rod Size: .070 x .052
RGL: WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Flange Shape: Square
Secondary Jet Diameter: 0.095
Maximum Flow Rating: 500
Booster Type: annular
