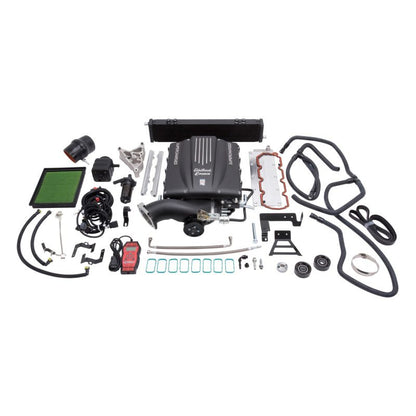

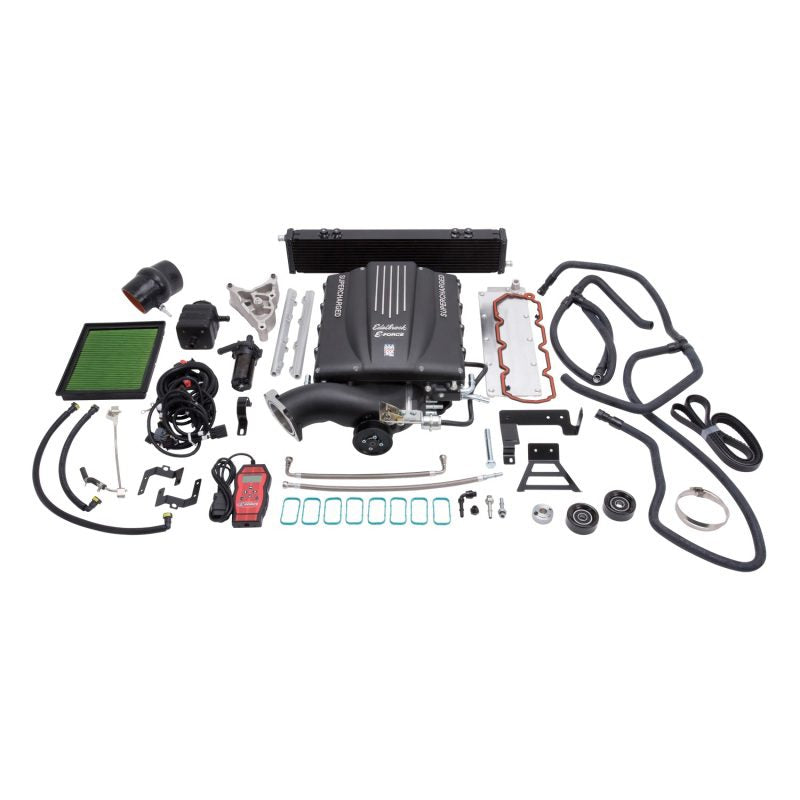

Edelbrock 1567 - Supercharger Stage 1 - Street Kit 2007-2013 GM Gmt920/930 SuvS 6 2L w/ Tuner

Edelbrock 1567 - Supercharger Stage 1 - Street Kit 2007-2013 GM Gmt920/930 SuvS 6 2L w/ Tuner

Edelbrock | 1567
SKU: EDEL-1567
Regular price $10,025.99 USD
Regular price $11,028.59 USD Sale price $10,025.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 1567 - Supercharger Stage 1 - Street Kit 2007-2013 GM Gmt920/930 SuvS 6 2L w/ Tuner

E-Force Supercharger for 2007-14 Tahoe/Suburban/Yukon/Escalade 6.2L

The Edelbrock supercharger Stage 1 Street System part #1567 for 2007-14 Escalade, Escalade ESV, Escalade EXT, Yukon & Yukon XL applications with a 6.2L Gen IV engine. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1567 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

  • Bolt-On Installation
  • Eaton+ TVS Rotor Assembly
  • Self-Contained Oil System
  • PCM Programming Module w/App. Spec. Tuning
  • Little To No Decrease In Fuel Economy
Mounting Hardware Included: Yes
Rotor Type: Eaton TVS 2300
Maximum Boost Pressure: 6
Pulley Belt Width: 6-Rib
Vehicle Model: Yukon Denali XL
Center Housing Cooling Type: Intercooler
Universal Or Specific Fit: Specific
Harmonic Balancer Diameter: 7.5
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Finish: Black Powder Coated
Hose Included: Yes
Gasket Or Seal Included: Yes
Outside Pulley Diameter: 3.75
9040: D-215-110
Mounting Bracket Included: Yes
Maximum Pressure Reading: 6
System Type: Stage 1 - Street System
Quantity: Kit
Housing Material: Cast Aluminum
Air Filter Included: Yes
Oil Capacity: 150
Internal Step Up: Yes
Calibration: Yes
