Edelbrock 1534 - Supercharger Stage 1 - Street Kit 2011-2014 Chrysler Lx and Lc 5 7L Hemi w/ Tuner

Edelbrock 1534 - Supercharger Stage 1 - Street Kit 2011-2014 Chrysler Lx and Lc 5 7L Hemi w/ Tuner

Edelbrock | 1534
SKU: EDEL-1534
Regular price $10,581.99 USD
Regular price $11,640.19 USD Sale price $10,581.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

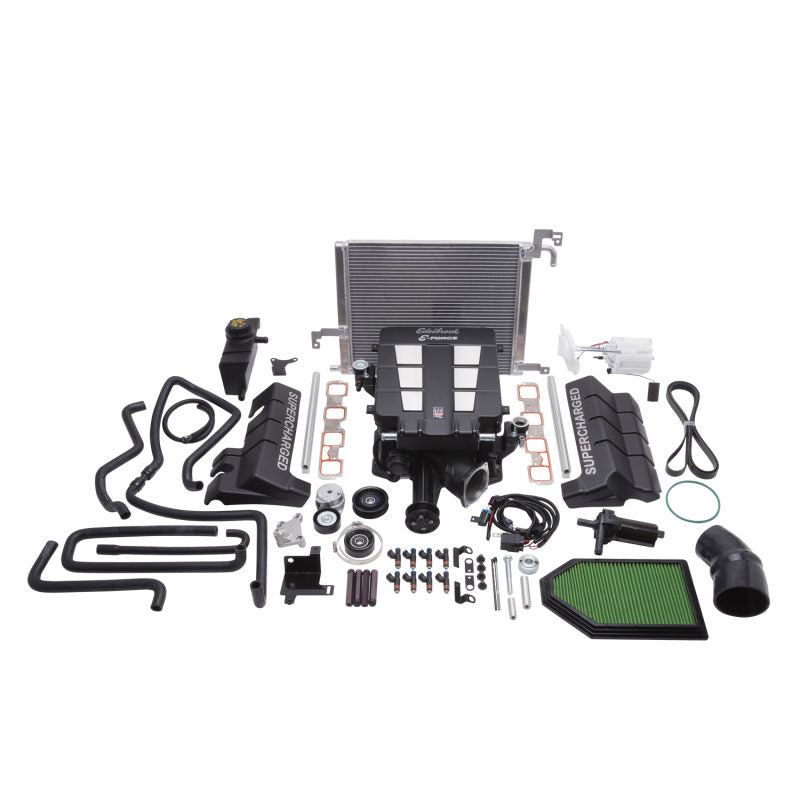

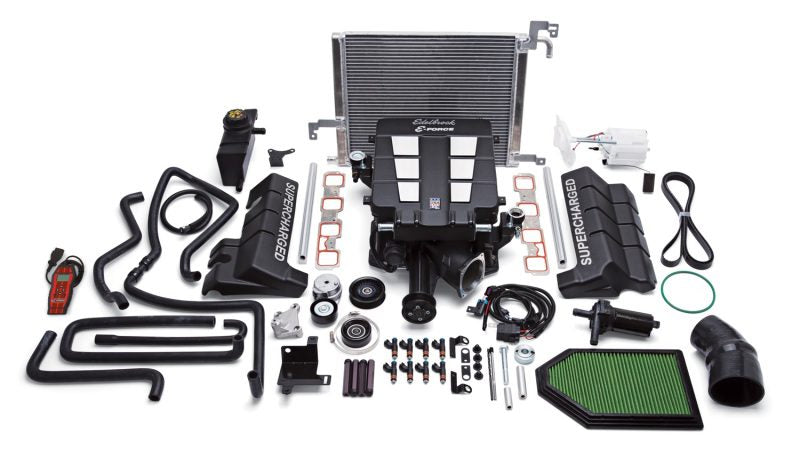

Edelbrock 1534 - Supercharger Stage 1 - Street Kit 2011-2014 Chrysler Lx and Lc 5 7L Hemi w/ Tuner

E-Force Supercharger for 2011-14 Chrysler/Dodge 5.7L

Edelbrock Supercharger System part #1534 V8 5.7 LX 2011-14 5.7L HEMI Chrysler 300, Dodge Charger or Challenger and made 471 RWHP and 475 RWTQ.

The Edelbrock Supercharger System part #1534 is designed for your 2011-14 5.7L HEMI Chrysler 300, Dodge Charger or Challenger and produces 471 RWHP and 475 RWTQ. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

  • Bolt-On Installation
  • Eaton+ TVS Rotor Assembly
  • Self-Contained Oil System
  • Little To No Decrease In Fuel Economy
Air Filter Included: Yes
Fuel Pump Included: Yes
Vehicle Model: 300
Rotor Type: Eaton TVS 2300
Calibration: Yes
Tensioner Included: Yes
Oil Capacity: 150
Harmonic Balancer Diameter: 6.3
Maximum Boost Pressure: 6
9040: D-215-89
Gasket Or Seal Included: Yes
Maximum Pressure Reading: 6
Hose Included: Yes
Center Housing Cooling Type: Intercooler
Maximum Torque: 475RW
Maximum Horsepower: 471RW
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Mounting Hardware Included: Yes
Finish: Black Powder Coated
Pulley Belt Width: 6-Rib
Quantity: Kit
Outside Pulley Diameter: 3.25
System Type: Stage 1 - Street System
Mounting Bracket Included: Yes
Housing Material: Cast Aluminum
Fuel Injector Type: 46
Internal Step Up: Yes
Universal Or Specific Fit: Specific
