Edelbrock 1126 - Cylinder Heads 1939-48 Model Ford Flatheads w/ Block Letter Logo (Pair)

Edelbrock 1126 - Cylinder Heads 1939-48 Model Ford Flatheads w/ Block Letter Logo (Pair)

Edelbrock | 1126
SKU: EDEL-1126
$1,182.99 USD
$1,301.29 USD $1,182.99 USD
Sale Sold out
Shipping calculated at checkout.

3 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 1126 - Cylinder Heads 1939-48 Model Ford Flatheads w/ Block Letter Logo (Pair)

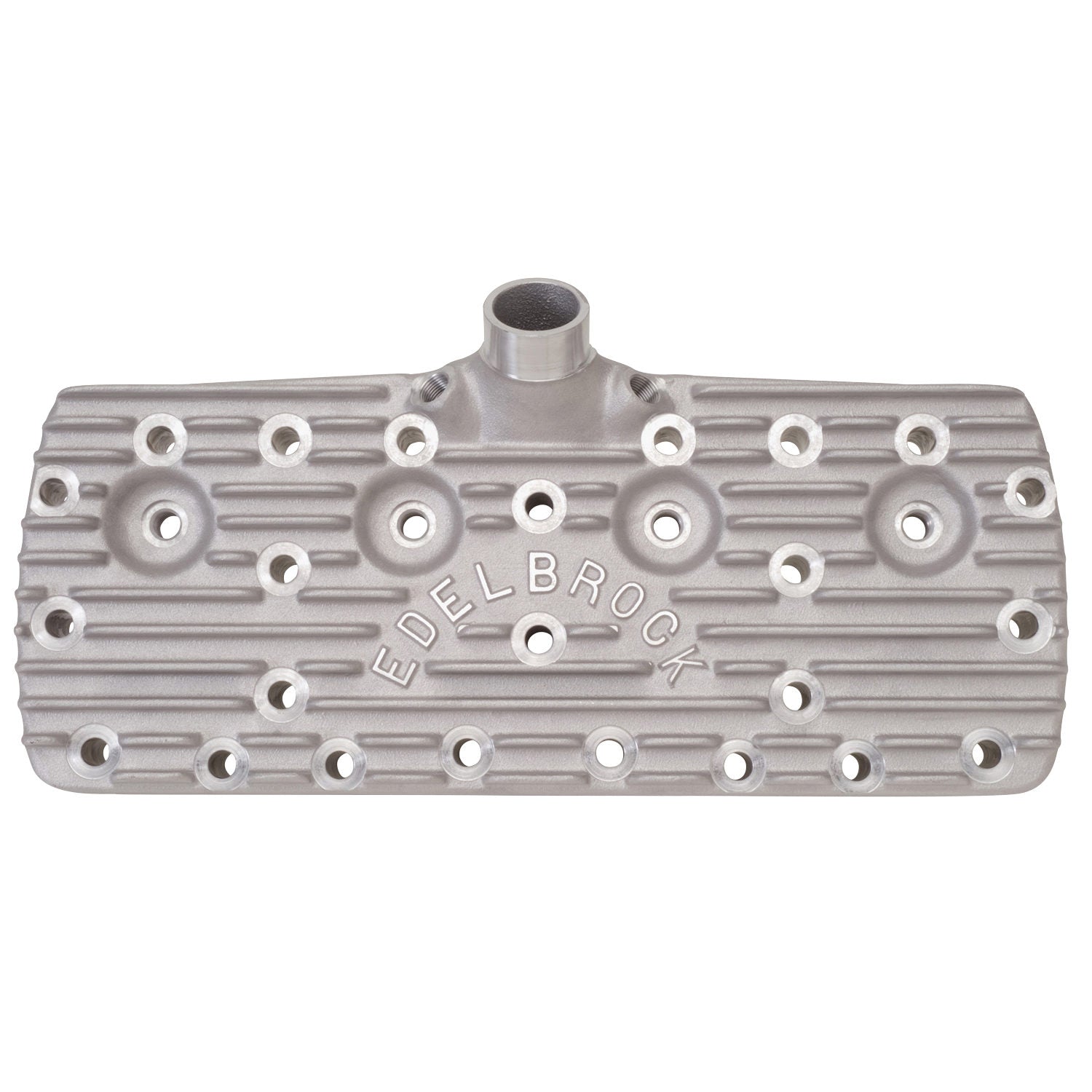

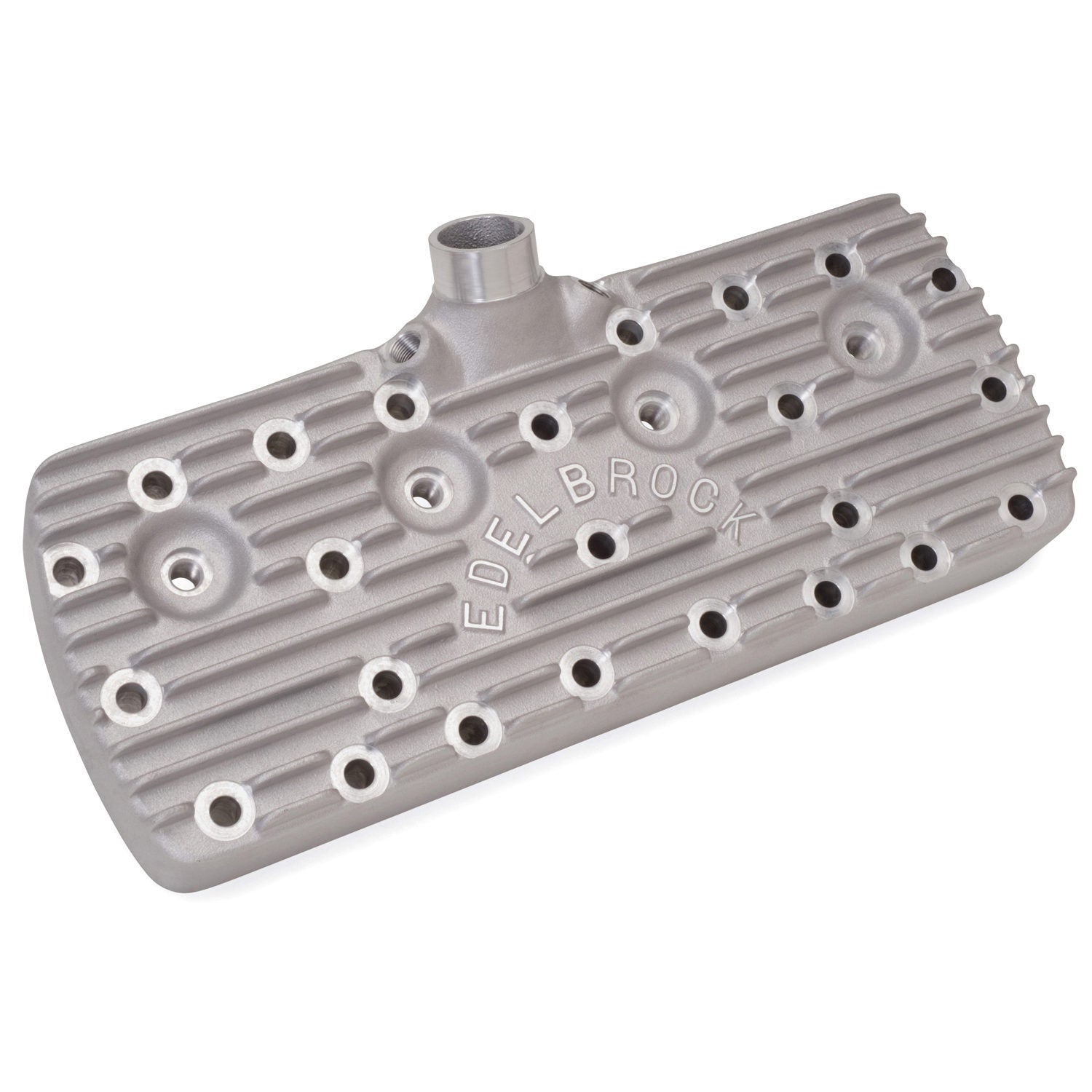

Flathead Ford Cylinder Head With Block Letter Logo

The Edelbrock #1126 Ford Flatheads feature a block logo design for Fords and Mercurys, and are cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1126 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.

  • Casted At The Edelbrock Foundry In The USA
  • T-6 Tempered A356 Aluminum
  • Large Water Capacity
  • Excellent Breathing Characteristics
  • High Lift Heads Have Increased Valve Clearance
  • Increased Flow Capacity
Retainer Included: No
CNC Ported: No
Series: Flathead
Finish: Satin
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Valve Chamber Depth Machined: 0.415
Family: Flathead
Deck Thickness: 0.375
EGR Port: No
Quantity: Set of 2
Construction Type: Flathead
Valve Springs Included: No
Valve Spring Retainers Included: No
Rocker Arm Studs/Bolts Included: No
Valve Seals Included: No
Valve Locks Included: No
Valve Cover Gasket Included: No
Rocker Arms Included: No
Cylinder Head Gasket Included: No
Mounting Hardware Included: No
Material: Aluminum
Head Casting Number: 1126F
Guide Plates Included: No
Grade Type: Performance
Combustion Chamber Volume: 65
Assembled: Yes
Valves Included: No
