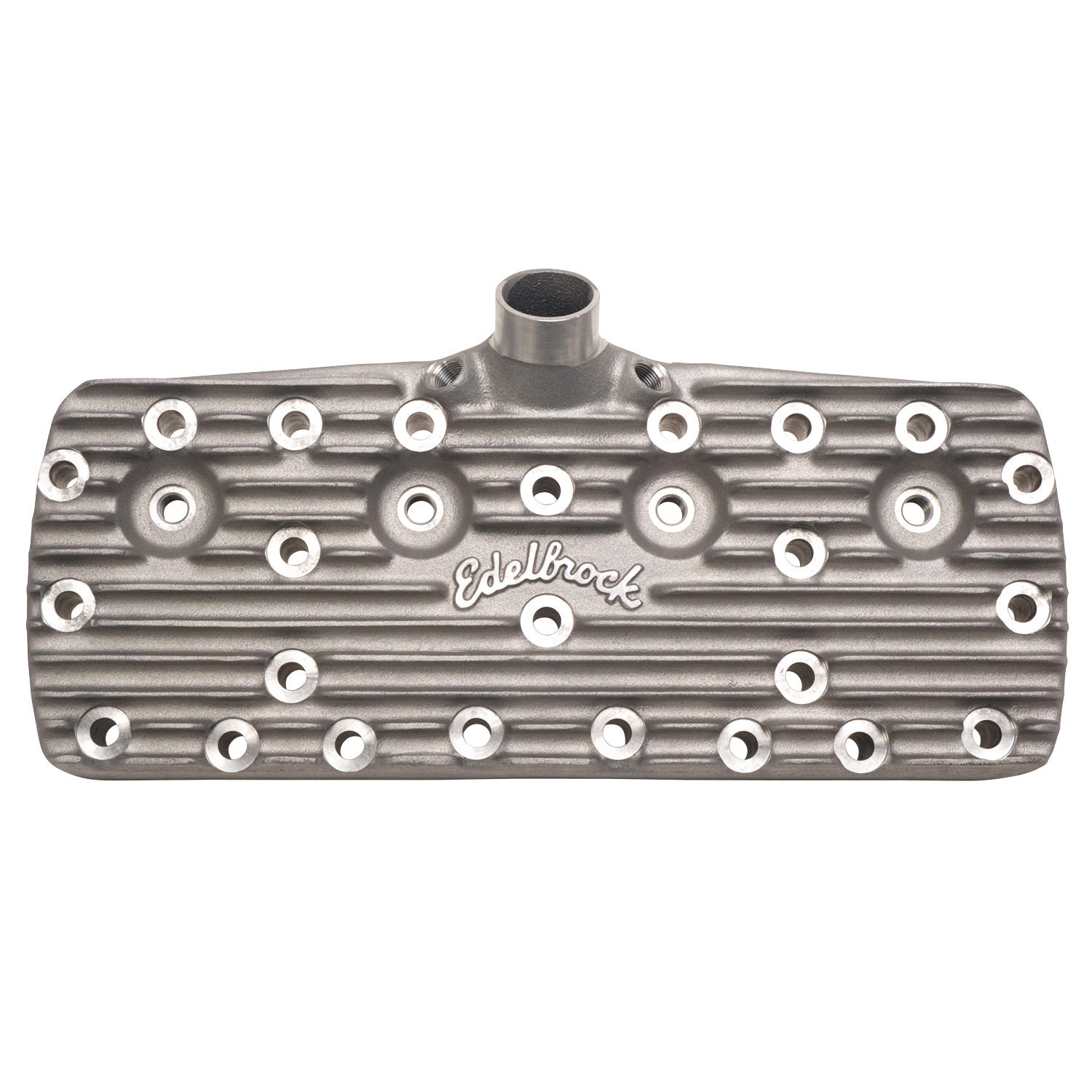

  • Product Image 1

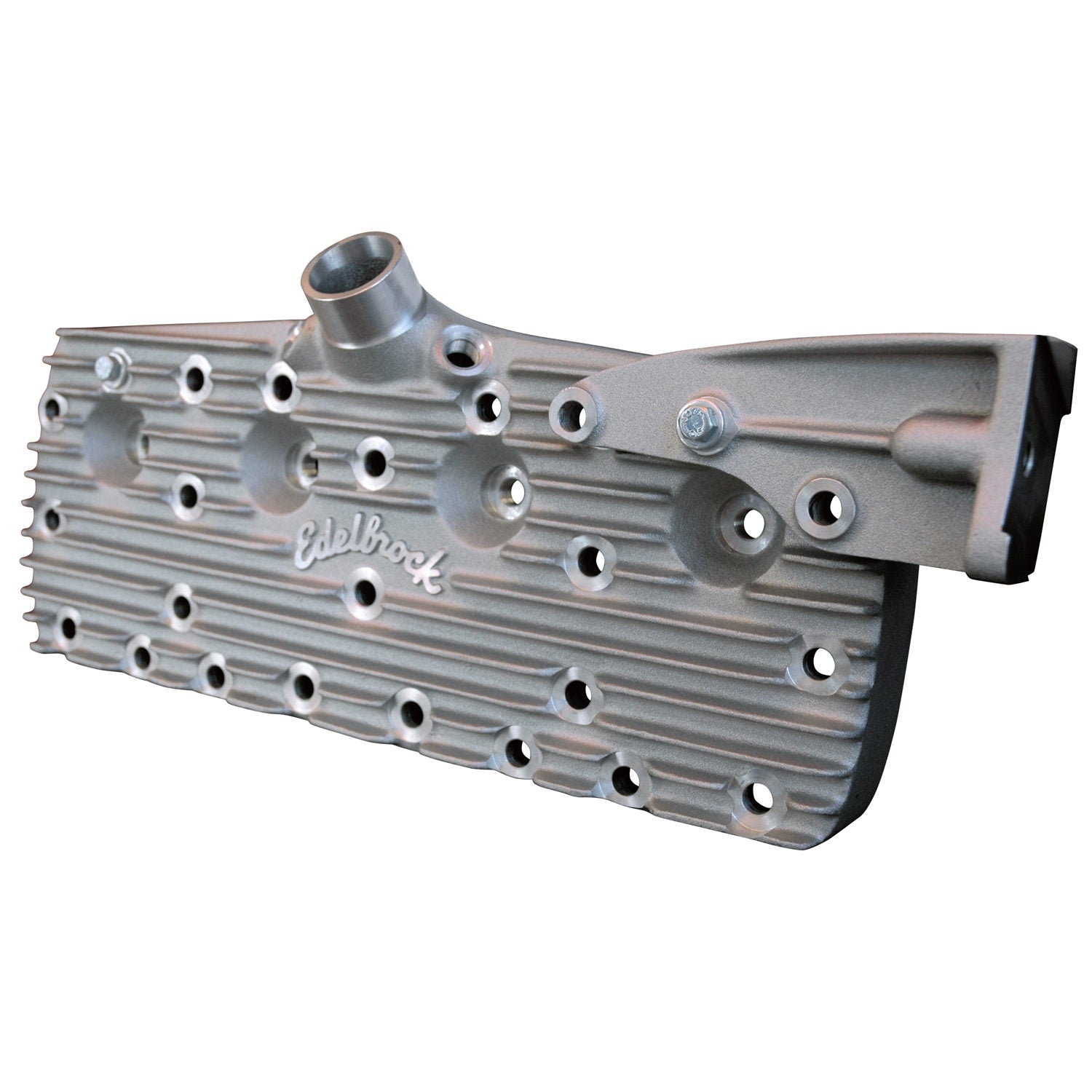

  • Product Image 2

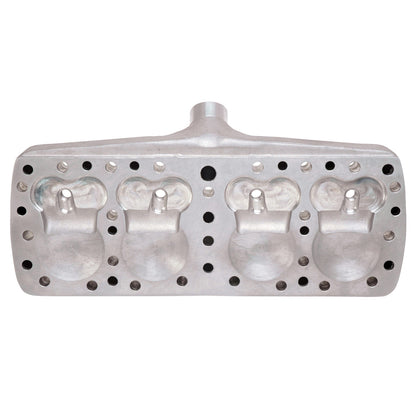

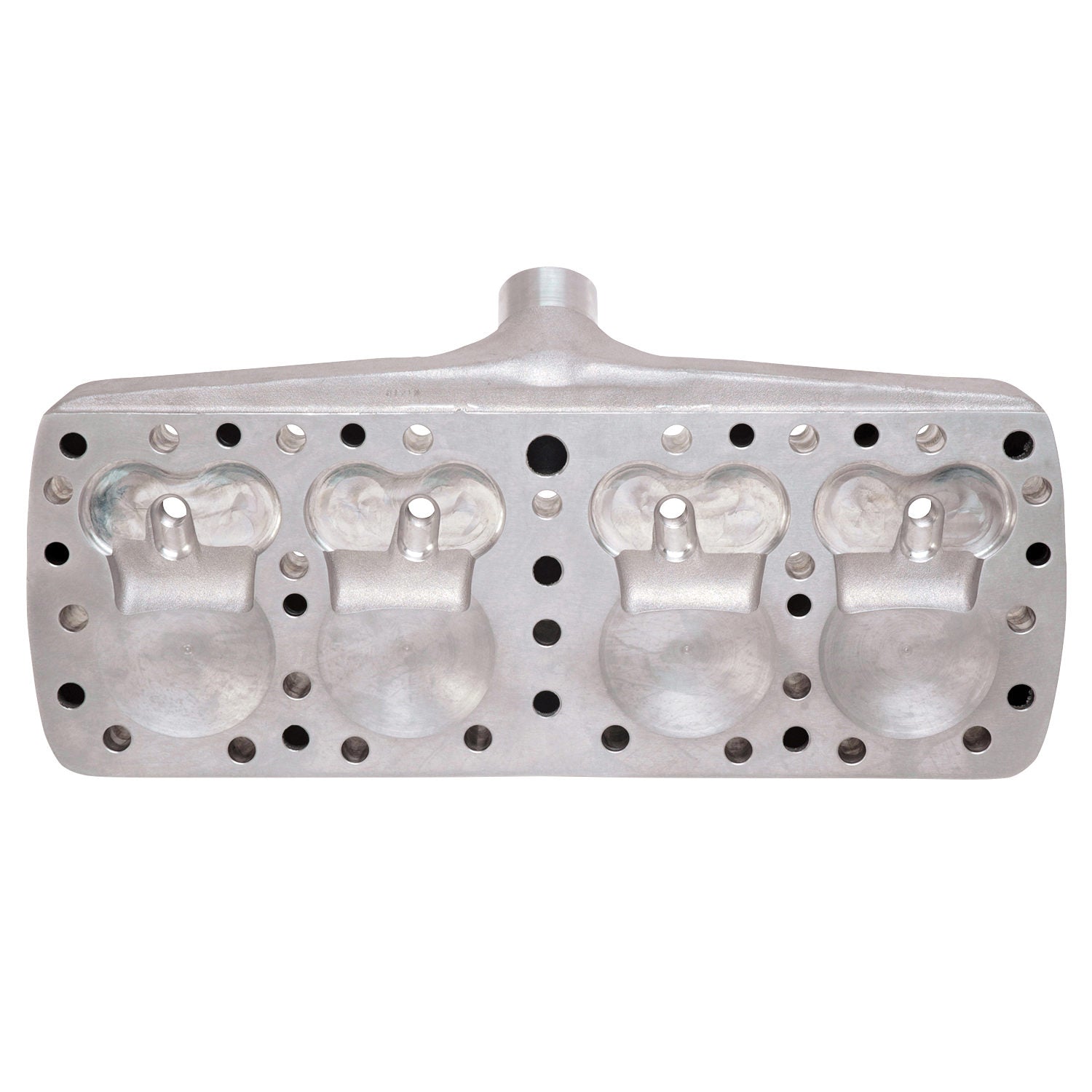

  • Product Image 3
1 3

Edelbrock 1125 - Cylinder Heads 38-48 Ford/Merc (Pair)

Edelbrock 1125 - Cylinder Heads 38-48 Ford/Merc (Pair)

Edelbrock | 1125
SKU: EDEL-1125
$1,182.99 USD
$1,301.29 USD $1,182.99 USD
Sale Sold out
Shipping calculated at checkout.

39 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Edelbrock 1125 - Cylinder Heads 38-48 Ford/Merc (Pair)

Ford Flathead 1938-48 Cylinder Head

The Edelbrock #1125 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1125 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.

  • Casted At The Edelbrock Foundry In The USA
  • T-6 Tempered A356 Aluminum
  • Large Water Capacity
  • Excellent Breathing Characteristics
  • High Lift Heads Have Increased Valve Clearance
  • Increased Flow Capacity
Family: Flathead
Retainer Included: No
EGR Port: No
Valve Springs Included: No
Valve Spring Retainers Included: No
Rocker Arm Studs/Bolts Included: No
Valve Seals Included: No
Valve Locks Included: No
Valve Cover Gasket Included: No
Rocker Arms Included: No
Cylinder Head Gasket Included: No
Mounting Hardware Included: No
Material: Aluminum
Head Casting Number: 1125F
Guide Plates Included: No
Grade Type: Performance
Combustion Chamber Volume: 65
Assembled: Yes
Valves Included: No
Quantity: Set of 2
Construction Type: Flathead
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Flathead
Finish: Satin
Deck Thickness: 0.375
CNC Ported: No
Valve Chamber Depth Machined: 0.415
