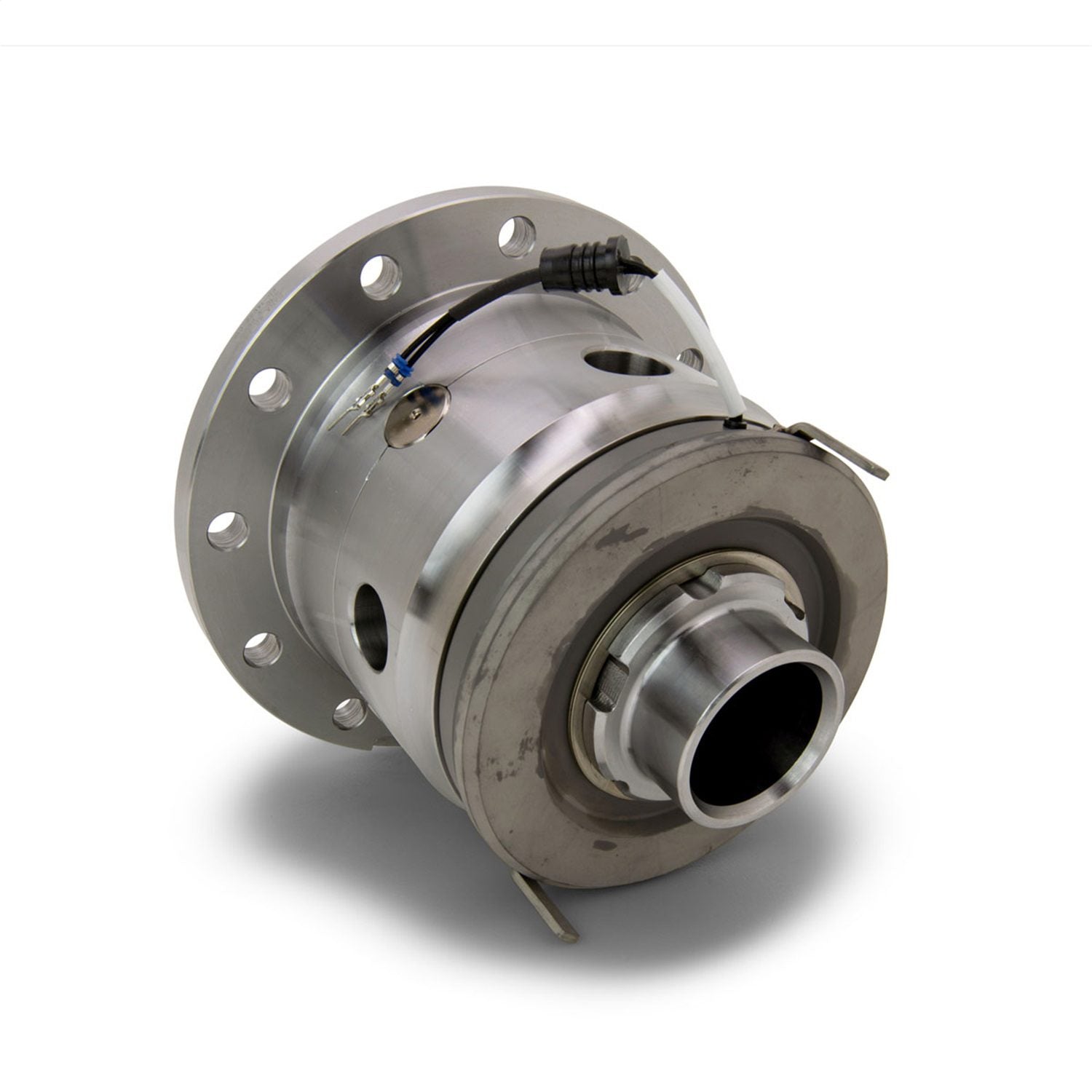

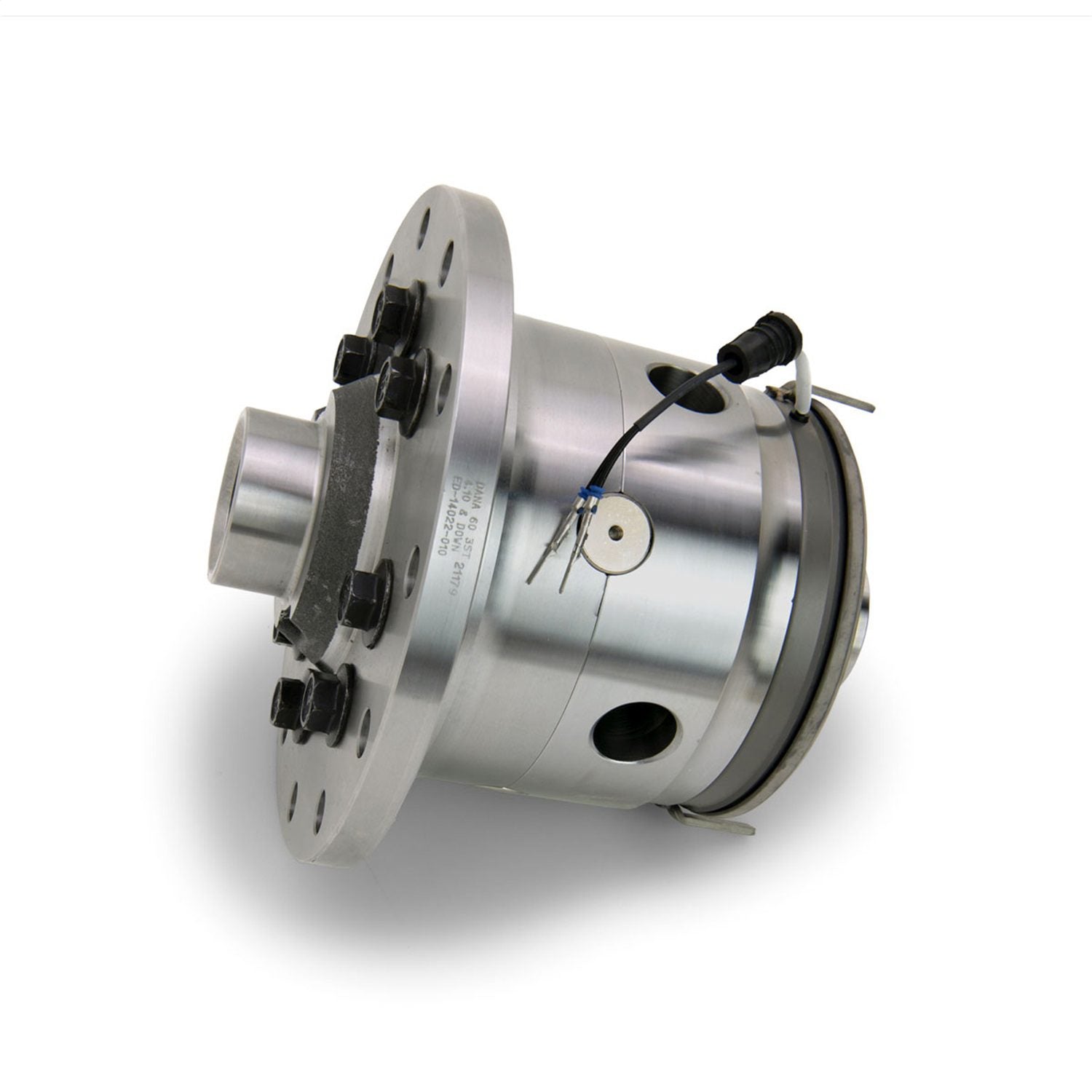

Eaton 14022-010 - ELocker4 Differential Dana 60 Performance 35 Spline 4.10 & Down Ratio

Eaton 14022-010 - ELocker4 Differential Dana 60 Performance 35 Spline 4.10 & Down Ratio

Differential Carrier - Eaton ELocker - 35 Spline - 4.10 Ratio and Down - Steel - Dana 60 - Each

Eaton ELocker® Differential; Dana 60 Performance; 35 Spline; 1.50 in. Axle Shaft Diameter; 4.10 And Down Ring Gear Pinion Ratio; 9.75 in. Ring Gear Diameter;

The Eaton ELocker is an electronic, selectable differential designed for drivers that need traction on-demand. At the flip of a dash switch, drivers can go from open to 100-percent locked. A second flip of the switch deactivates the unit to resume normal driving. The direct acting mechanism activates in .14 second to provide 100% instant axle lock, and remains locked in both forward and reverse.

• Electromagnetic Locking Differential
• Driver controlled push-button operation
• Most Reliable On-Demand Differential
• 4-Pinion Net-Forged Gear Design For Max Strength And Durability
• Eaton NGR locking rocker switch and wiring harness included
• Direct Acting Operation Remains Locked Forward And Reverse
