Earl's Performance - HEMI0003ERL

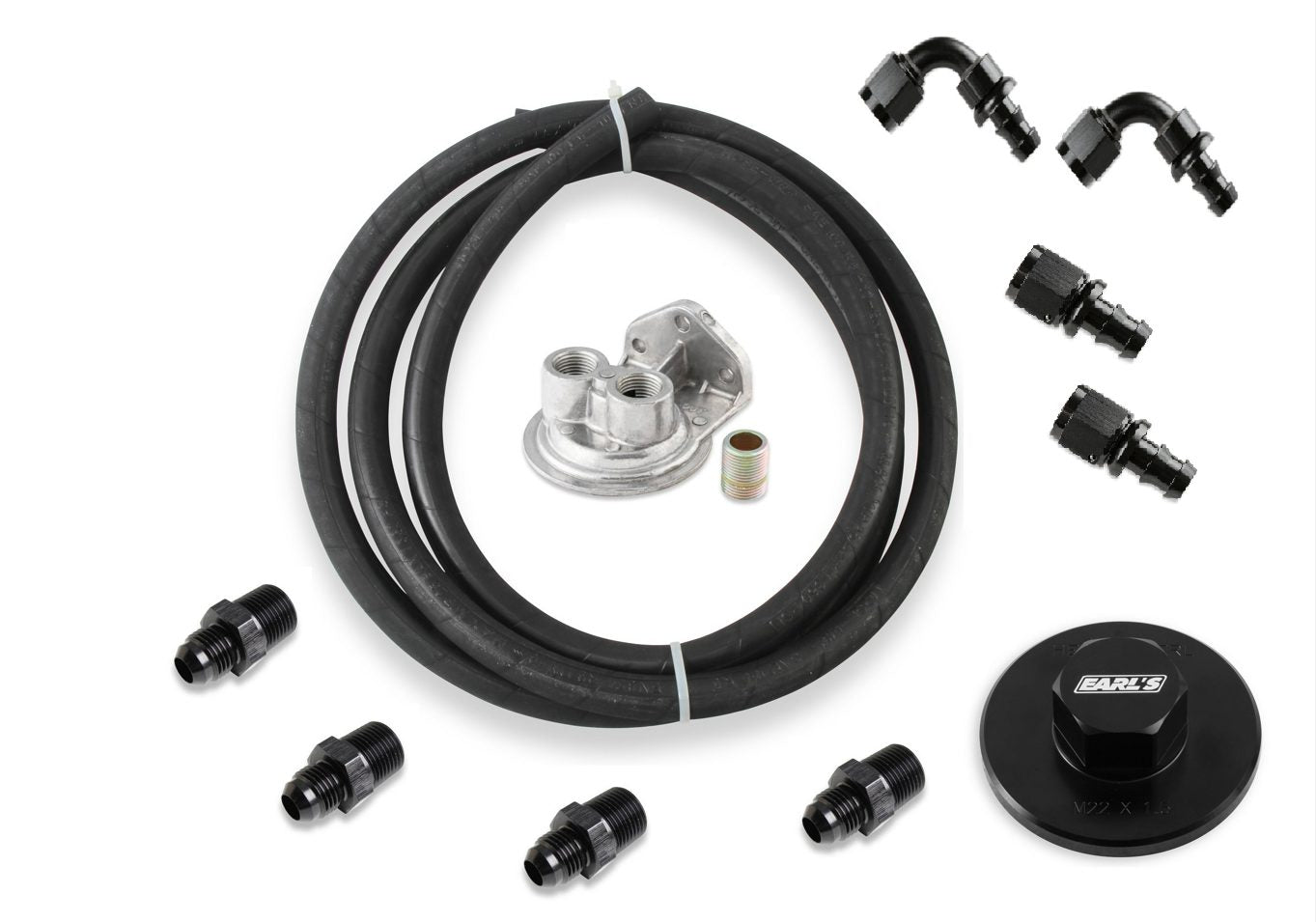

Oil Filter Relocation Kit; For Use Mopar Gen III Hemi; Fits M22 x 1.5 Filters; 3.000 in. Dia.; 1.000 in. Height; 6061 Aluminum;

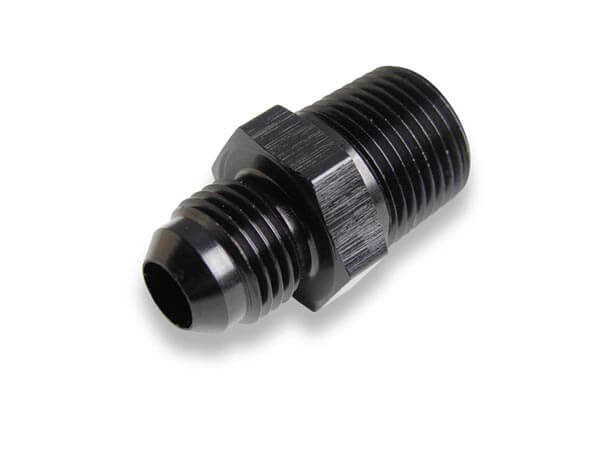

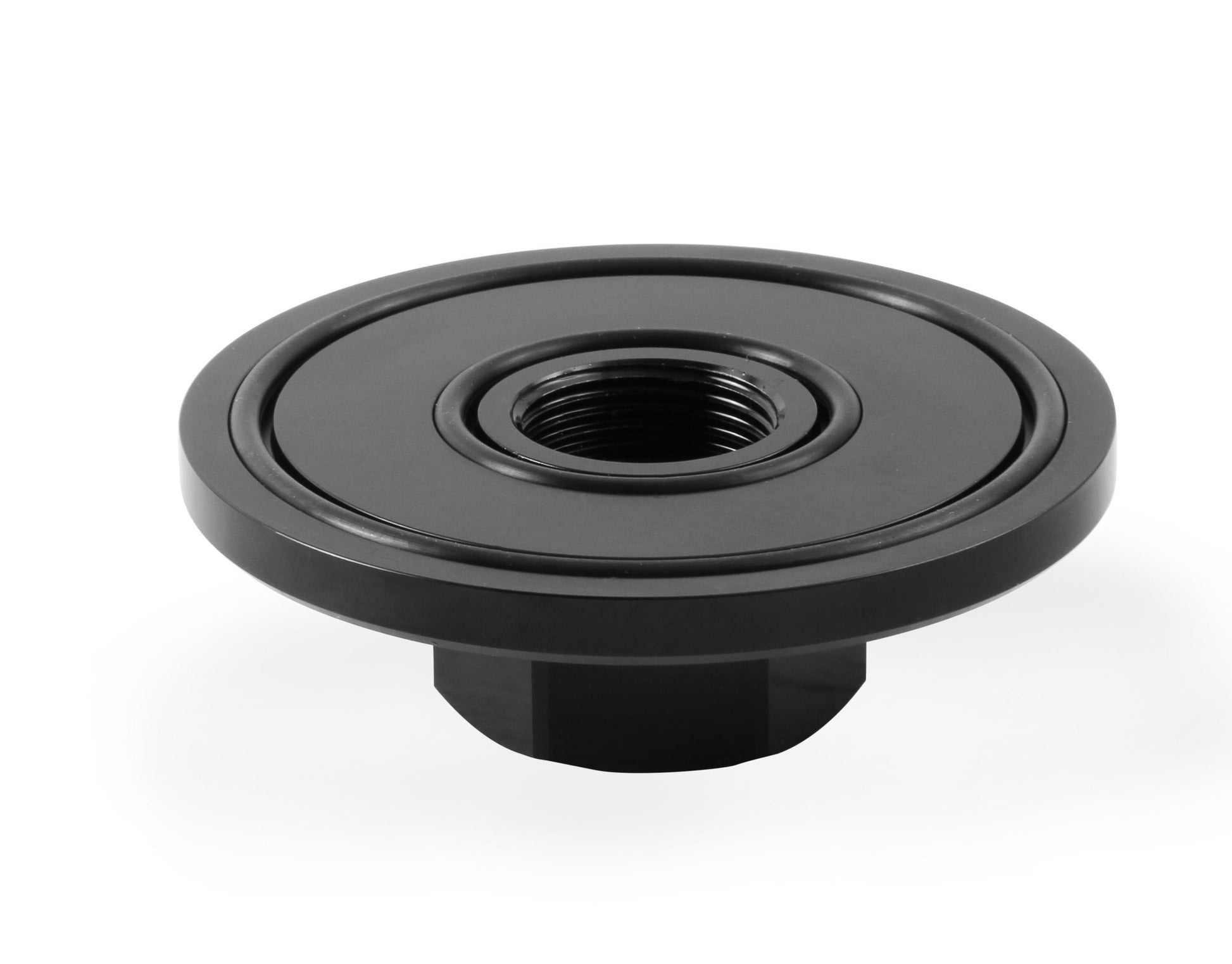

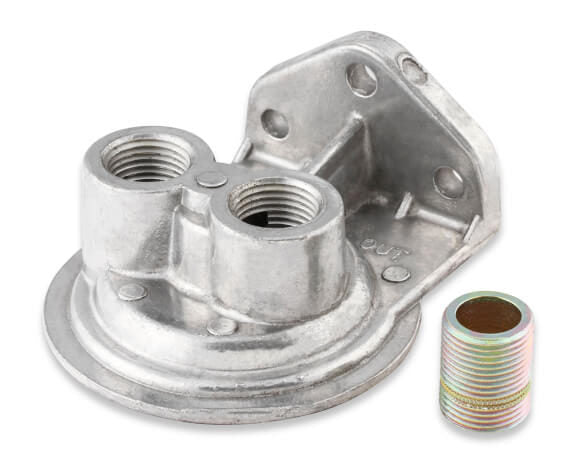

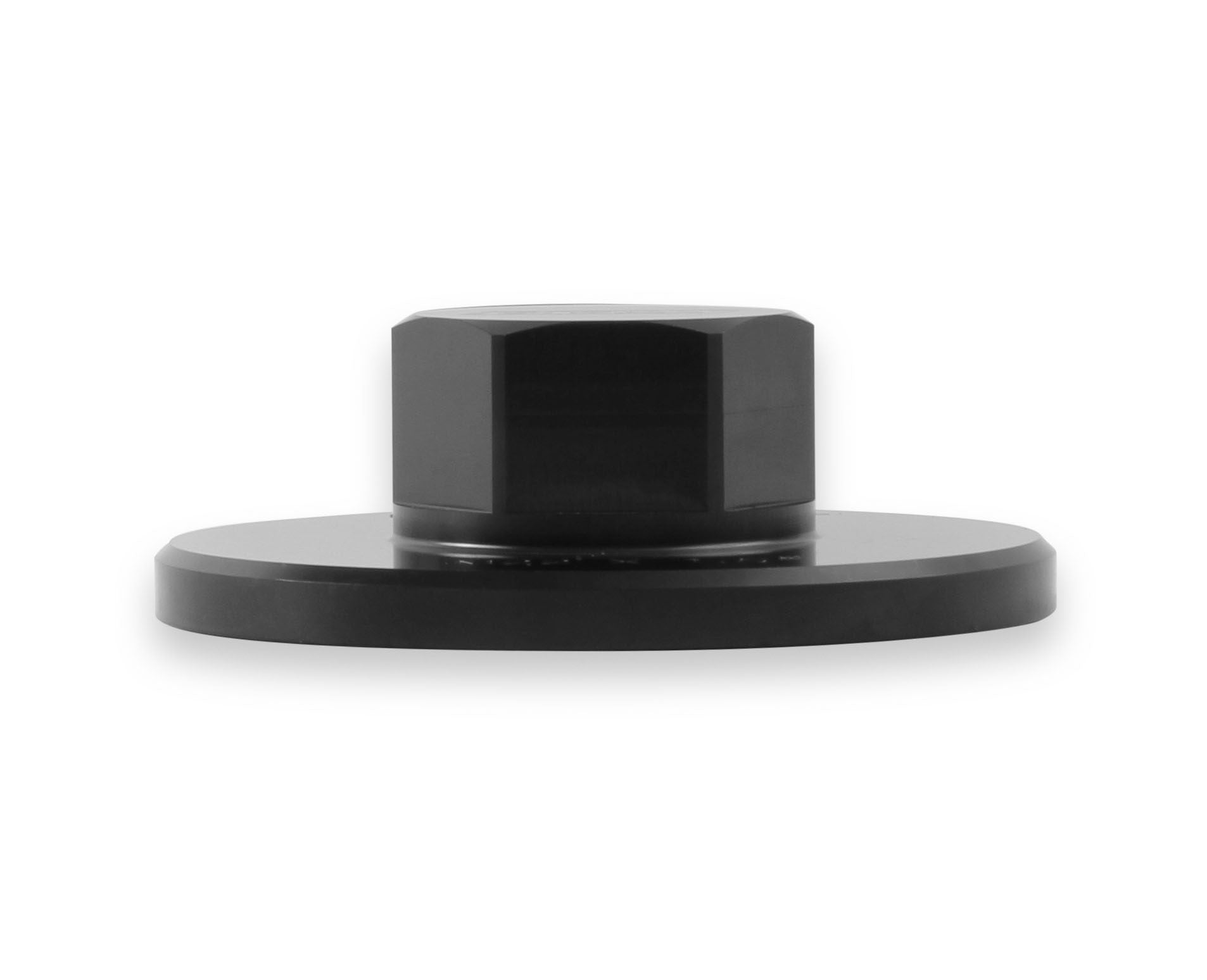

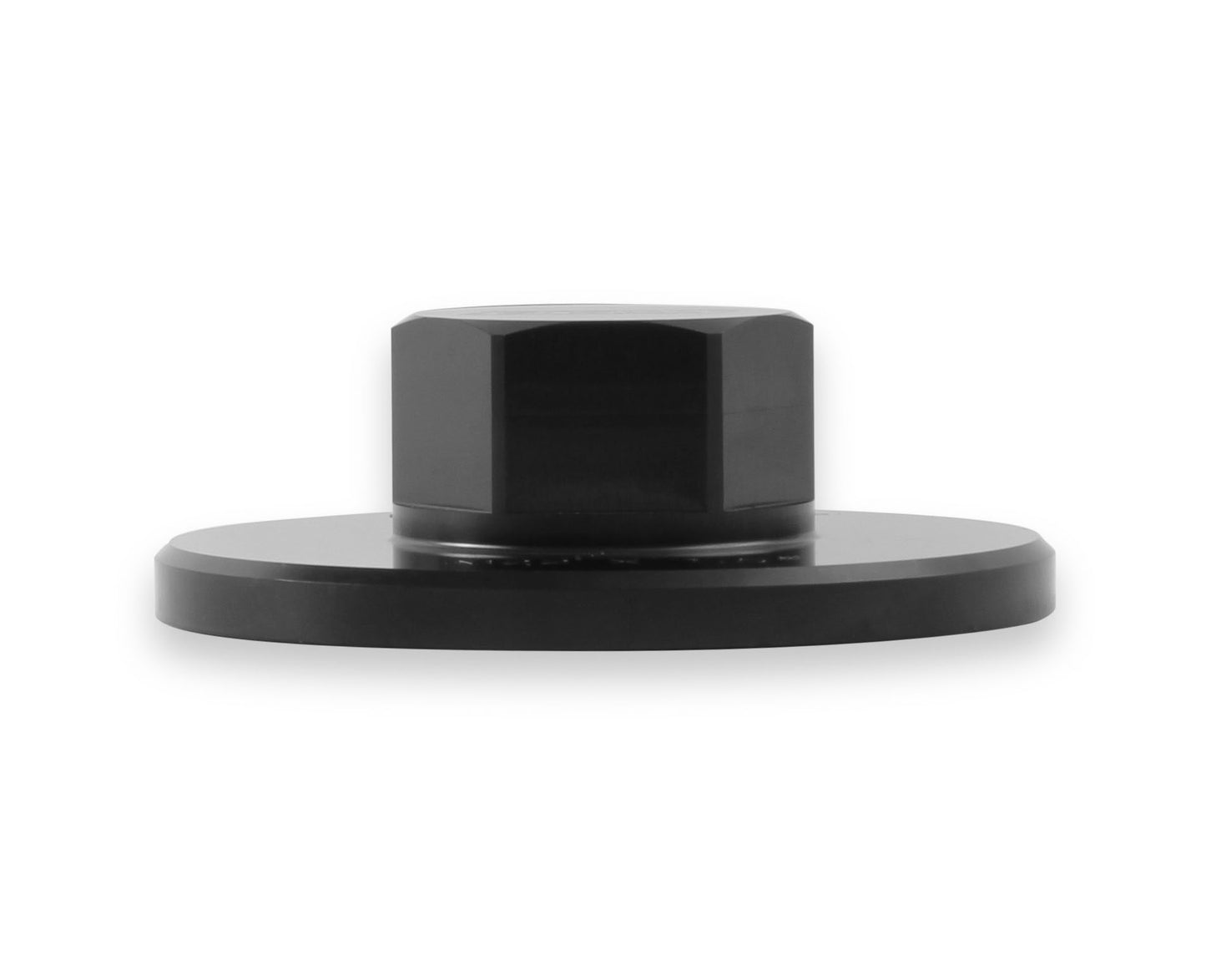

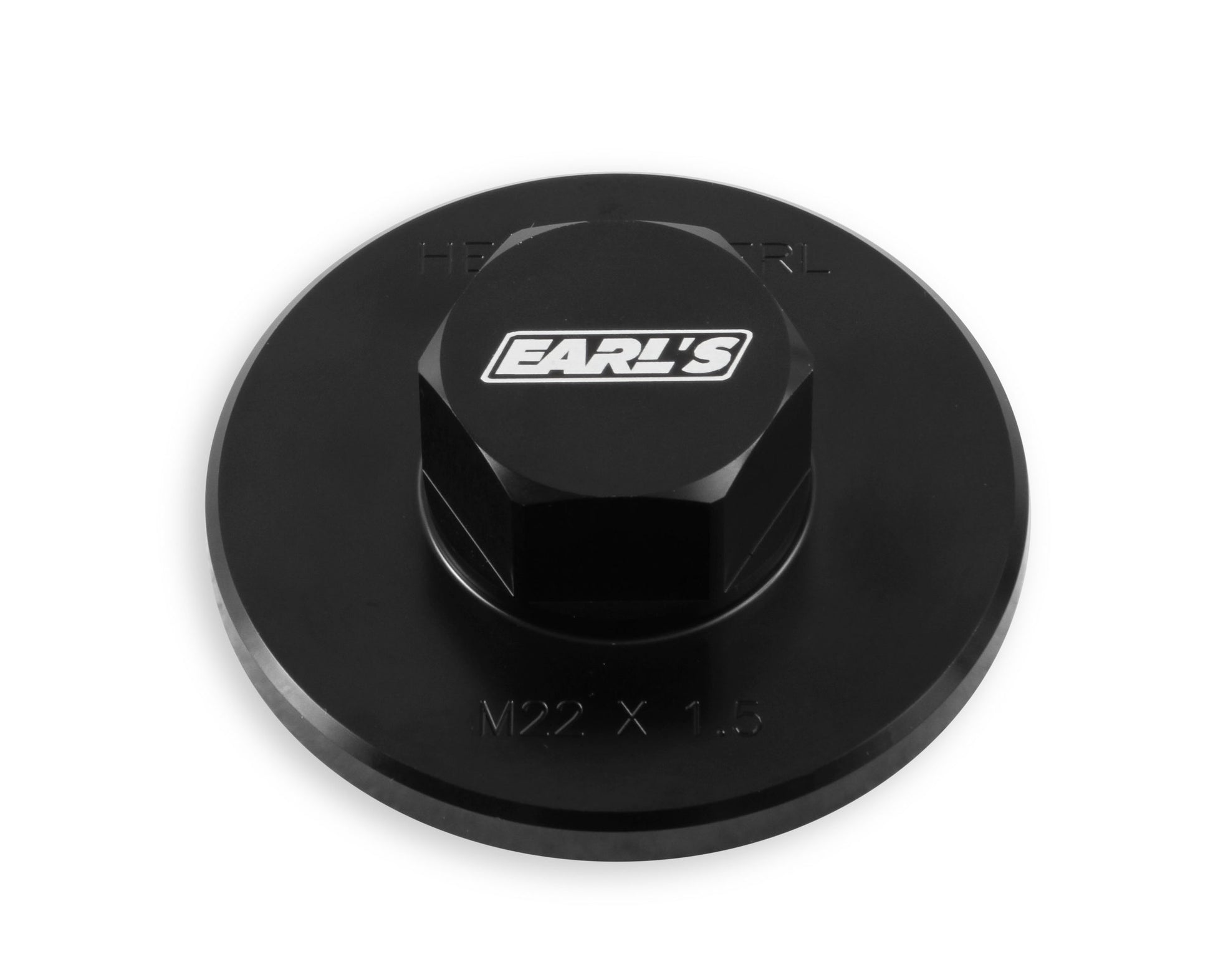

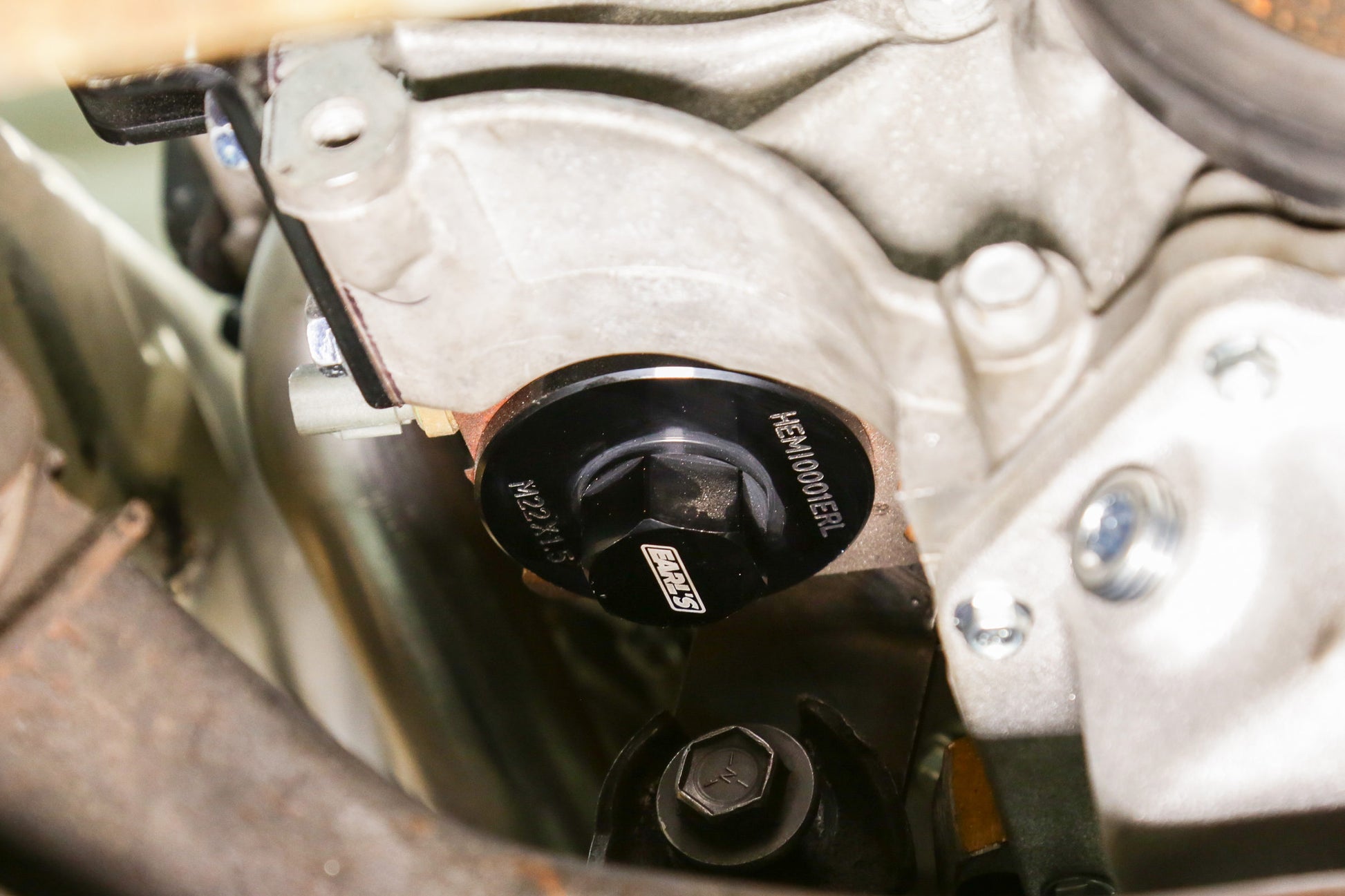

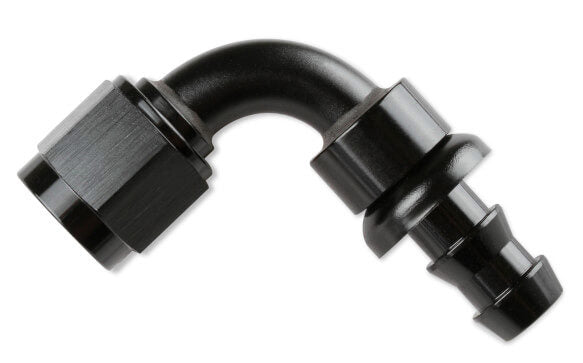

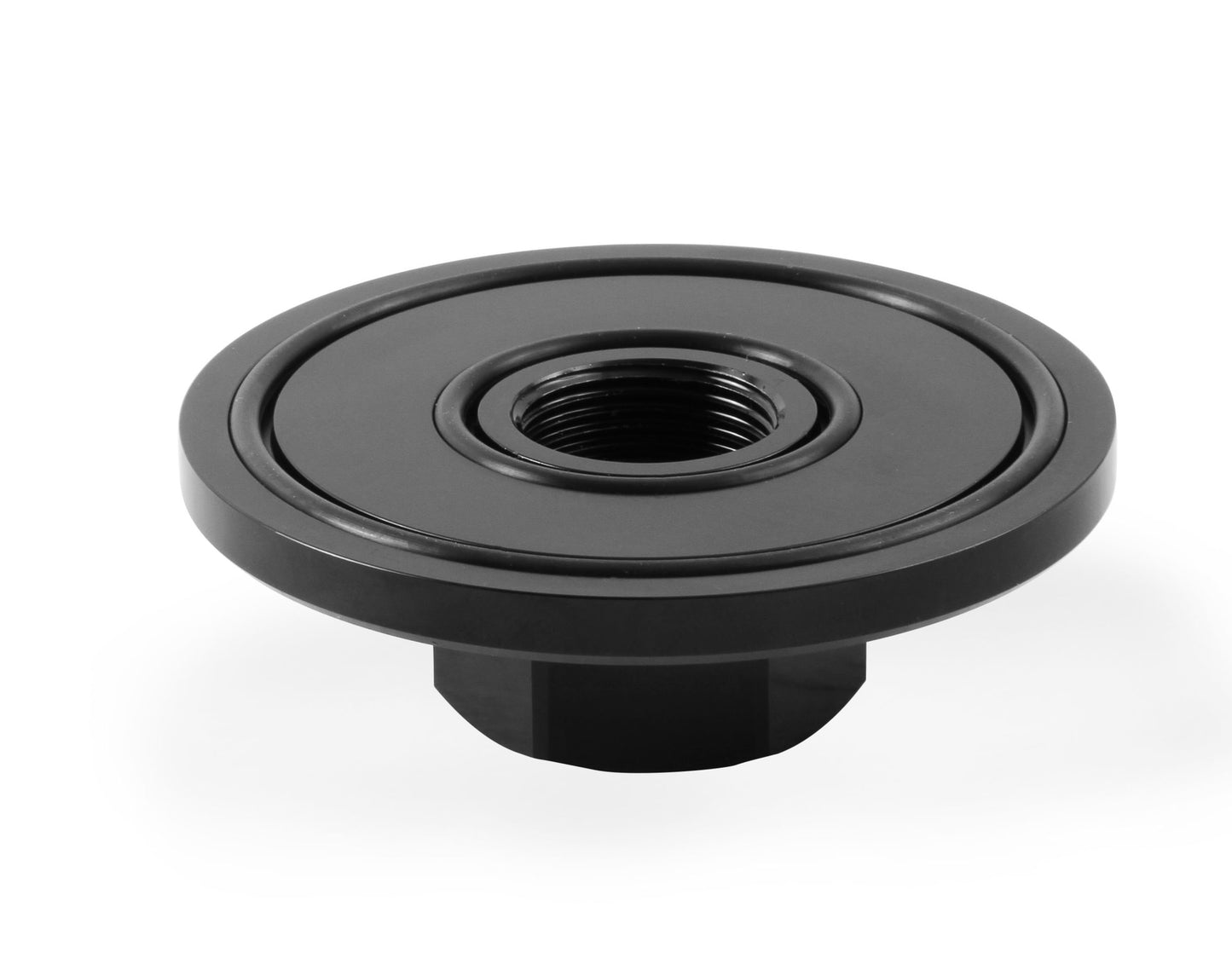

The factory oil filter location on the Gen III Hemi may interfere with the crossmember or suspension in some engine swaps. These block-off plates & relocation kits allow the oil filter to be moved to a remote location. The block-off adapter screws on instead of the oil filter and the two 3/8 in. NPT ports on the block near the filter allow installation of the AN hoses for plumbing the remote filter. Aluminum construction with black anodized finish.
- Billet Aluminum
- Black Anodized
- Ideal For Engine Swaps
Brand: Earl's
Category: Engine
Center Stud Size: 22MM x 1.5
Diameter: 3 in.
Emission Code: 5
Finish: Anodized Black
Height: 1.000"

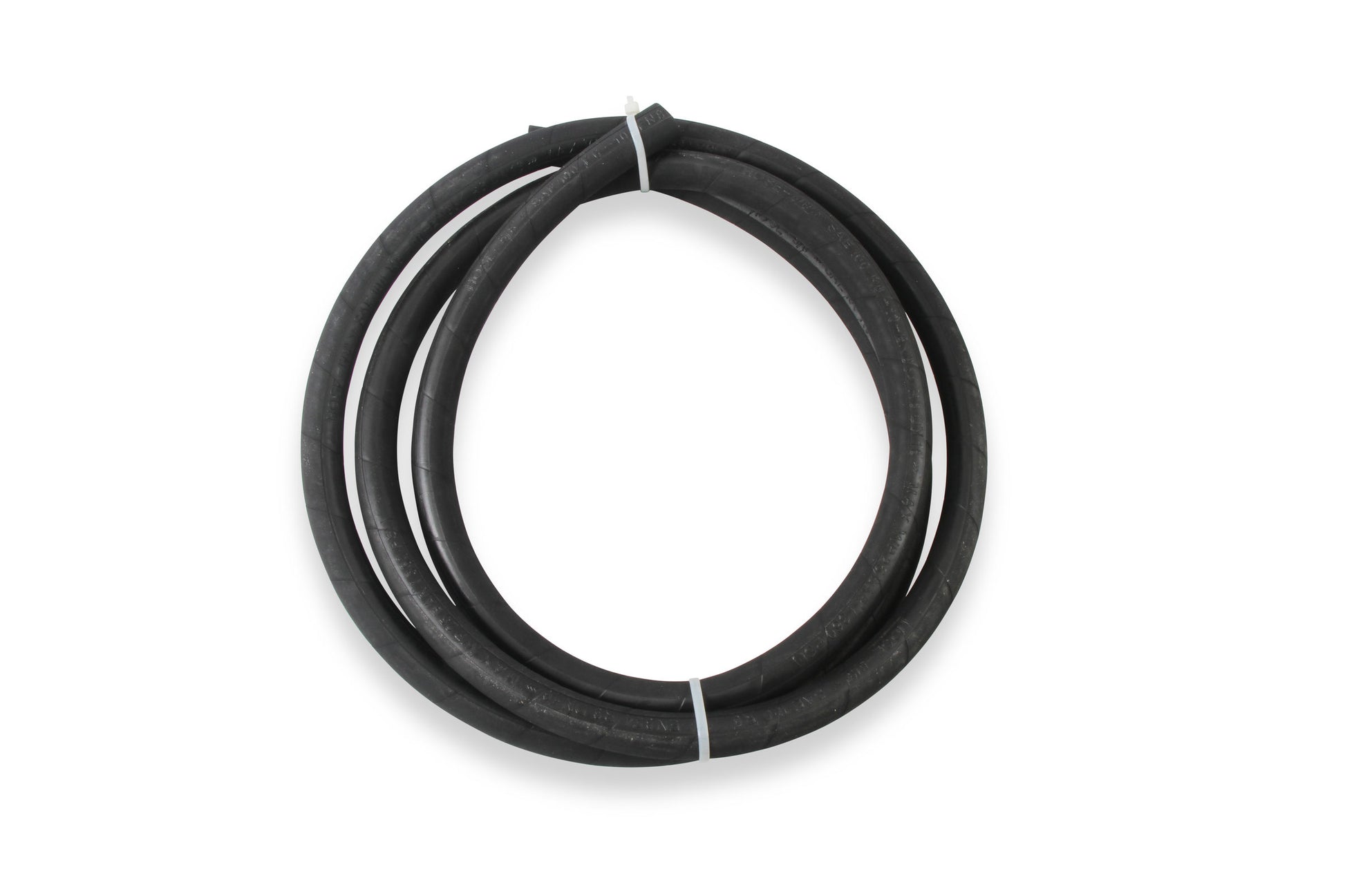

Hose Length: 10 Feet
Hose Size: 10 AN
Inner O-Ring Diameter: 1.380"
Material: 6061 Aluminum
O-Ring Cross Section: .139 Inches
Outer O-Ring Diameter: 2.693"
Outside Diameter: 3.000"
part type: Engine Oil Filter Remote Mounting Kit
Product Type: Oil Filter Relocation Kit
Sub Category: Filters
Wrench Size: 1-1/4
