Earl's Performance - 691012ERL

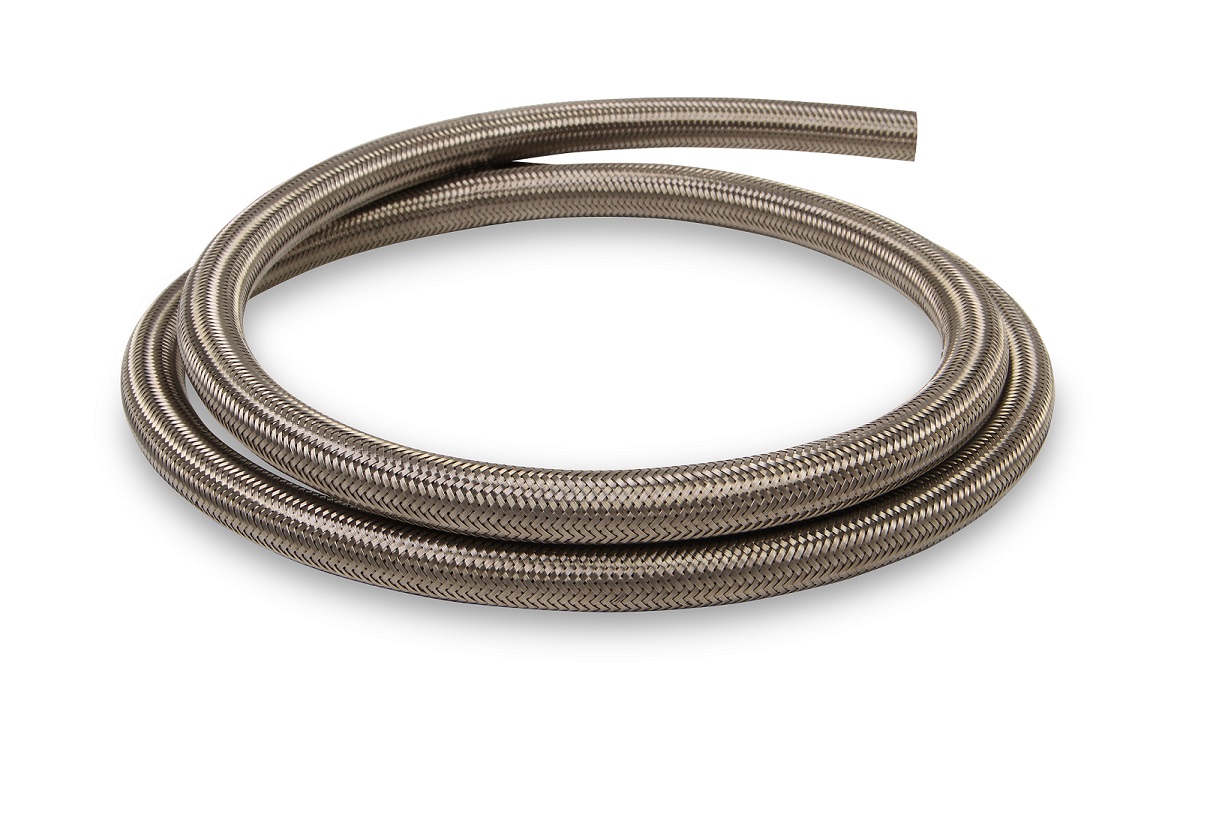

Earl's UltraPro Series Hose - Size 12 - 10 Ft
UltraPro Stainless Steel Braid Hose; Hose Size: -12AN; Hose I.D.: 0.636 in.; Hose O.D.: 0.886 in.; Max PSI: 500; Max Vacuum: 28 in. HG; Bulk; Length: 10 ft.;
Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro!
- PTFE Inner Liner
- Double-Helix Ribbed For Flexibility
- Liner Reinforced w/Outside Glass-Fiber Wrap
- 500 PSI
- Rugged Design
Brand: Earl's
Carbon Lined: Yes
Category: Air and Fuel Delivery
Compatible Hose Ends: UltraPro - Twist On
Compatible Hose Ends: UltraPro - Crimp On
Crimping Die: 22MM - D10022BERL
Emission Code: 5
Final Crimp O.D. Range: .982"-.986"
Fluid Type: Automatic Transmission Fluid
Fluid Type: Oil
Fluid Type: Coolant
Fluid Type: Methanol/Alcohol
Fluid Type: Diesel
Fluid Type: E85
Fluid Type: Bio-Fuels
Fluid Type: Pump Gas
Fluid Type: Race Gas
Fluid Type Rating - Automatic Transmission Fluid: 5 out of 5 Rating
Fluid Type Rating - Bio-Fuels: 5 out of 5 Rating
Fluid Type Rating - Coolant: 5 out of 5 Rating
Fluid Type Rating - Diesel: 5 out of 5 Rating
Fluid Type Rating - E85: 5 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol: 5 out of 5 Rating
Fluid Type Rating - Oil: 5 out of 5 Rating
Fluid Type Rating - Pump Gas: 5 out of 5 Rating
Fluid Type Rating - Race Gas: 5 out of 5 Rating
Fluid Type Rating - Vacuum: 3 out of 5 Rating
Hose Family: UltraPro
Hose Length: 10 Feet
Hose Outer Material: Stainless Steel Braided
Hose Size: 12 AN
Inside Diameter: .646"
Max Vacuum: 28 in Hg
Max Working PSI: 500 PSI
Min. Bend Radius: 2.5"
Outside Diameter: .886"
part type: Fuel Hose
Product Type: UltraPro Stainless Steel Braided
Sub Category: Fuel Storage
Submersible in Fuel: Yes
Temperature Range: -67° F to 400° F
Warning: California Proposition 65
