Earl's Performance - 501ERL

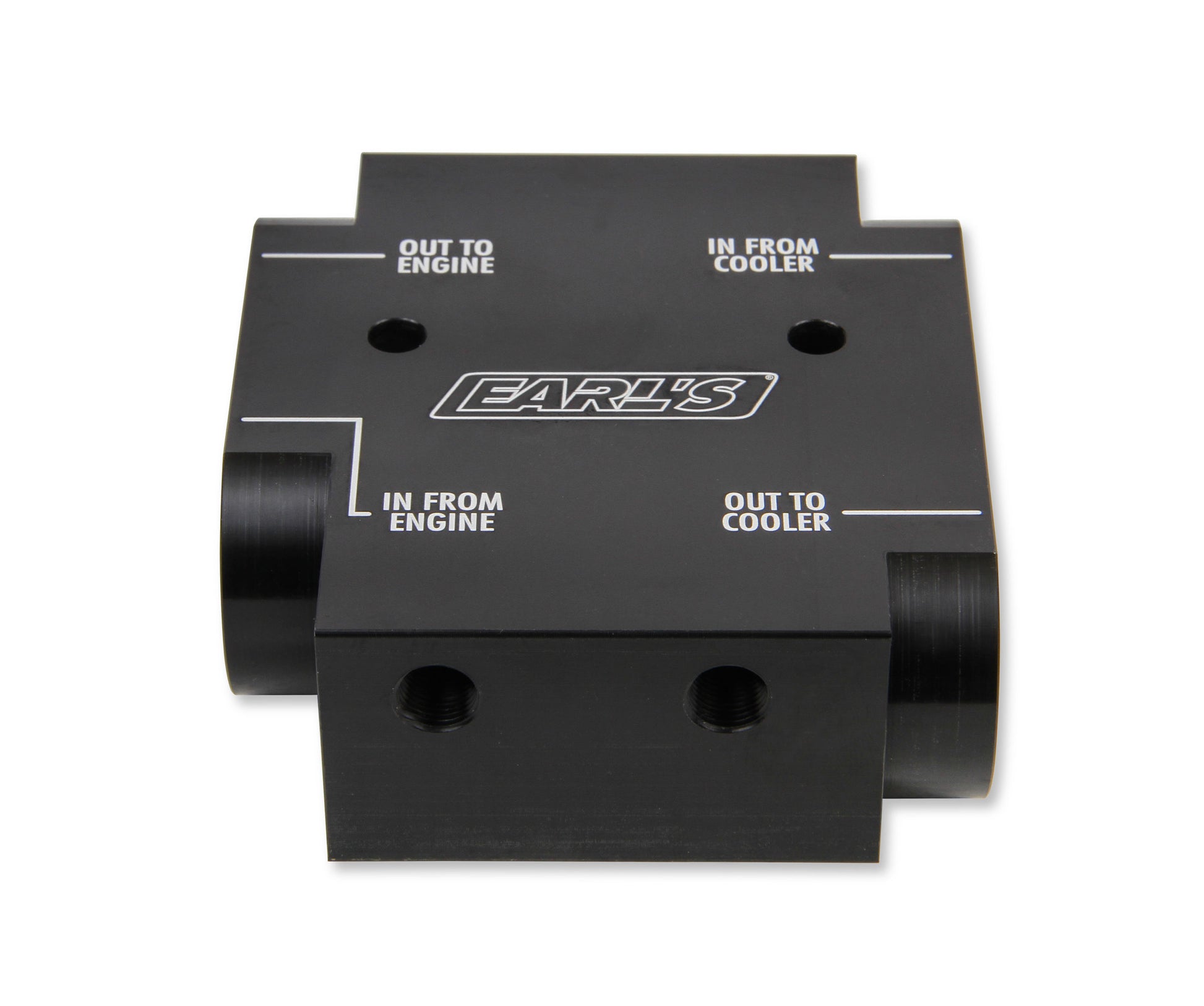

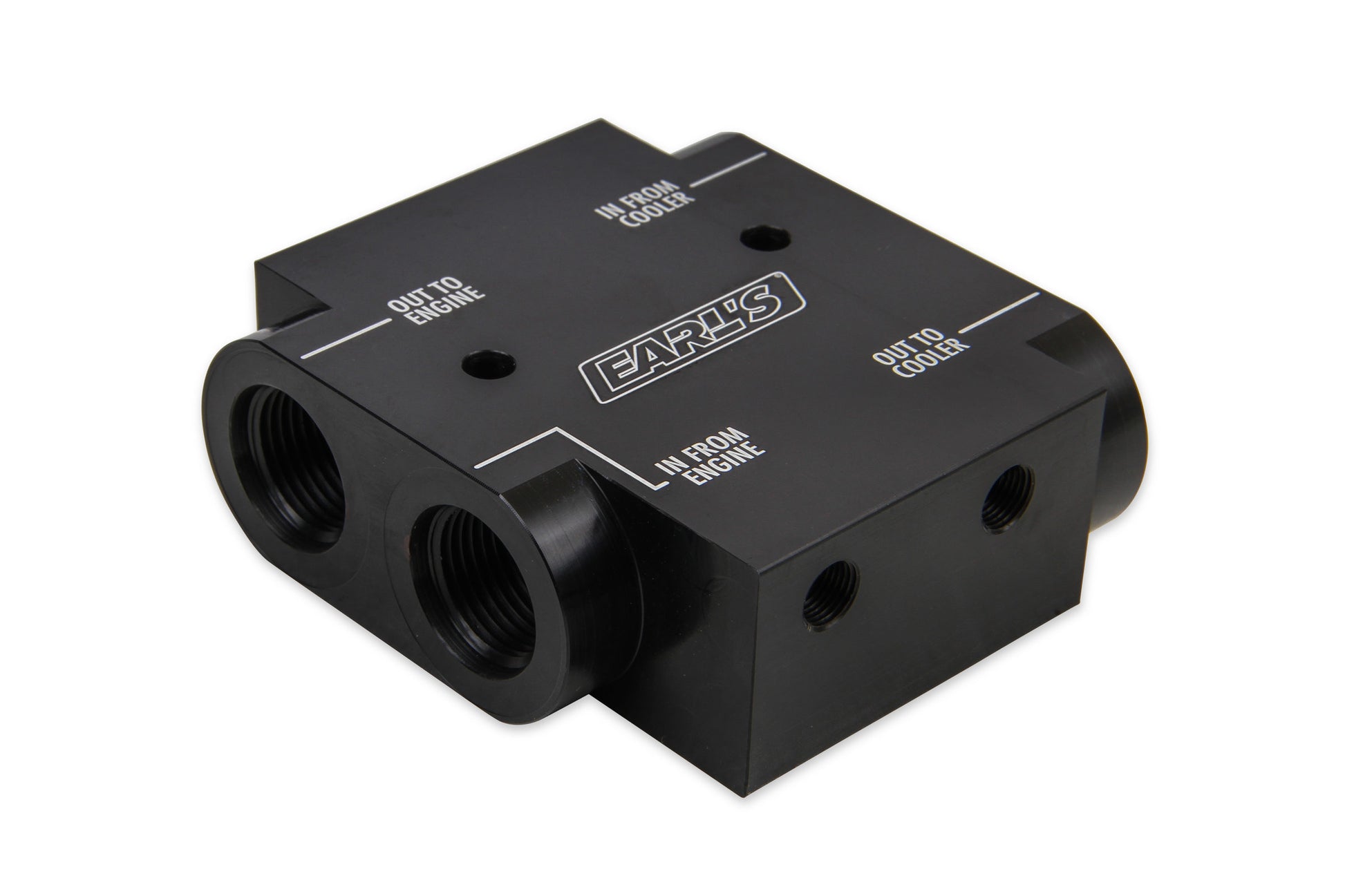

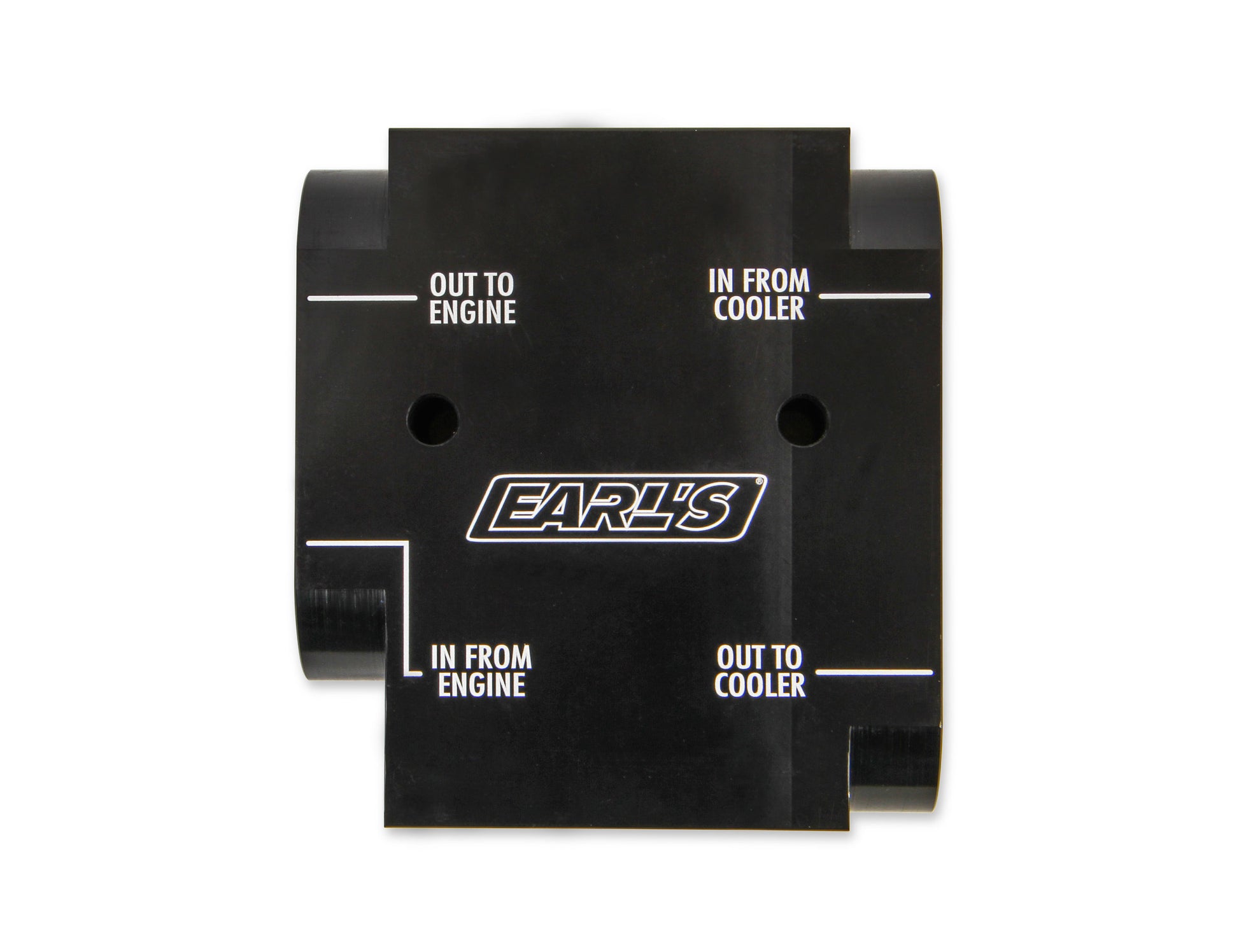

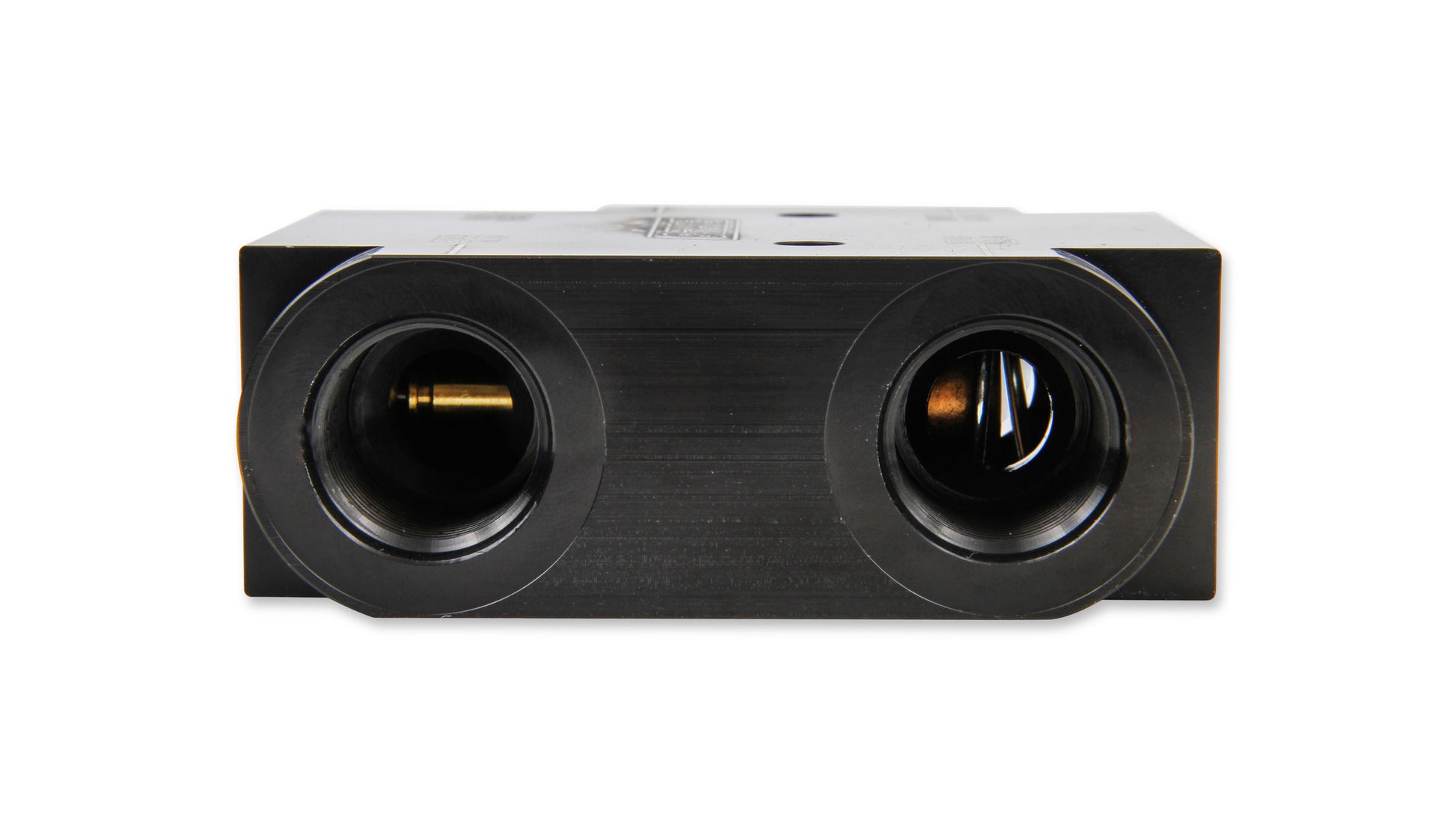

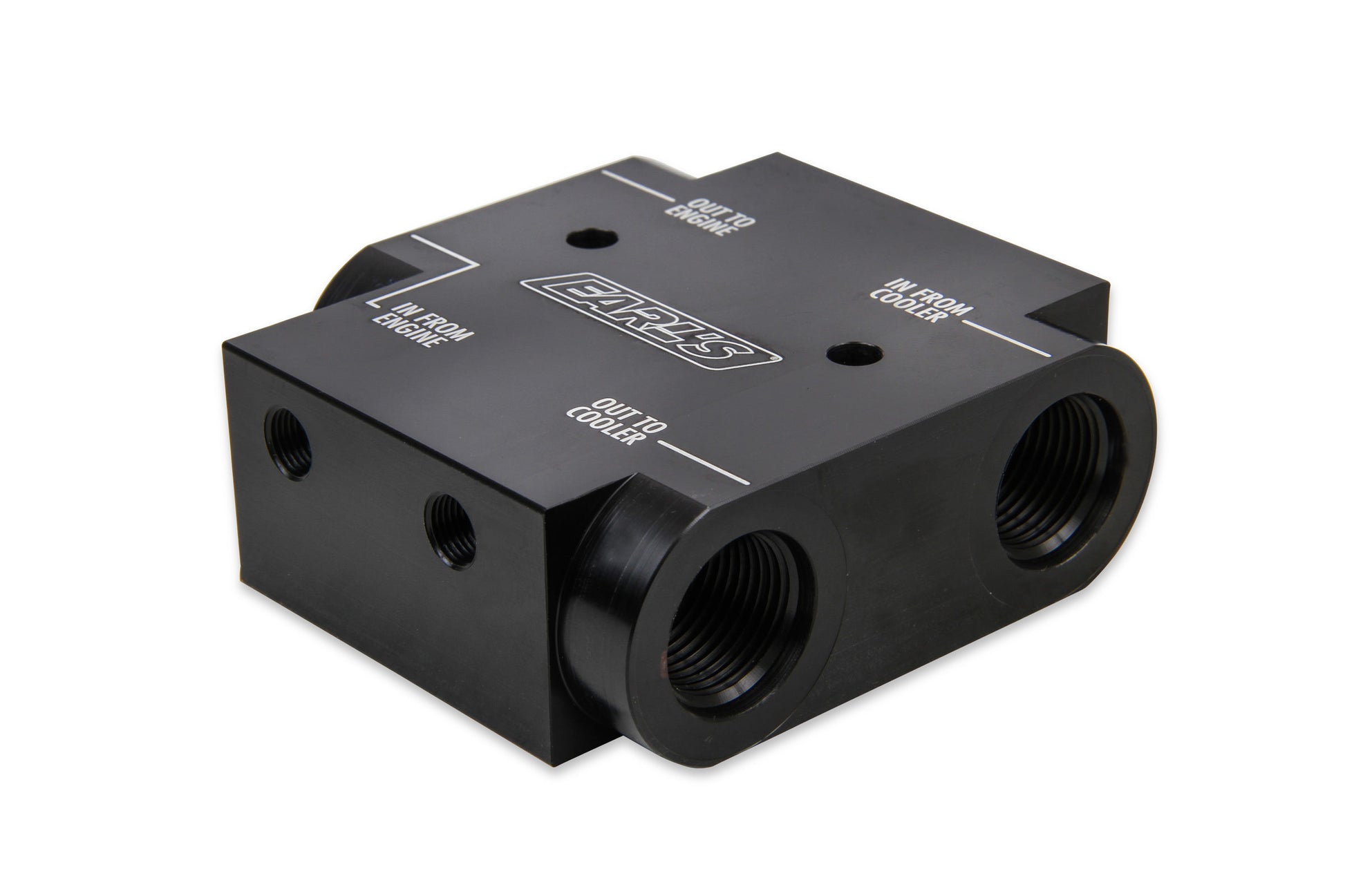

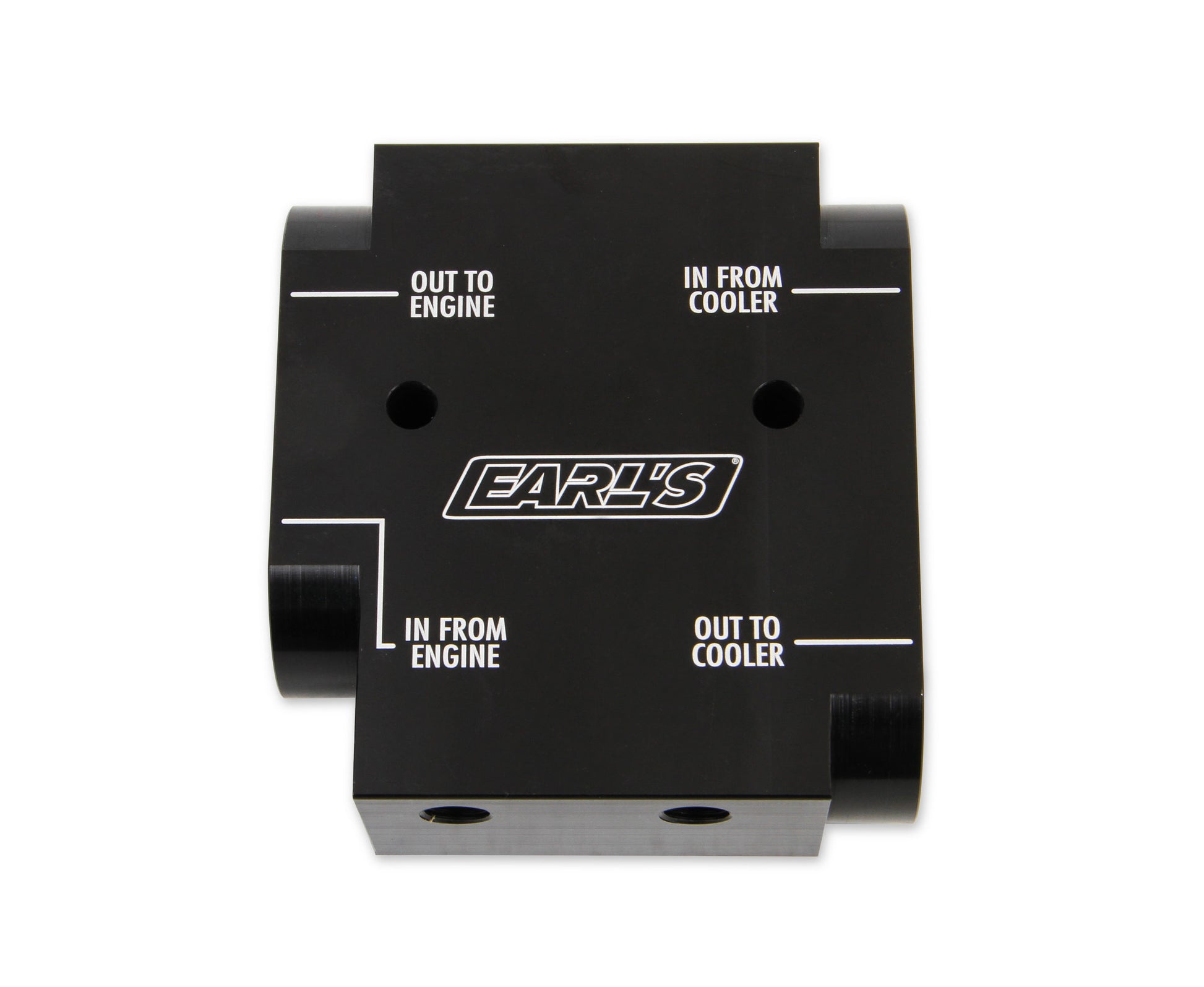

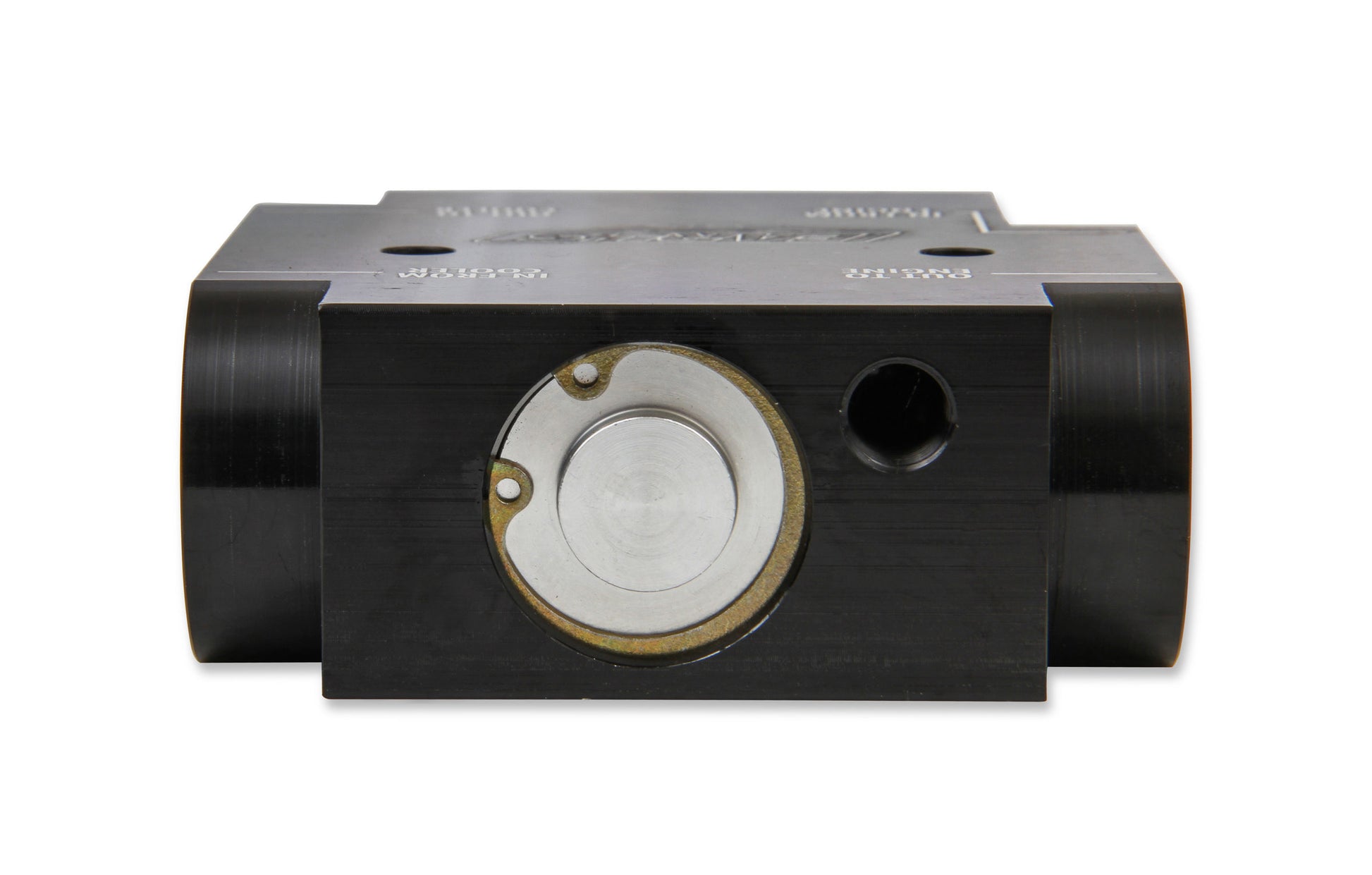

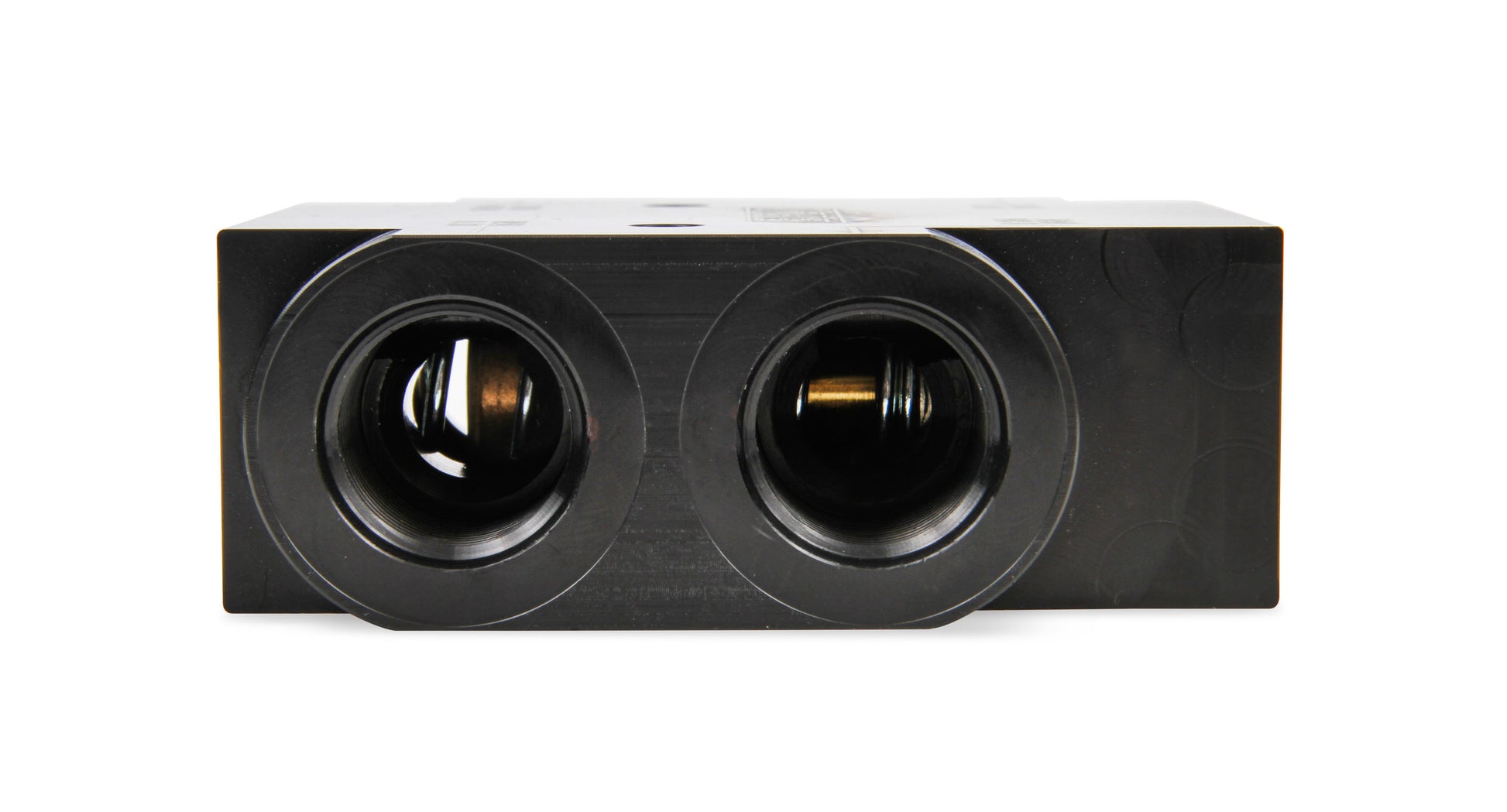

Remote Oil Thermostat - Dual 10 AN Female O-Ring Inlet - 10 AN Female O-Ring Outlet - 1/4 in Mounting Holes - Aluminum - Black Anodized - Each
Oil Thermostat; -10AN Female O-Ring Seal; Minimum 160 deg. F; Maximum 180 deg. F;

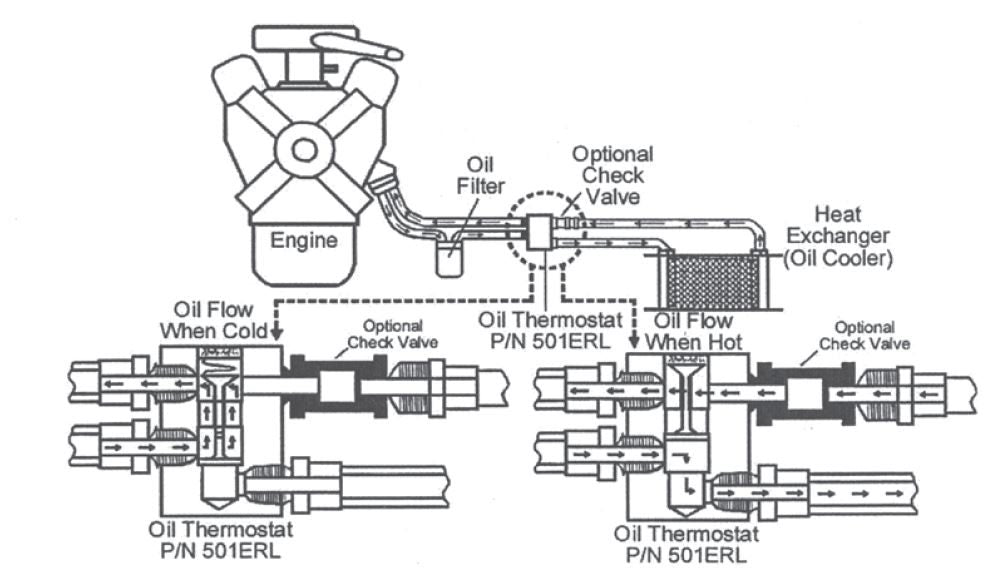

To insure quick warm up under cold weather conditions, use our oil–stat. This uniquely designed product controls oil temperature like a thermostat controls water temperature in a radiator. Designed for passenger car and light truck usage with Earl's temp-a-cure(TM) oil coolers. Billet 6061–T6 aircraft aluminum with three sensor ports.
- Billet Housing
- Allows Monitoring Of Oil Temp; Flow And Pressure
- Three Sensor Ports
- Thermostat Design
- Insures Quick; Controlled Warm-Up
Brand: Earl's
Category: Engine
Dimension: 4.000 By 4.000 Square by 1.375 Thick
Emission Code: 5
Finish: Anodized Black
Fully Open: 180 Degrees Farenheit
Material: Billet Aluminum
Mount Hole Diameter: 1/4 Inch
part type: Engine Oil Pump
Port Size: 7/8-14 Female (-10 O-Ring Boss)
Product Type: Oil Cooler
Sensor Port Thread: 1/8 NPT ( Three Total )
Starts to open: 160 Degrees Farenheit
Sub Category: Cylinder Block Components
Warning: California Proposition 65
