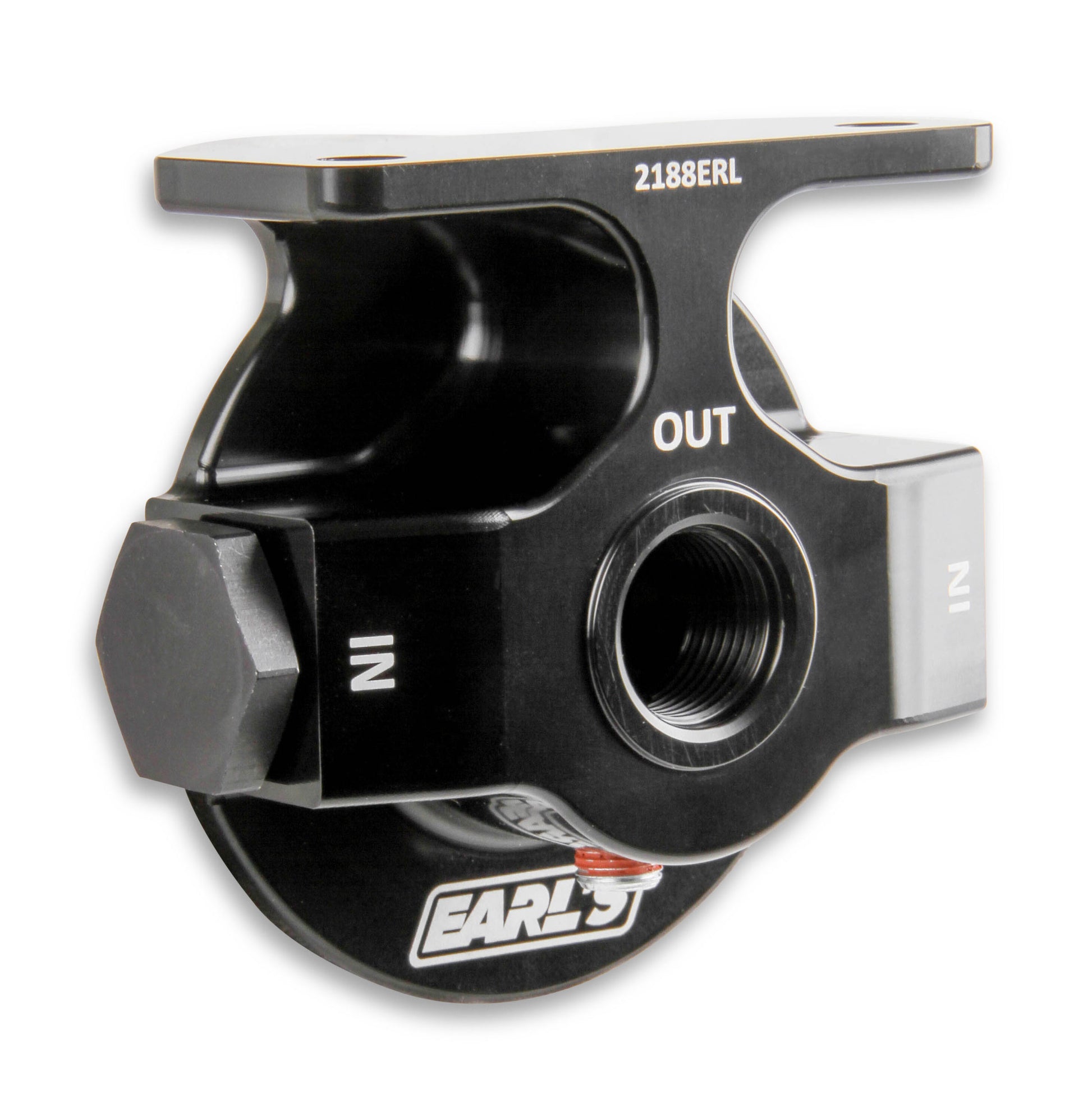

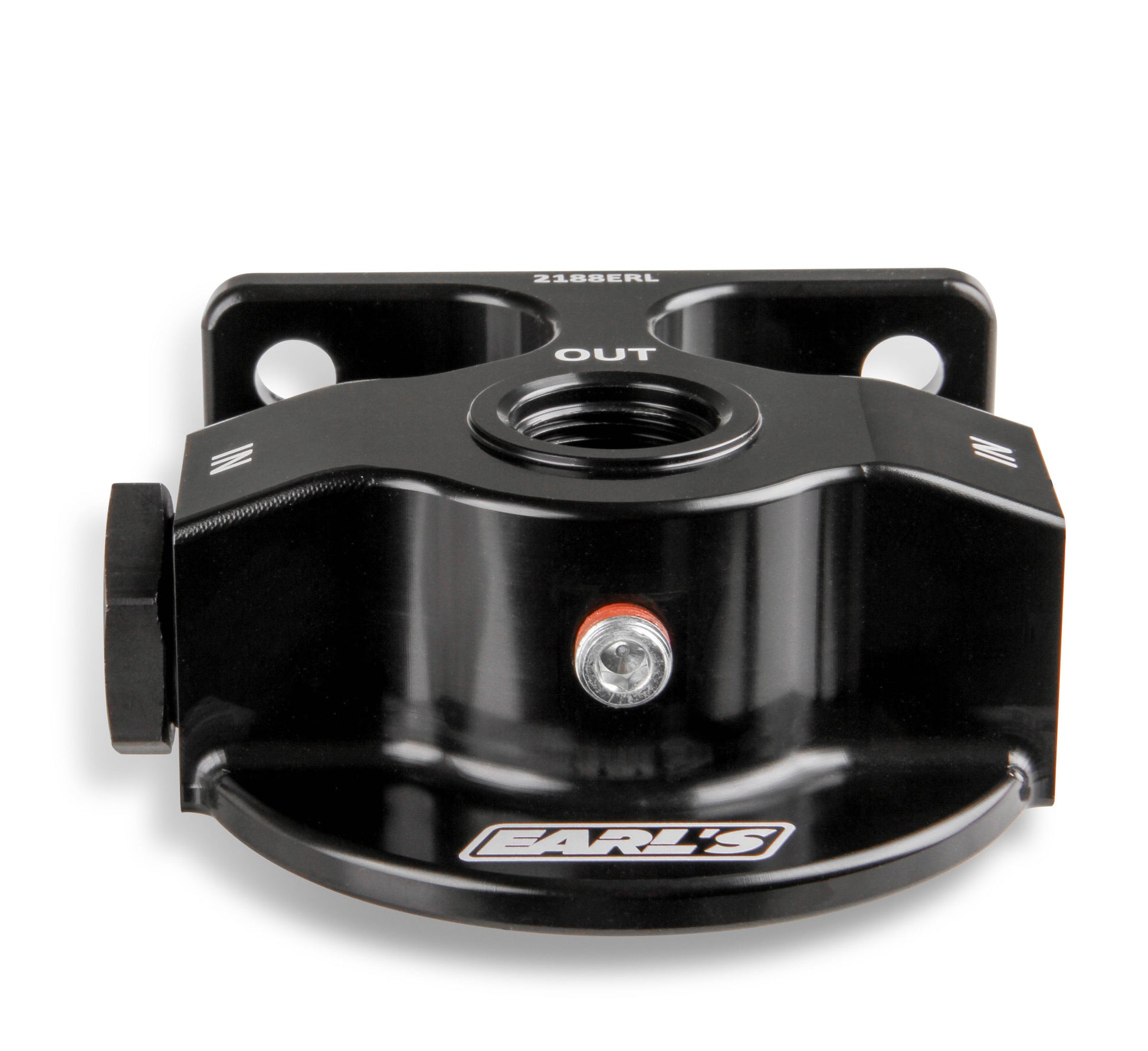

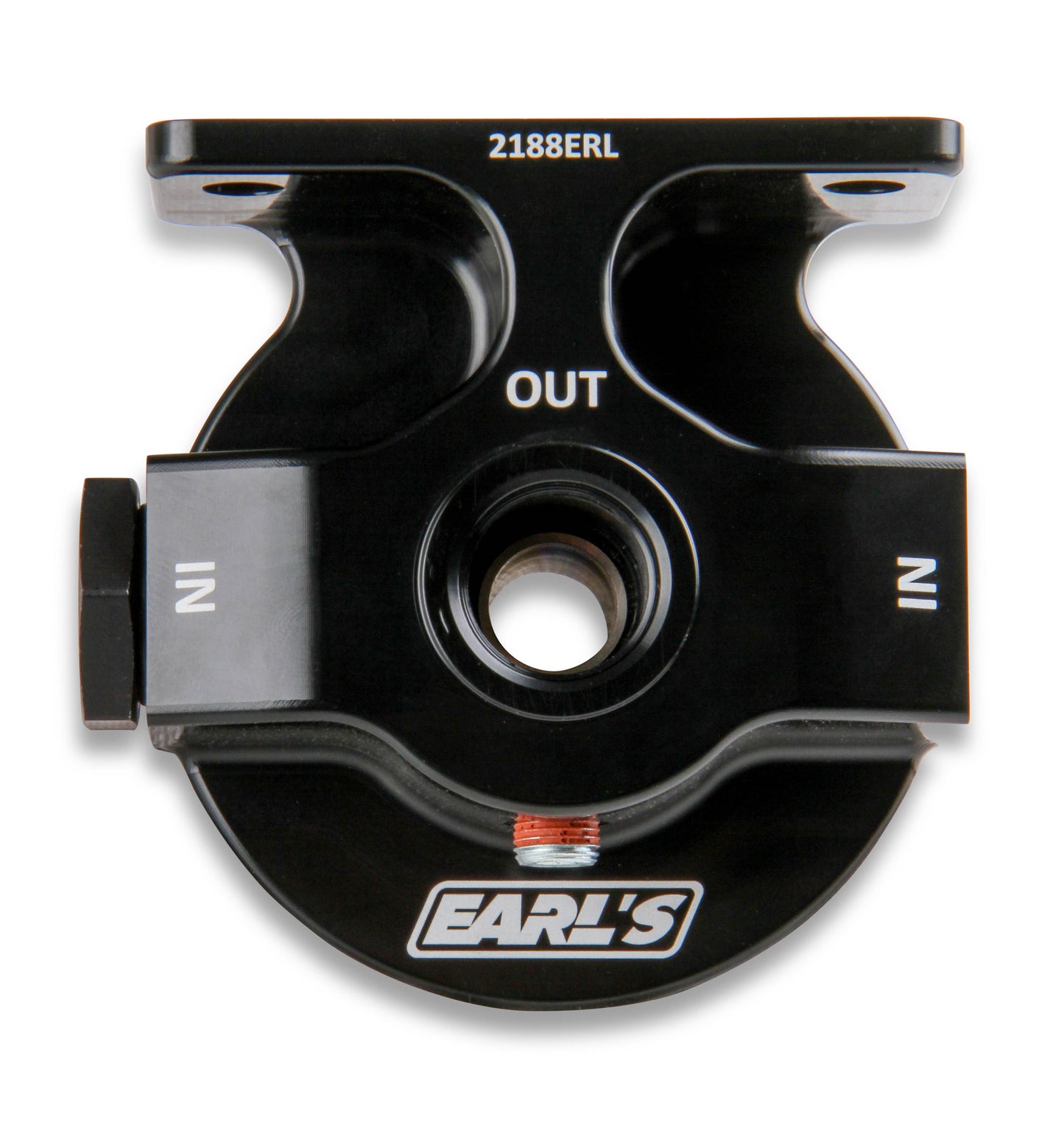

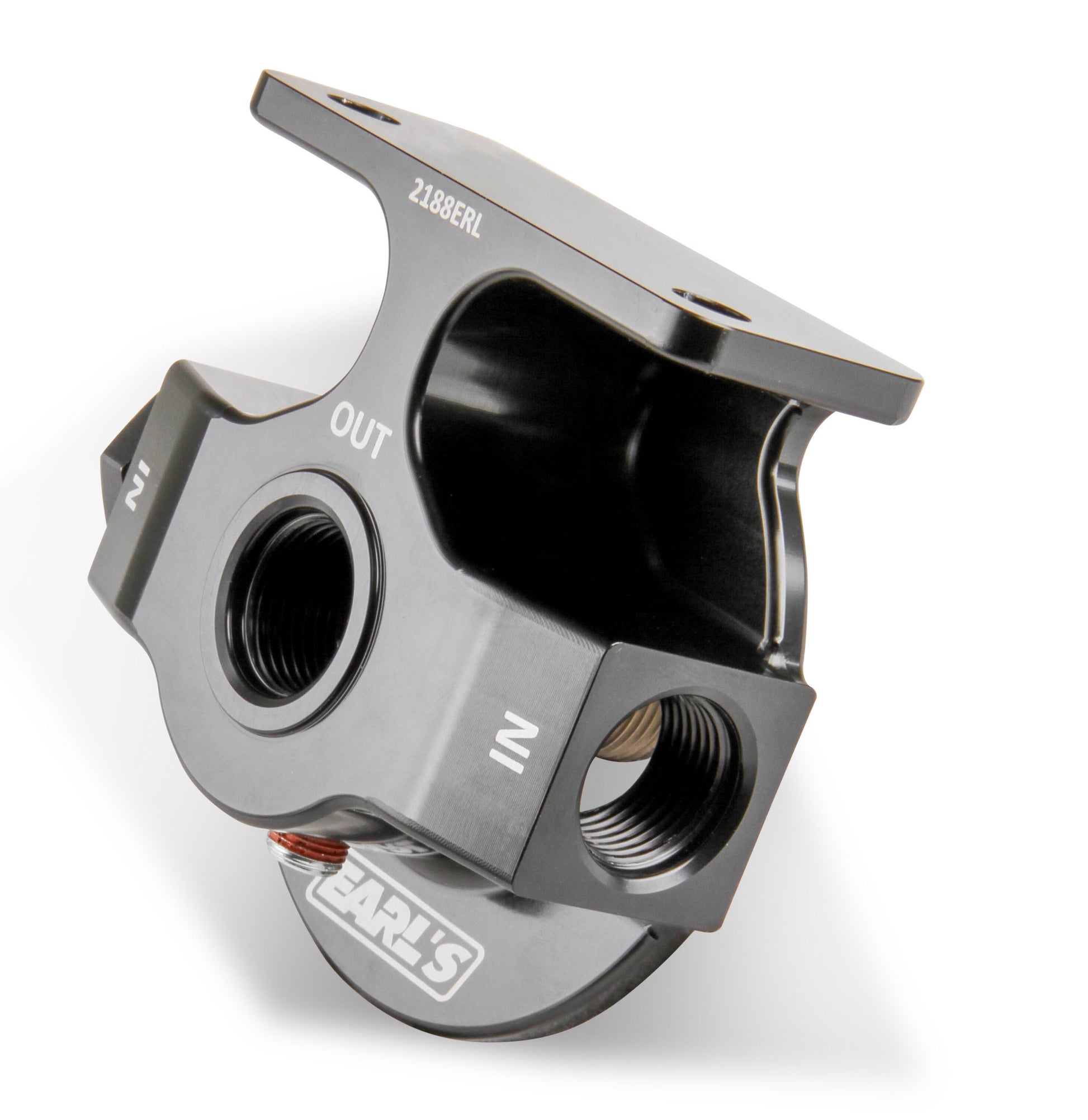

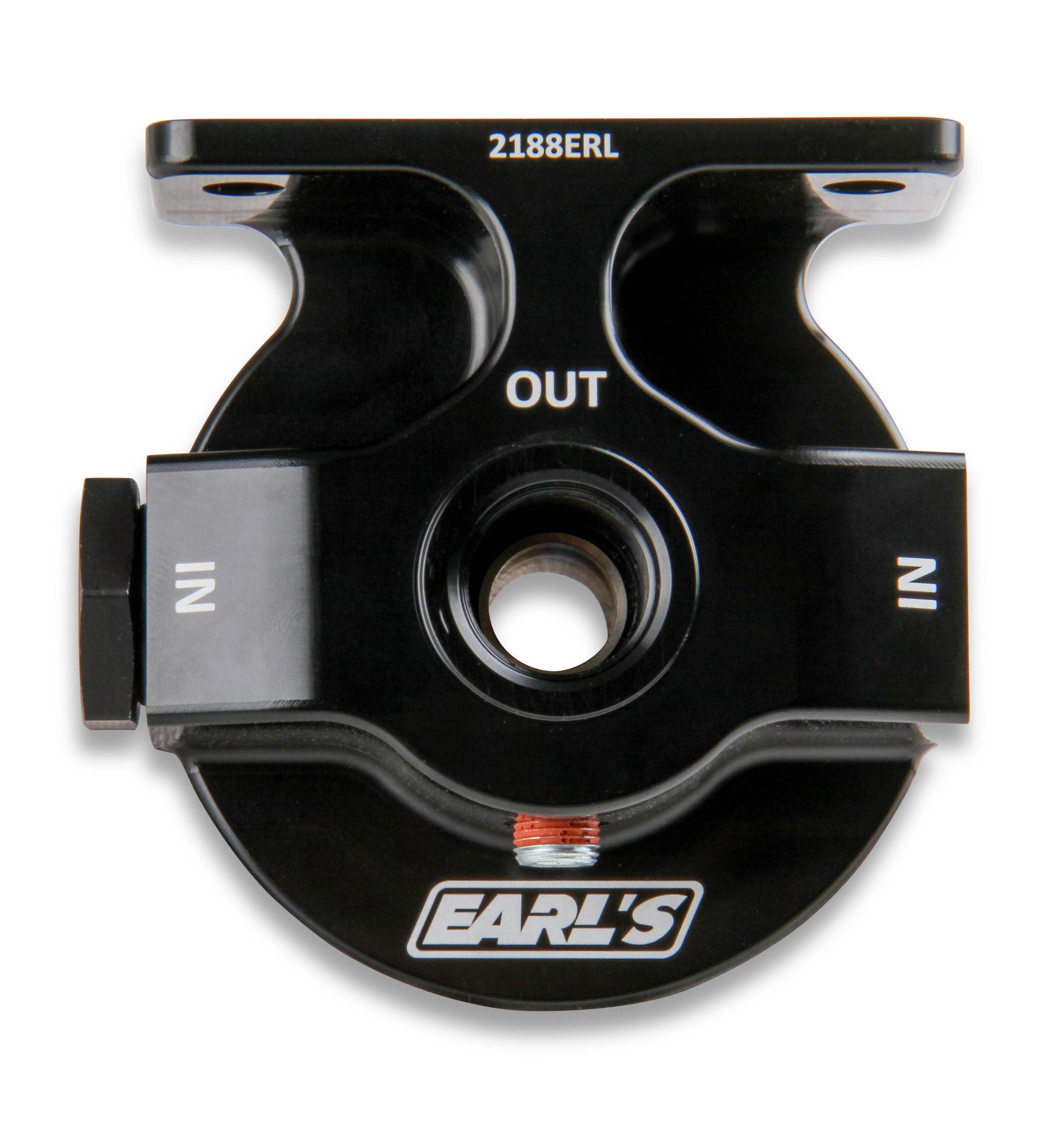

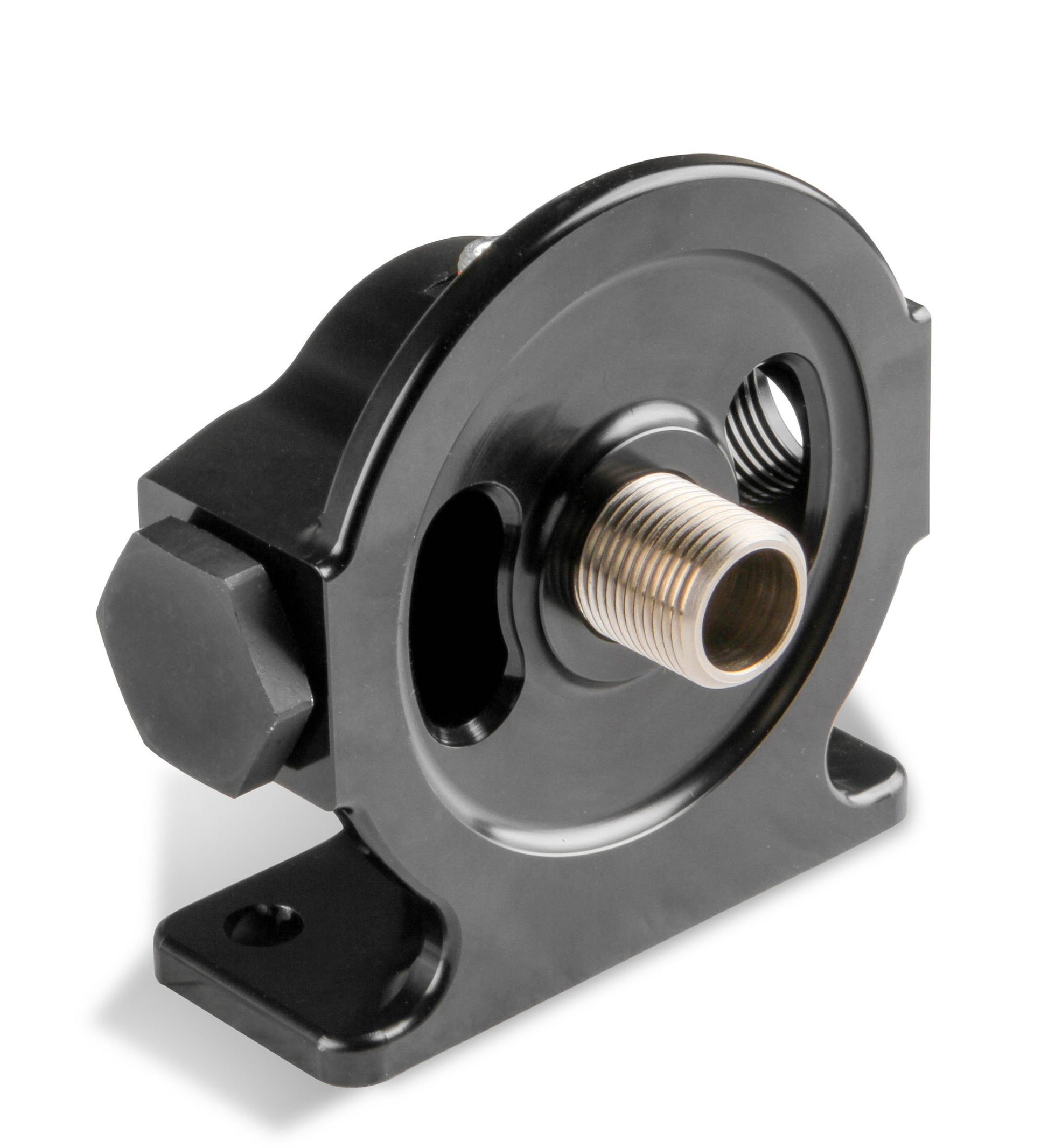

Earl's Performance - 2188ERL
Oil Filter Mount - Remote Mount - 10 AN Female Ports - 1/8 in NPT Port - 13/16-16 in Filter Thread - Aluminum - Black Anodized - Each
Billet Remote Oil Filter Mount Kit; 10AN O-Ring Ports; Fits Fram PH5 Or HP4 Oil Filters;
Move your oil filter to an easy to reach location with Earl's new Billet Remote Oil Filter Mount. This new filter mount features 10 AN O-ring ports, 1/8 in. NPT port, and dual inlets w/ top outlet for easy plumbing from either side. The kit includes the filter mount, plugs, and hardware. Lightweight aluminum with black anodized finish.
- Billet Aluminum
- 2-Bolt Mounting
- Inlet Ports On Both Sides For Easy Routing of Hoses
- Outlet Port On The Top
- Black Anodized
Brand: Earl's
Category: Engine

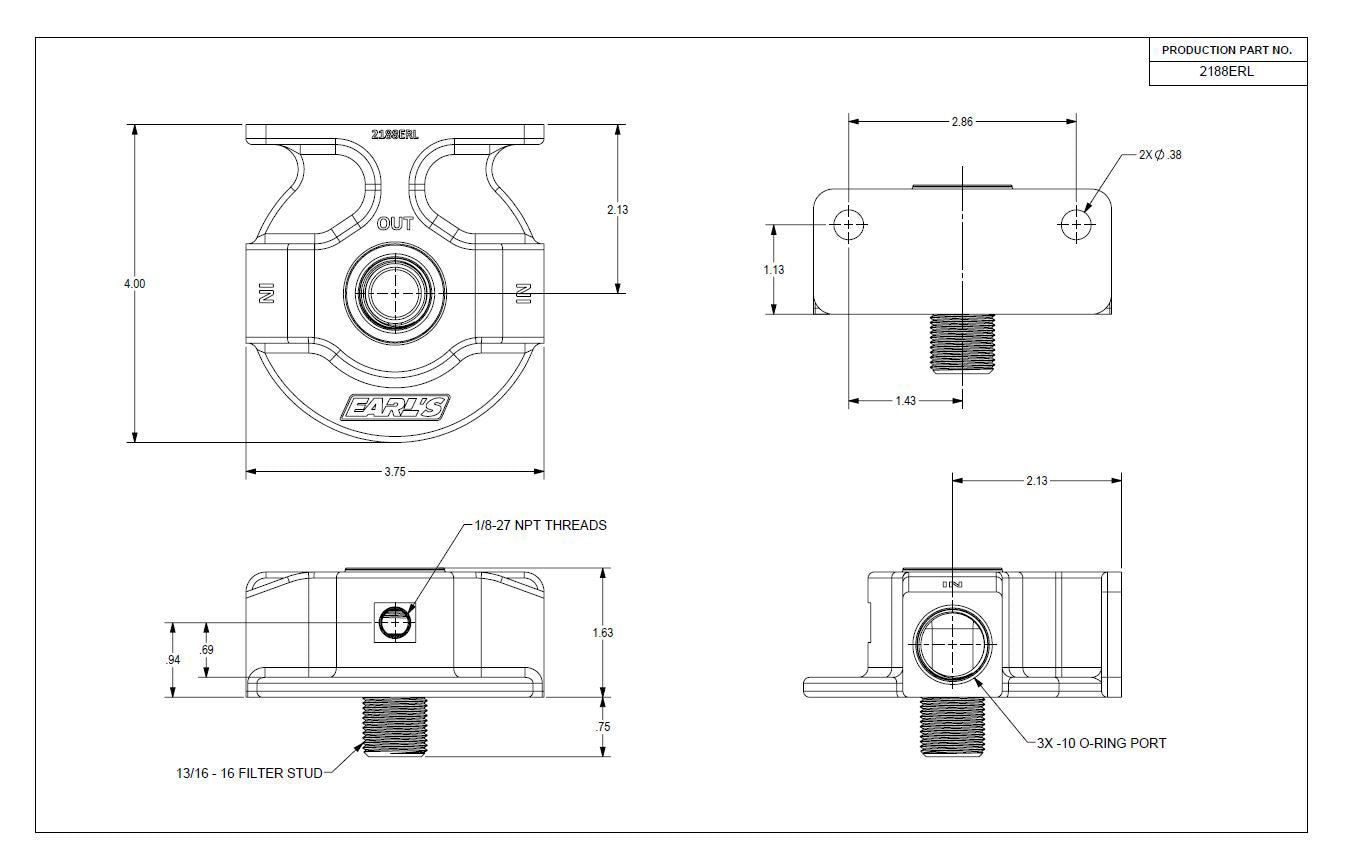

Center Stud Size: 13/16-16
Emission Code: 5
Filter Type: Fram PH5 or HP4 or Equivalent
Finish: Anodized Black
Height: 1.630"
Length: 4.000"
Material: Billet Aluminum
Mount Hole Diameter: 3/8"
Mounting Bolt Pattern: 2.860"
O-Ring Diameter: 3.185"
part type: Engine Oil Filter Remote Mounting Kit
Port Size: 7/8-14 Female (-10 O-Ring Boss)
Product Type: Oil Filter Mounts
Sub Category: Filters
Warning: California Proposition 65
Width: 3.750"
