Earl's Performance - 1200890ERL

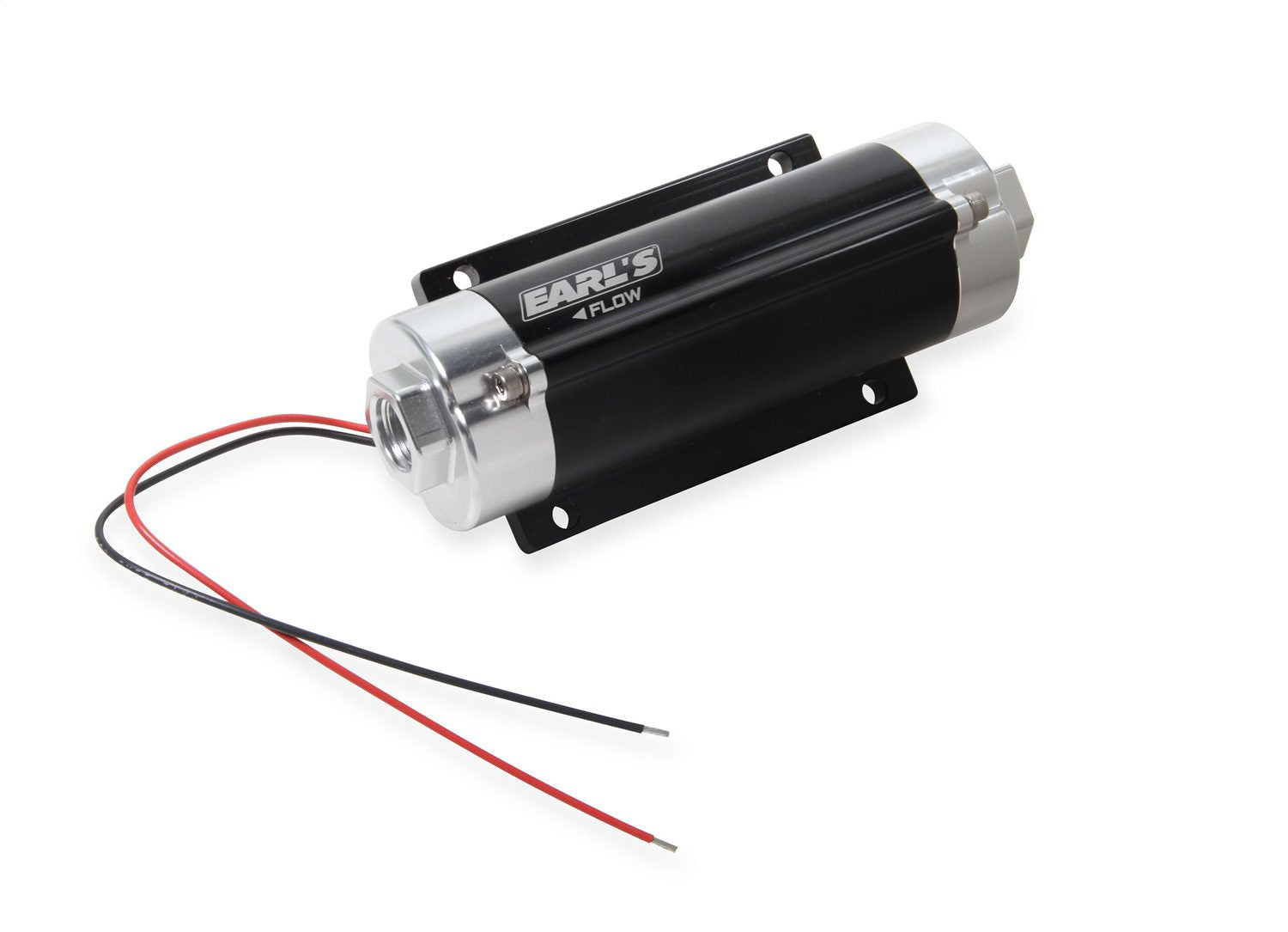

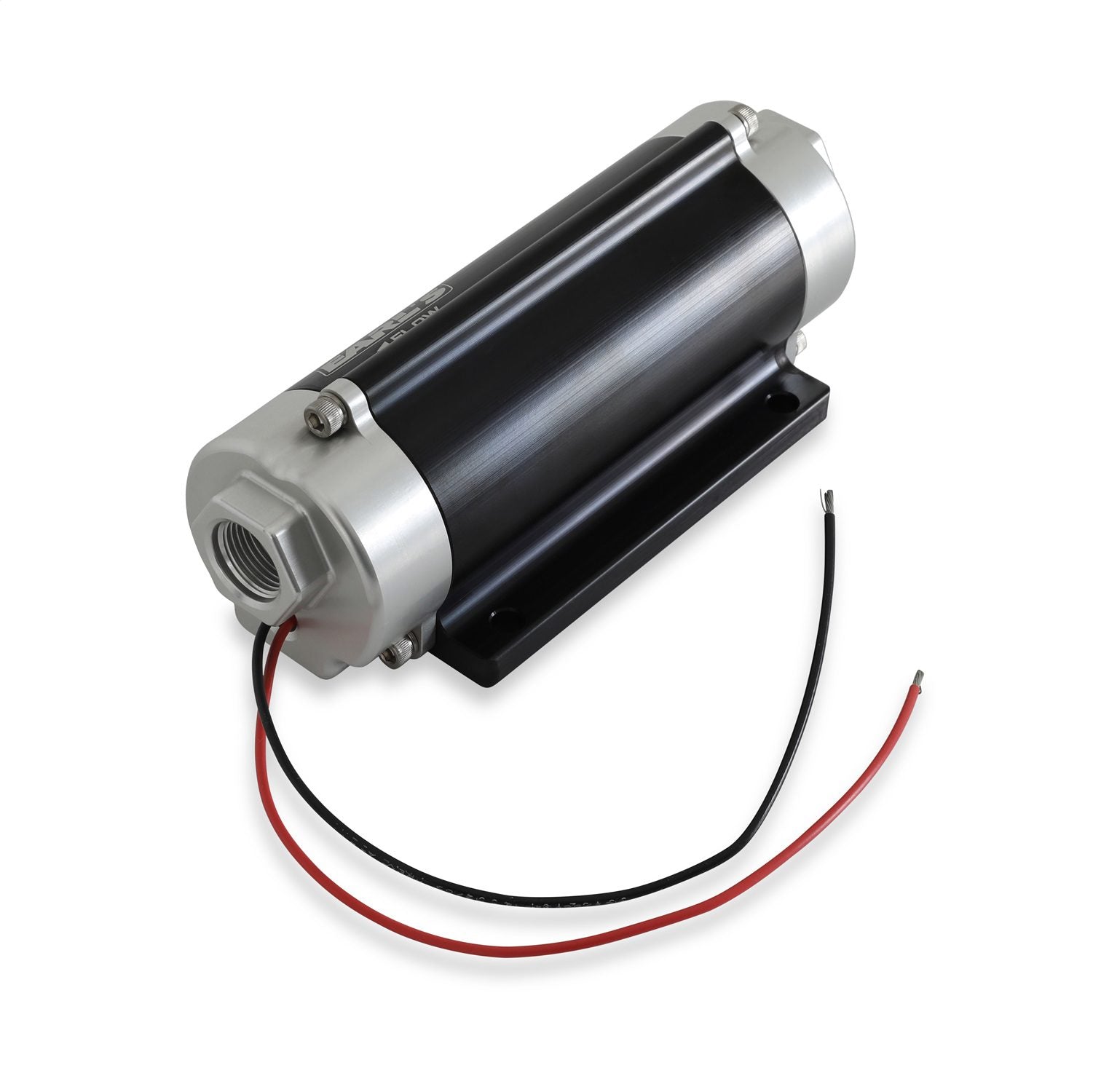

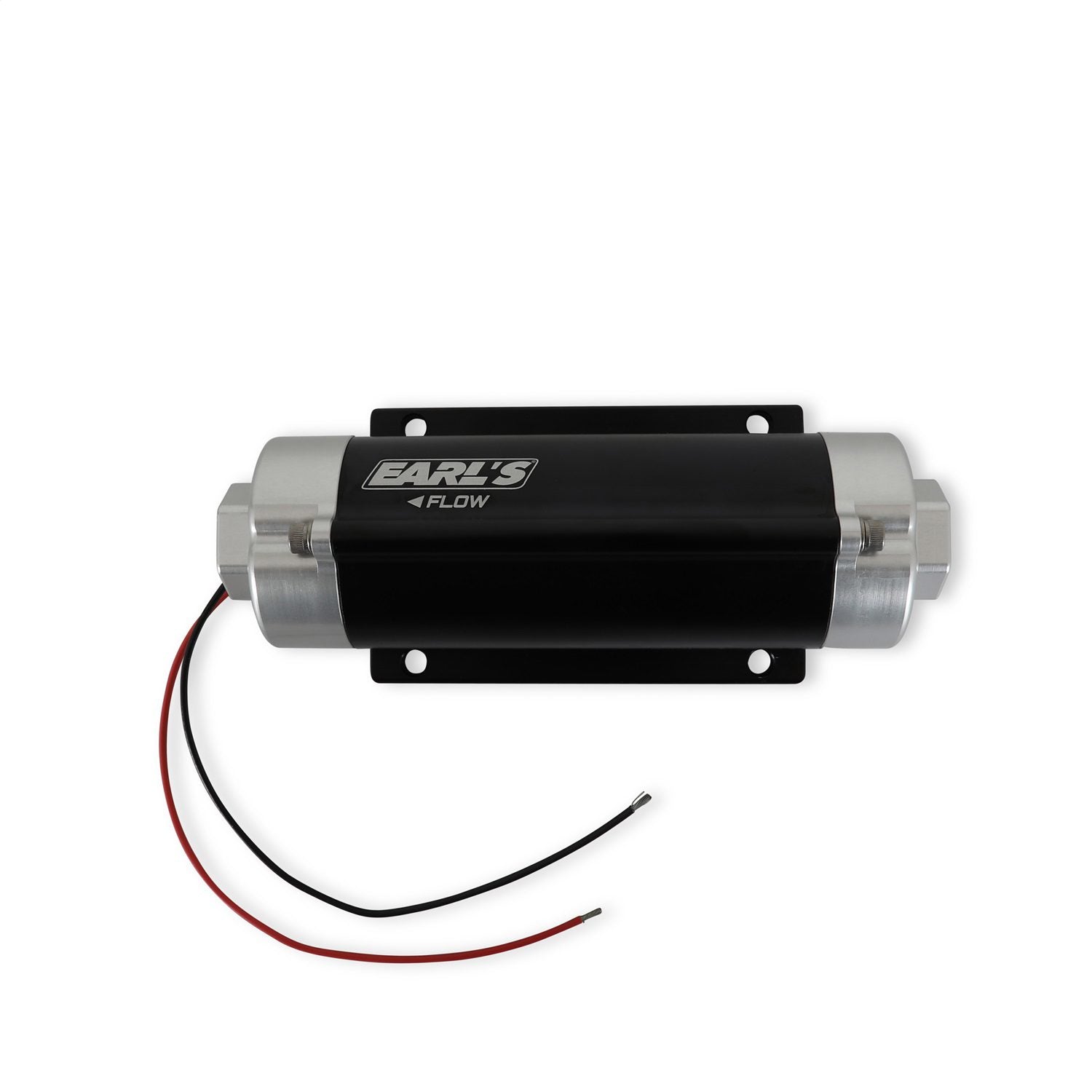

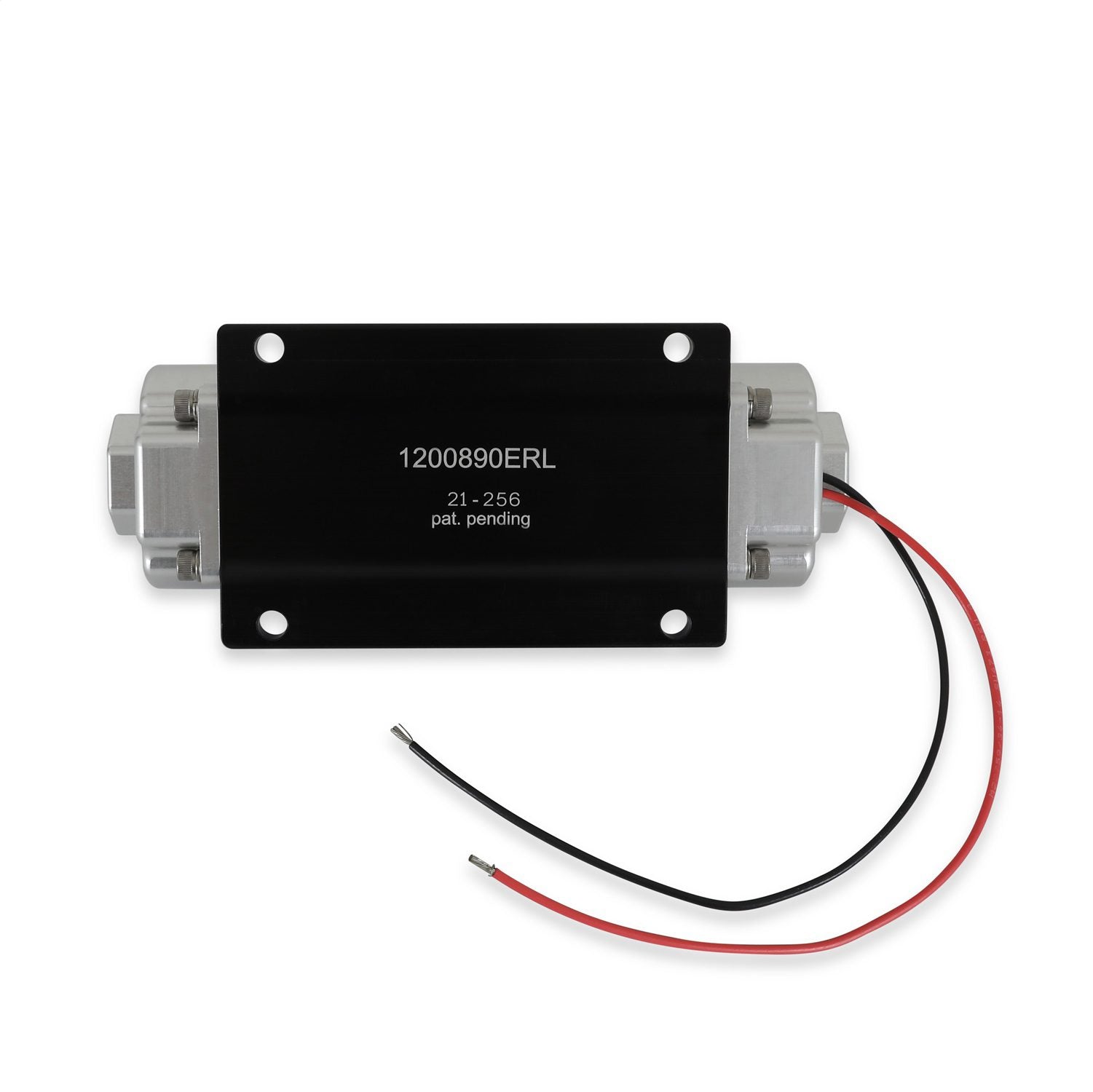

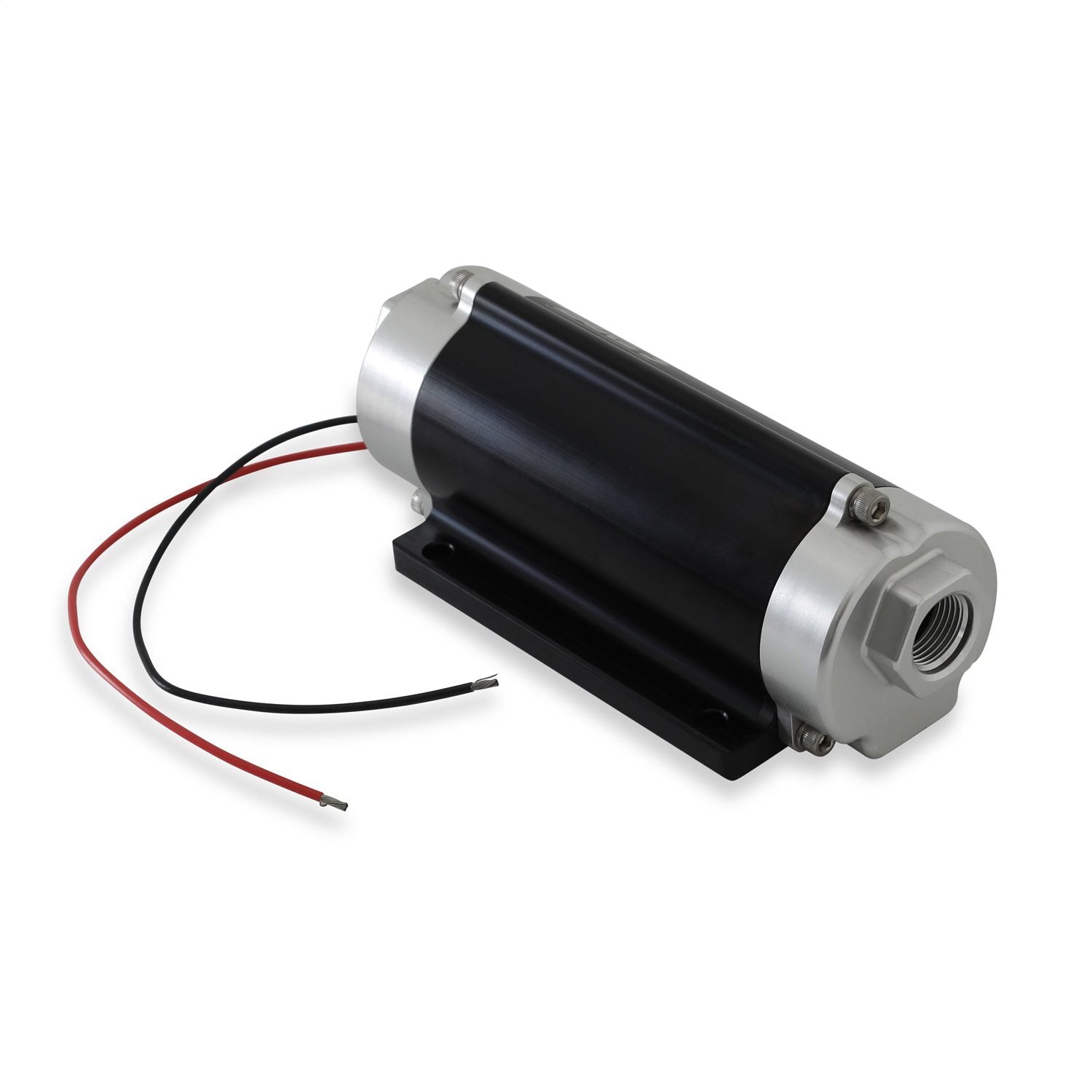

Earl's 100 GPH HP In-line Fuel Pump
In-Line Billet Fuel Pump; Carb/EFI; 100 GPH; -8AN Inlet/Outlet; 8.6 AMPS; HP; High Flow; Electric; Black; Billet; Bypass; Gasoline/Diesel/E85;
Earl's™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. HP™ fuel pumps are Race gas, E-85 and diesel compatible and can be used in racing applications with 18.5 volt charging systems up to 80 psi.
- Billet Construction
- AN O-Ring Ports
- Excellent For Use w/Carbureted/EFI applications
- Fully Submersible In-Tank For Custom Applications
- Space Savings And Less Plumbing
- Compatible w/12v To 18.5v Systems For Street Or Race Use
- Compact For Easy Installation
- Proven Durability Beyond 3000 Hours In Gasoline
- Weighs Only 3.1 lbs.
- 10 AMP Max Amp Draw
- Not For Use w/Aircraft Of Any Type
Application: Universal
Brand: Earl's
Category: Air and Fuel Delivery
Emission Code: 5
Forced Induction HP@43PSI: 700
Forced Induction HP@60PSI: 600
Forced Induction HP@8PSI: 800
Fuel System: Carbureted
Fuel System: EFI
Fuel Type: E85
Fuel Type: Gasoline
Fuel Type: Diesel
GPH@43PSI: 76
GPH@60PSI: 70
GPH@8PSI: 100
Inlet Size: 8 AN O-Ring - 3/4-16 SAE
LPH@43PSI: 287
LPH@60PSI: 265
LPH@8PSI: 363
Material: Aluminum
Naturally Aspirated HP@43PSI: 900
Naturally Aspirated HP@60PSI: 800
Naturally Aspirated HP@8PSI: 1050
Outlet Size: 8 AN O-Ring - 3/4-16 SAE
Product Type: Fuel Pump
Pump Body Color: Black Anodized
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
