Eagle - CRS6657F3D
Connecting Rod - H Beam - 6.657 in Long - Bushed - 3/8 in Cap Screws - ARP2000 Bolt - Forged - Steel - Ford Modular - Set of 8

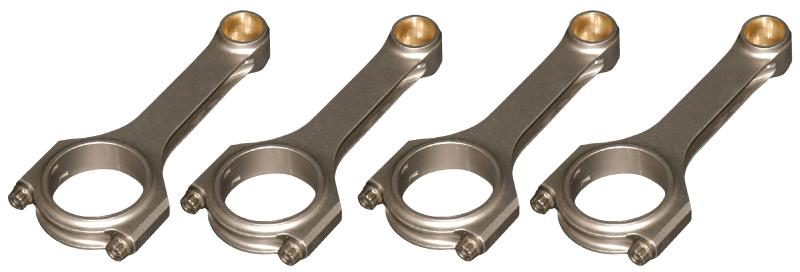

Forged 4340 Steel H-Beam Rods - Ford 5.4L MODULAR V8.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
Big End Width: 0.937 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.657 in
Housing Bore: 2.238 in
Length Center Bore To Center Bore: 6.657
Material: Forged 4340 Steel
Pin End Width: 0.939 in
Pin Size: 0.866 in
Rod Journal: 2.086 in
